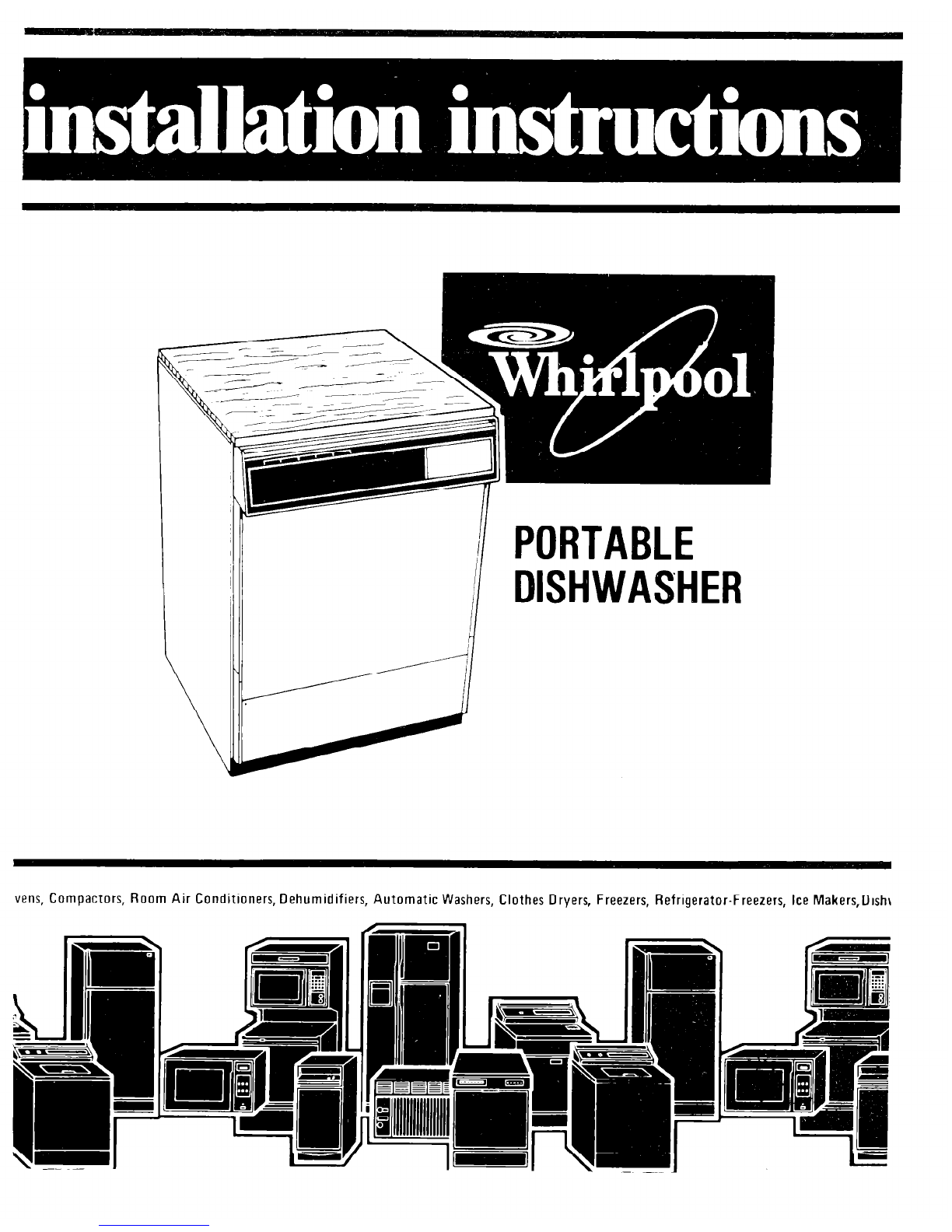

PORTABLE

DISHWASHER

vens, Compactors, Room Air Conditioners, Dehumldlflers, Automatic Washers, Clothes Dryers, Freezers, Refrigerator-Freezers, Ice Makers,Dish\

INSTALLATION PROCEDURE

Before You Begin.. a

I. (‘aster Installation and

Removal of’ Materials From

Interior

Gstf;:s are supplied rn tile loose parts bag inside

the c!lsllwasher tub.

Lay tile dishwasher on its back using 2 corner posts

to prevent paint scratching. The corner posts should

be [)laced as shown in Figure 1

Remove tile bottom pad

Insert casters into mo:lntlng holes as shown in

Figure 2.

Stand the dishwasher upright and then remove the

I,acking rndterials, Customer Literature Package, and

faucet ;jcl;ll)ter kit from the dishwasher.

After ,llst,tllation has been coml)leted, discard the

~Jxkrnq rliaterlals. Piace tile Customer Literature

P,jckage and this InstallatYon Ir!struction on the top

of the dishwasher so th;lt they are readily available

to the customer.

2. Faucet Adapter Kit

Installation

Remove screen holder or aerator from faucet spout

if one is present. (See Figure 3.)

If ‘yo111.f;iiicet

spout

has vxxternal threads, screw the

,lti,lrltt:r iron1 [he

Fauce!

Adapter t<lt directly onto

ti?e l;iuci:t. If your fauce: spout has internal threads,

fir-st i:rst;!lI the threaded hushing and rubber washer

front thu iducet Adapter Kit onto the faucet. then

ii>st:;ll the adapter onto the tbushing as shown ~II

F I

r&i ii

RUBBER WASHER

AND THREADED

BUSHING (FOR

FAUCETS WITH

INTERNAL

THREADS)

For other type faucets, see your dealer for special

type adapter kits.

NOTE: If dishwasher is attached to a faucet

equipped with a spray hose attachment,

walc’r pressure is applied to the spray hose.

To prevent possible failure, the spray hose

should be permanently disconnected or rep

placed with a good quality reinforced hose.

3. Electrical Requirements

A 120 Volt, 60 Hz, AC only, 15 Amp (20 Amp

171ilxir1ldl~~~

fused electrical supply is required.

(TII-ne rielay fuse is recommended.) It is recom

nlentle[l tt:,rt a separate circuit serving only this ap-

l)l~;~nce !~e provIdeO. DO NOT

LISC

an extension

coral Se[> Figure 5.

Electrical ground is required on this appliance.

Keconmended Grounding Method

DO NOT, UNDER ANY CIRCUMSTANCES,RE-

MOVE THE POWER SUPPLY CORD GROUND

PRONG.

For your personal safety, this appliance must be

grounded. This appliance is equipped with a power

supply cord having a 3-prong grounding plug. To

minimize possible shock hazard it must be plugged

into a mating 3-prong grounding type wall recep-

tacle, grounded in accordance with the National

Electrical Code and tocat codes and ordinances.

If a mating wall receptacle is not available, it is the

personal responsibility and obligation of the cus-

tomer to have a properly grounding 3-prong watt

receptacle installed by a qualified electrician. See

Figure 6.

m ~-~~%:ING TYPE

WALL RECEPTACLE

3-PRONG

GROUNDING

POWER SUPPLY

CORD

-1. Fmcet Conntdion

NOTE: Mininlurn ‘~.lax~rnurrl water pressure

r:: :dircjl?ierits are 15 PSI to 120 PSI.

0 T.lrn water off.

c. Use tiie ring til 111111hoses out of storage

cornpariment 011 /lack of dishwasher.

(;. AtLach the ties? connector to the faucet by

pulling

down on the locking collar and lift

tny up on the connector until it

snaps into

place on the faucet adapter. Release the

locking collar. See Figure 7.

e. Turn the

hot

water on slowly to the full

open

position

After the dishes are washed:

a, Turn hot water OFF. (This may be done

during the dry cycle.)

b. Press the red button on the connector to

release water pressure. See Figure 8.

c. Grasp hose connector and lift up slightly.

d. Move the locking collar down and pull down

on the connector.

c. Empty any rem,jlning water from the con-

nector

f. Push hoses into storage cotnpartment.

~_--~- -__

PUSH COLLAR

AND SLIP FAUCET

CONNECTOR ONTO -4

THE FAUCET

ADAPTER

BUTTON

Operational Test

Spin spray arm to check movement.

0 Start Dishwasher.

0 Check for leaks - particularly around door,

pump mounting gasket, and at hose connections.

0 Check water level -- water should just cover the

round heater element. .

0 Check for complete drain - no water should be

visible above grate when drain is complete.

If Dishwasher Won’t Run, or

Stops During Cycle.. .

Before Calling for Service,

Check These Points:

1. Is door tightly closed and latched securely?

2. Has cycle been correctly set to start dishwasher?

3. Is water turned on?

4. Is electric cord plugged In?

5. Has house fuse blown?

6. Has electrical power been interrupted?

7. If motor has stopped because of overload,

it will automatically reset itself within a few

minutes.

NOTE:

To convert a front loading portable

dishwasher Into a built-in model, contact

your Whirlpool appliance dealer. Conversion

Kit No. 569056 is available through hirr to

facilitate the installation.

Instructions for Changing Color in Front

Panel Pack

For Models

Equipped

Remove Side Trim

NOTE: Either side trrn may be removed to

change color in the Front Panel Pack.

STEEP 1. Remove the tb’:o screlvs that fasten the

side trlrn to the door frarrle. See Figure 9.

STEEP 2. Open the door <Ibout half way, then slide

the trim downward until the upper edqe is free of

the console or end cap (about l/4”)

STEEP 3. Next lift off the <lde trinl.

Change Front Panel

STEP 4. Slide the panels sideways until they are

clear of the groove in the underside of the console

and the lower trim strip of the door. See Figure 9.

NOTE: There is a corrugated (cardboard)

spacer behind the panels that should be left

place.

STEEP 5. Select the color

VOLJ

wash to have showing.

INSERT SIDE

TRIM BOTTOM

FIRST

Reinstall Panel Pack

and Side Rims

STEP 6. Position the panels so that upper edge of

the panels fits into the groove on the underside of

the console, and the lower edge of the panels fit

into the lower door trim. See Figure 9.

STEP 7. Slide the panels back into place, making

sure the cardboard spacer is in place in the door

assembly.

It may be necessary to gently push on the surface

of the panels so they will fit under the edge of the

side trim that is still in place. See Figure 10.

STEP 8. Slide the lower end (with cutout) of the

side trim downward until the upper edge will fit

under the lower edge of the console end cap. Next

slide the side trim upward until it is secure. See Fi-

gure 10. Make sure the panels are in place before

installing the side trim.

STEP 9. Posrtron the side trim so the two moun

ting holes in the side trim align with mounting

holes in the door frame.

STEP 10. Install the two mounting screws in the

side trim.

Part No. 303312 Rev. A

Maktng your world a little easier

IP rhe euenr your WHIRLPOOL appliance should need service. call rhe dealer from whom you purchased

rhe appliance or a WHIRLPOOL franchtsed TECH~CARE L service company. He 15 ,n rhe Yellow Pages of your

Telephone d~recrory listed under “Appliances Household~Ma]or~Servlce and Repair.” You can also obtain his

name and number by dlallng, free, wirhln the contlnenral Unlred States rhe Whfrlpool COOL LINE& Service

(8001 253 1301 When calling from Mtchlgan, dial 1800) 632.2243. from Alaska or Hawail, dfal (8001 253 1121.

Dual 1~s~ as you normally dial long distance A special operafor will fell you rhe name and number of your

nearesf Whirlpool TECH CARt st?rwce outlet During normal workfng hours. WhIrlpool tonsul~ants ar

rhls same number WIII also answe’ any questions about operaring or mainralmng your appliance GOT covered

in your Use and Care Gutde

PrInted in U.S.A.
