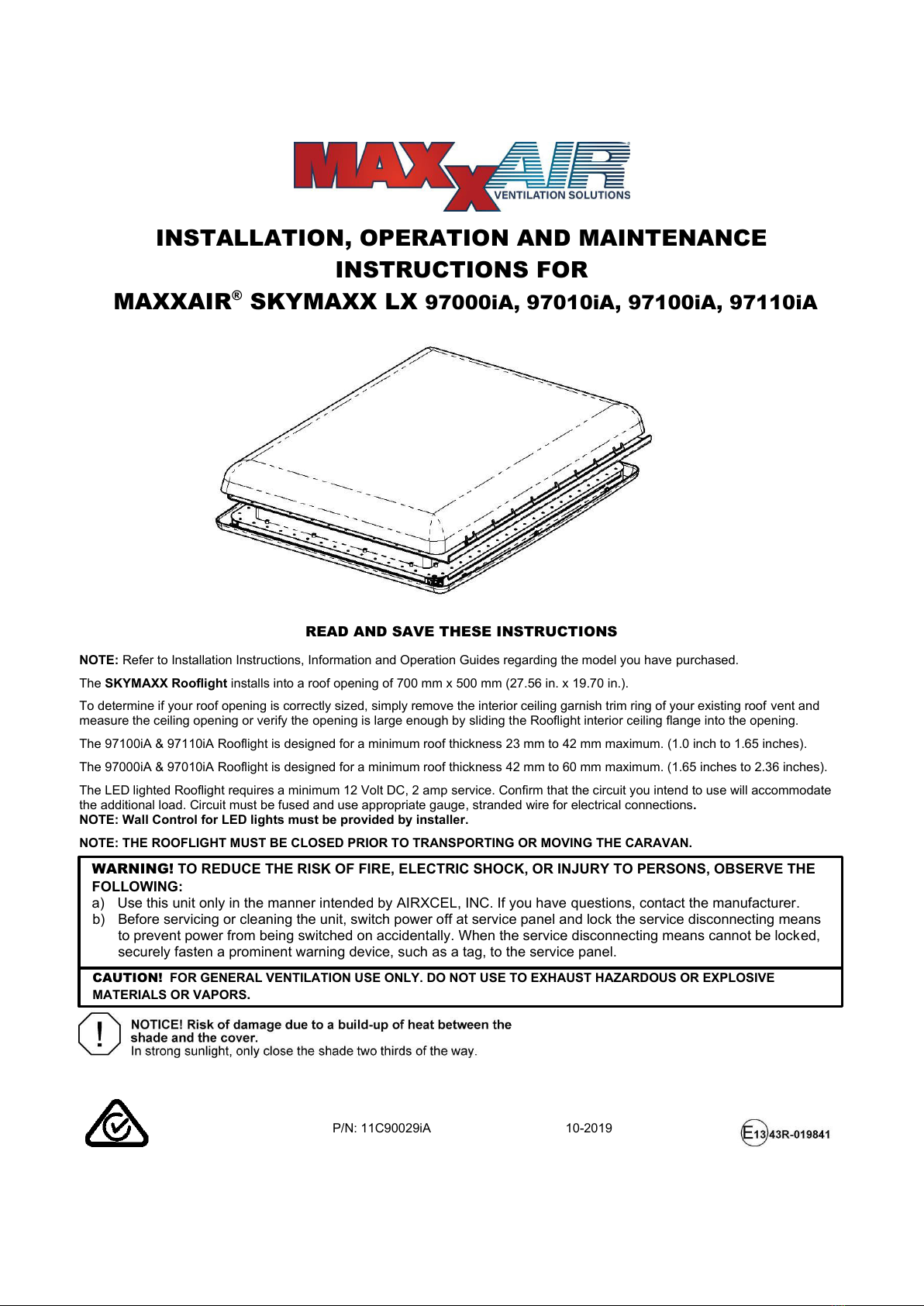

Maxxair SKYMAXX LX 97000iA Manual

INSTALLATION, OPERATION AND MAINTENANCE

INSTRUCTIONS FOR

MAXXAIR® SKYMAXX LX 97000iA, 97010iA, 97100iA, 97110iA

READ AND SAVE THESE INSTRUCTIONS

NOTE: Refer to Installation Instructions, Information and Operation Guides regarding the model you have purchased.

The SKYMAXX Rooflight installs into a roof opening of 700 mm x 500 mm (27.56 in. x 19.70 in.).

To determine if your roof opening is correctly sized, simply remove the interior ceiling garnish trim ring of your existing roof vent and

measure the ceiling opening or verify the opening is large enough by sliding the Rooflight interior ceiling flange into the opening.

The 97100iA & 97110iA Rooflight is designed for a minimum roof thickness 23 mm to 42 mm maximum. (1.0 inch to 1.65 inches).

The 97000iA & 97010iA Rooflight is designed for a minimum roof thickness 42 mm to 60 mm maximum. (1.65 inches to 2.36 inches).

The LED lighted Rooflight requires a minimum 12 Volt DC, 2 amp service. Confirm that the circuit you intend to use will accommodate

the additional load. Circuit must be fused and use appropriate gauge, stranded wire for electrical connections.

NOTE: Wall Control for LED lights must be provided by installer.

NOTE: THE ROOFLIGHT MUST BE CLOSED PRIOR TO TRANSPORTING OR MOVING THE CARAVAN.

WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE

FOLLOWING:

a) Use this unit only in the manner intended by AIRXCEL, INC. If you have questions, contact the manufacturer.

b) Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means

to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked,

securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION! FOR GENERAL VENTILATION USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE

MATERIALS OR VAPORS.

P/N: 11C90029iA 10-2019

More information https://www.caravansplus.com.au

This page intentionally left blank

More information https://www.caravansplus.com.au

INSTALLATION INSTRUCTIONS

STEP 1

SKYMAXX Model

Roof Opening

00-97000iA, 00-97100iA

00-97010iA, 00-97110iA

700 mm x 500 mm

Refer to the above table for roof size opening. If you are

replacing another type already installed, remove the old

existing roof vent. Remove all old roof sealant for a minimum of

5 cm (2 inches) entirely around the roof opening.

STEP 2

Prior to installing the SKYMAXX ROOFLIGHT over the roof

opening, apply a continuous strip of a flexible non-hardening

sealing compound (e.g. SikaLastomer-710) to the underside of

the flange in the grooved space.

CAUTION! When installing your SKYMAXX ROOFLIGHT,

only use a caulking/sealant compatible with the flange (plastic

product) and the roof surface. DO NOT use materials

containing solvents such as or similar to Xylene, Toluene,

Methyl Ethyl Ketone (MEK), Acetate or Acetone as they can

damage the flange. Also, Polysulfide (Thiokol) type sealants

must be avoided.

If in doubt, please contact the manufacturer of your caravan

for further information.

STEP 3

Insert the SKYMAXX ROOFLIGHT into the roof opening with

the hinged section facing the front of the vehicle with the ceiling

flange centered in the opening. Press down on the flange to

compress the sealant to seal to the roof.

STEP 4

After the SKYMAXX ROOFLIGHT has been installed, remove

the excess caulk that may have squeezed out. Using a sealer

such as Dicor self-leveling lap sealant or similar caulking, apply

a bead (approximately 5 mm dia.) along the outside edge of the

flange all the way around the rooflight.

THIS COMPLETES THE ROOF TOP PORTION OF THE INSTALLATION

Skip to page 6 for interior installation of SKYMAXX LX Plus

More information https://www.caravansplus.com.au

STEP 5

Using a small drill bit or probe, determine the thickness of the

roof by inserting probe in mounting holes, mark probe and

measure the depth of the insertion. Add 1.9mm to length

measured. (This allows for the thickness of the ceiling flange.)

This will be the length of screw needed. Refer to tables below

for length of screws in the hardware package.

NOTE: For curved roofs, measure the thickest part of the roof.

SKYMAXX Model 00-97100iA & 00-97110iA

THICKNESS

LENGTH OF

SCREW

23 ±25 mm

26 mm

28 ±30 mm

30 mm

32 ±35 mm

35 mm

38 ±40 mm

40 mm

42 mm

45 mm

SKYMAXX Model 00-97000iA & 00-97010iA

STEP 6

Insert the ceiling flange into the opening, lining up the flanges.

STEP 7

Referring to the screw lengths in the table of STEP 5, use the

proper length screws depending on your roof thickness to

secure the ceiling flange to the rooftop flange, taking care not

to overtighten the screws to avoid cracking or deforming the

ceiling flange and rooftop flange.

STEP 8

Optional: Install the screws to secure the ceiling flange to the

caravan ceiling. If the ceiling flange does not lay flat to the

ceiling you may want to install screws to prevent gapping.

STEP 9

To assemble the Interior Shroud to the Ceiling Flange, line up

the flanges with the channels on the Ceiling Flange. Secure in

place by pressing firmly on the Interior Shroud. This ensures

that the clips on the Interior Shroud will engage the channels

on the Ceiling Flange to lock it in place.

This completes the installation of the MAXXAIR

SKYMAXX ROOFLIGHT

THICKNESS

LENGTH OF

SCREW

42 mm

45 mm

46 ±48 mm

48 mm

50 ±52 mm

52 mm

54 ±56 mm

56 mm

58 ±60 mm

60 mm

More information https://www.caravansplus.com.au

OPERATION OF YOUR MAXXAIR SKYMAXX

ROOFLIGHT

To open the Rooflight for ventilation, separate the screen and

shade by moving the pull bars in opposite directions. Note: The

screen/ shade opening and closing action is manual. Depress

the button on the Rooflight frame to release the handle and

raise the lid by using the handle. Raise the lid to the desired

opening using the slots in the sides of the rooftop flange to

position the lid. After securing the Rooflight in the desired

position, pull the screen and shade together. The amount of

screen versus shade can be adjusted to your preference.

To close the SKYMAXX ROOFLIGHT, move the handle from

the slot and pull the handle toward the open side of the

Rooflight. Push the handle above the button which will lock the

Rooflight lid closed.

NOTE: THE ROOFLIGHT MUST BE CLOSED PRIOR TO

TRANSPORTING OR MOVING THE CARAVAN.

USER SERVICING INSTRUCTIONS

Cleaning of your MAXXAIR SKYMAXX ROOFLIGHT may be

achieved with mild soap and water only. DO NOT USE

ABRASIVE CLOTH ON ROOFLIGHT COVER.

It is advisable when the Rooflight is open to keep the screen

and/or shade covering the Rooflight opening.

More information https://www.caravansplus.com.au

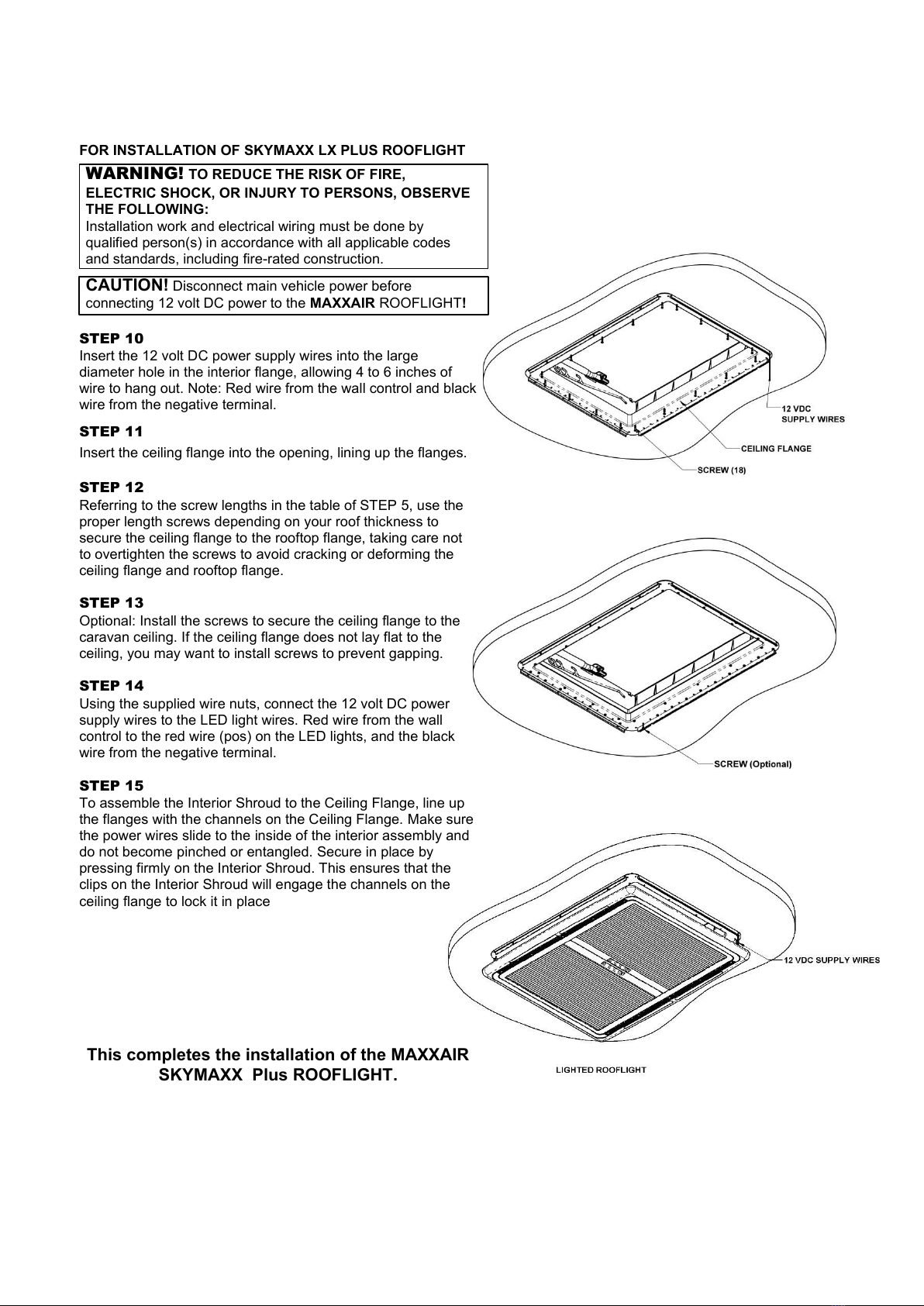

FOR INSTALLATION OF SKYMAXX LX PLUS ROOFLIGHT

WARNING! TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE

THE FOLLOWING:

Installation work and electrical wiring must be done by

qualified person(s) in accordance with all applicable codes

and standards, including fire-rated construction.

CAUTION! Disconnect main vehicle power before

connecting 12 volt DC power to the MAXXAIR ROOFLIGHT!

STEP 10

Insert the 12 volt DC power supply wires into the large

diameter hole in the interior flange, allowing 4 to 6 inches of

wire to hang out. Note: Red wire from the wall control and black

wire from the negative terminal.

STEP 11

Insert the ceiling flange into the opening, lining up the flanges.

STEP 12

Referring to the screw lengths in the table of STEP 5, use the

proper length screws depending on your roof thickness to

secure the ceiling flange to the rooftop flange, taking care not

to overtighten the screws to avoid cracking or deforming the

ceiling flange and rooftop flange.

STEP 13

Optional: Install the screws to secure the ceiling flange to the

caravan ceiling. If the ceiling flange does not lay flat to the

ceiling, you may want to install screws to prevent gapping.

STEP 14

Using the supplied wire nuts, connect the 12 volt DC power

supply wires to the LED light wires. Red wire from the wall

control to the red wire (pos) on the LED lights, and the black

wire from the negative terminal.

STEP 15

To assemble the Interior Shroud to the Ceiling Flange, line up

the flanges with the channels on the Ceiling Flange. Make sure

the power wires slide to the inside of the interior assembly and

do not become pinched or entangled. Secure in place by

pressing firmly on the Interior Shroud. This ensures that the

clips on the Interior Shroud will engage the channels on the

ceiling flange to lock it in place

This completes the installation of the MAXXAIR

SKYMAXX Plus ROOFLIGHT.

More information https://www.caravansplus.com.au

OPERATION OF YOUR MAXXAIR SKYMAXX

ROOFLIGHT

To open the Rooflight for ventilation, separate the screen

and shade by moving the pull bars in opposite directions.

Note: The screen/ shade opening and closing action is

manual. Depress the button on the Rooflight frame to

release the handle and raise the lid by using the handle.

Raise the lid to the desired opening using the slots in the

sides of the rooftop flange to position the lid. After

securing the Rooflight in the desired position, pull the

screen and shade together. The amount of screen

versus shade can be adjusted to your preference.

To close the SKYMAXX ROOFLIGHT, move the handle

from the slot and pull the handle toward the open side of

the Rooflight. Push the handle above the button which

will lock the Rooflight lid closed.

If passive ventilation is not needed, the vent inserts can

be changed out with the blank inserts included in the

hardware package.

If additional ventilation is needed, the vent inserts can be

changed out with the screen inserts included in the

hardware package.

SKYMAXX Plus ROOFLIGHT

The LED lights are controlled by a wall control.

NOTE: THE ROOFLIGHT MUST BE CLOSED PRIOR TO

TRANSPORTING OR MOVING THE CARAVAN.

USER SERVICING INSTRUCTIONS

Cleaning of your MAXXAIR SKYMAXX ROOFLIGHT

may be achieved with mild soap and water only. DO

NOT USE ABRASIVE CLOTH ON ROOFLIGHT

COVER.

It is advisable when the Rooflight is open to keep the

screen and/or shade covering the Rooflight opening.

Should you have questions, please visit

www.Airxcel.com or contact your AIRXCEL/MAXXAIR

distributor.

For Full WARRANTY Terms and conditions on products purchased in Australia or New Zealand, please

YLVLWZZZFRDVWUYFRPDXZZZFRDVWUYFRQ]

More information https://www.caravansplus.com.au

For additional product information please visit www.AIRXCEL.com

AIRXCEL, INC. - RV Products Division / MAXXAIR

16W)UDQFLV6W:LFKLWD.6

PLACE CONSUMER LABEL HERE

More information https://www.caravansplus.com.au

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de Maxxair

Maxxair

Maxxair SH Series Manual de usuario

Maxxair

Maxxair MAXXFAN Deluxe 5100K Manual de usuario

Maxxair

Maxxair MAXXFAN Guía

Maxxair

Maxxair HVPF 22 OSC Manual de usuario

Maxxair

Maxxair CX1401 Manual de usuario

Maxxair

Maxxair SKYMAXX LX 97000 Manual

Maxxair

Maxxair HVCF1600 Manual de usuario

Maxxair

Maxxair MAXXFAN DOME 3810 Manual de usuario

Maxxair

Maxxair HVCF3600 Manual de usuario

Maxxair

Maxxair Maxxfan Mini 4301M Manual de usuario

Maxxair

Maxxair MR Series Manual de usuario

Maxxair

Maxxair CX1500 RED Manual de usuario

Maxxair

Maxxair HVCF2800 Manual de usuario

Maxxair

Maxxair MAXXFAN Plus 4700N Manual de usuario

Maxxair

Maxxair HVPF16 Instrucciones de instalación

Maxxair

Maxxair CX242DDWT Manual de usuario

Maxxair

Maxxair HVPF 22 OSC Manual de usuario

Maxxair

Maxxair HVPF 20 OR Manual de usuario

Maxxair

Maxxair ICF72 Guía de instalación

Maxxair

Maxxair HVWM 18PF Manual de usuario

Maxxair

Maxxair CX1500 RED Manual de usuario

Maxxair

Maxxair HVWM 18CD Manual de usuario

Maxxair

Maxxair IF Series Manual de usuario

Maxxair

Maxxair SKYMAXX 97500 Manual

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
