Maxtor SSA-0412 Manual de usuario

SSA-0412

USER GUIDE

4 Channel MPEG-4

Digital Video Recorder

Ver. 2.1

About this user guide

Before installing and using this unit, please read this user guide carefully.

Be sure to keep it handy for later reference.

This document contains preliminary information and subject to change without notice.

BEFORE INSTALLATION

NOTE: WE DO NOT TAKE ANY RESPONSIBILITY OF DAMAGES RESULTED FROM THE NON-

STANDARDIZED GOODS AND FAILURES TO FOLLOW THE MANUAL INSTRUCATIONS.

PLEASE ASK FOR HELP TO YOUR LAST SELLER BEFORE DISASSEMBLEING THE SYSTEM FOR

REPAIR AND ADD PARTICULAR FUNCTIONS.

FCC VERIFICATION

Caution: Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user’s authority to operate the

equipment.

Note: This equipment has been tested and found to comply with the limits for a Class

digital

device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment is a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

CE DoC (Declaration of Conformity)

Warning: This is a class A product.

In a domestic environment this product may cause radio Interference in which case the user may be

required to take adequate measures.

SAFETY PRECAUTIONS

EXPLANATION OF SYMBOLS

This symbol is intended to alert the user to the presence of important operation

and maintenance (servicing) instructions in the literature accompanying the

appliance.

This symbol is intended to alert the user to the presence of unprotected

“dangerous voltage” within the product’s enclosure that may be strong enough

to cause a risk of electric shock persons.

CAUTIONS

THIS PRODUCT HAS MULTIPLE-RATED VOLTAGES (110V AND 220V).

SEE INSTALLATION INSTRUCTIONS BEFORE CONNECTING TO THE POWER SUPPLY.

THIS PRODUCT USESALITHIUM BATTERY.

TO AVOID OF RISK OF EXPLOSION, DO NOT REPLACE THE BATTERY ON THE MAIN BOARD BY

ANYTHING OTHER THAN A LITHIUM BATTERY. DISPOSE OF USED BATTERIES ACCORDING TO THE

MANUFACTURER’S INSTRUCTIONS.

THIS EQUIPMENT AND ALL COMMUNICATION WIRINGS ARE INTENDED FOR INDOOR USE ONLY.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR

MOISTURE.

WARNINGS

The product should be installed by a trained professional. The DVR should be powered off when connecting

camera, audio, or sensor cables.

The manufacturer is not responsible for any damages caused by improper use of the product or failure to

follow instructions for the product.

The manufacturer is not responsible for any problems caused by or resulting from the user physically

opening the DVR for examination or attempting to fix the unit. The manufacturer may not be held liable for

any issues with the unit if the warranty seal is removed.

RACK MOUNT INSTRUCTIONS

The following or similar rack-mount instructions are included with the installation instructions:

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient

temperature of the rack environment may be greater than room ambient. Therefore, consideration should be

given to installing the equipment in an environment compatible with the maximum ambient temperature

(Tma) specified by the manufacturer.

B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised.

C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is

not achieved due to uneven mechanical loading.

D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of the circuits might have on over-current protection and supply wiring.

Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular

attention should be given to supply connections other than direct connections to the branch circuit (e.g. use

of power strips)."

CONTENTS OF DVR PACKAGE

The package contains the main unit and its components as specified below. When you purchase the unit,

please check to ensure the components specified below are included.

DVR Set

Client Software CD

Remote Controller & Battery1.5V (AAAx 2EA)

Adaptor (12V, 5A) & Power Cord (110V or 220V)

User Guide

HDD & CDRW Screw (8EA)

HDD & CDRW Bracket Screw (8EA)

Rack Mount (2EA)-(Option) &

Rack Mount Screw (6EA)-(Option)

IDE HDD Cable 80pin (1EA)

IDE CDRW Cable 40pin(1EA)-(Option)

Power Cable for HDD & CDRW

HDD Brackets (1EA)

CDRW Bracket(1EA)

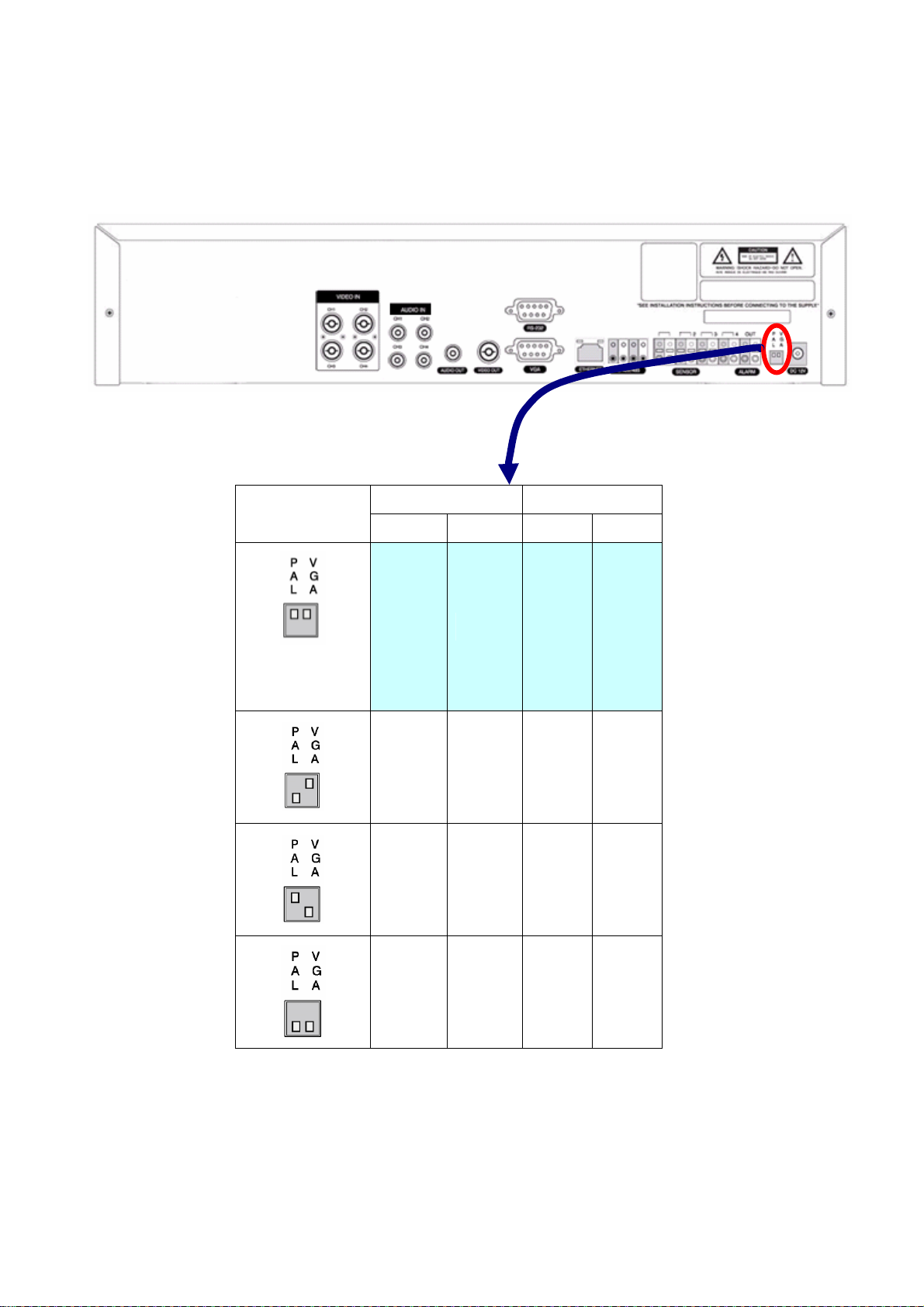

VIDEO SIGNAL SELECT / SETTING

Video mode Video output

SETTING NTSC PAL BNC VGA

Factory

Default

O X O X

X O O X

O X X O

X O X O

NOTICE

Do not change the setting when the power is on.

When the position of the switch is changed, the DVR should be rebooted to apply the new setting.

COMPATIBLE HDD MODELS

COMPANY MODEL SIZE RPM BUFFER INTERFACE

HDS728080PLAT20 80 GB 7200 RPM 2 M E-IDE

HDS721680PLAT80 82 GB 7200 RPM 8 M E-IDE

HDT722516DLAT80 160 GB 7200 RPM 8 M E-IDE

HDT722516DLAT80 164 GB 7200 RPM 8 M E-IDE

HDS722525VLAT80 250 GB 7200 RPM 8 M E-IDE

HDT722525DLAT80 250 GB 7200 RPM 8 M E-IDE

HDT725025VLAT80 250 GB 7200 RPM 8 M E-IDE

HDT725032VLAT80 320 GB 7200 RPM 8 M E-IDE

HITACHI

HDS725050KLAT80 500 GB 7200 RPM 8 M E-IDE

MAXTOR 6L300R0 300 GB 7200 RPM 16 M E-IDE

SP0822N 80 GB 7200 RPM 2 M E-IDE

SAMSUNG SP1604N 160 GB 7200 RPM 2 M E-IDE

WD1600BB-22GUA0 160 GB 7200 RPM 2 M E-IDE

WD2000BB-00GUA0 200 GB 7200 RPM 8 M E-IDE

WD2500BB-00KEA0 250 GB 7200 RPM 8 M E-IDE

WD3200JB-00KFA0 320 GB 7200 RPM 8 M E-IDE

WESTERN DIGITAL

WD5000AAKB 500 GB 7200 RPM 16 M E-IDE

ST3400-15ACE 40 GB 7200 RPM 2 M E-IDE

ST3800-12ACE 80 GB 7200 RPM 2 M E-IDE

ST31200-25ACE 120 GB 7200 RPM 2 M E-IDE

ST31600-22ACE 160 GB 7200 RPM 2 M E-IDE

ST3300820ACE 300 GB 7200 RPM 8 M E-IDE

ST3300831ACE 300 GB 7200 RPM 8 M E-IDE

ST3400832ACE 400 GB 7200 RPM 8 M E-IDE

ST3400820ACE 400 GB 7200 RPM 8 M E-IDE

ST3500641A 500 GB 7200 RPM 16 M E-IDE

ST3750840ACE 750 GB 7200 RPM 8 M E-IDE

SEAGATE

ST3750640A 750 GB 7200 RPM 16 M E-IDE

NOTICE

The brands and models of all HDD should be the same. If the brands and models of each HDD are different

with others, the DVR could not recognize HDD.

CDRW INSTALLATION GUIDE

1. Open the top cover of DVR set and Install the CDRW inside the DVR.

2. Fasten the screws on both side of CDRW as indicated in red circle below.

3. Connect the IDE CDRW 40pin cable and Power cable to the point on both CDRW and Main board as

indicated in red circle below.

4. CDRW JUMPER SETTING : MASTER

HDD INSTALLATION GUIDE

1. Unfasten the cover of the unit.

2. Fix the bracket to the hard disk using the supplied HDD mounting bracket screws.

3. Connect the supplied IDE HDD 80pin cable and Power cable to the hard disk and fix the hard disk to

the unit the supplied HDD fixing screws.

4. HDD Jumper must set as MASTER
