Maxtang WL10 User Manual V1.0

WL10 User Manual V1.0

Version:

Version No.

Description

Issue Date:

V1.0

Initial version.

2019/10/15

Maxtang WL10 User Manual V1.0

Chapter 1 Product Introduction

1.1 Brief Introduction

The WL10 is based on the Intel Whiskey Lake-U platform.

1.2 Parameters

Whiskey Lake-U platform

i7-8565U--quad core, 1.8 GHz, TDP 15W, supporting Turbo Boost Technology and EIST

i5-8265U--quad core, 1.6GHz, TDP 15W, supporting Turbo Boost Technology and EIST

i3-8145U--dual core, 2.1GHz, TDP 15W, supporting Turbo Boost Technology and EIST

Celeron 4205U--dual core, 1.8 GHz, TDP 15W, supporting EIST

Memory: 2 x SO-DIMM DDR4-2400/2133 MHz slots, supporting dual channels, maximum capacity

64GB

GPU: integrated graphics, 1 x HDMI 1.4, 1 x standard DP, 1 x LVDS (eDP optional)

Storage:

1 x M.2 Key B, supporting 2242/2280 SSD (SATA)

2 x standard SATA3.0

USB: 3 x USB3.0 (rear port), 5 x USB2.0 (on-board pin)

Ethernet:on-board 2 x Gigabyte network card (intel i211)

Audio: high definition audio chip, supporting speaker-out, Mic-in (rear port), Line-out, Mic-in (front

on-board pin), and power amplifier (on-board pin, connecting passive horn)

I/O: 5 x RS232, 1 x RS485, 1 x LPT (pin), 1 x PS/2 (KB/MS pin)

Expansion: 1 x M.2 key B (supporting NGFF 3G/4G), 1 x M.2 Key E (Type 2230, supporting Wi-Fi

card)

Other I/O: 1 x PCIe 4X slot, 8 x GPIO (on-board pin), 1 x PS/2 (pin, KB+MS)

Dimension: 170mm x 170mm

Power: 12V DC-in

Working temperature: -20℃~60℃

Maxtang WL10 User Manual V1.0

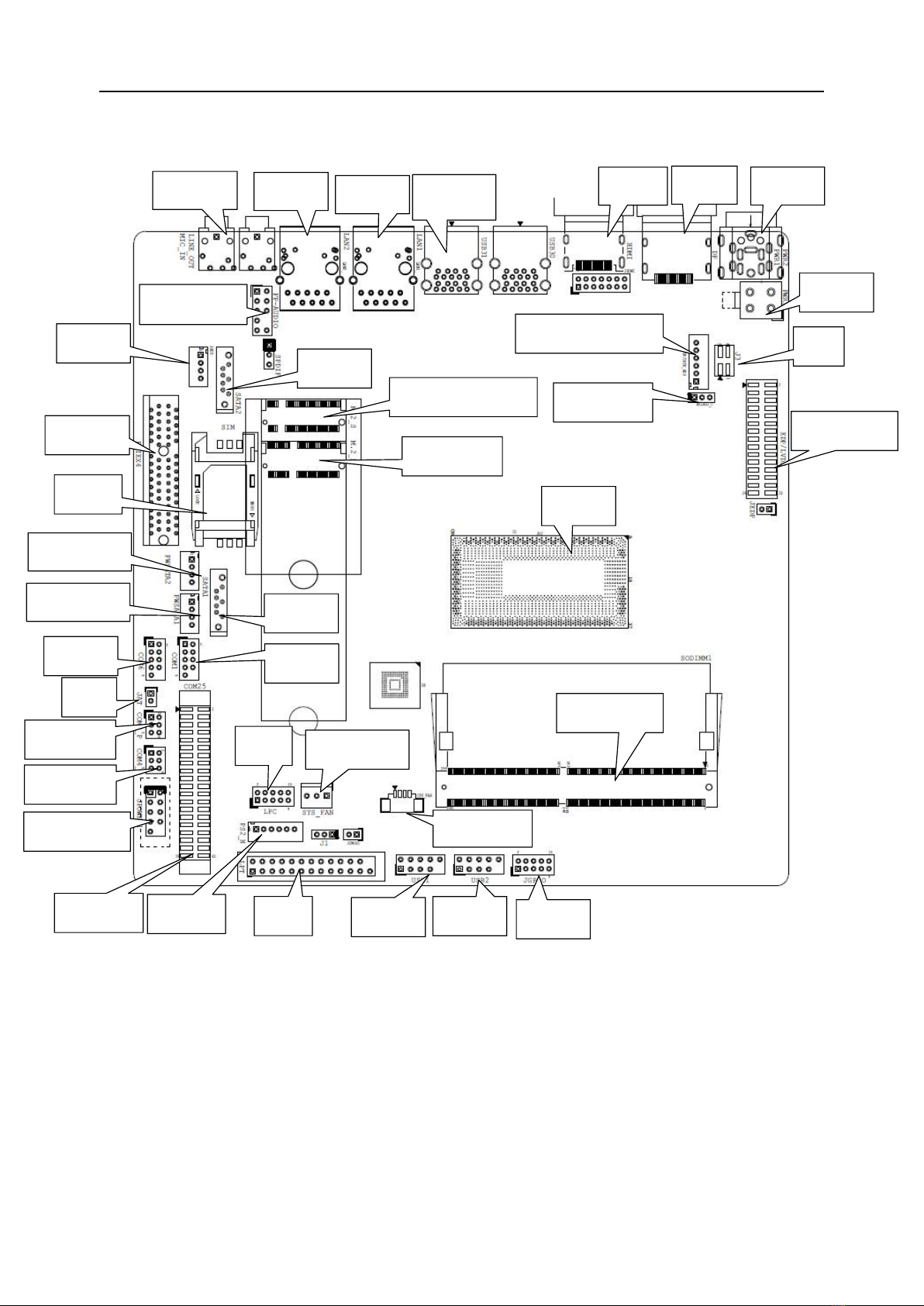

1.3 Connector Diagram

DC_IN

HDMI

USB3.0

LAN1

LAN2

AUDIO

FP-AUDIO

JAUD

SATA2

PCIEX4

M.2_SSD/3G/4G

M.2_WIFI

SIM

PWSATA1

PWSATA2

SATA1

COM6

COM1

JAT

COM2_P

COM4_P

JPOWER1

COM25

LPC

SYS_FAN

PS2_H

LPT

USB1

USB2

JGPIO

MEMORY

CPU

EDP/LVDS

EDP/LVDS_ADJ

BKADJ_C

PWR3

CPU_FAN

Maxtang WL10 User Manual V1.0

MEMORY

Maxtang WL10 User Manual V1.0

Chapter 2 Hardware

2.1 Jumper Setting

Please configure the jumpers according to your requirements before installing the hardware.

How to identify the first header of jumpers and pins: Observe the mark beside the jumper or pins and find

the header marked by “1” or bold line or triangular symbol. Or observe the rear panel and the header with

square solder pad is the first header.

2.2 Memory Slots

On-board 2 x SO-DIMM DDR4-2400/2133 slots, supporting dual channels, maximum capacity 64GB

2.3 Display interface

1 x HDMI1.4 and optional pin as backup display interface (only one can be connected at one time), 1 x

DP 1.2, 1 x LVDS (eDP1.3 optional). Triple display supporting 4K resolution.

2.3.1 LVDS (screen printing: LVDS, LVDS_ADJ, J3)

Dual channel 24bit LVDS interface. The LVDS display power is controlled by the J3 jumper, and the

LVDS backlight power is controlled by the LVDS_ADJ.

LVDS data pin (screen printing: EDP/LVDS)

Signal

VCC

GND

A_DATA0_DN

A_DATA0_DP

A_DATA1_DN

A_DATA1_DP

A_DATA2_DN

A_DATA2_DP

GND

A_CLK_DN

A_CLK_DP

A_DATA3_DN

A_DATA3_DP

B_DATA0_DN

B_DATA0_DP

B_DATA1_DN

B_DATA1_DP

B_DATA2_DN

B_DATA2_DP

GND

B_CLK_DN

B_CLK_DP

B_DATA3_DN

B_DATA3_DP

Maxtang WL10 User Manual V1.0

Display backlight brightness adjustment pin (screen printing: EDP/LVDS_ADJ)

Signal

GND

LCD_BKL_ADJ

LCD_BKL_ON

12V

LVDS display backlight two-way adjustment jumper (screen printing: BKLADJ_C)

Settings

Function

1-2

Backlight control

2-3

Backlight control

Display power supply jumper (screen printing: J3)

Interfa

Settings

Function

1-2

+3.3V

3-4

+5V

Note: The LVDS display power supply is controlled by jumpers. The voltage can be 5V or 3.3V. Don't

short-circuit two or more interfaces with jumper cap.

2.3.2 eDP (screen printing: LVDS, LVDS_ADJ, J3)

This interface is optional, supporting 2 LANE eDP(1.3). When the interface is set as eDP, LVDS doesn’t

work. The display power is controlled by the J3 jumper, and the LVDS backlight power is controlled by

the LVDS_ADJ jumper.

eDP data pin (screen printing: EDP/LVDS)

Signal

VCC

EDP_HPD

Maxtang WL10 User Manual V1.0

Signal

GND

EDP_AUXN

EDP_AUXP

N/A

EDP_DATA0_P

EDP_DATA0_N

GND

N/A

EDP_DATA1_P

EDP_DATA1_N

N/A

GND

N/A

eDP Display backlight brightness adjustment pin (screen printing: EDP/LVDS_ADJ)

Signal

GND

LCD_BKL_ADJ

LCD_BKL_ON

12V

eDP display backlight two-way adjustment jumper (screen printing: BKLADJ_C)

Settings

Function

1-2

Backlight

2-3

Backlight

eDP display power supply jumper (screen printing: J3)

Maxtang WL10 User Manual V1.0

Interface

Settings

Function

1-2

+3.3V

3-4

+5V

Note: The eDP display power is controlled by jumpers. The voltage can be 5V or 3.3V. Don't short-circuit

two or more interfaces with jumper cap.

2.6 HDMI pin (screen printing: JHDMI)

The board is equipped with pin HDMI interface as backup option. The interface can work with the

standard HDMI interface at the same time.

JHDMI (screen printing: JHDMI)

Signal

DATA2_P

DATA2_N

DATA1_P

DATA1_N

DATA0_P

DATA0_N

CLK_P

CLK_N

SCL

SDA

GND

HPD

GND

2.7 Expansion slots (screen printing: M.2_S, M.2_E, PCIe 4X)

Screen printing M.2_S: M.2 Key B, supporting NGFF 3G/4G module, with standard SIM card slot.

Screen printing M.2_S: M.2 Key E, supporting NGFF Wi-Fi card.

Screen printing M.2_S: PCIe 3.0/4X slot, for expanded PCIe devices like networking card and graphics

card.

2.9 Storage interface (screen printing: SATA1, SATA2, M.2_S)

Supporting 2 standard SATA3.0 interfaces at most, with transmission rate 6GB/s and two disk power

supply sockets. If the CPU is a Celeron processor, the board can support only one SATA3.0 (SATA1).

M.2 Key B slot (screen printing: M.2_S) supporting 2242/2280 SSD (SATA).

Maxtang WL10 User Manual V1.0

2.10 USB interface

3 standard USB3.0. 5 x USB2.0, 4 of them being USB2.0 pin on-board, the test one being rear USB2.0

port (screen printing: USB3.0)

USB1 and USB2 (screen printing: USB1, USB2)

Signal

VCC 5V

USB DATA-

USB DATA+

GND

(NC)

N/A

2.11 LAN

High-performance Gigabyte Ethernet controlling intel i211, with 2 x RJ45 interfaces. Supporting Magic

packet wake up. LAN2 supports PXE network boot.

Interface LED indicators:

LILED

(orange)

Function

ACTLED (green)

Function

Always on

Network

connected

Blinking

Data being

transmitted

2.12 Audio interface (screen printing: FP_AUDIO, JAUD, SPDIF)

ALC audio controlling chip. The green interface is for audio output (Speaker_out), and the pink interface

is for Mic input (Mic-in). The JAUD pin is for power amplifier, and the SPDIF pin is for SPDIF_out.

FP_AUDIO (screen printing: FP_AUDIO)

Signal

MIC2-L

AGND

MIC2-R

AVCC

FRO-R

MIC2-JD

Maxtang WL10 User Manual V1.0

Signal

F-IO-SEN(AGNG)

(NC)

FRO-L

LIN2-JD

JAUD (screen printing: JAUD)

Signal

L+

L-

R-

R+

SPDIF (screen printing: SPDIF)

Signal

+5V

SPDIF_Out

GND

2.13 COM (screen printing: COM1, COM25, COM6, JCOM2_P, JCOM4_P)

It is equipped with 6 COM (2.0mm spacing of built-in pins). COM1 slots are defined by industrial control;

COM1 to COM5 are RS232 mode, and COM6 is RS485 mode. COM2_P and COM4_P provide optional

5V or 12V voltage for COM2 and COM4.

COM1 (screen printing: COM1)

Signal

DCD#

DSR#

RXD

RTS#

TXD

CTS#

DTR#

RI#

GND

(NC)
