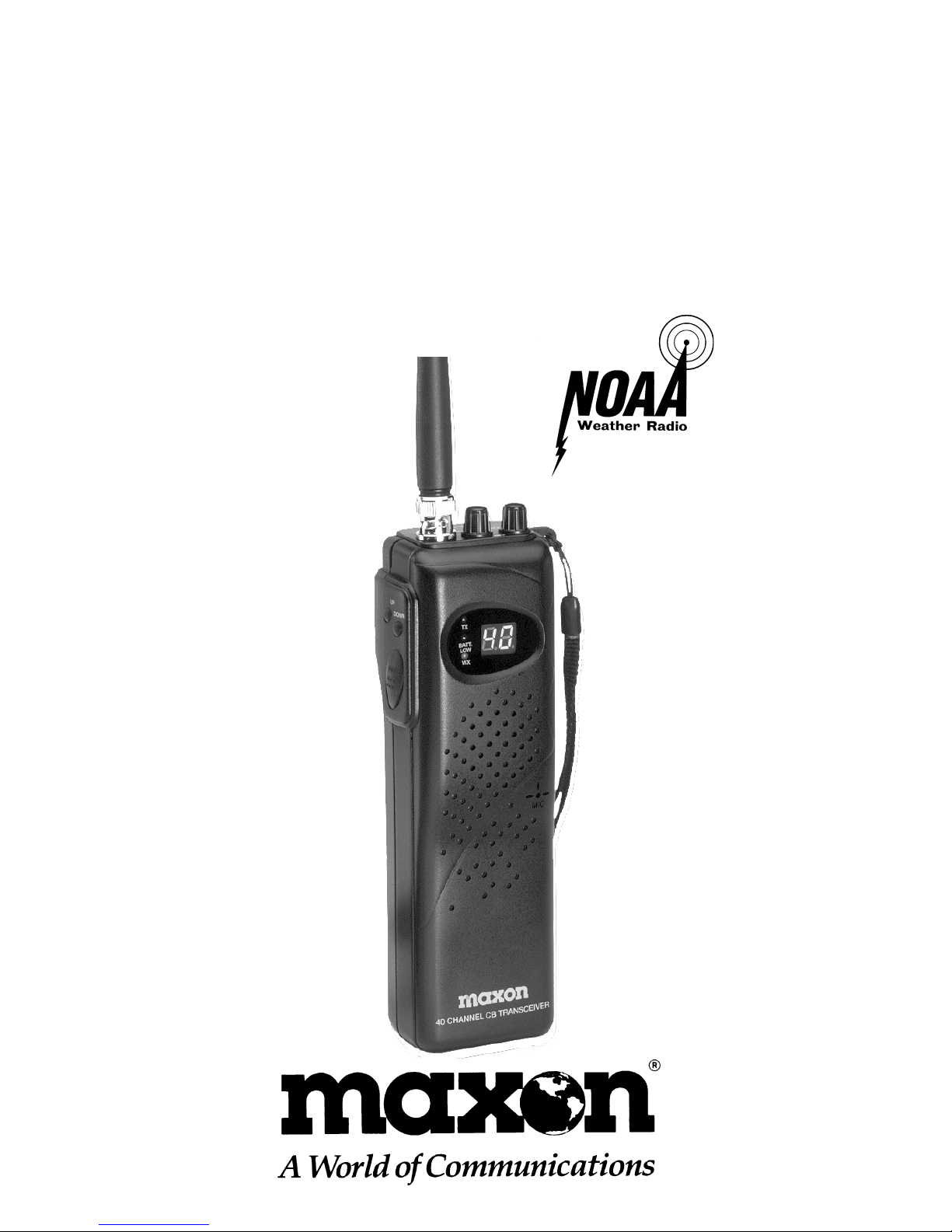

Maxon HCB-30C Manual de usuario

HCB-30C

Handheld 40 Channel

CB/Weather Radio

OWNER'S MANUAL

English/Spanish

TABLE OF CONTENTS

Specifications 1

FCC Regulations 1

Product Description 2

Package Contents 2

Performance Features 3

Controls and Functions 4

Batteries 7

Battery Charging and External

Power Sources 8

Antenna Information 9

Operating Instructions 11

Using the Weather Channels 12

Radio Communication Codes 13

CB Channel Frequency Chart 14

Troubleshooting Chart 15

Warranty Service Instructions 16

Warranty Statement 17

Optional/Replacement Accessories 18

Other Maxon Products 18

Before operating your Maxon Citizens Band Radio,

read this Owner's Manual carefully. If you have a

problem, refer to the "Troubleshooting" section of

this manual before returning your radio for repairs.

TABLA DE CONTENIDO

Controles y Funciones 4

Especificaciones 19

Regulaciones de la FCC

(Comisión Federal de Comunicaciones) 19

Descripción del Producto 20

Contenido del Paquete 20

Características de Funcionamiento 21

Baterías 22

Carga de Baterías y Fuentes de

Alimentación Externas 23

Información Sobre la Antena 24

Instrucciones de Operación 25

Uso de los Canales Meteorológicos 27

Tabla de Frecuencia del Canal 29

Tabla de Localización y Reparación

de Averías 30

Instrucciones Servicio de Garantía 31

Aclaración de la Garantía 32

Accessorios Maxon 34

Otros Productos Maxon 34

Antes de hacer funcionar su radio de Banda

Ciudadana de Maxon lea detenidamente este Manual

del Propietario. Si tiene unproblema, refiérase a la

sección "Localización y Reparación de Averías" de este

manual antes de devolver su radio para la reparación.

YOU DO NOT NEED AN FCC LICENSE TO

OPERATE THIS RADIO IN THE UNITED STATES.

However, you must know and be familiar with

Part 95 of the FCC Rules in regard to Subpart D

of the Citizens Band Radio Service. (A copy is

enclosed with the unit.)

SPECIFICATIONS

GENERAL

CB Channels: 40

Weather Channels: 3

Frequency Range: 26.965 to 27.405 MHz

Weather Frequencies: 1 - 162.550

2 - 162.400

3 - 162.475

CB Frequency Control: Phase Locked Loop

Synthesizer

Weather Frequency

Control: Crystal

Frequency Tolerance: 0.005%

Operating Temperature

Range: -30o C to +50o C

Input Voltage: 12.5V DC nominal,

negative ground

Channel Display: Light Emitting Diode (LED)

DC Input Power: 5 W

Dimensions: 6-3/4" H x 2-3/4" W x 1-3/4" D

Weight: 9.4 oz.

RECEIVER

Receiving System AM Dual conversion

superheterodyne

TRANSMITTER

RF Output Power: 4 W (Maximum FCC allowable)

Specifications subject to change without notice.

PRODUCTDESCRIPTION

Thank you for choosing the Maxon HCB-30C

Handheld 40 Channel CB Radio.

Maxon's HCB-30C is a compact, portable Citizen's

Band radio designed to operate in the 26.965 to

27.405 MHz band. This lightweight unit features

3 weather channels, provides maximum RF output

power and can be battery or vehicle powered. The

use of optional accessory jacks provide added

convenience.

This model requires either 9 rechargeable Ni-Cad

batteries or 9 AA alkaline batteries, not included.

It can also be powered by the 12V DC power cord

included with the radio.

PACKAGE CONTENTS

Main CB unit with attached belt clip and

carryingstrap

"RubberDuck"antenna

12V DC power cord with cigarette lighter plug

Owner'sManual

Copy of FCC Part 95, Subpart "D"

Copy of NOAA Weather Radio Network

Frequency Reference Card

PERFORMANCE FEATURES

•Maximum legal RF output power (4W) with high

level modulation (in accordance with FCC Part

95 Rules).

•Receives current National Weather Service

broadcasts on three separate frequencies.

•Can be used as a portable CB radio (powered

by Ni-Cad or alkaline batteries) or used with

provided 12V DC power cord in a vehicle or

boat.

•Accessory jacks allow "hands-free" operation

when used with an optional headset with boom

microphone and mini-VOX unit (WTA-13G). The

unit can also be used with the QPA-1425 Lapel/

Speaker Microphone.

•HI/LO power selector button conserves battery

power.

•Phase Locked Loop synthesizer provides clear

voice transmission and reception on all CB

channels.

•Built-in Automatic Gain Control (AGC)

and Automatic Noise Limiter (ANL) provide

constant sound level (from weak or strong

signals) and clear reception.

•Automatic modulation control eliminates "peak"

and "valley" transmission signals.

•Last channel memory recalls last channel

displayed.

•Battery charging jack used with optional AC/DC

wall battery charger (DV-7210).

CONTROLS AND FUNCTIONS

CONTROLES Y FUNCIONES

A. Push-To-Talk Button -Permits radio transmissions • Botón

"Presione Para Hablar" (P-T-T) - Permite la transmisión por

radio

B. Channel Up/Down Buttons -Selects any one of 40 channels

available • Botones de Subida y Bajada de Canales -

Selecciona cualquiera de los 40 canales disponibles

C. Antenna Jack - Connects the unit's "Rubber Duck" antenna,

an optional telescopic antenna, or any Citizen's Band/50

ohm mobile or base antenna • Jack de Antena - Conecta

la antena de hule "Rubber Duck" de la unidad, a una antena

telescópica opcional, o a cualquier antena móvil o de

base de banda ciudadana/50 ohmios

D. "Rubber Duck" Antenna with BNC Connector • Antena

de hule "Rubber Duck" con conector BNC

E. Squelch Control -Allows background noise to be eliminated

when no signal is present • Control de Silenciador - Permite

la eliminación de ruidos de fondo cuando no hay señal

F. Off/On-Volume Control -Used to turn the radio on or off

and to adjust the listening volume • Control de Volumen -

Se usa para encender o apagar el radio y para ajustar el

volumen

G. Carrying Strap • Asa de Transporte

H. Transmit (TX) LED Indicator - Identifies active transmissions

• Indicador LED de Transmisión (TX) - Identifica las

transmisiones activas

I. Battery Low LED - Alerts user to low battery condition

• LED Batería Baja - Alerta al usuario cuando la batería

tiene carga baja

J. LED Display -Identifies channel number selection

• Pantalla LED - Identifica la selección del número del canal

K. Weather (WX) LED Indicator: Identifies active weather

transmissions • Indicador LED Meteorológico (WX) -

Identifica las transmisiones meteorológicas activas

E F

L. CB/Weather Frequency Switch: Used to switch between

CB channels and weather frequencies • Interruptor de

Frecuencia CB/Meteorológica - Se usa para conmutar

entre las frecuencias de los canales de CB y meteorológicas

M. Speaker -Broadcasts incoming signals

• Altavoz - Radiodifunde las señales entrantes

N. Built-in Electret Condenser Microphone - Transmits

voice signals during CB operation • Micrófono

Condensador con Electrodo Laminar Incorporado -

Transmite las señales de voz durante el funcionamiento

de CB

O. Accessory Jacks - Used with optional accessories (not

shown) • Jacks Auxiliares - Usados con accesorios

opcionales (no mostrados)

P. 12V DC Power/Charge Jack -Provides external power to

radio and charges installed Ni-Cad batteries (not shown)

• Jack de Potencia /Carga de 12 VCC - Suministra potencia

externa al radio y carga las baterías de Ni-Cad instaladas (no

mostrado)

Q. HI/LO Power Selector Switch - Controls output power

level (not shown) • Interruptor Selector de Potencia HI/LO

(alta/baja) - Controla el nivel de la potencia de salida (no

mostrados)

R. Belt Clip - Securely holds radio when beltworn

(not shown) • Grapa de Centurón - Se usa para llevar el

radio en el cinturón o en cualquier otra parte conveniente

(no mostrados)

S. Battery Compartment -Houses 9 "AA" alkaline or Ni-Cad

batteries (not shown) • Compartimiento de Baterías -

Guarda 9 baterías alcalinas "AA" o de Ni-Cad (no mostrados)

T. 12V DC Power Cord - Provides power to radio when

used in vehicle or boat • Cordón Eléctrico de 12 VCC -

Suministra potencia al radio cuando se usa en un vehículo

o bote

BATTERIES

1) To install batteries, remove the battery

compartment cover on the back of the unit.

Locate the battery charge switch (inside the

middle well of the radio's battery compartment)

and set the switch to the "Al" (down) position

for "AA" alkaline batteries or the "Ni" (up)

position for "AA" Ni-Cad batteries.

NOTE: Proper switch setting protects from

accidental charging of non-rechargeable

batteries.

2) Once battery charge switch is in the correct

position, insert either 9 "AA" alkaline batteries

or Ni-Cad batteries. Follow polarity diagrams

embossed in the battery compartment.

3) Check the battery condition by turning the

power off/on-volume control clockwise. If the

battery low LED is on, the batteries need to be

recharged or replaced immediately.

NOTE: Ni-Cad batteries are typically in a "dis-

charge" condition when they are purchased. If

you are using nickel cadmium batteries, you will

need to charge them before operating your radio.

The best way to accomplish this is to use Maxon's

DV-7210 AC/DC Wall Charger and charge them all

at once while installed in the unit. Plug the AC/DC

wall charger into the radio's 12V DC power/charge

jack. The charging time will be 14-16 hours.

CAUTION: DO NOT operate the radio while the

batteries are being charged. DO NOT attempt to

recharge alkaline or carbon zinc batteries.
