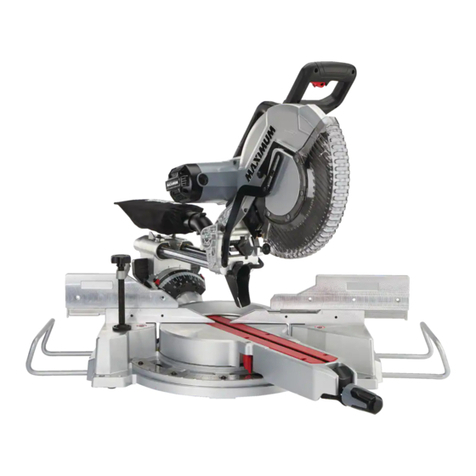

Maximum 055-6767-0 Manual de usuario
1
IMPORTANT:
Please read this manual carefully before using
this mitre saw and save it for reference.
Model no. 055-6767-0
INSTRUCTION
MANUAL
model no. 055-6767-0 | contact us 1-888-670-6682
2
3
TABLE OF CONTENTS
NOTE: If any parts are missing or damaged, or if you have any
questions, please call our toll-free helpline at 1-888-670-6682.
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions.
Read all instructions and follow them with use of this products.
TABLE OF CONTENTS
QUICK START GUIDE 4
SYMBOLS 6
SPECIFICATIONS 7
SAFETY GUIDELINES 8
ACCESSORIES AND ATTACHMENTS 15
TOOLS NEEDED FOR ASSEMBLY 17
CARTON CONTENTS 18
KNOW YOUR SLIDING MITRE SAW 19
ASSEMBLY 21
ADJUSTMENTS 29
OPERATION 38
MAINTENANCE 55
TROUBLESHOOTING GUIDE 58
REPLACEMENT PARTS 60
WARRANTY 64
model no. 055-6767-0 | contact us 1-888-670-6682
4
Read and understand the instruction manual to get the best use of the dual-bevel
sliding compound mitre saw.
Make sure the all accessories and the
blade are installed correctly and are
tight before operating the saw.
NOTE: The blade has been installed
in the mitre saw at the factory.
Recheck and adjust the alignment of
the blade before cutting if necessary.
1
Place hands at least 7 1/2" (19 cm)
away from the path of the blade—
out of the “no-hands zone.”
2
7 1/2”
(19 cm)
7 1/2”
(19 cm)
Use the hold-down clamp to hold the
workpiece firmly against the fence
to prevent movement towards the
blade. It is safer than using your hand
and it frees both hands to operate
the mitre saw.
3
QUICK START GUIDE
5
Turn the laser guide on for
pre-alignment of your cut. Use the
laser adjustment knobs to adjust the
laser beam if necessary.
4
With the power switch OFF, bring
the saw blade down to the workpiece
to see the cutting path of the blade.
Then, squeeze trigger switch to
start the saw and lower the blade
into the workpiece with a firm
downward motion.
5
Hold the cutting arm in the down
position. Release the trigger switch
and wait for all moving parts to
stop before moving your hands and
raising the cutting arm.
6
QUICK START GUIDE
model no. 055-6767-0 | contact us 1-888-670-6682
6
WARNING ICONS
Your power tool and its Operator’s Manual may contain “WARNING ICONS” (a picture
symbol intended to alert you to, and/or instruct you how to avoid, a potentially hazardous
condition). Understanding and heeding these symbols will help you operate your tool
better and safer. Shown below are some of the symbols you may see.
SAFETY ALERT: Precautions that involve your safety.
PROHIBITION
WEAR EYE PROTECTION: Always wear safety goggles or safety glasses with
side shields.
READ AND UNDERSTAND INSTRUCTION MANUAL: To reduce the risk of injury,
user and all bystanders must read and understand instruction manual before
using this product.
SUPPORT AND CLAMP WORK
KEEP HANDS AWAY FROM BLADE: Failure to keep your hands away from the
blade will result in serious personal injury.
WEAR RESPIRATORY AND HEARING PROTECTION: Always wear respiratory
and hearing protection.
DANGER
!
WARNING
!
CAUTION
!
DANGER: indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING: indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION: indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
SYMBOLS
7
SPECIFICATIONS
MOTOR
POWER SOURCE 120V AC, 60 Hz, 15A
SPEED 3200 RPM (No load)
BRAKE ELECTRIC
DOUBLE INSULATED Yes
ARBOUR SHAFT SIZE 5/8" (15.9 mm)
BLADE
DIAMETER 10" (25.4 cm), 60-tooth carbide-tipped
ARBOUR SIZE 5/8" (15.9 mm)
ROTATING TABLE
MITRE ANGLE RANGE 0°–50° Right & Left
POSITIVE MITRE STOPS 0°, 15°, 22.5°, 31.6°, 45° Right & Left
BEVEL ANGLE RANGE 0°–45° Right / 0°–47° Left
BEVEL POSITIVE STOPS 0°, 33.9°, 45° Right & Left
CUTTING CAPACITY
CROSSCUT (MAXIMUM HEIGHT) 3 1/2" x 11 1/2" (8.9 x 29.2 cm)
CROSSCUT (MAXIMUM WIDTH) 3 1/2" x 12 1/2" (8.9 x 31.8 cm)
MITRE 45° RIGHT & LEFT 3 1/2" x 8 3/4" (8.9 x 22.2 cm)
BEVEL 45° RIGHT 1" x 12 1/2" (2.5 x 31.8 cm)
BEVEL 45° LEFT 1 5/8" x 12 1/2" (4.1 x 31.8 cm)
45° MITRE AND 45° BEVEL 1 5/8" x 8 3/4" (4.1 x 22.2 cm)
CROWN MOULDING NESTED 5 3/4" (14.6 cm)
BASE MOULDING AGAINST FENCE 3 1/2" (8.9 cm)
NET WEIGHT 20.06 kg (44 lb 4 oz)
LASER
CLASS IIIA
LASER WAVELENGTH 630–660 nm
MAX. LASER OUTPUT < 5 mW
SPECIFICATIONS
model no. 055-6767-0 | contact us 1-888-670-6682
8
GENERAL SAFETY INSTRUCTIONS BEFORE USING THIS POWER TOOL
Safety is a combination of common sense, staying alert and knowing how to use your
power tool.
• READ and become familiar with the entire Operator’s Manual. LEARN the
tool’s application, limitations and possible hazards.
• KEEP GUARDS IN PLACE and in working order.
• REMOVE ADJUSTING KEYS AND WRENCHES. Form the habit of checking to see that
keys and adjusting wrenches are removed from the tool before turning ON.
• KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
• DO NOT USE IN DANGEROUS ENVIRONMENTS. Do not use power tools in damp
locations, or expose them to rain or snow. Keep work area well lit.
• KEEP CHILDREN AWAY. All visitors and bystanders should be kept a safe distance
from work area.
• MAKE WORKSHOP CHILD PROOF with padlocks, master switches or by removing
starter keys.
• DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which it
was designed.
• USE THE RIGHT TOOL. Do not force the tool or an attachment to do a job for which
it was not designed.
• USE PROPER EXTENSION CORDS. Make sure your extension cord is in good
condition. When using an extension cord, be sure to use one heavy enough to carry
the current that the product will draw. An undersized cord will result in a drop in line
voltage and in loss of power, which will cause the tool overheat. The table on page 14
shows the proper wire gauge size usage for each extension cord length and ampere
rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the
heavier the cord.
• WEAR PROPER APPAREL. Do not wear loose clothing, gloves, neckties, rings,
bracelets or other jewellery which may get caught in moving parts. Nonslip footwear
is recommended. Wear protective hair covering to contain long hair.
WARNING!
• To avoid mistakes that could cause serious injury, do not plug the tool in
until you have read and understood the safety guidelines.
SAFETY GUIDELINES
9
• ALWAYS WEAR EYE PROTECTION. Any power tool can throw foreign objects
into the eyes and could cause permanent eye damage. ALWAYS wear Safety
Goggles (not glasses) that comply with ANSI Safety standard Z87.1. Everyday
eyeglasses have only impact–resistant lenses. They ARE NOT safety glasses. NOTE:
Glasses or goggles not in compliance with ANSI Z87.1 could seriously injure you when
they break.
• WEAR A FACE MASK OR DUST MASK. Sawing produces dust.
• SECURE WORK. Use clamps or a vice to hold work when practical. It is safer
than using your hand and it frees both hands to operate the tool.
• DISCONNECT TOOLS FROM POWER SOURCE before servicing, and when changing
accessories such as blades, bits and cutters.
• REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch is in the OFF
position before plugging the tool in.
• USE RECOMMENDED ACCESSORIES. Consult this Operator’s Manual for
recommended accessories. The use of improper accessories may cause a risk of
injury to yourself or others.
• NEVER STAND ON THE TOOL. Serious injury could occur if the tool is tipped or if the
cutting tool is unintentionally contacted.
• CHECK FOR DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that it will operate
properly and perform its intended function—check for alignment of moving parts,
binding of moving parts, breakage of parts, mounting and any other conditions that
may affect its operation. A guard or other part that is damaged should be properly
repaired or replaced.
• NEVER LEAVE THE TOOL RUNNING UNATTENDED. TURN THE POWER “OFF”. Do
not walk away from a running tool until the blade comes to a complete stop and the
tool is unplugged from the power source.
• DO NOT OVERREACH. Keep proper footing and balance at all times. NEVER reach
across the path of the cutting blade while tool is in operation.
• MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and changing accessories.
• DO NOT use power tool in the presence of flammable liquids or gases.
• DO NOT operate the tool if you are under the influence of any drugs, alcohol or
medication that could affect your ability to use the tool properly.
SAFETY GUIDELINES
10
model no. 055-6767-0 | contact us 1-888-670-6682
• People with electronic devices, such as pacemakers, should consult their physician(s)
before using this product. Operation of electrical equipment in close proximity to a
heart pacemaker could cause interference or failure of the pacemaker.
• WEAR HEARING PROTECTION to reduce the risk of induced hearing loss.
SPECIFIC SAFETY INSTRUCTIONS FOR THIS SLIDING MITRE SAW
• DO NOT operate the mitre saw until it is completely assembled and installed
according to these instructions.
• IF YOU ARE NOT thoroughly familiar with the operation of mitre saws, seek guidance
from your supervisor, instructor or other qualified person.
• ALWAYS hold the work firmly against the fence and table. DO NOT perform any
operation free hand (use clamp wherever possible).
• KEEP HANDS out of the path of the saw blade. If the workpiece you are cutting
would cause your hands to be within 7 1/2" (19 cm) of the saw blade, the workpiece
should be clamped in place before making the cut.
• BE SURE the blade is sharp, runs freely and is free of vibration.
• ALLOW the motor to come up to full speed before starting a cut.
• KEEP THE MOTOR AIR SLOTS CLEAN and free of chips or dust.
• ALWAYS MAKE SURE all handles are tight before cutting, even if the table is
positioned in one of the positive stops.
• BE SURE both the blade and the collar are clean and the arbour bolt is tightened
securely.
• USE only blade collars specified for your saw.
• NEVER use blades larger in diameter than 10 inches.
• NEVER apply lubricants to the blade when it is running.
SAFETY GUIDELINES
WARNING!
• Dust generated from certain materials can be hazardous to your health.
Always operate saw in well-ventilated area and provide for proper
dust removal.
