1QM00132-1

LCD Projector

MC-AW3506/MC-AW3006

MC-AX3506/MC-AX3006

User's Manual (detailed)

Operating Guide – Technical

Supported signals for COMPUTER IN

Resolution (H x V) Signal mode H. frequency

(kHz)

V. frequency

(Hz)

Rating

720 x 400 TEXT 37.9 85 VESA

640 x 480 VGA (60Hz) 31.5 59.9 VESA

VGA (72Hz) 37.9 72.8 VESA

VGA (75Hz) 37.5 75 VESA

VGA (85Hz) 43.3 85 VESA

800 x 600 SVGA (56Hz) 35.2 56.3 VESA

SVGA (60Hz) 37.9 60.3 VESA

SVGA (72Hz) 48.1 72.2 VESA

SVGA (75Hz) 46.9 75 VESA

SVGA (85Hz) 53.7 85.1 VESA

832 x 624 Mac 16” mode 49.7 74.5

1024 x 768 XGA (60Hz) 48.4 60 VESA

XGA (70Hz) 56.5 70.1 VESA

XGA (75Hz) 60 75 VESA

XGA (85Hz) 68.7 85 VESA

1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA

1280 x 768 W-XGA (60Hz) 47.7 60 VESA

1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA

1280 x 1024 SXGA (60Hz) 64 60 VESA

SXGA (75Hz) 80 75 VESA

SXGA (85Hz) 91.1 85 VESA

1366 x 768 WXGA (60Hz) 47.7 59.8 VESA

1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA

1600 x 900 WXGA++ (60Hz) 60 60 VESA

1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA

1600 x 1200 UXGA (60Hz) 75 60 VESA

1920 x 1080 Full HD (60Hz) 67.5 60 VESA

2QM00132-1

Supported signals for HDMI

Resolution (H x V) Signal mode H. frequency

(kHz)

V. frequency

(Hz)

Rating

720 x 400 TEXT 37.9 85 VESA

640 x 480 VGA (60Hz) 31.5 59.9 VESA

VGA (72Hz) 37.9 72.8 VESA

VGA (75Hz) 37.5 75 VESA

VGA (85Hz) 43.3 85 VESA

800 x 600 SVGA (56Hz) 35.2 56.3 VESA

SVGA (60Hz) 37.9 60.3 VESA

SVGA (72Hz) 48.1 72.2 VESA

SVGA (75Hz) 46.9 75 VESA

SVGA (85Hz) 53.7 85.1 VESA

832 x 624 Mac 16” mode 49.7 74.5

1024 x 768 XGA (60Hz) 48.4 60 VESA

XGA (70Hz) 56.5 70.1 VESA

XGA (75Hz) 60 75 VESA

XGA (85Hz) 68.7 85 VESA

1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA

1280 x 768 W-XGA (60Hz) 47.7 60 VESA

1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA

1280 x 1024 SXGA (60Hz) 64 60 VESA

SXGA (75Hz) 80 75 VESA

SXGA (85Hz) 91.1 85 VESA

1366 x 768 WXGA (60Hz) 47.7 59.8 VESA

1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA

1600 x 900 WXGA++ (60Hz) 60 60 VESA

1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA

1600 x 1200 UXGA (60Hz) 75 60 VESA

720(1440) x 480i 480i 15.7 60 CEA

720(1440) x 576i 576i 15.6 50 CEA

720 x 480p 480p 31.5 60 CEA

720 x 576p 576p 31.3 50 CEA

1280 x 720p 720p (50Hz) 37.5 50 CEA

720p (60Hz) 45 60 CEA

1920 x 1080i 1080i (50Hz) 28.1 50 CEA

1080i (60Hz) 33.8 60 CEA

1920 x 1080p 1080p (50Hz) 56.3 50 CEA

1080p (60Hz) 67.5 60 CEA

Supported signals

3QM00132-1

Supported signals

NOTE

• Be sure to check jack type, signal level, timing and resolution before connecting this

projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with

this projector.

• Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of

display pixels above.

• The signal will be converted to the projector’s panel resolution before being displayed. The best display

performance will be achieved if the resolutions of the input signal and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

•

The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.

4QM00132-1

Connection to the ports

NOTICE Ź8VHWKHFDEOHVZLWKVWUDLJKWSOXJVQRW/VKDSHGRQHVDVWKH

input ports of the projector are recessed.

Ź2QO\WKHVLJQDOWKDWLVLQSXWIURPWKHCOMPUTER IN1 can be output from

the COMPUTER IN2/MONITOR OUT port. The way is available only when

the MONITOR OUT is selected for the COMPUTER IN2. (INPUT menu -

COMPUTER IN in the User's Manual - Operating Guide)

ACOMPUTER IN1, BCOMPUTER IN2/MONITOR OUT

D-sub 15pin mini shrink jack

(1) for PC signal

9LGHRVLJQDO5*%VHSDUDWH$QDORJ9SSȍWHUPLQDWHGSRVLWLYH

+9V\QF6LJQDO77/OHYHOSRVLWLYHQHJDWLYH

&RPSRVLWHV\QF6LJQDO77/OHYHO

Pin Signal Pin Signal

1Video Red 10 Ground

2 Video Green 11 (No connection)

3 Video Blue 12 A

: SDA (DDC data)

B, C

: (No connection)

4 (No connection)

5 Ground 13 H. sync / Composite sync.

6 Ground Red 14 V. sync.

7 Ground Green 15 A

6&/''&FORFN

B, C

: (No connection)

8 Ground Blue

9 (No connection) - -



   

   

(2) for Component signal

<&RPSRQHQWYLGHR<ZLWKFRPSRVLWHV\QF9SSWHUPLQDWRU

&U3U&RPSRQHQWYLGHR&U3U9SSWHUPLQDWRU

&E3E&RPSRQHQWYLGHR&E3E9SSWHUPLQDWRU

System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60

Pin Signal Pin Signal

1Cr/Pr 9 (No connection)

2 Y 10 Ground

3 Cb/Pb 11 (No connection)

4 (No connection) 12 (No connection)

5 Ground 13 (No connection)

6 Ground Cr/Pr 14 (No connection)

7 Ground Y 15 (No connection)

8 Ground Cb/Pb - -

5QM00132-1

Connection to the ports (continued)

CVIDEO IN

RCA jack

6\VWHP176&3$/6(&$03$/03$/1176&3$/+]

9SSȍWHUPLQDWRU

6QM00132-1

Connection to the ports (continued)

FAUDIO IN1

Ø3.5 stereo mini jack

NWHUPLQDWRU

AUDIO IN2

RCA jack x2

NWHUPLQDWRU

AUDIO OUT

Ø3.5 stereo mini jack

NRXWSXWLPSHGDQFH

JMIC

Ø3.5 mono mini jack

/RZOHYHO!

P9UPVNȍWHUPLQDWRU

+LJKOHYHO!

P9UPVNȍWHUPLQDWRU

DHDMI1 EHDMI2

• Type :Digital audio/video connector

$XGLRVLJQDO/LQHDU3&06DPSOLQJUDWHN+]

Pin Signal Pin Signal Pin Signal

1 T.M.D.S. Data2 + 8 T.M.D.S. Data0 Shield 15 6&/

2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA

3 T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground

4T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield

+5V Power

5 T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect

6 T.M.D.S. Data1 - 13 CEC

7 T.M.D.S. Data0 + 14 Reserved(N.C. on device)

10 12 14 16 182468

911131517191357

7QM00132-1

Connection to the ports (continued)

USB

TYPE B

USB B type jack

Pin Signal

1+5V

2 - Data

3 + Data

4Ground

CONTROL

D-sub 9pin plug

• About the details of RS-232C communication,

please refer to the section "RS-232C Communication".

Pin Signal Pin Signal Pin Signal

1 (No connection) 4 (No connection) 7 RTS

2 RD 5 Ground 8 CTS

3 TD 6 (No connection) 9 (No connection)

LAN

RJ-45 jack 87654

Pin Signal Pin Signal Pin Signal

1TX+ 4- 7-

2TX- 5- 8-

3RX+ 6RX-

KUSB TYPE A

USB A type jack 432 1

Pin Signal

1+5V

2 - Data

3 + Data

4 Ground

54321

8QM00132-1

Connection to the ports (continued)

To input component video signal to COMPUTER IN ports

ex.

To input component video signal to the COMPUTER IN1 or IN2 port of the

projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the

descriptions about COMPUTER IN1 and IN2 port (4).

Y CB/PBCR/PR

COMPONENT VIDEO OUT

RCA plugs

D-sub plug

VCR/DVD/Blu-ray

Disc player

RCA connectors

9QM00132-1

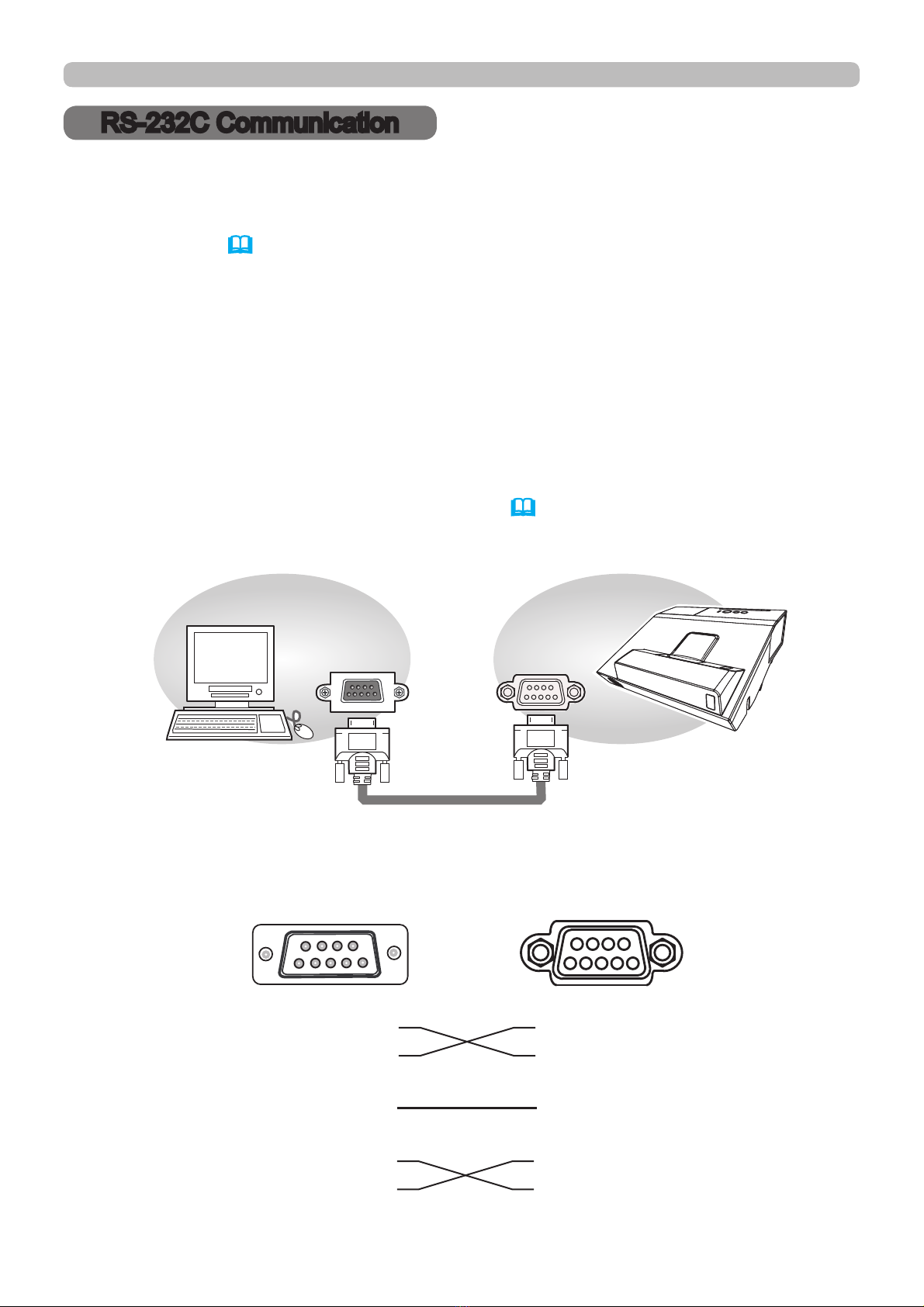

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the

projector can be controlled with RS-232C commands from the computer.

For details of RS-232C commands, refer to RS-232C Communication / Network

command table (18).

Connection

1. Turn off the projector and the computer.

2. Connect the projector's CONTROL port and the computer's RS-232C port

ZLWKD56&FDEOHFURVV8VHWKHFDEOHWKDWIXO¿OOVWKHVSHFL¿FDWLRQ

VKRZQLQ¿JXUH

3. Turn the computer on, and after the computer has started up turn the projector

on.

4. Set the COMMUNICATION TYPE to OFF. (OPTION menu - SERVICE -

COMMUNICATION in the User's Manual - Operating Guide)

(cross)

RS-232C Cable

RS-232C CONTROL

CD (1) (1) ٕ

RD(2) (2) RD

TD (3) (3) TD

DTR (4) (4)

GND (5) (5) GND

DSR (6) (6)

RTS (7) (7) RTS

CTS (8) (8) CTS

RI (9) (9)

CONTROL port

of the projector

RS-232C port

of the computer

54321

10 QM00132-1

RS-232C Communication (continued)

Communication settings

1. Protocol

19200bps,8N1

2. Command format ("h" shows hexadecimal)

Byte Number 01 2 3456

789101112

Command

Action

Header Data

Header

code

Packet

Data

size

CRC

ÀDJ Action Type Setting

code

/H/H/H/H/H/H

6(7!

Change setting to

GHVLUHGYDOXH>F/F+@

E\>E/E+@

BEh EFh 03h 06h 00h

D/ (aH) 01h 00h E/ (bH) F/ (cH)

*(7!

Read projector

LQWHUQDOVHWXSYDOXH>E/

E+@

D/ (aH) 02h 00h E/ (bH) 00h 00h

,1&5(0(17!

Increment setup value

>E/E+@E\

D/ (aH) 04h 00h E/ (bH) 00h 00h

'(&5(0(17!

Decrement setup value

>E/E+@E\

D/ (aH) 05h 00h E/ (bH) 00h 00h

(;(&87(!5XQD

FRPPDQG>E/E+@.

D/ (aH) 06h 00h E/ (bH) 00h 00h

[Header code] [Packet] [Data size]

6HW>%(K()KKKK@WRE\WHQXPEHU

>&5&ÀDJ@

For byte number

5, 6,

refer to

RS-232C Communication / Network command

table

(18).

[Action]

Set functional code to byte number 7, 8.

<SET! >KK@GET! >KK@INCREMENT! >KK@

<DECREMENT! >KK@EXECUTE! >KK@

Refer to the Communication command table (above).

[Type] [Setting code]

For byte number

, refer to

RS-232C Communication / Network command

table

(18).
