Mattel Barbie Dream House Manual de usuario
©2017 Mattel. All Rights Reserved.
TAB TAB
Furniture • Wardrobe • Bookcase
IMPORTANT: READ THIS INFORMATION BEFORE PROCEEDING WITH THE ASSEMBLY!
CHECK EACH STEP AS YOU COMPLETE IT
TO MAKE IT EASIER TO UNDERSTAND THE ASSEMBLY INSTRUCTIONS
The furniture and wardrobe combination consists of a number of
die-cut pieces of grayboard which, when assembled, are designed
to last a long time. The assembly is simple when you follow the
step-by-step assembly instructions. It can also be a lot of fun.
The furniture and wardrobe parts are held together by
small nicks. They will separate easily but do so carefully.
Remove all waste from slots and notches with handle of
spoon (not included). Place all parts in alphabetical order.
The assembly of the furniture and wardrobe
is based principally on inserting a tab into a
slot or inserting a notch into another notch.
THIS IS HOW ONE
NOTCH GOES INTO
ANOTHER:
ARROW INDICATES
DIRECTION IN
FOLDING A TAB:
NOTE:
1. SHADED AREAS IN THE DRAWINGS REPRESENT THE
PRINTED SIDE OF THE BOARD.
2. MAKE CERTAIN TO FOLD ALL CREASE LINES AS INDICATED
BY THE BROKEN LINES IN THE DRAWINGS.
3. PLACE FURNITURE PIECES ON A FLAT SURFACE WITH THE
PRINT SIDE UP TO SEPARATE. MAKE CERTAIN TO REMOVE
THE PIECES OF FURNITURE BY CAREFULLY PUSHING
THROUGH THE PRINT SIDE.
4. THE PIECES OF FURNITURE ARE ONE-TIME ASSEMBLY.
T.M. ® & ©1962 MATTEL, INC.
HAWTHORNE, CAL., U.S.A.
PATENT NO. 2,872,753
SOME PIECES OF THE
FURNITURE HAVE HOLES
SO THAT A FINGER CAN
BE INSERTED TO HOLD
THE BOARD FIRMLY
WHILE PUSHING THE
LEGS THRU THE SLOTS.
ARROW INDICATES PUTTING A
KEY LOCK THROUGH A MATCHING
HOLE AND ATTACHING RETAINER.
THIS IS A NOTCH:
THESE ARE TABS:
THIS IS A HOLE:
THIS IS A SLOT:
PAGE 1
Assembly Instructions for your DREAM HOUSE
®
FND44
FND44-0970
1101578908-DOM
CHOKING HAZARD – Small parts.
Not for children under 3 years.
WARNING:
Doll cannot stand alone. PAGE 2
X2
X6
X4
X2
X2
CONTENTS
PAGE 3
1
1
2
1
3
4
1
2
3
4
4
4
2
2
3
3
4
4
3
3
BOOKS A2
ASSEMBLE THE OTTOMAN
ASSEMBLE THE VANITY CHAIR
ASSEMBLE THE BOOKS
STEP 1
STEP 1
STEP 1
STEP 2
STEP 2
STEP 2
STEP 3
STEP 3
OTTOMAN
PART
VANITY SEAT PARTS
BOOK PARTS
BOOKS A1
Repeat with the other side panel
so that the tabs No. 1 meet.
Place "OTTOMAN" printed side down.
Now shape the side panel as shown.
Place "VANITY SEAT "
printed side down.
Complete chair by
folding down the panel
marked 2, so that tab
snaps into the slot 2.
Now fold over the panel
with the slot 1 so that it
snaps on tab 1.
Place "BOOKS A1" printed side down.
Fold up the panel with slot 1 as shown.
Now complete the assembly by inserting
tabs 3 and 4 thru slots 3 and 4 as shown.
Fold the assembled part over as shown. Repeat steps 1 and 2
with parts "BOOKS B1
and BOOKS B2".
Take "BOOKS A2" and insert tab 1 into slot 1 as shown. (Make
certain that the rounded tabs 3 and 4 are facing you.)
Now repeat above with tab and slot 2.
Repeat with other panel so
that the slot snaps on tab 1.
Fold up the panel with
slots 2,3,4 as shown.
Complete assembly by folding down
the panel with the slot so that the
tabs No. 1 go thru it.
Repeat with tabs 3 and 4.
PAGE 4
1
2
4
2
2
1
3
3
4
1
STEP 1
STEP 2
STEP 3

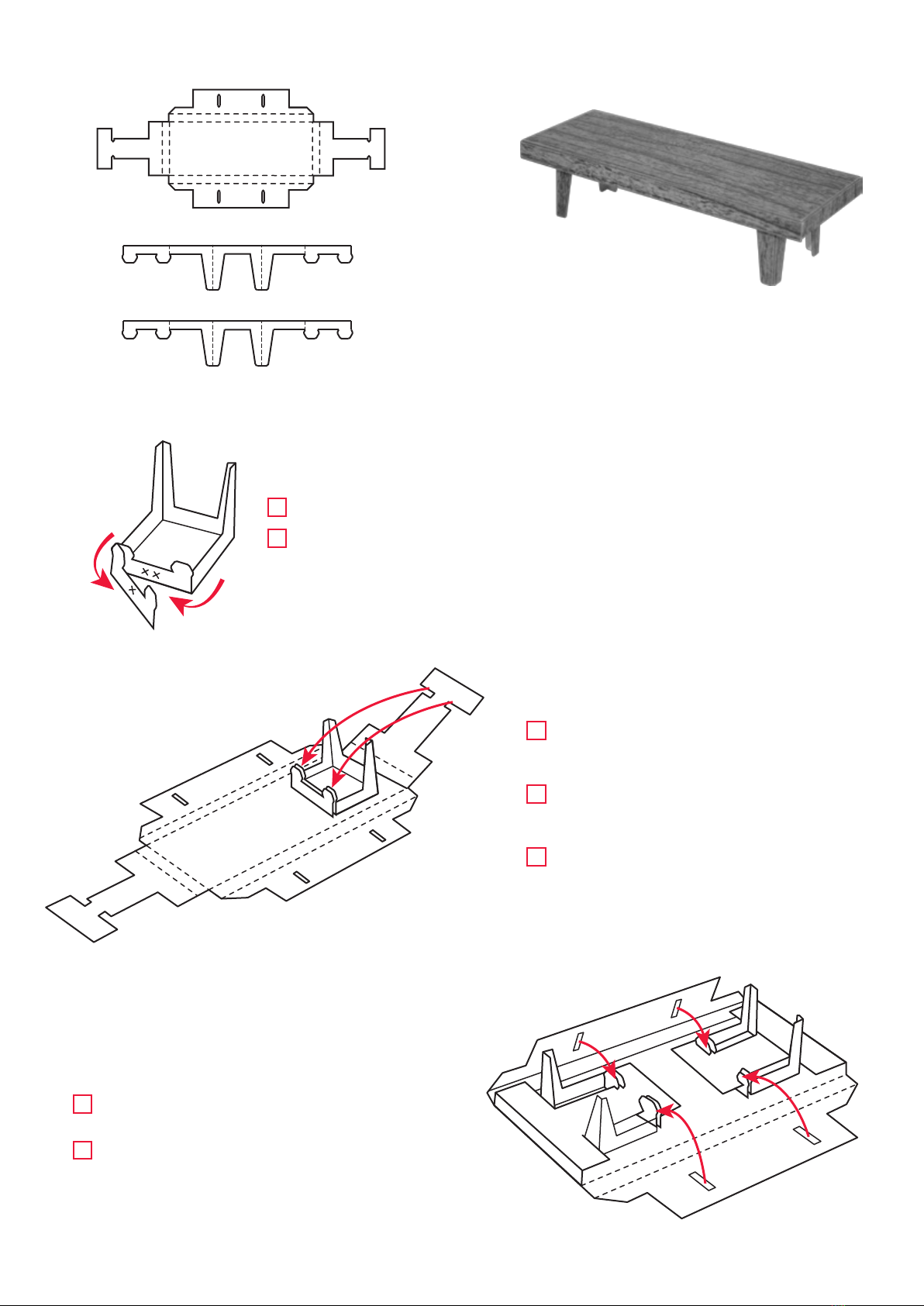

TABLE PARTS
TABLE A
TABLE B
TABLE C
Take "TABLE B" and shape as shown. Fold in XX ap rst and the X at on top of it.
Lay "TABLE A" printed side down.
Place the formed "TABLE C" in position as
shown. (Note the direction the legs are facing.)
Now fold the panel with slots 1 and 3 over so that they
snap on to tabs 1 and 3. Push down as far as it will go.
Repeat with other panel, so that slots 2
and 4 snap onto tabs 2 and 4.
Now fold the panel marked 1 and 2 of "TABLE A"
over on "TABLE C" so that the notches 1 and 2
lock into tabs 1 and 2.
Repeat above with "TABLE B".
Repeat above with "TABLE C".
ASSEMBLE THE TABLE
PAGE 5
9
8
HIFI C
6
7
8
9
7
6
3
5
2
4
2
3
5
4
15
14 10
11
16
17 13
12
5
14 15 16 17
5
893
893
10 11 12 13
1
STEP 1
STEP 2
STEP 3
STEP 4
HIFI PARTS
HIFI A
HIFI CHIFI B HIFI D
Take "HIFI B" and insert tab 1 thru slot 1
of "HIFI A".
Place "HIFI A"- printed side down.
Fold over the panels with notches 2 and 4
and insert into notches 2 and 4 of "HIFI B".
Push all the way down so that tabs 3 and 5
go thru slots 3 and 5 of part "A".
Shape "HIFI C" as shown. Insert notches 6 and 7 into notches
6 and 7 of "HIFI B". Push down as far as it will go, and at the
same time, insert tabs 8 and 9 thru slots 8 and 9.
Repeat with other panel so that tabs 5,8,9,3,10,11,12,13 snap into same numbered slots.
Place "HIFI D" printed side down with numbers 10,11,12,13 facing you.
Place assembled parts "A""B""C" on the center panel with numbers 3, 5, 8 and 9 facing you.
Now fold over the panel with slots numbers 14,15,16,17 so that they snap on tabs 14,15,16,17 as shown.
ASSEMBLE THE HIFI
1
PAGE 6
2
1
3
1
23
54
5
4
4
5
8
6
9
7
8
6
7
1
X
1
STEP 1 STEP 2
STEP 4 STEP 5 STEP 6
STEP 3
CHAIR PARTS
CHAIR A
CHAIR B
CHAIR C
CHAIR ECHAIR D
Place "CHAIR A"
printed side down.
Now fold down the panel
with the slot marked No.
1 on top of the other panel .
Place aside temporarily.
Fold over the panel
marked "X" as shown.
Now fold the other ap
over on the "X" panel.
Take "CHAIR B" and insert
tabs 1,2,3 into the slots
1,2,3 of "CHAIR A". Make
certain tab 1 goes all the
way thru the rear slot in
the back of the chair.
Turn assembled parts
upside down.
Fold "CHAIR C" in "U"
shape and place in
position as shown-
open end facing you.
Fold down the panel with slots
4 and 5 so that the tabs 4 and
5 of "CHAIR C" go thru them.
Take "CHAIR E" and
form in shape shown.
Insert tabs 6,7,8,9 into
slots 6,7,8,9; push in as
far as they will go.
Repeat same with "CHAIR D".
Now fold down the opposite
panel as shown.
Next fold over the 2 end
panels so that the slots 4 and
5 lock on to tabs 4 and 5.
ASSEMBLE THE CHAIR
PAGE 7
4
2
5
1
3
3
1
5
2
4
X
X X
1
1524
3
STEP 1
STEP 2
COUCH PARTS
COUCH A
COUCH B COUCH C
COUCH D COUCH E
Place "COUCH A" printed side down.
Fold over panel marked "X"as shown.
Repeat same with "XX" panel.
Now fold over the back panel on
top of the "X" and "XX" panels.
STEP 3
With printed side up, insert tabs
1,2,3,4,5 of "COUCH B" into same
numbered slots of "COUCH A".
Push tabs all the way in. Make certain
tabs 1 and 2 go thru slots of the back of
part "A" and lock. Also make certain that
tab 5 is all the way thru the slot.
(It may be necessary to hold the panel
with slot 5 to do this.)
ASSEMBLE THE COUCH
PAGE 8
8
8
76
6
7
14 15
16
17
18
13
11
12
10
9
19
20
14
13
11
10 12
ASSEMBLE THE LAMP
STEP 4
Take "COUCH C", form in "U" shape and place in position
as shown.
STEP 5
STEP 1
Fold over the end aps as shown.
Place "LAMP A" printed side down.
STEP 3
Take "LAMP C"- with printed
side up-insert slots into the
tabs of "LAMP A" as shown.
STEP 2
Bring the 2 "X" panels together to form cylindrical shape.
Push part "B" all the way in.
Now insert slot of " LAMP B" into the slot of part "A" as shown.
Fold "LAMP B" along the dotted lines as shown.
Push all the way down.
Fold "X" panels over as shown.
Shape "COUCH D" as shown.
Repeat with "COUCH E".
Insert tabs 9,10,11,12,13,14 into same numbered
slots. Push in as far as they will go, so they lock.
Fold over the panel with slot 8 so that it snaps on to
tab 8 of "COUCH C".
Now repeat with other panel with numbers 6 and 7.
LAMP A LAMP B
LAMP C
LAMP PARTS
ASSEMBLE THE COUCH
PAGE 9
1
12
2
3
3
11
4
10
6
6
5
7
4
5
7
6
STEP 1
Lay "BED A" printed side down.
Place "BED B" in center of panel as shown.
STEP 2
Insert tab 3 into wide part of slot 3 of "BED C".
STEP 3 STEP 4
Now fold down the center panel
with wide slot so that tab 3 goes
thru it.
Fold down the end panels as shown.
Shape "BED D" as shown.
Insert tabs 4,5,6,7 into same numbered slots, push all the
way in so they lock.
Repeat above with "BED E"; insert tabs 8,9,10,11 into
same numbered slots.
Fold over panel, with slot 1 so that it snaps
into tab 1 of "BED B".
Repeat with other side with slot 2.
BED A
BED C BED B
BED D
BED E
BED PARTS
ASSEMBLE THE BED
8
PAGE 10
WARDROBE A WARDROBE B
WARDROBE G
WARDROBE H WARDROBE I
WARDROBE M WARDROBE N
WARDROBE O
MIRROR DOWEL
WARDROBE J
WARDROBE LWARDROBE K
WARDROBE C WARDROBE D WARDROBE E WARDROBE F
WARDROBE PARTS
ASSEMBLE THE WARDROBE
