Connect-EV

Electric Vehicle

Charger Isolation Unit

Installation Manual

V1.0 Feb 2019

Connect-

2 | P a g e

Contents

Product Descri tion 3

Warning Notice 3

Safety Advice 3

Introduction 4

Ty ical Installation Diagram 4

Dimensions & Mounting the unit 5

Electrical Connections 7

S ecifications 9

Warranty 9

PRODUCT ADVISORY NOTICE

This product must be inst lled by competent person in ccord nce with the IEE

Wiring Regul tions, BS7671 (18

Edition or l ter) nd current Building

Regul tions.

Ensure the electric l supply is disconnected before inst ll tion or removing the

covers of the Connect-EV.

Connect-

3 | P a g e

Once inst lled, the unit h s Live M ins Supply

(230v or higher) within the enclosure. The covers

must not be removed until the supply to the unit

h s been isol ted or disconnected.

Product Descri tion

The m tt:e Connect-EV is designed for use in domestic and light commercial / retail

a lications where an Electric Vehicle charger is installed.

The unit is not intended for any ur ose other than that defined within this document.

WARNINGS

Please read and observe the following notices carefully. These warnings must be

observed when installing and o erating the Connect-EV.

All relev nt supplies must be isol ted or disconnected before commencing ny work.

This product must be inst lled by competent person in ccord nce with the IEE

Wiring Regul tions, BS7671 (18

Edition or l ter) nd ny relev nt Building

Regul tions.

S fety Advice

The unit must be inst lled in well ventil ted loc tion; it must never be covered or

h ve restricted ventil tion.

The unit is r ted for m ximum 32A.

For ny inform tion not cont ined within this document, ple se cont ct our

technic l support te m on 01543 227290.

Connect-

4 | P a g e

Introduction

The m tt:e Connect-EV is a single hase solation solution designed to facilitate the

installation of an electric vehicle charging systems.

Rated at 32A, the unit is

suitable for single hase EV charger systems u to 7kW. It is

essential to check the rating of the EV charger system is com atible with the unit

before installing.

The unit is designed to be installed between the EV charger and the consumer unit or

the incoming su ly via Henley ty e blocks.

The installation location should be clean and well ventilated.

Connect-

5 | P a g e

Please refer to the following diagrams for the dimensions and mounting arrangements

of the unit.

Connect-

6 | P a g e

Connect-

7 | P a g e

Electrical Connections

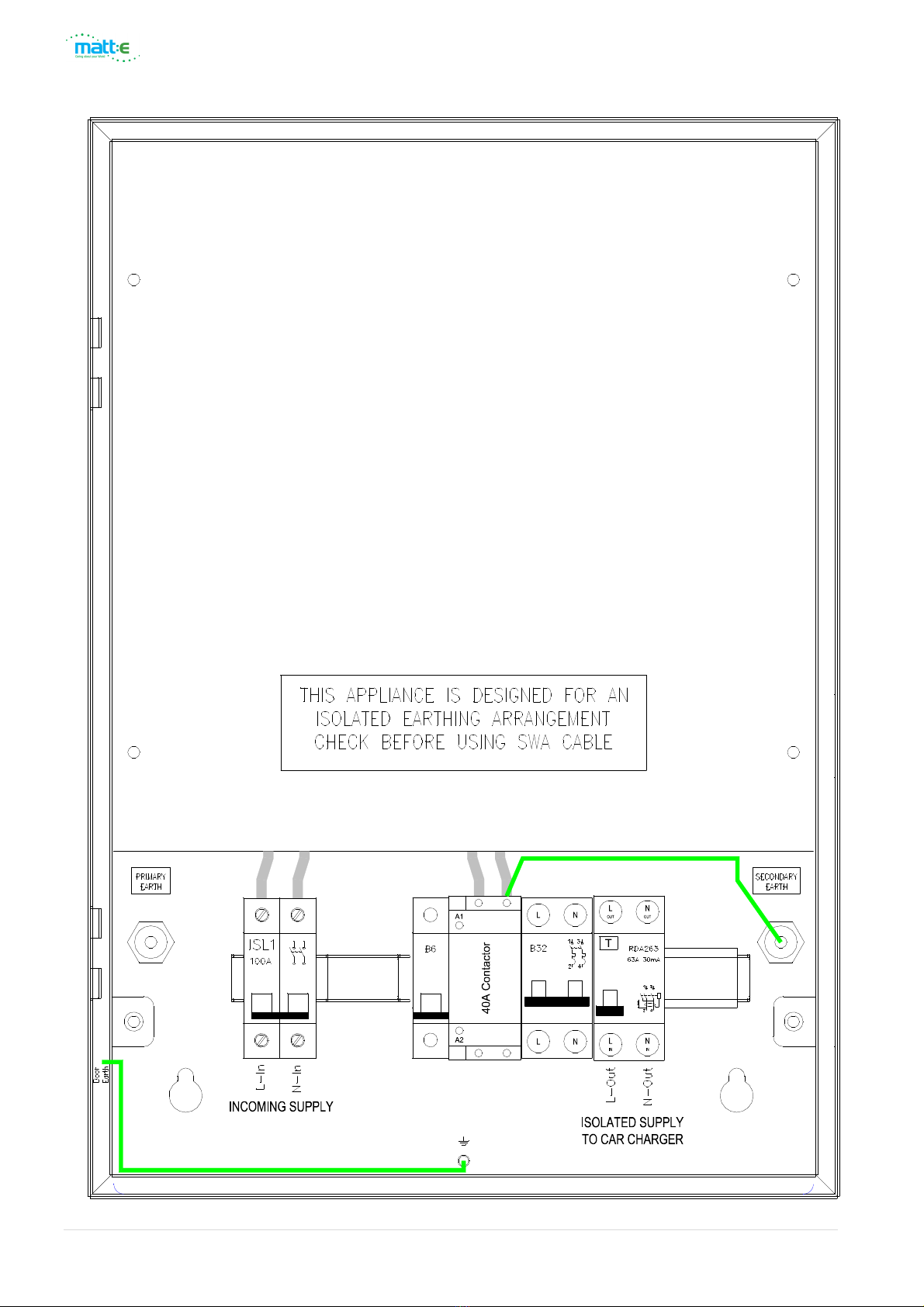

The user wiring connections are indicated in the diagram below.

Connect the incoming (live) cable from the consumer unit to the isolator.

Connect the outgoing cable to the RCDA.

Use of SWA cable may com romise the earthing arrangement. Please check before

using SWA cable

On com letion of installation the tightness of all electrical connections should be

checked before energising the unit.

Connect-

8 | P a g e

Connect-

9 | P a g e

S ecifications

Description Connect-EV - EV Charge Isolation Unit

Input (Volts) Nominal in ut voltage 230v, 50Hz, Single Phase AC

M x Lo d 32A

Dimensions 540mm x 375mm x 155mm

Weight A roximately 45 kg

Oper ting

Temper ture

-5°C to +40°C

Termin l

C p city

Incoming Live = 10mm

Incoming Neutral = 10mm

Outgoing Live = 10mm

Outgoing Neutral = 10mm

Enclosure Mild Steel Powder Coated

Ingress

Protection

IP44

Document

Revision V1.0 Feb 2019

Warranty

The Connect-EV is guaranteed for a eriod of 12 months from the date of

manufacture.

This warranty is limited to the re lacement of faulty com onents only.

matt:e Ltd, Unit 5 Common Barn Farm, Tamworth Road, Lichfield WS14 9PX
