Matrix T3x Guía del administrador

T3x Error Codes LCD Console Board W / MEEEX LCB 1

Table of Contents

Page#

Error Code Description 2

MaintenanceLamp

BlueLight 2

RedLight 2

ServiceInformation 2-3

Serial Number Information 2

Engineering Mode 3

Speed Movement Related Errors 4-6

E1 Speed Feedback Issue 5

E1 Corrective Action Parts Needed 6

Console Memory Related Errors 7-8

E2MemoryLoss 8

E2 Corrective Action Parts Needed 8

Elevation Movement Related Errors 9-13

E3 Elevation Motor Signal Range / Stall 10

E3 Corrective Action Parts Needed 11

E6 Elevation Signal Missing 12

E6 Corrective Action Parts Needed 13

Notes:

If there are any safety concernes please call the Matrix Fitness Systems Service Department

at 866-693-4863 before performing any service.

Please make sure to take any saftey percautions before performing any service.

Unplug any electrical power cords before touching any electrical components.

Use common sense before performing any electrical service.

Do not touch any component that is “hot” or looks to be “hot”.

3X Error Codes

LCD Console Board W/ MEEEX LCB

1000324 Rev 1 8/1/05

T3x Error Codes LCD Console Board W / MEEEX LCB 2

ERROR CODES

Errors are divided in speed related errors (E1) , console memory related error (E2) , and elevation related errors (E3 /

E6). System should be properly calibrated (if possible) before attempting to troubleshoot error codes.

The following table contains standard error codes. Other error codes are enabled for development purposes but

cannot be remedied via engineering variables. Error codes can be remedied in some conditions by system calibration

or require toggle of system power to reset

MaintenanceLamp

Blue Light: Normal Opertation Mode: When the treadmills accumulated distace reaches the 5,000 mile mark

the Blue light will be displayed meaning the it is time for general maintenance to be performed. This light will

then come on at every 5,000 mile interval. To turn off the light after you have finished the maintenance hold

the incline ↓and the speed -at the same time for 3 seconds.

Red Light: Normal Operation Mode: This light will occure when there is a Error sent to the console display.

To fix this please see the Error Code guide number and follow the instruction on how to fix the problem.

Service Information

For faster service please have the following information ready.

Serial Number

Production Date:

This information is located on the front of the elevation rack.

Additional information needed:

Start Speed

Motor Decal information

Motor Pad under motor

CODE DESCRIPTION

1 Speed Range (usually caused by calibration)

Speed Stall (could be missing speed sensor)

AC power wires could be loose

2 Console Memory Loss

3 Elevation out of range / Elevation movement stall

6 Console signal to LCB but no movement

T3x Error Codes LCD Console Board W / MEEEX LCB 3

Recording Information Needed From Engineer Mode

Enter Engineer Mode hold down the ↑& + Use the ↓↑ arrows to select the P value.

keys for 3 seconds.

Once at the P Value use the - + to change the data. Once at the needed value press QUICK START to save.

To run Auto Check hold down the SELECT key

T3x Error Codes LCD Console Board W / MEEEX LCB 4

SPEED

MOVEMENT

ERRORS

T3x Error Codes LCD Console Board W / MEEEX LCB 5

E1 - Speed Feedback Error

OVERVIEW

If no belt movement is detected 10 seconds after pressing START the console calls a speed stall error (E1).

During normal run time operation the value stored during auto calibration is used to initially set the speed (e.g. target speed = 12

MPH, PWM ticks = Maximum PWM = 999). Once the speed is stabilized the actual speed is monitored and if different than the

target speed the PWM value is adjusted until the actual speed matches the target speed. If the PWM value is changed by more

than the amount of ticks required to change .8 MPH and the actual speed does not match the target speed then an (E1) error is

flagged. This error indicates the motor controller system is unable to maintain the target speed.

Solution Flow

Chart

T3x Error Codes LCD Console Board W / MEEEX LCB 6

E1 CORRECTIVE ACTION PARTS NEEDED

Part Number: SJFD08020 (110V)

Description: Motor Control Board, 110v (T3x)

Drawing Number: M02

Part Number: MC0501144E

Description: Console Extended Cable (T3x)

Drawing Number: P01

Part Number: MC0502066C

Description: Console Wire (T3x)

Drawing Number: P02

Part Number: SJTD01008BB

Description: Console Control Board (T3x)

Drawing Number: AY1

Part Number: SZTM68MTR

Description: T3x Motor

Drawing Number: M01

Part Number: MCA206002

Description: MTR Brush T3x

Drawing Number: See MTR Drawing

Qty:2

Part Number: MC0510091B

Description: Speed Sensor T3x

Drawing Number: P05

T3x Error Codes LCD Console Board W / MEEEX LCB 7

CONSOLE

MEMORY

ERRORS

T3x Error Codes LCD Console Board W / MEEEX LCB 8

E2 – Console Memory Loss

OVERVIEW

If the console memory chip is damaged or has some sort of electrical spike the console memory could be lost. If so you will need to

replace the console board.

E2 CORRECTIVE ACTION PARTS NEEDED

Part Number: SJTD01008BB

Description: Console Control Board (T3x)

Drawing Number: AY1

T3x Error Codes LCD Console Board W / MEEEX LCB 9

ELEVATION

MOVEMENT

ERRORS

T3x Error Codes LCD Console Board W / MEEEX LCB 10

E3– Elevation Range / Elevation Stall

OVERVIEW

When elevation movement is commanded (e.g. elevation up) the elevation position feedback is expected to change in the correct

direction (e.g. increase in pot value for an elevation up command). If the elevation position feedback changes in the opposite of the

expected direction (e.g. elevation command up and elevation feedback decreases) a reverse elevation error (E3) is flagged.

To prevent the elevation from stalling at the lower travel end or running off on the top end of travel the elevation position feedback is

monitored. If the elevation position feedback is lower than expected (e.g. < 10) or higher than expected (e.g. > 250) then an (E3) is

called. To reduce the risk of elevation motor/system damage or overheating in the event of a stall elevation stall conditions are

monitored. If movement is commanded and the position feedback indicates no movement-taking place an elevation stall error is

called. This problem has been caused most frequently by overheated elevation motor.

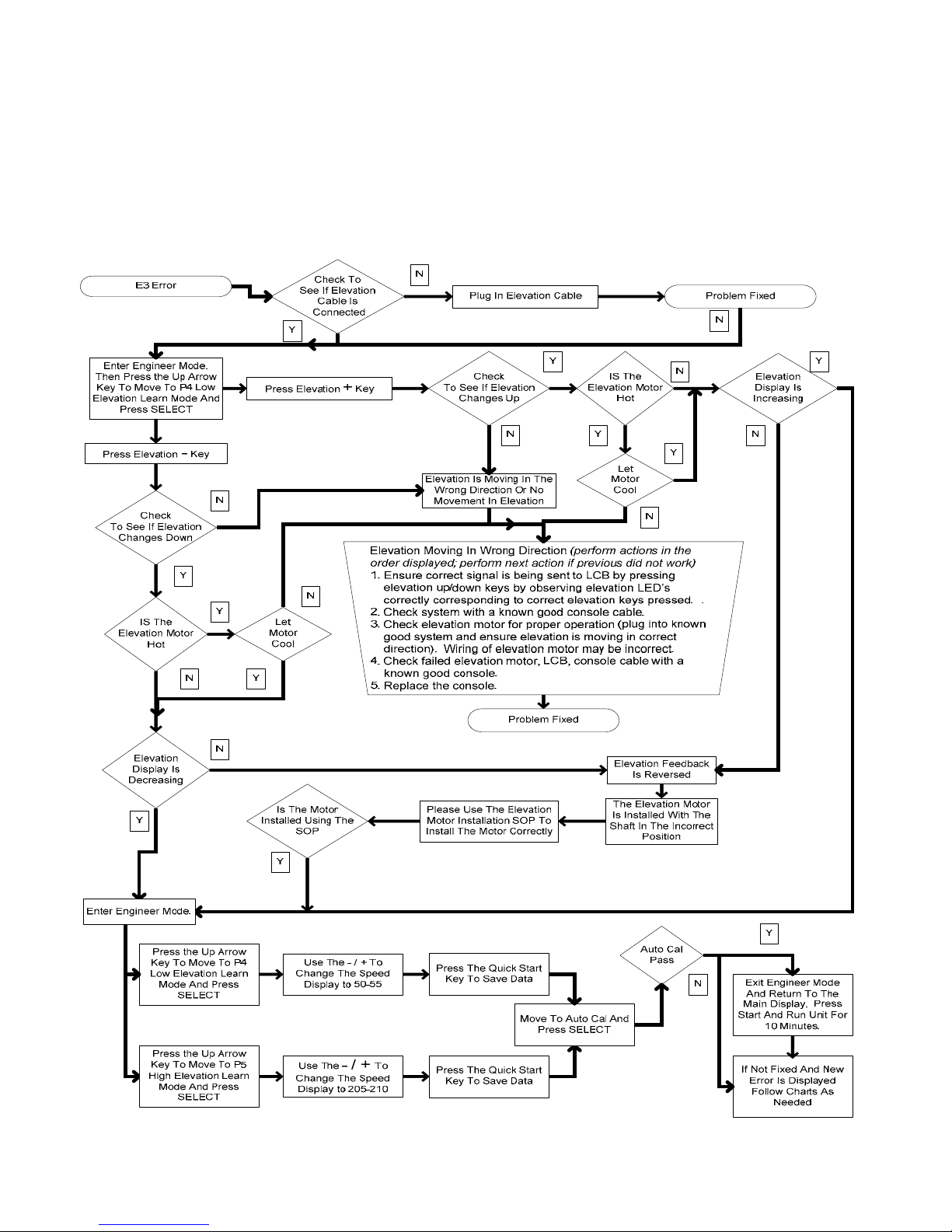

Solution Flow Chart
