MHG201
Gas Hob
Manual for Installation, Use and Maintenance
2
2
Important
The manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product.
Please note that we reserve the right to invalidate the guarantee
supplied with this product following incorrect installation or misuse of
the appliance.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Gas safety, Electrical
3
3
safety (LVD) and Electromagnetic interference compatibility (EMC).
Parts intended to come into contact with food conform to EEC/89/109.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.
Please note:
•Gas hobs become hot and remain hot during and immediately after
use. Do not touch the pan stands, burners or hob spill tray until the
appliance has been allowed to cool.
•Keep children away from the appliance when in use.
•After use, please ensure that the gas taps are in the ‘O” position.
•Ensure that the appliance is correctly adjusted for the type of gas
available before installation.
•The use of a gas appliance produces heat and humidity in the room
in which it is installed. Ensure that the room is well ventilated, either
by the use of natural ventilation outlets (e.g. windows) or a ducted
extractor.
4
4
g
.1
Using Your Hob
Fig. 1

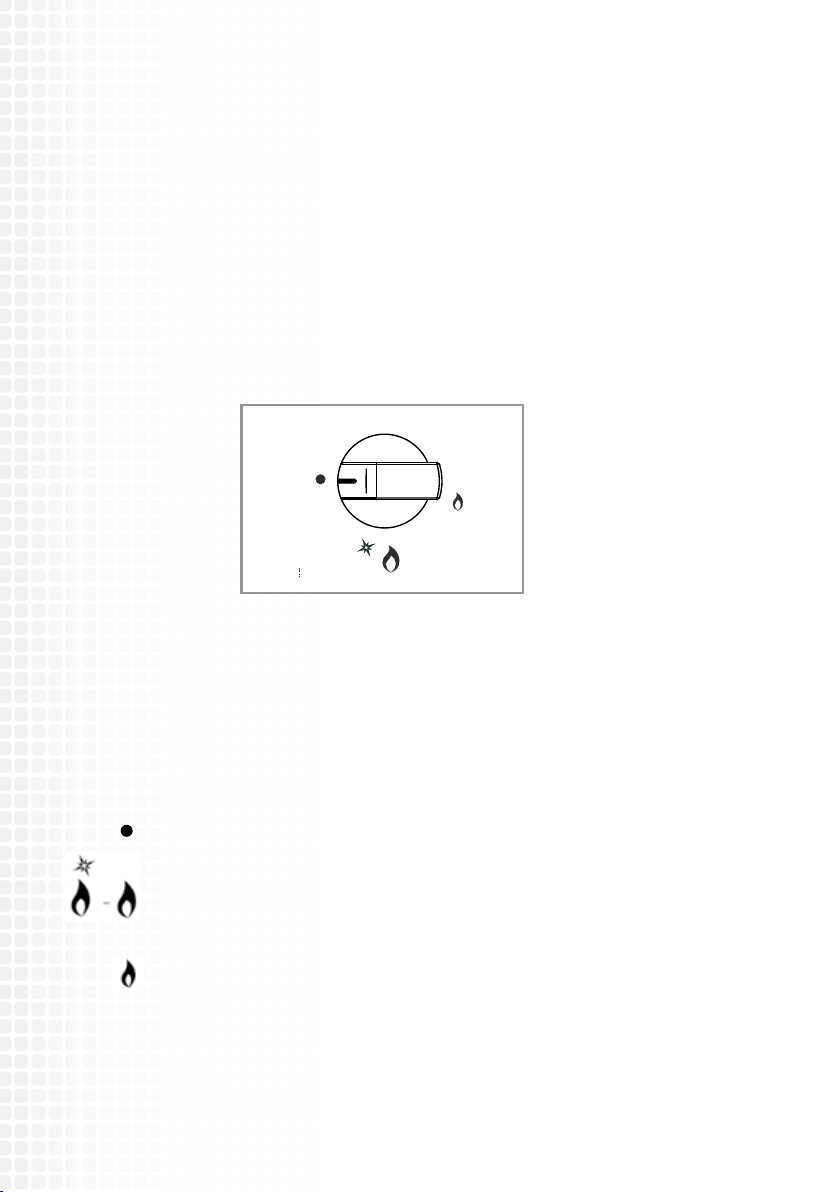

Gas burners:
Gas flow to the burners is controlled by the control knobs (6, 7,
8, 9 and 10 on the diagram on page 5). There are 3 positions
shown on the control panel. Turning the control knob to the
positions shown below achieves the following:
Closed (OFF position)
Maximum position: Provides fast boiling function
Minimum position: Provides simmer function
The burners can be set to the desired position by turning the
control knobs through the adjustment range in an
anti-clockwise direction.
•This hob (Class 3) has been designed for use only as a cooking
appliance. Any other use (e.g. heating rooms) should be considered
incorrect and potentially dangerous.
•These instructions are valid only for the countries of destination, the
symbols of which appear on the appliance.
5
5
Key to Fig 2
Gas burners:
1. Semi-Rapid burner 1.75kW
2. Auxiliary burner 1.0kW
3. Triple burner / wok 3.8kW
4. Semi-Rapid burner 1.75kW
5. Rapid burner 3.0kW
Control panel:
6. Front left burner control knob
7. Back left burner control knob
8. Centre burner control knob
9. Back right burner control knob
10. Front right burner control knob
This appliance is class 3
Fig. 2
2
3
1
4
6
5
7 8 9 10
6
6
Igniting the Burners
The hob is fitted with a flame failure
device. Flame failure devices operate
by shutting o the supply of gas to the
burner in the event that the flame is
extinguished accidentally.
To ignite the burners, follow these
instructions:
1. Lightly press the control knob down and turn the knob anti-
clockwise to the maximum position. Firmly press and hold down
the control knob to begin the ignition process (a clicking sound
will be heard). Hold down the control knob for a few seconds after
ignition to allow the safety device to detect that the burner is lit.
2.Once the burner is lit, adjust the burner power to the required
position.
Please note:
• The ignition device should not be operated for more than 15
seconds.
• If a burner does not ignite, or turns o accidentally, turn the
control knob to the ‘o’ position, and wait for one minute before
attempting to reignite the burner.
• If the burner does not ignite, repeat the ignition process with the
burner at the minimum position.
Fig. 3
7
7
Fig. 4
Burner Size Minimum Pan Diameter (cm) Maximum Pan Diameter (cm)
Auxiliary 12 14
Semi-Rapid 14 24
Rapid 18 26
Triple 24 26
Wok - 36
Ecient Use of Your Hob
The hob is equipped with burners of dierent sizes, designed to
accommodate most shapes and sizes of pan. For best results,
only use pans with flat bottoms and choose an appropriate burner
depending on the size of the pan. The most ecient use of the hob is
shown below, where the pan and burner are correctly chosen.
Ensure that the pans do not overlap the
edge of the pan stand, or cover the
control panel.
The table below shows the sizes of pan that should be used with each
burner:
8
8
Correct Use of the Wok Pan Adaptor
The wok pan adaptor is a special stand that is designed to be fitted
over the triple ring burner to give support to round bottomed woks.
When using a wok, always place the wok pan adaptor in position over
the pan support on the triple ring burner as shown in Fig. 5.
IMPORTANT:
• The wok pan adaptor (Fig. 5) must be placed over the pan support
on the triple ring burner.
• Do not use the wok pan adaptor for standard flat bottomed pans.
Fig.5 Fig.4
Fig. 5 Fig. 6
9
9
Care and Maintenance
As the hob has a stainless steel or enamel surface, you should use a
nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch
the surface and could erase the control panel markings. Stainless
steel can be eectively cleaned by simply using a dilute solution of
water and mild detergent and drying to a shine with a clean cloth.
Over time with use, the stainless steel surface may discolour; this is
normal and does not constitute a fault with this appliance. Proprietary
stainless steel cleaners are available.
IMPORTANT:
• Steam cleaners must not be used when cleaning this appliance.
• Ensure that all parts are correctly replaced after cleaning, before
attempting to use the hob.
• After removing the pan stands, ensure the rubber pads are in place
on the base of the pan stands before repositioning the pan stands
straight and level on the hob.
What to do if you smell gas:
1. Open doors and windows
2.Turn the gas supply o
3.Call TRANSCO on : 0800 111 999
10
10
Total rated gas input : 11.3kW
Mains electrical voltage: 230 – 240Vac, 50Hz
Total rated electrical consumption: 2W
If Your Hob is Not Working
1. Check that the mains supply has not been switched o.
2. Check that the fuse in the spur has not blown.
3. Ensure that the burner components are not excessively soiled as
this can lead to ignition problems.
Burner Size Nominal Rating
(kW)
Simmer Rating
(kW)
LPG Flow Rate (lh-1)
G30 G31
Auxiliary 1.0 0.45 73 71
Semi-Rapid 1.75 0.6 127 125
Rapid 3.0 0.9 218 214
Triple / Wok 3.8 2.6 277 272
