ASSEMBLY MANUAL
Please read all instruction prior to assembly.
Do not completely tighten screws until the assembly has been
completed. Before assembly it is recommended to set parts on
a at surface and verify that there are no missing parts.
BROADCAST SPREADER
125 lb. CAPACITY
Model S-125
2
Table of Contents
General Warnings and Rules.................................................................................3
Hazard Signal Word Definitions.............................................................................4
Controls and Features Identification ......................................................................5
Component & Hardware .................................................................................. 6，7
Assembly Instructions.......................................................................8, 9 10, 11, 12
Operation Instructions..............................................................................13, 14, 15
Spreading Instructions .........................................................................................16
Maintenance and Storage....................................................................................17
Specification ........................................................................................................17
Parts Drawing & Parts List.............................................................................18, 19
Limited Warranty..................................................................................................20
3
GENERAL WARNINGS
READ and UNDERSTAND this manual completely before using Push Spreader.
Operator must read and understand all safety and warning information, operating instructions,
maintenance and storage instructions before operating this equipment. Failure to properly operate and
maintain the push spreader could result in serious injury to the operator or bystanders.
Operation Warnings
Do not at any time carry passengers sit or stand on the spreader.
Do not allow children to play on, stand upon or climb in the spreader.
Always inspect the spreader before using to assure it is in good working condition.
Replace or repair damaged or worn parts immediately.
Always check and tighten hardware and assembled parts before operation.
Do not exceed equipment maximum load capacity of 125lb.
Avoid large holes and ditches when transporting loads.
Be careful when operating on steep grades (hill) the spreader may tip over.
Do not push close to creeks, ditches and public highways.
Do not use spreader on windy days when spreading grass seed or herbicides.
Always use caution when loading and unloading spreader.
Never tow the spreader with a motorized vehicle.
.
Crush and Cut Hazards
Always keep hands and feet clear from moving parts while operating the equipment.
Always clear and keep work area clean when operating.
Always wear safety gear, eye protection, gloves and work boots when operating the spreader.
.
WARNING
The warnings, cautions, and instructions outlined in this instruction manual cannot cover all
possible conditions or situations that may occur. It must be understood by the operator that
common sense and caution are factors which cannot be built into this product and must be supplied
by the operator.
PROP 65 WARNING
This product contains chemicals known to the state of California to cause cancer, birth defects, or
other reproductive harm.
Assembly Is Required
This product requires assembly before use. See “Assembly”section for instructions. Because of the
weight and/or size of the push spreader, it is recommended that another adult be present to assist
with the assembly. INSPECT ALL COMPONENTS closely upon receipt to make sure no components
are missing or damaged.
4
Hazard Signal Word Definitions
ABOUT YOUR PUSH SPREADER
This push spreader is designed to spread a wide range of materials (Fertilizer, Grass Seed and Ice melt).
Materials such as Powders, Manure, Top Soil, Gravel, and Mulch have the wrong physical characteristics
and should not be used with this spreader. Never exceed the rated load capacity of 125lbs when
operating the spreader.
Your spreader needs to be pushed at three miles per hour, which is a brisk walking speed. Slower or
faster speeds will change the spread patterns. Wet spreading material will also change the spread pattern
and flow rate. Clean your spreader thoroughly after each use. Wash between the shut off plate and bottom
of the hopper.
Technical specifications on the push spreader are provided in the “Specifications”section of this manual.
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which,
if not avoided, may result in property damage.
CAUTION
5
Read this owner’s manual before operating the equipment. Familiarize yourself with the location and
function of the controls and features. Save this manual for future reference.
1) Handle – Pushes and moves the spreader easily.
2) Flow Control – Controls the flow of material being spread.
3) Hopper – Do not exceed rated load capacity 125lb.
4) Tires / Wheel – Do not exceed recommended rated 30PSI.
5) Impeller - Evenly distributes material.
6) Support Leg– Stabilizes load and spreader.
Controls and Features Identification
2
3
4
5
6
1
6
CAUTION
Read and follow all instructions for assembly and operation. Failure to properly assemble this
equipment could result in serious injury to the user or bystanders, or cause equipment damage.
PUSH SPREADER COMPONENT PARTS AND ASSEMBLY.
Take all parts out of the shipping crate and inspect components to ensure there are no missing pieces
before starting to assemble the push spreader follow steps 1 through 5.
TOOLS REQUIRED
•Pliers (2 Each)
•8mm Wrenches (2 Each)
•10mm Wrenches (2 Each)
•13mm Wench
•14mm Wrench

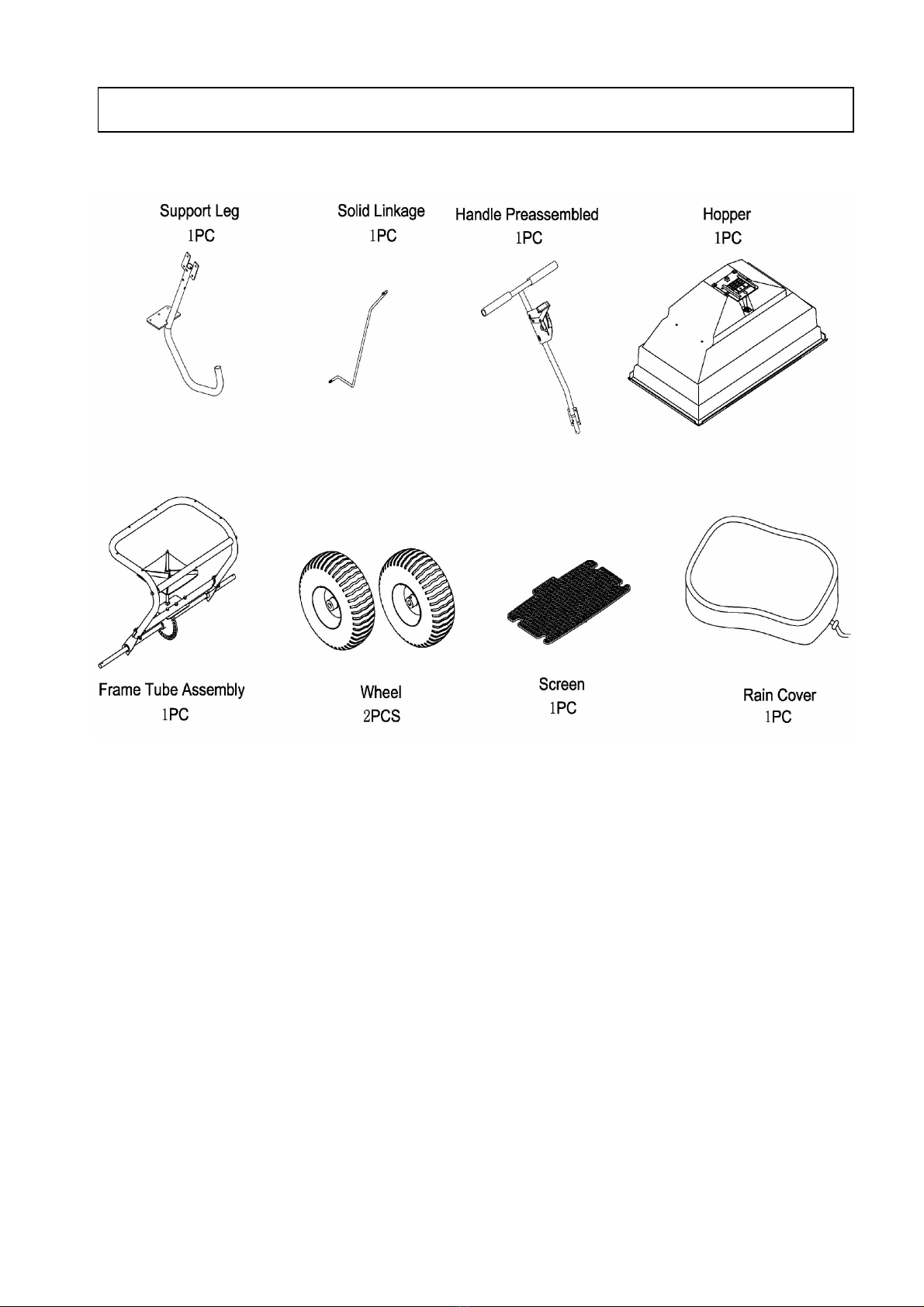

Component Parts
7
Component Parts
8
STEP 1: Installing the Wheels
1. On the left side of axle install a wheel bushing and wheel spacer into the axle.
2. Slide a wheel over the axle.
3. Put an Ø16 flat washer over the axle, insert the cotter pin through the hole and secure by bending.
4. On the right side of the axle slide a wheel bushing and the wheel spacer into the axle.
5. Put a wheel over the axle, line up the holes and insert the drive pin through sleeve and lock.
6. Put an Ø16 flat washer over the axle, insert the cotter pin through the hole and secure by bending.
NOTE: Four additional flat washers are provided for adjusting the gap between the wheels.
Assembly Instructions
9
Step 2: Assembling the Support Leg
1. Position the support leg so the J-shaped end is pointing away from the wheel assembly.
2. Insert the M8x75 hex bolt through the top hole on the support leg and slide the spacer over the bolt
end.
3. Take the support leg and insert the bolt through the upper cross bar on the mounting assembly
and loosely tighten with the M8 lock nut.
NOTE: Before tightening the bolt make sure the support leg flange and the lower cross bar
holes line up.
4. Insert M6 x 40 hex bolt through the holes in the flange and cross bar. Use the Ø6 big flat washer
and M6 lock nut and tighten all hardware.
10
STEP 3: Installing the Hopper
1. Lower the hopper over the mounting assembly, carefully line up the holes in the bottom of the
hopper with the spindle in the mounting plate of the axle.
2. Use the M6 x 40 hex bolt and Ø6 flat washer to attach the hopper to the mounting assembly and
secure with M6 lock nut.
3. Make sure the gear and pinion gear works smoothly. If not, adjust again until the gear and pinion
gear swivel smoothly.
4. Tighten all the hardware on the shaft support plate and hopper.
5. Insert the R pin through the top of the spindle.
