Master Forge GD4215S Manual de usuario
1
Master Forge & M Design®is a registered
trademark of LF, LLC. All rights reserved.
Lowes.com/masterforge ®
ATTACH YOUR RECEIPT HERE
Serial Number _________________________ Purchase Date _________________________
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-800-963-0211, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
ITEM #0503217
3-BURNER GRILL WITH SIDE BURNER
MODEL #GD4215S
Español p. 38
AB13583
WARNING
Improper installation,
adjustment, alteration, service
or maintenance can cause
injury or property damage.
Read this instruction manual
thoroughly before installing or
servicing this equipment.
WARNING
1. Do not store or use gasoline or
other ammable vapors and
liquids in the vicinity of this or
any other appliance.
2. An LP tank not connected for
use should not be stored in the
vicinity of this or any other
appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open ames.
3. Open the lid.
4. If the odor continues, keep
away from the appliance and
immediately call your gas
supplier or re department.
WARNING
For Outdoor Use Only
2Lowes.com/masterforge ®
TABLE OF CONTENTS
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Hardware Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3Lowes.com/masterforge ®
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate
or install the product. If you have any questions regarding the product, please call
customer service at 1-800-963-0211, 8:00 am to 6:00 pm, EST, Monday- Thursday, 8:00
a.m. to 5:00 p.m., EST, Friday.
• The installation of this appliance must conform with local codes or, in the absence of local
codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas
and Propane Installation Code, CSA/CGA-B149.1.
• This grill is intended for use outdoors and should not be used in a building, garage or any
other enclosed or covered area.
• This outdoor grill is not intended for installation in or on recreational vehicles and/or boats.
• A minimum clearance of 36 in. from combustible constructions to the sides of the grill and
36 in. from the back of the grill to combustible constructions must be maintained. This
outdoor cooking gas appliance must not be placed under overhead combustible
construction.
• The use of an electrical source requires that when installed, the grill must be electrically
grounded in accordance with local codes or, in the absence of local codes, with
ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. Keep electrical supply cords
and the fuel supply hose away from heated surfaces.
• Inspect the hoses before each use for excessive abrasion or wear, or cuts that may affect
safe operation of the grill. If there is evidence of excessive abrasion or wear, or the hose is
cut, it must be replaced prior to the grill being put into operation. The replacement hose
assembly must be those specied by the manufacturer.
• Keep your grill in an area clear and free from combustible materials, gasoline and other
ammable vapors and liquids.
• DO NOT obstruct the ow of combustion and ventilation air to this appliance.
• Keep the ventilation openings of the tank enclosure free and clear from debris.
• Check all gas connections for leaks with a soapy water solution and brush. Never use an
open ame to check for leaks.
• Never use charcoal in the grill.
• Never use the grill in windy areas.
• Only a 20 lb. LP-gas cylinder is allowed. The cylinder must be
constructed and marked in accordance with the Specications for
LP Gas Cylinders of the U.S. Department of Transportation (D.O.T.)
or the National Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres and Tubes for Transportation of Dangerous Goods; and
Commission. A 20 lb LP-Gas cylinder’s dimensions are:
• Never use the grill without the drip tray installed and pushed completely into the back of
the grill. Without the drip tray, hot grease and debris could leak downward and produce a
re hazard.
• Use only the gas pressure regulator supplied with this appliance. This regulator is set for an
outlet pressure of 11.0 iwc.
• The cylinder used must include a collar to protect the cylinder valve.
8 in.
13.9 in.
12.2 in.
18 in.
4Lowes.com/masterforge ®
SAFETY INFORMATION
• Do not store a spare LP-gas cylinder under or near this appliance.
• Never ll the cylinder beyond 80 percent full.
• The regulator and hose assembly must be routed through the left leg assembly. Regulator
must be locked with regulator hose lock before connected with LP tank. See page 18 for
detailed assembly instructions.
• DANGER: If the information in above is not followed exactly, a re causing death or serioius
injury may occur.
• The outdoor cooking gas appliance must be isolated from the gas supply piping system
by closing its individual manual shutoff valve during any pressure testing of the gas supply
system at test pressures equal to or less than 1/2 PSI (3.5 kPa).
• CALIFORNIA PROPOSITION 65 WARNING: The burning of gas cooking fuel generates
some byproducts which are on the list of substances known by the state of California to
cause cancer, reproductive harm, or other birth defects. To reduce exposure to these
substances, always operate this unit according to the use and care manual, ensuring you
provide good ventilation when cooking with gas.
IMPORTANT: We urge you to read this manual carefully and follow the recommendations
enclosed. This will ensure you receive the most enjoyable and trouble-free operation of
your new gas grill. We also advise you retain this manual for future reference.
WARNING: Your grill has been designed to operate using only the gas specied by the
manufacturer on the rating plate. Do not attempt to operate your grill with other gases.
Failure to follow this warning could lead to a re hazard and bodily harm and will void your
warranty.
WARNING: Make certain your LP (propane) tank is lled by a reputable propane dealer. An
incorrectly lled or an overlled LP tank can be dangerous. The overlled condition
combined with the warming of the LP tank (a hot summer day, tank left in the sun, etc.) can
cause LP gas to be released by the pressure relief valve on the tank since the temperature
increase causes the propane to expand. LP gas released from the tank is ammable and
can be explosive. Refer to your Owner’s Manual for more information concerning lling
your LP tank.
5Lowes.com/masterforge ®
PACKAGE CONTENTS
6Lowes.com/masterforge ®
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
AFirebox and Hood
Assembly 1
BCooking Grate 2
CHeat Tent 3
DSide Burner 1
ESide Burner Grid 1
FWarming Rack 1
GRight Side Table 1
H Left Side Burner Table 1
IKnob Bezel 1
JDrip Tray Bracket 2
KDrip Tray 1
L Grease Cup 1
PART DESCRIPTION QUANTITY
M Knob 4
NRegulator Hose Lock 1
OLeft Leg Assembly 1
PRight Leg Assembly 1
QCart Leg Mat 2
RDiagonal Bar Barrier 1
S Bottom Panel 1
T Wheel Shaft 1
U Wheel 2
VGas Cylinder Safety
Stop 1
W Front Panel 2
7Lowes.com/masterforge ®
HARDWARE CONTENTS
Axle Spacer
Qty. 1
M6 Nut
Qty. 1
Small Wrench
Qty. 1
Axle Washer
Qty. 1
R Pin
Qty. 4
M6 x 12
Screw
Qty. 12
M6
Lock Washer
Qty. 12
M6
Spring Washer
Qty. 8
M4 x 8
Screw
Qty. 2
Wing Nut
Qty. 1
M4 x 12
Screw
Qty. 1
AA Battery
Qty. 1
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare
parts with package contents list and hardware contents list. If any part is
missing or damaged, do not attempt to assemble the product.
Tools required for assembly (not included): Phillips Screwdriver, Soft Hammer.
8Lowes.com/masterforge ®
ASSEMBLY INSTRUCTIONS
1. Install gas cylinder safety stop
Put the gas cylinder safety stop (V) into
the holes of the bottom panel (S), then
turn over the bottom panel (S) and insert
2 R pins (EE) into the small holes of gas
cylinder safety stop (V).
Hardware Used
R Pin x 2
EE
Hardware Used
R Pin x 1
EE
2. Install diagonal bar barrier
Put one end of diagonal bar barrier
(R) into the hole of bottom panel (S),
then turn over the bottom panel (S)
and insert R pin (EE) into the small
hole of diagonal bar barrier (R).
9Lowes.com/masterforge ®
ASSEMBLY INSTRUCTIONS
Hardware Used
x 2
FF
3. Install left leg assembly
Install left leg assembly (O) into bottom
panel (S) with M6 x 12 screws (FF) and
M6 lock washers (GG).
GG
M6 x 12
Screw
M6
Lock Washer x 2
Hardware Used
FF
4. Install right leg assembly
Install right leg assembly (P) into
bottom panel (S) with M6 x 12
screws (FF) and M6 lock washers
(GG).
GG
M6 x 12
Screw
M6
Lock Washer
x 2
x 2
10 Lowes.com/masterforge ®
ASSEMBLY INSTRUCTIONS

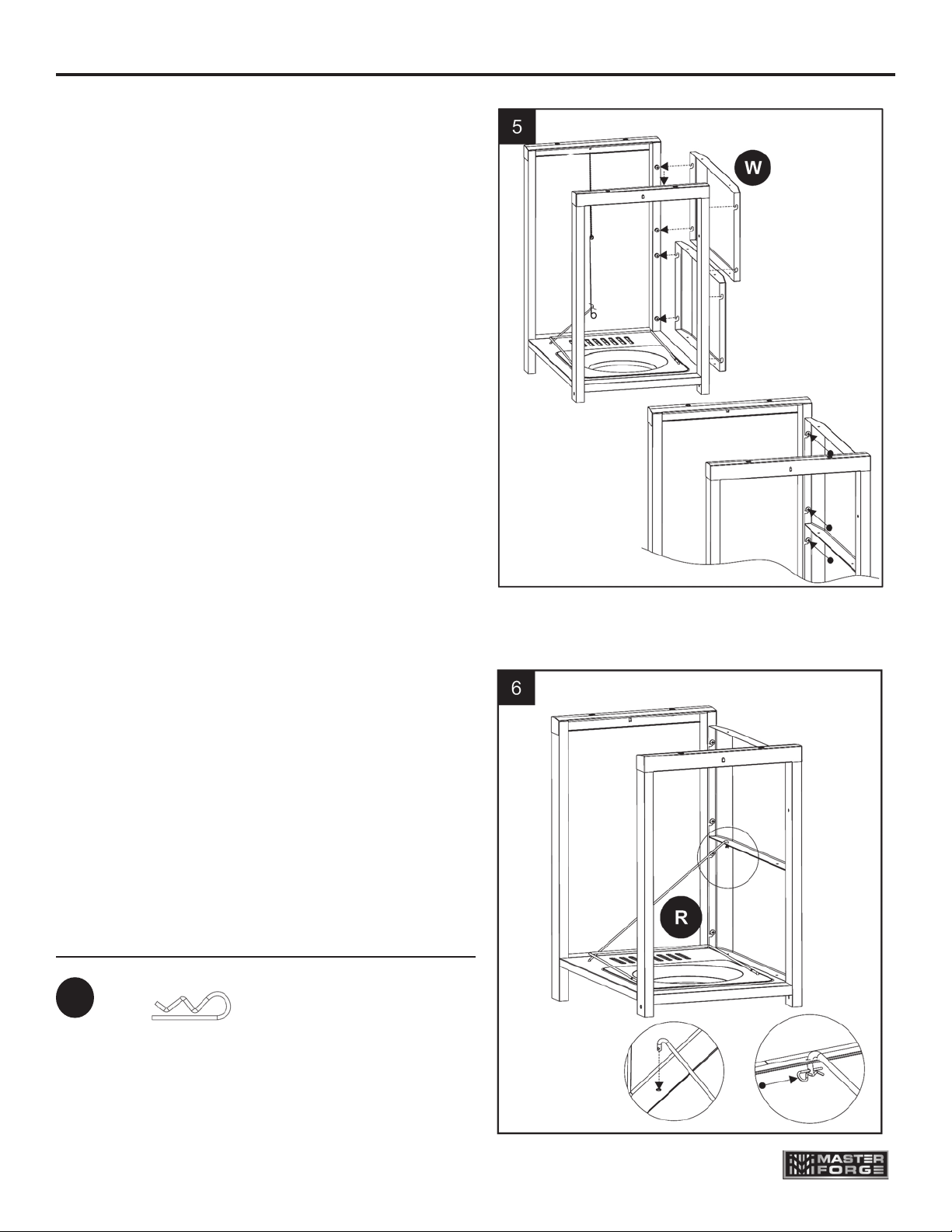

5. Install front panels
Align the two front panels (W) to preinstalled
screws on front legs of cart.
Slide the front panels (W) into place
and tighten all 8 screws . Note: The front panel
with the labels should be placed at the top of the
cart.The front panel with no labels should be
placed the at bottom of cart.
Hardware Used
R Pin x 1
EE
6. Install diagonal bar barrier
Put the other end of diagonal bar
barrier (R) into the hole of front
panel (W), then insert R pin (EE) into
the small hole of diagonal bar barrier
(R). Noted: After installing, do not
uninstall the diagonal bar barrier while
using the grill.
