1. General Information

Issued Date > 2016-12-13

Issued Version > V00

LITHIUM IRON PHOSPHATE BATTERY

2. Specification (@Battery initial Temp25±5

°C

)

NO. Items Description

30Ah

28.5Ah

0.384KWh

Rated Capacity

Minimum Capacity

Energy

Floating charge voltage

Internal resistance

Limited charge voltage

12.8V

≥12.8V

13.8±0.2V

Nominal Voltage

Outgoing Voltage

≤40mΩ

14.6±0.1V

Standard charge current 15A8

Maximum charge current 40A9

Standard discharge current 15A10

Maximum discharge current 40A11

Peak discharge current 150A/Continuous for 3s12

Polígono industrial La Dehesa

C/ Dehesa Vieja,nº2 Nave 16

28052 Madrid (Spain)

Tel. (+34) 918 021 649

Fax. (+34) 917 750 542

info@masterbattery.es

Multi-application - LiFePO4 Power

UE-12Li30BL

This speciﬁcation deﬁnes the performance of rechargeable LiFePO4 battery pack UE-12Li30BL manufactured by

MASTER BATTERY, S.L., describes the type, performance, technical characteristics, warning and caution of the

battery pack. The battery pack support Bluetooth communication function. Through Android and IOS APP, can

read the battery status and information. Especially due to the Android system’s openness, different smart phone

manufacturer will have their own different Bluetooth hardware version and customized feature Android systems.

So the APP may not work well on some smart phones (with Android system) due to compatible issue.

It is necessary for the customer to conﬁrm whether the phone is compatible for the APP.

3. Test Condition

3.1 Standard Test Conditions

3.1.1 Unless otherwise speciﬁed, all performance tests is required conducted at temperature 25

°C

±2

°C

Humidity less than 45% ~ 75% RH.

3.1.2 Unless otherwise speciﬁed, the tested product is required unused within two month after outgoing.

3.2 Standard Charge Mode

"Standard Charge" means at 25±2

°C

charge to limit voltage with 0.33C constant current, then charge with

constant voltage until current less than 0.02ItA.

3.3 Quick Charge Mode

"Quick Charge" means at 25±2

°C

charge to limit voltage with 0.5C constant current, then charge with

constant voltage until current less than 0.02ItA.

3.4 Standard Discharge Mode

"Standard Discharge" means at 25±2

°C

discharge to the cut-off voltage with 0.33C current.

3.5 Quick Discharge Mode

"Quick Discharge" means discharge to the cut-off voltage with 0.5C current.

NO. Items Description

Length: 196±2mm

Width: 165.5±2mm

Height: 174±2mm

Dimension

Self-discharge rate

Operating Temperature

Approx: 5.3±0.5Kg

Charging:0~45°C

Residual capacity:≤3%/month; ≤15%/years

Weight

Discharging:-20~60°C

Recommended operating temperature:15°C~35°C

Reversible capacity:≤1.5%/month; ≤8%/years

Storage Temperature & Humidity Range

Less than 1 month:-20°C~35°C，45% RH~75％RH

Less than 3 months:-10°C~35°C，45% RH~75％RH

Recommended storage environment:

15°C~35°C,45% RH~75％RH

Long time storage:

If the battery need be stored for a long time, the voltage should be 13.2V (50% SOC), and stored in the condi-

tion as storage proposal. It need at least one charge & discharge cycle every six months

Polígono industrial La Dehesa

C/ Dehesa Vieja,nº2 Nave 16

28052 Madrid (Spain)

Tel. (+34) 918 021 649

Fax. (+34) 917 750 542

info@masterbattery.es

www.masterbattery.es

0102

UE-12Li30BL

8.0V13 Discharge cut-off voltage

4. Product Performance

5. Protective Circuit Specification

The batteries are supplied with a LiFePO4 Battery Management System (BMS) that can monitor and optimized

each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge,

short circuit. Overall, the BMS helps to ensure safe and accurate running.

NO. Items

Minimum Capacity2

-20°C

Testing Method

Rated Capacity130Ah

Criteria

Rest for 1 hour after fully charged, then discharge

with 0.33C current until the battery reaches the

discharge cutoff voltage. Repeat above process for

three times, if the discharge time is not less than 120

minutes, you can stop and define the Discharging

current*time value (Ah) as battery capacity.

28.5Ah

Discharge

Temperature

Characteristics

At 25±5°C discharge the battery with the current of

0.33C to the cut-off voltage and record charge

capacity. Store the battery at various temperatures

for 2h and discharge the battery with 0.33C to the

cut-off voltage.

0°C

25°C

55°C

≥70%

≥80%

≥100%

≥95%

Charge the battery to full capacity and store it for 28

days, and then discharge it with 0.33C to the cut-off

voltage.

Charge Retention

ability

Residual

capacity ≥80%

Internal resistance ≤40mΩ 50% battery SOC state frequency of 1 KHZ ac resistan-

ce tester.

Discharge with the current of 0.33C until it can’t

discharge, and then rest it for 1h. Charge the battery

following CC (0.33C)/CV (14.6V) mode to full capacity,

and then rest it for 1h. Repeat above process until full

charged capacity is no more than 80% of normal

value. Accumulated times is defined as cycle life.

4Cycle life (DOD%100) ≥2500 cycles

Recovery

capacity ≥90%

Polígono industrial La Dehesa

C/ Dehesa Vieja,nº2 Nave 16

28052 Madrid (Spain)

Tel. (+34) 918 021 649

Fax. (+34) 917 750 542

info@masterbattery.es

www.masterbattery.es

0103

UE-12Li30BL

Though,user can read the battery system information

such as voltage, current, SOC, temperature…

and so on.

Communication

Function Bluetooth9

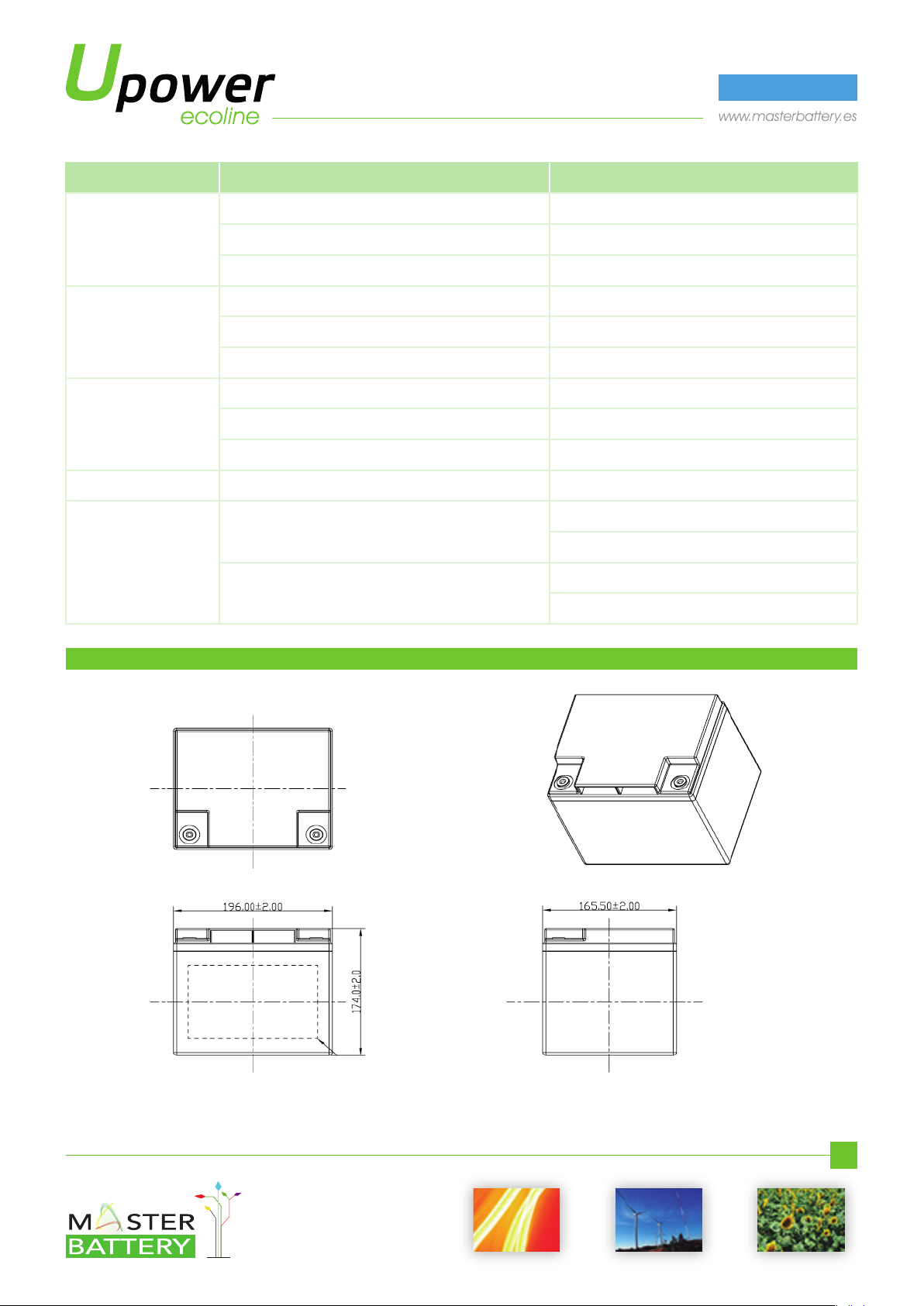

6. Dimensional Drawing

Items

Over-charge protection for each cell

SpecificationContent

3.80±0.03V

Over charge Over-charge release for each cell 3.60±0.05V

Over-charge release method Under the release voltage

Over-discharge protection for each cell 2.0±0.08V

Over discharge Over-discharge release for each cell 2.3±0.1V

Over-discharge release method Charging recovery

Discharge over current protection 170~220A

Over current Protection delay time 0.5 - 1.5s

Over current release method Release after cutoff the load

Battery

temperature

Charge over temperature

Protection @65±5°C

Discharge over temperature

Release @55±15°C

Protection @65±5°C

Release @55±5°C

Short No Ban electrode short circuit

Polígono industrial La Dehesa

C/ Dehesa Vieja,nº2 Nave 16

28052 Madrid (Spain)

Tel. (+34) 918 021 649

Fax. (+34) 917 750 542

info@masterbattery.es

www.masterbattery.es

0104

UE-12Li30BL

7. Transportation

• Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be

created to protect the battery.

• Battery should be stayed in the warehouse 15ºC 〜35ºC where it’s dry, clean, shade and well-ventilated.

• The battery should be stored in 50% SOC during transportation.

• The battery need to be charged every 6 months if out of use.

• Keep the battery against dropping, turning over and serious stacking during loading.

8. Warning & Tips

Please read and follow the speciﬁcation and caution remarks on battery surface before use the battery. Improper

use may cause heat, ﬁre, rupture, damage or capacity deterioration of the battery. MASTER BATTERY, S.L. descri-

bes is not responsible for any accidents caused by the usage without following our speciﬁcation.

• The battery must be far away from heat source, high voltage, and avoid to be exposed in sunshine for long time.

• Never throw the battery into water.

• Do not put the battery in a charger or equipment with wrong terminals connected.

• Never connect the positive and negative of battery with metal.

• Avoid excessive physical shock or vibration. don't hit, fall, stamp on the battery.

• Without the permission of the manufacturer and guidance, forbidden to remove or to assemble the battery.

• Do not use the battery mixed with other different manufacturer, type, or model batteries.

• Keep the battery against high temperature. Otherwise it will cause battery heat, get into ﬁre or lose some

function and reduce the life.

• When battery run out of power, please charge your battery timely (≤15 day).

• Please use the matched or suggested charger for this battery.

• If battery emit peculiar smell, heating, distortion or appear any abnormity during working or storage, please stop

using and take it out from device.

• If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor

immediately.

• Please far away from children or pets.

• Do not put disuse battery into a ﬁre or water.

• If user needs to parallel several battery packs, please charge them to full capacity with same type of matched

charger, and set it aside for 8 hours, professionals only. This battery pack supports application no more than 4

group parallel. If user needs to apply this product to more groups parallel, please reconﬁrm details with MASTER

BATTERY.

• This batteries pack allows a maximum of 4 series using. Any requirements for more series connection, please

contact MASTER BATTERY for details.

Polígono industrial La Dehesa

C/ Dehesa Vieja,nº2 Nave 16

28052 Madrid (Spain)

Tel. (+34) 918 021 649

Fax. (+34) 917 750 542

info@masterbattery.es

www.masterbattery.es

0105

UE-12Li30BL

9. Battery Operation Instruction

9.1 Charge and discharge

9.1.1 Charging current:Do not surpass the largest charging current that speciﬁcation stipulated.

9.1.2 Charging voltage:Do not surpass the highest limited voltage that speciﬁcation stipulated.

9.1.3 Charging temperature:within temperature scope that speciﬁcation stipulated.

9.1.4 Charge with constant current, then with the constant voltage, no reverse charge, which is dangerous.

9.1.5 Special note:

Short time doesn't affect the use of the battery overcharge too, but for a long period of time over

discharge or over charge can affect the function of the battery failure, or the battery can't use permanent,

appear serious safety hazards, need long time ﬂoating please use the recommended ﬂoating model

speciﬁcation. Battery when not in use for a long time, because of its own self-discharge characteristics

can also cause discharge, to prevent the occurrence of a discharge, battery should maintain a certain

capacity, maintain the voltage at 50% state of SOC.

10. Other Chemical Reaction

Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a

long period of time without being used. In addition, if the various usage conditions such as charge, discharge,

ambient temperature, etc. are not maintained within the speciﬁed ranges, the life expectancy of the battery may

be shortened or the device in which the battery is used may be damaged by electrolyte leakage. If the discharge

time is much shorter than the normal after full charged, even battery is charged correctly, and this may indicate it is

time to change the battery.

Polígono industrial La Dehesa

C/ Dehesa Vieja,nº2 Nave 16

28052 Madrid (Spain)

Tel. (+34) 918 021 649

Fax. (+34) 917 750 542

info@masterbattery.es

www.masterbattery.es

0106

UE-12Li30BL

Tabla de contenidos

Otros manuales de Paquete de baterías de Master Battery

Master Battery

Master Battery UPOWER Ecoline UE-24Li100 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-12Li150 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-24Li125 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-12Li25 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-12Li50 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-12Li125 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-24Li20 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-24Li50 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE Series Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-48Li400 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-24Li150 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-24Li75 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-48Li50 Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-36Li100BL Manual de usuario

Master Battery

Master Battery UPOWER Ecoline UE-24Li25 Manual de usuario

Master Battery

Master Battery GreenE 8K Manual de instrucciones

Manuales populares de Paquete de baterías de otras marcas

Acumentrics

Acumentrics PACK-POWER SYSTEM Manual de usuario

ACDC Dynamics

ACDC Dynamics SPF12-50 Manual de usuario

Aegis

Aegis ABL-72020P Manual de usuario

Dyness

Dyness TowerESS Manual de usuario

Growatt

Growatt APX 5.0P-S0-US Manual de usuario

EGO

EGO BAX1300 Manual de usuario

CyberPower

CyberPower BCA Series Manual de usuario

Intermec

Intermec 700 Series Manual de usuario

Dometic

Dometic PLB40 Manual de usuario

V-TAC

V-TAC VT-48280-W2 Manual de usuario

Valence

Valence RT Manual de usuario

Nikon

Nikon MB-D14 Manual de usuario

IOGear

IOGear GBP24V Series Manual de usuario

Inventus Power

Inventus Power PROTRXion S-12V100-TRX-HD Manual de usuario

Clas Ohlson

Clas Ohlson PW-290A Manual de usuario

EINHELL

EINHELL MULTI-Ah Power X-Change Plus Manual de usuario

Samsung

Samsung EB-U3300 Manual de usuario

ECTIVE

ECTIVE LC Series Manual de usuario
