OWNER’S GUIDE & SERVICE MANUAL

MARVEL UNDERCOUNTER REFRIGERATION

Model: MPWC424-IG31A

WELCOME

Welcome to the Marvel Experience!

Thank you for choosing our quality American-built product

to add to your home. We are thrilled to welcome you to

our growing community of Marvel owners, who trust in our

products and our support.

The information in this guide is intended to help you install

and maintain your new Marvel undercounter model to

protect and prolong its lifetime. We encourage you to

contact our Technical Support team at (616) 754-5601 with

any questions.

Got a Marvelous Design?

We would love to see how your Marvel product looks in its

new home. You can send us photos of your installed

product at [email protected], and we

might feature your Marvel home design on our website and

social media!

Bonus Third-Year Warranty Free with Product

Registration

Your Marvel Professional

product qualies for a one-year

extension of the two-year

warranty coverage from your

date of purchase, free of

charge. To take advantage of

this third-year warranty, be sure

to register your product with

Marvel within 60 days from the

date of purchase at

marvelrefrigeration.com and

provide proof of purchase.

Thank you again for investing in Marvel for your home!

Warranty Registration

It is important you register your product warranty after

taking delivery of your appliance. You can register online at

www.marvelrefrigeration.com.

The following information will be

required when registering your

appliance:

Serial Number

Date of Purchase

Dealer’s name and address

The serial number can be found on the serial plate which is

located inside the cabinet on the left side near the top.

Online registration

available at

marvelrefrigeration.com

TABLE OF CONTENTS

Tip: Click on any section below to jump directly there

Installation

Integrated Panel Dimensions

Integrated Panel Installation

15⁄32"

(2.9 cm)

Hinge side of door

Top of door

INTEGRATED PANEL DIMENSIONS

Right Hand Hinged Door

24" (61 cm) wide appliance

Right Hand Hinged Door

24" (61 cm) wide appliance

Clearance

for hinge

at top and

bottom

Hinge side of door

Top of door

Left Hand Hinged Door

24" (61 cm) wide appliance

Left Hand Hinged Door

24" (61 cm) wide appliance

Clearance

for hinge

at top and

bottom

1/4"

[0.6cm]

[10.1cm]

3-3/4"

[9.5cm]

[5.1cm]

3-3/4" 4"

3" 3"

3-3/4" 4"

15-1/4"

[7.6cm]

30-7/16"

[77.3cm]

30-7/16"

[5.1cm]

[10.1cm]

15-1/4"

[38.7cm]

[7.6cm]

!CAUTION

Integrated door panel installation:

Step 1: Removing the Door

Open the door and loosen the screws holding the hinges to

the cabinet (2 at the top and 2 at the bottom hinge). Do not

remove the screws but loosen them enough so the hinges

󰀨

the side.

With a helper, and being careful not to scratch the cabinet

or the door, slide the door to the side about 12inch and

remove the hinges and door from the unit.

!WARNING

Integrated panel models are designed for use with

built-in installations only. Use in freestanding instal-

lations could result in personal injury.

If you purchased an integrated panel model, your unit is

equipped with articulated hinges to allow fully integrated

built-in installations. Custom panel thicknesses of 58" (15

mm) and 34" (18 mm) are accommodated.

It is important to use the factory provided grille that came



through the condenser. The use of a custom grille is not

recommended and will void the warranty.

!WARNING

The articulated hinges have many pinch points. Care-

fully close / collapse the hinges as soon as the door is

removed from the cabinet.

INTEGRATED PANEL INSTALLATION

Integrated



with top and

side of door.

Magnetic Gasket

remove starting at a

corner, grasp and pull

away from the door.

Step 3: Cut and drill the integrated panel

Depending on your model cut the integrated door panel to

the dimensions shown in Figures 19 to 22. The window cut

out is for glass door models only. If your appliance has a

lock also drill the lock hole in the panel, see Figure 25.

Integrated panel

to be centered

on width of door.

Figure 24

Holes in

gasket

retainer.

Figure 24a

Step 2: Remove the door gasket



corner of the door remove the magnetic door gasket from

the interior side of the door, see Figure 17. Set the gasket





each side and 2 at the top and bottom which are used to

fasten the panel to the front of the door. The screws are

provided in the literature pack along with the door lock,

which is provided on certain models.

Loosen (do not remove ) these

2 phillips head screws on the

top and bottom hinges

!WARNING





to built-in installation. Do not remove the cabinet "Z"

bracket from the top of the cabinet.

Figure 23b

Bottom of

door

"P" clamp

and screw

Wire connector

see Figure 6

Figure 23

Figure 23a

Cabinet

"Z" Bracket

!CAUTION

INTEGRATED PANEL INSTALLATION

12"

screw

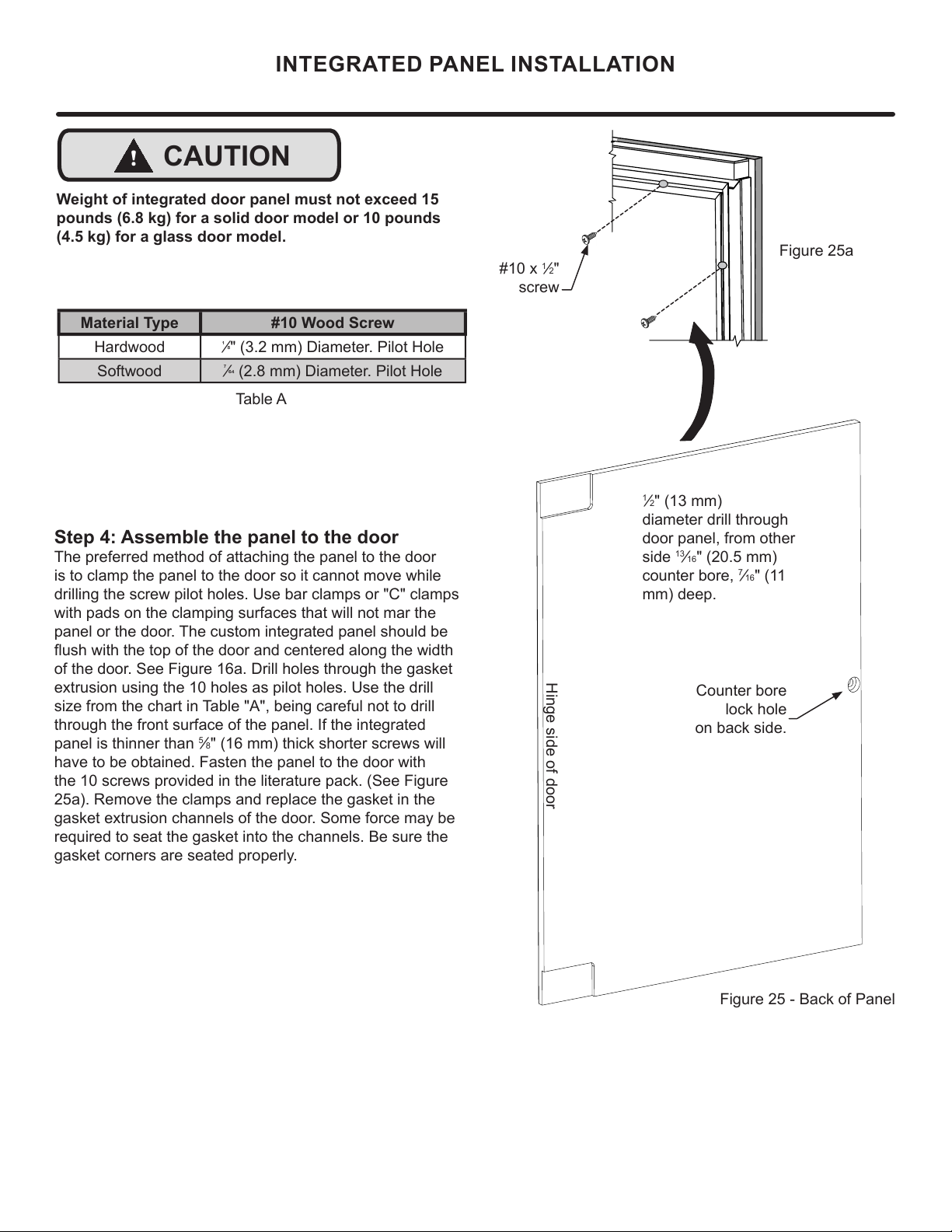

Step 4: Assemble the panel to the door

The preferred method of attaching the panel to the door

is to clamp the panel to the door so it cannot move while

drilling the screw pilot holes. Use bar clamps or "C" clamps

with pads on the clamping surfaces that will not mar the

panel or the door. The custom integrated panel should be



of the door. See Figure 16a. Drill holes through the gasket



size from the chart in Table "A", being careful not to drill

through the front surface of the panel. If the integrated

panel is thinner than 58" (16 mm) thick shorter screws will

have to be obtained. Fasten the panel to the door with

the 10 screws provided in the literature pack. (See Figure

25a). Remove the clamps and replace the gasket in the



required to seat the gasket into the channels. Be sure the

gasket corners are seated properly.

Material Type #10 Wood Screw

Hardwood ¹" (3.2 mm) Diameter. Pilot Hole

Softwood  (2.8 mm) Diameter. Pilot Hole

Table A

Weight of integrated door panel must not exceed 15

pounds (6.8 kg) for a solid door model or 10 pounds

(4.5 kg) for a glass door model.

A A

B B

C C

D D

PANEL-WOOD

DO NOT SCALE DRAWING

24 Panel

SHEET 1 OF 1

UNLESS OTHERWISE SPECIFIED:

SCALE: 1:5

WEIGHT:

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

COMMENTS:

Q.A.

MFG APPR.

ENG APPR.

CHECKED

DRAWN

FINISH

MATERIAL

INTERPRET GEOMETRIC

TOLERANCING PER:

DIMENSIONS ARE IN INCHES

TOLERANCES:

FRACTIONAL

ANGULAR: MACH

BEND

TWO PLACE DECIMAL

THREE PLACE DECIMAL

APPLICATION

USED ON

NEXT ASSY

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

<INSERT COMPANY NAME HERE>. ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

<INSERT COMPANY NAME HERE> IS

PROHIBITED.

Counter bore

lock hole

on back side.

Figure 25 - Back of Panel

12" (13 mm)

diameter drill through

door panel, from other

side 1316" (20.5 mm)

counter bore, 716" (11

mm) deep.

Hinge side of door

Figure 25a

Cabinet

"Z" bracket

34" black

screws

(3 places)

Figure 28

Step 7: Install the door

Carefully open the top and bottom hinges on the door being

careful as there are many pinch points. Place the hinges

over the 4 screws in the cabinet, 2 at the top and 2 at the

bottom and slide the door into position. Tighten the 4 hinge

screws with a phillips screwdriver. (See Figures 25 and

25a).

SECTION A-A

SCALE 1 : 1

LOCK

NUT

BRASS EXTENSION

CAM

PHILLIPS SCREW

13/16 COUNTER

BORE 7/16 DEEP

1/2 HOLE

3/4 INCH

WOOD PANEL

SPRING WASHER

INNER

DOOR

Step 8: Secure the cabinet

34" black screws from the literature pack to

secure the counter top to the cabinet top through the holes

in the cabinet "Z" bracket.

INTEGRATED PANEL INSTALLATION

Figure 27

Step 6: Install lock cam

Attach the lock cam to the back of the lock assembly with

the phillips head screw provided. Orient the lock cam verti-

cally when installing on the lock.

Cam stop

washer

Spring

washer

Cam

Set screw

Lock

Key

Retainer

nut

Screw

Brass



(2 lengths

provided)

Step 5: Assemble lock parts



34" thick integrated panels and the

shorter one for 58" thick integrated panels. Assemble the



screw to the lock as shown in Figure 26 and 27.

Install this lock assembly into the lock hole in the integrated

panel and secure with the retaining nut on the back side

with a 15 mm socket and ratchet. Make sure the key slot in

the front of the lock is vertical.

Figure 26
