Maruson SUR-809UPS Manual de usuario

Surveillance UPS

12VDC / 24VAC Battery Power Backup for CCTV Cameras.

Automatic Voltage Regulation (AVR) for Wide Input Operation Voltage and Stable

Output Voltage.

12-13VDC Adjustable Output Voltage to Enhance Video Quality for Long-Distance

Cameras.

9/18 Ports Overload Protection (fuse optional) for CCTV Cameras.

Batteries are Hot Swappable (cameras, DVR, & monitors are always on).

Multi-LED Indicators for AC/DC Power Supply and UPS Power Status.

2 Amp Fuse or PTC (Break) Power Protection for High Power CCTV Cameras.

Two AC Outlets (NEMA 5-15R/110V or IEC/220V) with Battery Backup and Surge

Protection for DVR and Monitor.

Cameras Power Failure and AC Power Failure Notification through DVR/ NVR or

Alarm System.

Applications: Provides battery backup, noise filtering, and surge protection for

12VDC/24VAC cameras, monitor and DVR/NVR systems.

The Surveillance UPS Series is an innovative and professional battery backup solution

for all your surveillance needs. You will be kept at ease knowing that during a power

outage, your CCTV camera and DVR/NVR equipment will continue running so you can

keep monitoring and recording your premises.

SW1 2012-2-1 5

IPS-SW-0 06 COD E:2

-4

-5

1. Input Fuse

2. AC Input

3. AC Output

4. Fan (SUR-1218UPS/1518UPS): Operating on battery

mode and over heat.

SW1 2012-2 -15

IPS-SW -006 COD E:2

4 3 2

-6

When AC power fails, “NC” and “NO” connection will

provide a notification signal to the DVR/NVR or alarm system.

Majority of DVR/NVR systems also have e-mail alert features

to send notification of AC power failure.

Long-distance cameras tend to lose voltage due to distance

from power source. Setting Vdc to a high setting will improve

long-distance camera picture quality.

321

UPS Bypass Switch

A) UPS Mode: Unit will go into backup mode if power fails.

B) AC Bypass Mode: Switch to this mode when batteries need to be changed or UPS is

abnormal. “AC Bypass” mode will continue to offer power to cameras, DVR and monitor.

12VDC 24VAC

* Dip switch ports need to be switch to ON for the DC camera ports and DVR/NVR to receive

DC power failure notification.

* You can only turn dip switches ON with ports number you have your camera connected

to.

* You will get an wrong message if you switch ON with ports that have no camera connected.

Model

SUR-809UPS

SUR-1218UPS

1A, Green LED, Port: 5-9

2A, Orange LED, Port: 1-4

1A, Green LED, Port: 5-14

2A, Orange LED, Port: 1-4

N/A

1A, Orange LED, Port: 15-18

1) Connect all camera ports before connecting battery.

2) Connect battery before turning on UPS. (bypass switch must also be in “UPS mode”)

5. 24VAC Port 15 ~ Port 18 (SUR-1218 )

12VDC Port 15 ~ Port 18 (SUR-1518UPS)

UPS

Model

SUR-0809UPS

SUR-1218UPS

Camera DC Power Failure

Notification Setting Dip Switch

Port: 1-9

Port: 1-14

Camrea Power Failure Notification Port

1. COM: NC

2. COM: NO

Normal Close

Normal Open

8. 12VDC Port 1 ~ Port 9 (SUR-809UPS)

12VDC Port 1 ~ Port 14 (SUR-1218UPS)

12VDC Port 1 ~ Port 14 (SUR-1518UPS)

SUR-1518UPS 1A, Green LED, Port: 5-18

2A, Orange LED, Port: 1-4 N/A

SUR-1518UPS

-8

5.2 Turning off the unit: Push the button for 4 seconds to turn the UPS power off.The

UPS will turn off power completely within 10 seconds if there is a utility failure

during off mode. If the utility power is normal, the UPS will continue to charge

the battery.

When utility power is normal, please unplug the power cord if you want to turn

off the UPS completely.

5.3 DC start: During a blackout, push the button for 4 seconds to turn on the UPS

and enter into back-up mode. To turn off the power from UPS, please push the

button for 4 seconds. After turning off the UPS, please wait for 10 seconds if you

need to DC-start the UPS again.

-9

This unit is shipped from the factory with its internal battery fully charged, however,

some charge may be lost during shipping and the battery should be recharged prior

to use. Plug the unit into an appropriate power supply and allow the UPS to charge fully

by leaving it plugged in for at least 10 hours.

2 beeps every

8 seconds

STATUS YELLOW LED GREEN LED RED LED BUZZER

Backup

Mode

Battery normal

Load normal

No load (For green mode

function only)

Over load (will shut down

at 120% of full load)

Over Temperature

O/P short circuit

Low battery

Over battery voltage

(For external battery)

Inphase lock (AC good,

PLL working)

2 flashes every

4 seconds

One flash every

4 seconds

2 flashes every

4 seconds

32 flashes every

other 2 seconds

32 flashes every

other 2 seconds

4 flashes every

second

8 flashes every

second

OFF 4 flashes

every second

One beep every

8 seconds

Continuous beep

Depending on

load situation

32 beeps every

other 2 seconds

4 beeps every

second

8 beeps every

second

STATUS YELLOW LED GREEN LED RED LED BUZZER

normal

mode

Battery full

Battery charge 70%~90%

Battery charge 50%~70%

Battery charge 30%~50%

Battery charge 0%~30%

Over load(shut off at 120% of full load)

OFF

Continuous ON

One blink every 8 seconds

One blink every 4 seconds

One blink every 2 seconds

One blink every second

OFF

Continuous

Beep★

STATUS YELLOW LED GREEN LED RED LED BUZZER

OFF

mode

AC I/P disconnected

(UPS OFF completely)

AC I/P normal (Batt. In charging)

UPS timer is set (Through RS232)

OFF

1 flash every

2 seconds

1 flash every

2 seconds

1 flash every

2 seconds

OFF

Note” ”:The buzzer will keep continuous beeping until the control button is pushed for one second.★

OFF

OFF OFF

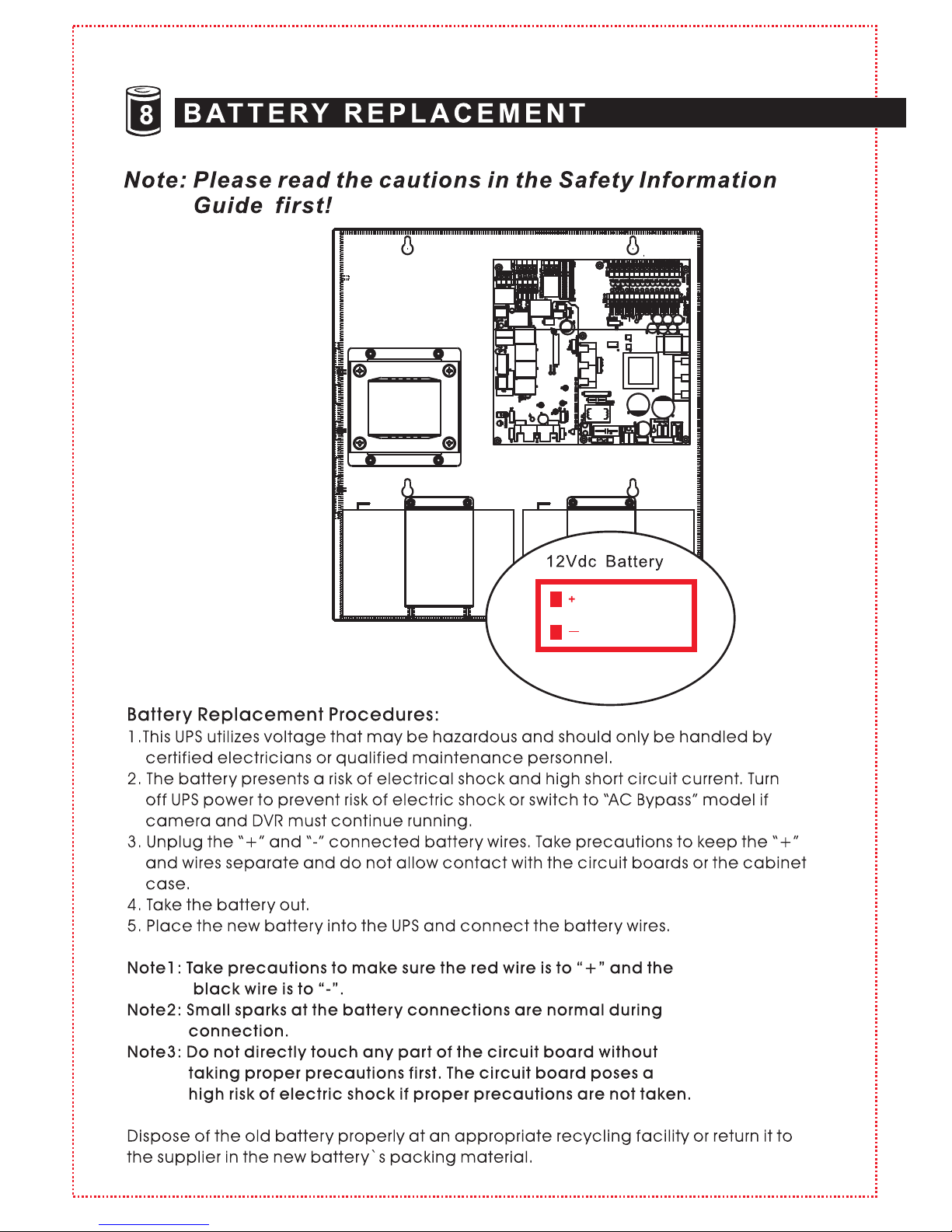

-10
