Martin Juggler Manual de usuario

Juggler

user manual

Thank you for selecting the Martin Juggler. This lighting fixture uses a 250 watt

halogen lamp, a moving mirror, an 18-position color/gobo wheel, and a built-in

microphone to project exciting effects automatically in time with the music.

UNPACKING

The packing material is carefully designed to protect the fixture during shipment

- always use it to transport the fixture.

The Juggler comes with:

• 500 hour halogen lamp (installed)

• mounting bracket

• 1.5-meter, 3-wire IEC power cable

• user manual

1 mounting bracket

2 swivel locks

3 focus adjustment

4 lamp access

5 clamp hole

6 air vent

7 AC input & main

fuse

4 Juggler User Manual

AFETY

PRECAUTIONS

The Juggler is not for household use. It is not a toy: it presents risks of serious

injury due to electric shock, high heat, and intense light. For safe operation, read

this manual before using the fixture and observe all warnings and precautions

printed here and on the fixture. If you have questions about how to operate the

fixture safely, please contact your Martin distributor or dealer.

• For protection against dangerous electric shock, always ground (earth) the

fixture electrically. Use only a source of AC power that complies with local

building and electrical codes.

• Replace the lamp if it becomes defective or worn out. Allow the fixture to cool

for 5 minutes before installing a new lamp.

• Keep all combustible materials (for example fabric, wood, paper) at least 30

cm (12 inches) away from the fixture. Keep flammable materials well away

from the fixture.

• Provide a minimum clearance of 10 cm (4 inches) around the fan and air vent.

• When suspending the fixture above ground level, verify that the structure can

hold at least 10 times the weight of all installed devices and secure the fixture

with an approved safety cable. Block access below the work area whenever

installing or removing the fixture.

• Never remove any cover except the lamp access cover. Refer all service to a

qualified technician.

• Do not expose the fixture to rain or moisture.

• Do not illuminate surfaces within 1 m (39 inches) of the fixture.

• Do not operate the fixture if the ambient temperature exceeds 40° C

(104° F).

• NEVER place filters or other objects over the lens or mirror.

Setup 5

ETUP

LAMP INSTALLATION

The Juggler is shipped with a Philips 24V/250W ELC 500 hour halogen lamp

installed. When replacing the lamp, use only one of the compatible lamps listed

on page 10. Installing any other lamp may damage the fixture!

Allow the lamp to cool for at least 5 minutes before moving the fixture. To avoid

possible damage, remove the lamp when shipping the fixture.

Warning! Disconnect the fixture from AC power and allow the fixture to

cool for 5 minutes before installing a new lamp.

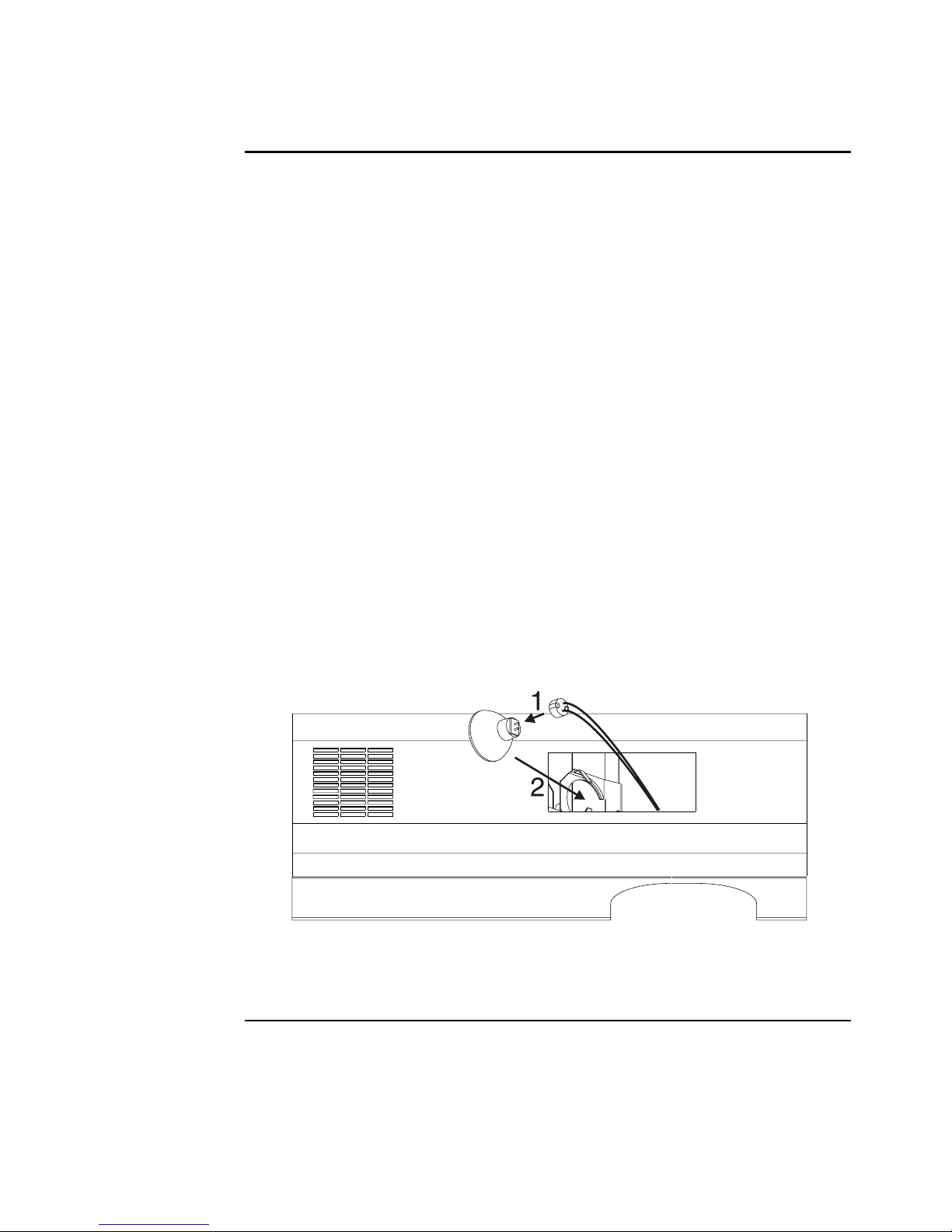

To install a lamp in the Juggler

1 Disconnect the fixture from AC power. If replacing a lamp, allow it to cool for

5 minutes before removing the lamp access cover. The lamp cools faster with

the cover in place.

2 Remove both screws from the lamp access cover and lift the cover off.

3 Grasp the old lamp by the reflector and pull it out of the holder. Then pull the

socket off the lamp. Do not pull the wires.

4 Push the socket fully onto the pins of the new lamp.

5 Gently push the lamp into the holder until it snaps into place.

6 Replace the lamp access cover and screws.

AC POWER CONNECTION

The fixture’s mains lead may require a grounding-type cord cap that fits your

power distribution cable or outlet. Consult a qualified electrician if you have

any doubts about proper installation.

6 Juggler User Manual

Warning! For protection from dangerous electric shock, the fixture must

be grounded (earthed). The AC mains supply shall be fitted

with a fuse or circuit breaker and ground-fault protection.

• Following the cord cap manufacturer’s instructions, connect the yellow and

green wire to ground (earth), the brown wire to live, and the blue wire to

neutral. The table below shows some pin identification schemes.

INSTALLATION

The Juggler can be permanently installed or hung with a clamp (not included), or

it can be placed on the floor as described below. For maximum lamp life, do not

place the fixture directly on or beside a speaker cabinet or other source of strong

vibrations.

Once the Juggler is installed and connected, the focus may be adjusted by

loosening and sliding the focus adjustment knob.

Warning! Block access below the work area before proceeding. Always

use a secure means of secondary attachment.

To install or hang the Juggler

1 Install the mounting bracket on the

chassis as shown. Place the washers

on the stud before the bracket.

2 Verify that the structure can support

at least 10 times the weight of all

installed fixtures, clamps, cables,

auxiliary equipment, etc.

3 If hanging the fixture with a rigging

clamp, verify that the clamp is

undamaged and can bear at least 10 times the fixture’s weight. Bolt the clamp

securely to the bracket with a grade 8.8 (minimum) M12 bolt and lock nut, or

as recommended by the clamp manufacturer, through the clamp hole in the

mounting bracket.

Wire Pin Marking Screw color

brown live “L” yellow or brass

blue neutral “N” silver

yellow/green ground green

Setup 7

4 If permanently installing the fixture, verify that

the hardware (not included) and mounting

surface can bear at least 10 times the fixture’s

weight. The four 6 mm holes and the clamp hole

in the mounting bracket may be used for

attachment.

5 Working from a stable platform, clamp or fasten

the fixture to the structure.

6 Install a safety cable that can hold at least 10

times the weight of the fixture through/over the support and mounting

bracket as shown.

7 Loosen the swivel locks, tilt the fixture to the desired angle, and retighten.

8 Verify that the fixture is at least 0.3 meters (12 in.) from the surface to be

illuminated and at least 0.1 meters (4 in.) from any combustible materials.

Verify that the clearance around the air vent and lamp access plate is at least

0.1 meters (4 in.).

To use the bracket as a floor stand

The Juggler may be placed on the floor

by standing it squarely on the mirror end

or with the support of the mounting

bracket. Never lay the fixture flat on its

back!

1 (Optional) Install the mounting bracket as described above.

2 Set the fixture flat on its mirror end or in one of the positions shown below.

Adjust the mounting bracket and tighten both swivel locks.

3 Verify (1) that the fixture is stable, (2) that the fixture is at least 0.3 meters (12

in.) from the surface to be illuminated and at least 0.1 meters (4 in.) from any

combustible materials, and (3) that the clearance around the air vent and

lamp access plate is at least 0.1 meters (4 in.).

Rigging clamp not shown!

8 Juggler User Manual

PERATION

Warning! Verify that the power cables are undamaged and rated for the

current requirements of all connected devices before use.

Important! Electric dimmers may damage the electronic components.

The Juggler’s operating voltage is printed on the serial number label near the AC

input. Verify that the operating voltage closely matches the AC supply voltage

before applying power. Contact your Martin dealer if the voltage on the label

differs from the AC mains voltage by more than five percent.

The lamp turns on as soon as power is applied. The effects start moving as soon as

sound is picked up by the built-in microphone. An Automatic Gain Control

(AGC) adjusts sensitivity when the average sound pressure alters.

Note: Although the Juggler cannot be dimmed, it may be switched on and off

remotely using switch packs or the full-on and full-off levels on dimmer packs.

Service 9

ERVICE

There are no user-serviceable parts inside the Juggler. Please refer all service to a

Martin distributor, dealer, or service center.

To replace the main fuse

1 Unplug the mains cable from the input socket. Pry open the fuse holder and

remove the fuse.

2 Replace the fuse with one of the same type. The fuse rating is listed on serial

number label.

TROUBLESHOOTING

If these remedies do not solve the problem, contact your Martin dealer for service.

problem probable cause(s) suggested remedy

No light

No power to the fixture Check connections

Blown fuse Replace fuse

Burned out lamp Install new lamp

Fixture overheating Allow to cool

Improve air flow around fixture

No action

Sound too low to activate

control circuit

Increase volume

Move speakers closer

Electrical malfunction Refer to service technician

Fuse blows repeatedly Electrical malfunction Refer to service technician

10 Juggler User Manual

PECIFICATIONS

• Size (L x W x H).................................. 490 x 165 x 190 mm (19.3 x 6.5 x 7.5 in)

• Weight .......................................................................................... 7.5 kg (16.5 lbs)

• Maximum ambient temperature (Ta)................................................40° C (104° F)

• Maximum surface temperature ........................................................60° C (140° F)

• AC input......................................................................... 3-prong IEC male socket

• Maximum power and current............................................. 270 W, 1.2 A @ 230 V

• Primary fuse, EU version........................................2.5 AT / 250 V, P/N 05020010

• Primary fuse, US version ........................................5.0 AT / 250 V, P/N 05020018

• Minimum distance to combustible materials .................................... 0.3 m (12 in)

• Minimum distance to illuminated surfaces ....................................... 1.0 m (39 in)

• Minimum clearance around fan and air vents...................................... 0.1 m (4 in)

CCESSORIES

• Martin DMX Switch Pack, 210-245 V ................................................... 90758200

• Martin DMX Switch Pack, 100-130 V ................................................... 90758300

• Osram 24V/250W ELC 50 h halogen lamp............................................ 97000104

• Philips 24V/250W ELC 500 h halogen lamp.......................................... 97000107

• G-clamp .................................................................................................. 91602003

• Half-coupler clamp ................................................................................ 91602005
