VIPER DC Series Installation Guide

Thanks for choosing our VIPER DC Series ceiling fan.

We strongly recommend that you read this manual carefully before installation.

Models Parameters (Fan Only):-

MVDC133MMR 1320mm 3 Blade Ceiling Fan Matt Black with remote control

MVDC133WSR 1320mm 3 Blade Ceiling Fan White Satin with remote control

Models Parameters (Fan and Light):-

MVDC1333MMR 1320mm 3 Blade Ceiling Fan Matt Black, 18W Tricolour LED Light with remote control

MVDC1333WSR 1320mm 3 Blade Ceiling Fan White Satin, 18W Tricolour LED Light with remote control

Part List:

Qty 1x motor assembly Qty 1x instruction manual Qty 1x screw kit Qty 3x blades

Qty 1x balancing kit Qty 1x hanging bracket Qty 1x remote control kit

Application

Flat Surface / Ceiling Corrugated Ceiling Apex Ceiling

Slope Ceiling up to 15°

How to Assemble

Secure the hanger bracket

to ceiling beam or a suitable

piece of timber inserted

between the ceiling beams

using the two long screws

supplied with the package.

(See Fg.1)

Place circular shockproof

gasket above the hanger

bracket. Align the bracket

and screw the hanger

bracket to the ceiling tightly.

(See Fg.2)

Place fan into hanger

bracket and align Ball Joint

Slot with hanger bracket as

illustrated.(See Fg.3)

After wiring is completed,

attach the canopy to the

hanger bracket by pushing

upwards and twisting anti-

clockwise. Tighten screws

and ensure canopy is not

touching the ball joint.

(See Fg.4)

Fg.1 Fg.2 Fg.3 Fg.4

Ball seat

rubber

cover

(packed

with

hanger

bracket)

Anti-vibration

washer

E: [email protected] | P: 02 8778 7500

www.martecaustralia.com.au

WARNING Installation MUST carry out by a qualied and licensed electrician.

How to Install Blades

How to Install / Remove the Cover

Connect the 2-pin

connectors from motor

housing with the light kit

plate.

Install the light kit plate

to the motor using screw

provided.

Slot the plastic cover into the

light kit. (See Fg.6)

Fg.6

CCT (Colour Changeable Temperature)

Fg.8

NB: Ensure the blades do not get damaged or bent during the

installation process while the fan maybe on the ground, this will aect

the performance and balance of the fan and this is NOT covered under

warranty.

Attach the blade to the top of the motor. Tighten and secure blade

with screws and washers provided. Repeat this procedure until all

blades are installed. (See Fg.5)

Fg.5

Install the shade cover into

the bottom of ceiling fan

(See Fg.7)

Fg.7Model shown with light Model shown fan only

Choose colour temperature by icking the switch in the

LED (See Fg.8)

C = 5000K cool white

N = 4000K neutral white

W = 3000K warm white

Dimming

The VIPER ceiling fan has a smart 3 step dimming LED light module which doesn’t require a dimmable remote control or a wall dimmer.

It only requires a remote control kit supplied with the product.

Turn the switch on and the light will turn on. Flick the switch on/o within 1 second and the light output will dim down to approx. 50%.

Flick the switch on/o again and the light output will dim down to approximately 15%. The light kit has memory function.

E: [email protected] | P: 02 8778 7500

www.martecaustralia.com.au

WARNING Installation MUST carry out by a qualied and licensed electrician.

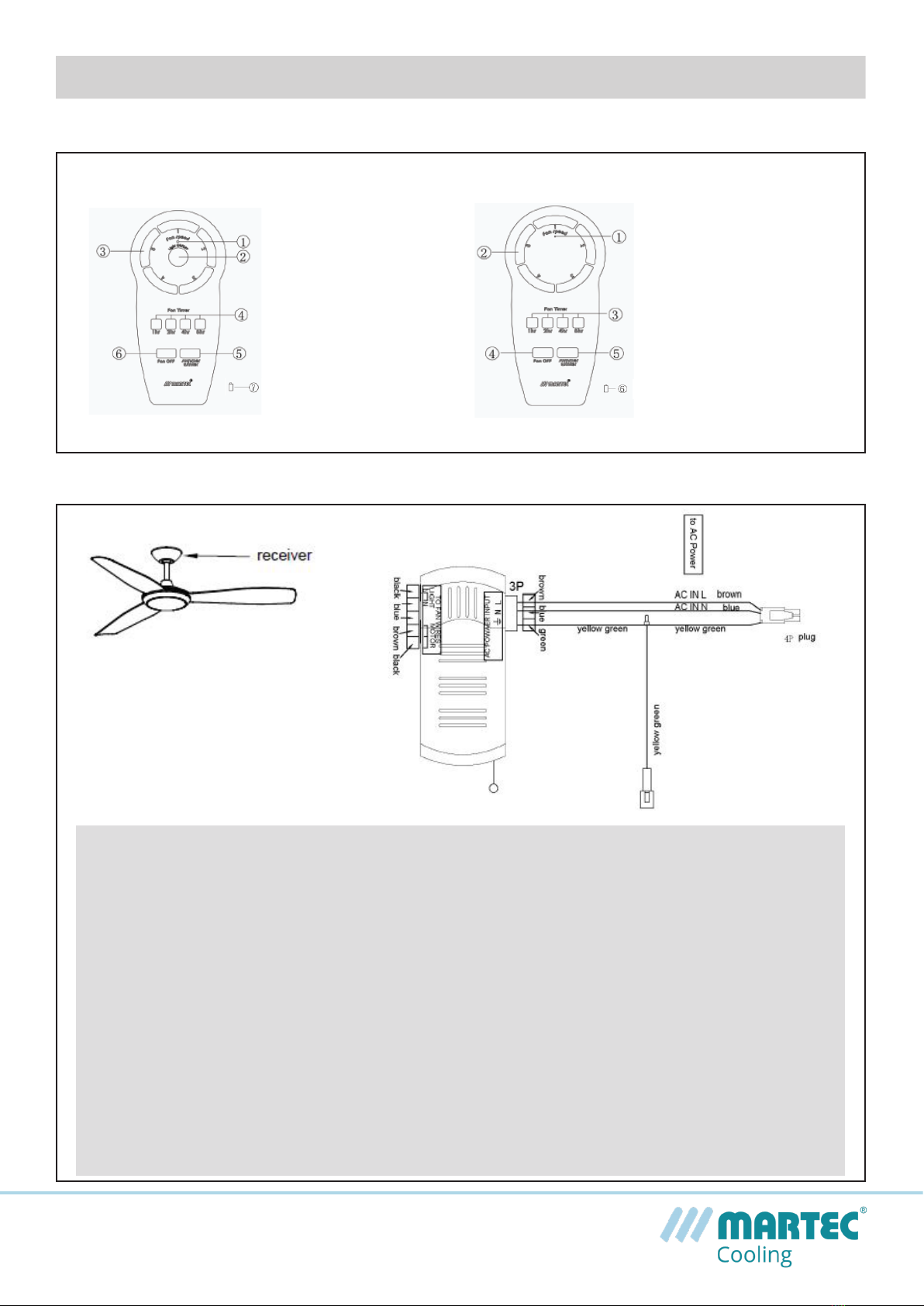

Instructions and Functions of Transmitter

1. LED indicator light

2. Light ON/OFF

(Use to dim light within 1s)

3. Speed of the fan

(1 high speed - 5 low speed)

4. Timing control of the fan

5. Direction of the fan (reverse

switch)

6. Fan ON/OFF

7. 12v battery to be used

in transmitter

NB: Remote shown fan and light NB: Remote shown fan only 1. LED indicator light

2. Speed of the fan

(1 high speed - 5 low speed)

3. Timing control of the fan

4. Direction of the fan (reverse

switch)

5. Fan ON/OFF

6. 12v battery to be used in

transmitter

Installing Receiver Remote Control

Pairing Instructions

• Turn “ON” the power supply and within 30 seconds

• Press and hold the transmitters “FAN ON/OFF” button for 5 seconds and a “beep” will be heard

• Pairing initial step must be performed within 30 seconds of power being turned on

i) ensure the isolation switch or power supply to the rst installed fan is turned o prior to pairing futher fans

ie. pair one fan at a time

ii) ensure isolation switch is kept to the ON position, the isolation switch is not to be used as a light switch as

this will damage and make the remote recevier inoperable

Important Reminders

• Receiver must be correctly installed in the mounting bracket

• When the transmitter cannot control the receiver, please check

i) has sucient battery in the transmitter

ii) any existence of similar remote controlled products nearby that cause interference

• Replace battery if getting low as this will aect sensitivity of the transmitter

• Take the battery out from the transmitter when leaving used for a long time to avoid battery leaks

• Support up to 200W lighting power

• Isolation switch MUST be connected in the line

• Dimming switch on the light models is operated by tuning the light ON/OFF button within 1s. Light output will dim in

stages from 18W to 9W to 3W approximately

E: [email protected] | P: 02 8778 7500

www.martecaustralia.com.au

WARNING Installation MUST carry out by a qualied and licensed electrician.

Wire Connections

CARE INSTRUCTIONS

• Ensure the ceiling fan is disconnected before any cleaning or maintenance work is carry out.

• LED lights are not detachable nor replaceable. It can only be supplied with the ceiling fan as one unit.

WARNING

• Installation of fans MUST follow SAA standards and meet local authority regulations.

• Installation MUST be carried out by a qualied and licensed electrician.

• Fan and light MUST be earthed.

• Bracket MUST be rmly attached to a at solid structure or timber frame.

• DO NOT mix blades from one model to another, all blades MUST be replaced if damaged.

• The warranty is VOID if product is not installed according to this installation guide.

6* Year Warranty

Visit our website for details https://www.martecaustralia.com.au/warranty-statement/

NB: Remote Control fan and light NB: Remote Control fan only
