Marshall Electronics QVW-1708 Manual de usuario

Marshall Electronics

Model No. QVW-1708

17.3” Quad-Viewer Monitor with 4K Format Support

Operating Instructions

Table of Contents

Installation and Accessories..................................................................................................................3

Monitor Front.........................................................................................................................................4

Monitor Rear.........................................................................................................................................4

Front Controls.......................................................................................................................................5

Rear Inputs ...........................................................................................................................................6

Compatible Input Formats.....................................................................................................................7

Screen Layouts.....................................................................................................................................8

On Screen Menu.................................................................................................................................10

Marker Setup Submenu......................................................................................................................11

Video Configuration Submenu............................................................................................................12

Color Configuration Submenu.............................................................................................................15

System Configuration Submenu .........................................................................................................16

OSD Configuration Submenu..............................................................................................................18

Audio Config Submenu.......................................................................................................................21

IMD Config Submenu..........................................................................................................................22

IMD Fixed Config Submenu................................................................................................................24

IP Config Submenu.............................................................................................................................25

Service Submenu................................................................................................................................26

Monitor Specifications.........................................................................................................................27

Dimensions.........................................................................................................................................28

Warranty.............................................................................................................................................32

Installation and Accessories

Unpacking

Carefully unpack the QVW-1708 monitor and verify that the following items are included:

-QVW-1708 Monitor

-V-PS12V-5A-XLR Power Supply

-Operating Instructions

Accessories

The QVW-1708 supports VESA standard 75 mm hole pattern accessories. Additionally, a desktop

stand is available for this product. Please contact Marshall Electronics for further information.

Monitor Front

Monitor Rear

Front Controls

POWER

Control Power going to the front panel.

A – B (Input buttons)

Press the A or B to select which module input to display

on the screen. Each press of an input button cycles

between the available inputs on that module.

MUTE

Press the MUTE button to mute the output to the

headphone jack.

Layout

Press the LAYOUT button to cycle between the available

screen layouts.

F1 – F4 (Function buttons)

Press the F1, F2, F3 or F4 buttons to activate the

selected functions. The function activated can be

changed on the on screen menu.

MENU /





/ SEL

As an alternative to the ROTOMENU™, these buttons

provide the ability to navigate through the menu with the

MENU / // SEL buttons.

ROTOMENU™

The RotoMenu™knob is an alternate means of

accessing and navigating the main menu, using only a

single control. See the Using the RotoMenu knob

section for details on using the RotoMenu. Also, turning

the RotoMenu™knob before pressing it adjusts the

Headphone volume on monitors with an available

Headphone Jack.

COLOR, BRIGHT, CONTRAST (Image

Adjustment Knobs)

Use the image adjustment knobs to adjust color

saturation, brightness and contrast of the image. The

status of each image adjustment parameter is shown on

the bottom left of the screen, with values ranging from 0

to 100. Pressing a knob once displays the current value.

Pressing a knob twice resets the corresponding

adjustment to the default setting.

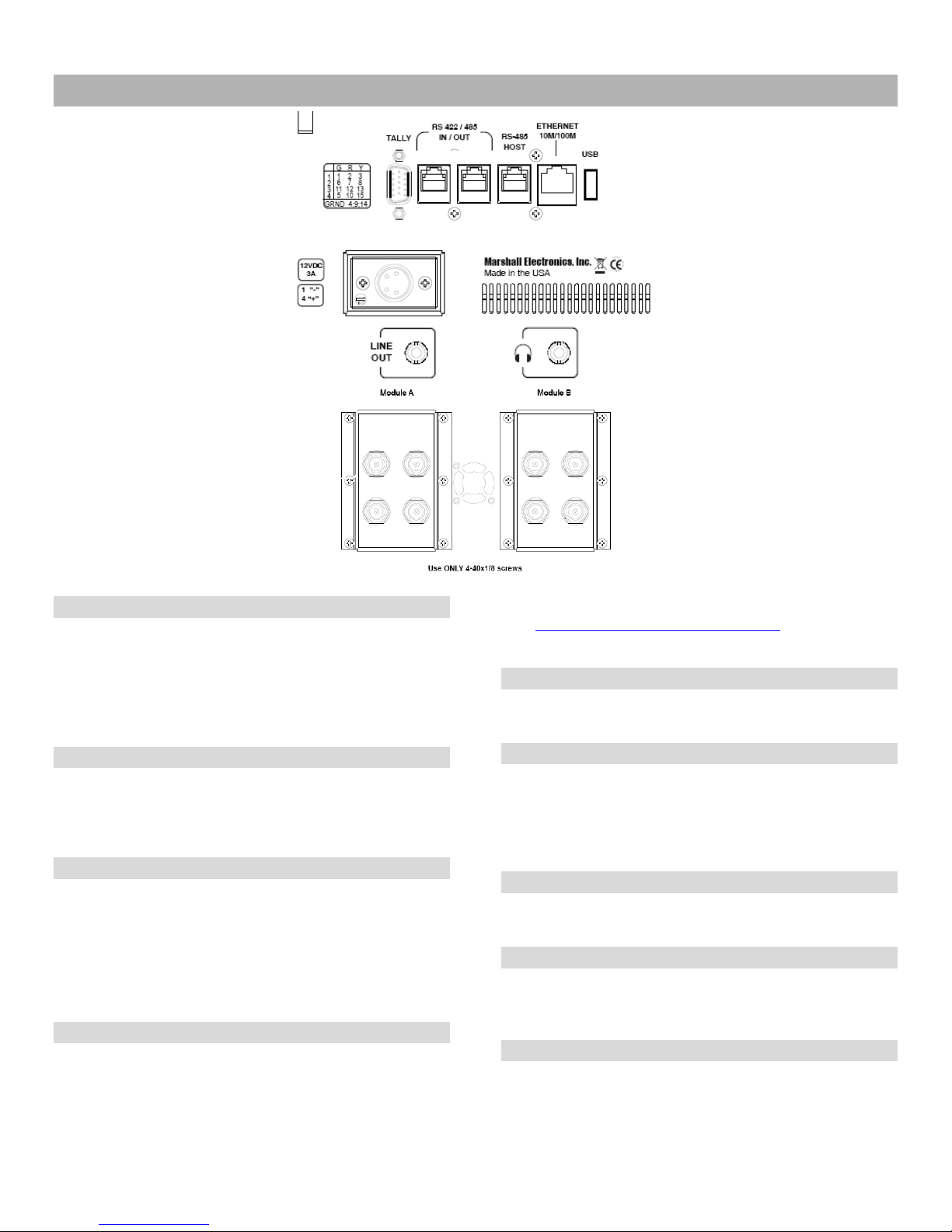

Rear Inputs

LINE OUT

The Line Out, 1/8”, jack on the back of the monitor takes

two channels of embedded SDI audio and provides a

Line Level Output. The volume is constant and can not

be adjusted via the VOLUME or MUTE functions on the

monitor.

Headphone Jack

The Headphone, 1/8”, jack on the front panel takes two

channels of embedded SDI audio for your listening

pleasure. The Headphone jack provides audio with

adjustable levels via the ROTOMENU knob.

TALLY

OSD tally and GPI can be activated via the HD-15

connector by connecting the corresponding pin to

ground via dry contact.

A variety of external devices can be used to perform the

contact closure. No additional power should be supplied

to the HD-15 port.

RS-422 / 485 IN / OUT

The RS-422/485 ports are used to remotely control the

MEI Protocol features. (Note: Connector/pin-out may

need to be adapted depending on protocol and

controlling device used). Only one connection to either

port is needed to control the monitor. The second port

can be used to loop multiple monitors in the same bus.

See IMD CONFIGURATION SUBMENU for further

details.

RS-485 HOST

Use the RS-485 HOST port to receive data input from

Image Video or TSL protocols.

ETHERNET 10M / 100M

You can use the Ethernet port to access the MEI

Remote Control page via a web browser such as IE or

Firefox.

Network connectivity can be setup in the IP Config

menu.

USB (Input port)

The USB port is used for field upgrades. Contact

Marshall Electronics for further information.

Module A – Module B

Input slots can be pre-configured at the factory with a

variety of modules. Contact Marshall Electronics for

information on options.

Power Input

Connect the power input connector here. Power can be

supplied from the included power supply, or from a

variety of DC sources supplying the voltage and current

listed on the silkscreen.

Compatible Input Formats

SDI / HDSDI Formats

567i 50, 625i 59.94

720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1035i 59.94, 60

1080p 23.98, 23.98sF, 24, 24sF, 25, 29, 30

1080i 50, 59.94, 60

3G SDI Formats

Level A 1920 x 1080 p

50, 59.94, 60p

23.98, 23.98sF, 24, 24sF, 25, 25sF, 29.97, 29.97sF, 30, 30sF

Level A 1920 x 1080 i

50, 59.94, 60i

Level A 1280 x 720 p

50, 59.94, 60

23.98, 24, 25, 29.97, 30

Level A 2k x 1080 p

23.98, 23.98sF, 24, 24sF, 25, 25sF, 29.97, 29.97sF, 30, 30sF

Level B 1920 x 1080 p

50, 59.94, 60p

23.98, 23.98sF, 24, 24sF, 25, 25sF, 29.97, 29.97sF, 30, 30sF

Level B 1920 x 1080 i

50, 59.94, 60

Level B 2k x 1080 p

23.98, 23.98sF, 24, 24sF, 25, 25sF, 29.97, 29.97sF, 30, 30sF

4K Formats

4096 x 2160 p

4K 50,59.94, 60

4K 23.98

3840 x 2160 p

4k 50, 59.94, 60

4k 23.98

Input formats that exceed the native display resolution (such as 4K inputs) will be scaled to fit. Best scaling performance

occurs with Progressive "p" inputs vs. segmented-frame "sF" inputs.

Screen Layouts

The QVW-1708-Q can display 4 different input sources simultaneously. Each source is scaled and positioned to fit the

desired layout. There are a total of 4 different layouts illustrated below. Each press of the Layout Button will switch to the

next available layout.

Default Quad Layout

Quad Layout 2

Quad Layout 3

Layout 4

On Screen Menu

Access and navigate the main menu using the RotoMenu™knob:

Using the RotoMenu knob

• Press the RotoMenu™knob to enter the main menu.

• Rotate the knob to scroll up or down in the main menu or each submenu.

• Press the RotoMenu™knob to enter a submenu or choose a setting.

• To return to main menu from submenu, select ‘Back’ and press the RotoMenu™.

The menu timeout can be set in the OSD Timeout section of the OSD Config submenu.

Making Changes to an Individual Channel

The Quad-Viewer RotoMenu allows for Video, Color, System, OSD and IMD Configuration changes to be made to

individual channels in the Quad-Viewer system. Items in the menu that can be changed for each individual channel will

have a A1, A2, B1, B2 indicator on the right side of the menu and a small white box for each individual channel, as shown

below:

Main Menu
