Markem Imaje 4700 Manual de usuario
Printer
and Interface overview
Starting up /
Shutting down the Printer
Printing the current jobs
Editing and Previewing jobs
Printer maintenance
Ink canister replacement
Troubleshooting
Information
Instruction manual
4700
The health and safety
instructions, translations of
the Declaration of Conformity,
are set out in the document
supplied with your printer, as
well as in PDF format on your
DVD.
Instruction manual 2

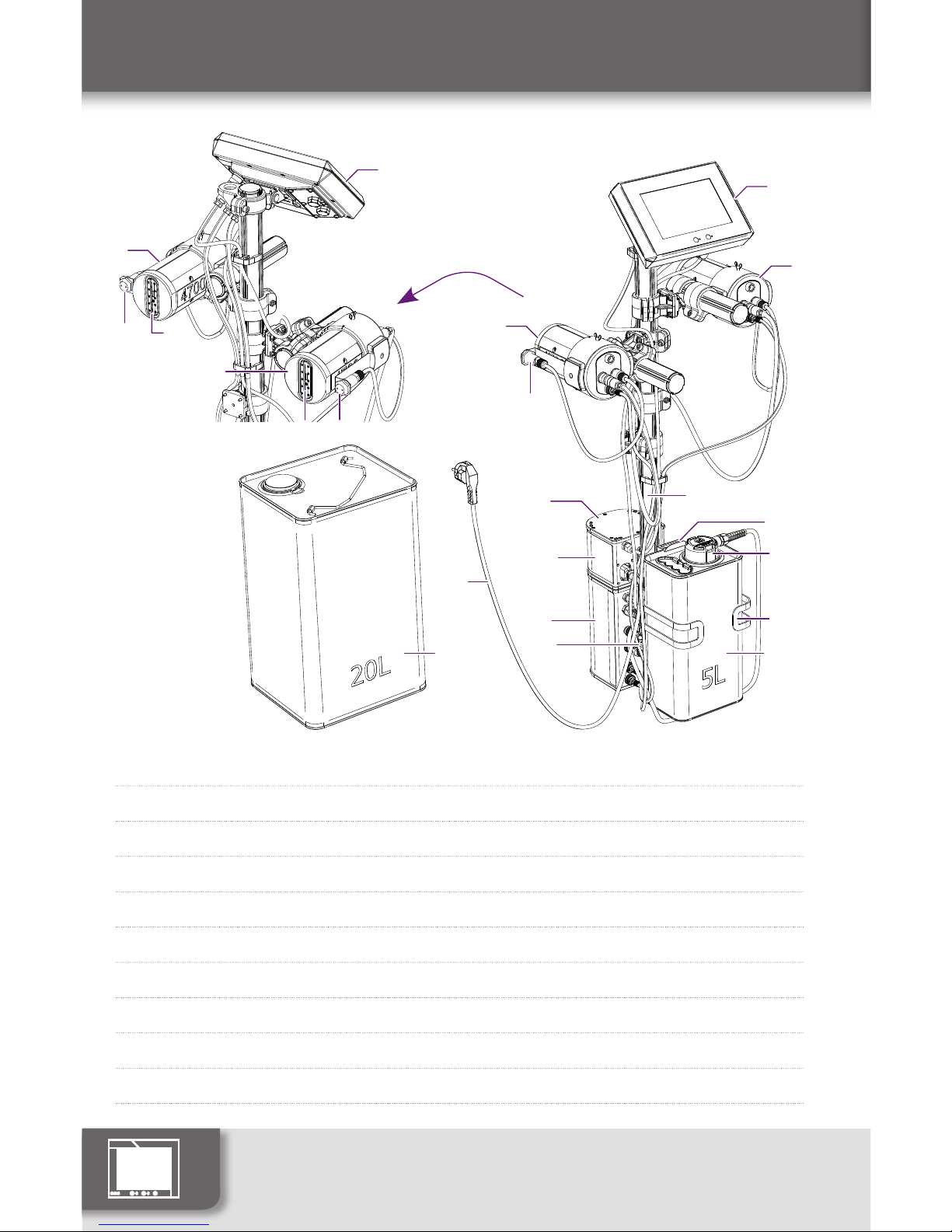

Printer overview
1
1
2
1a
3
8
3a
2
1
4a
5
9
6
4b
1
10
6a
1a
1b
1a1b
7
1. Printheads with photocells 1a and nozzle plate 1b
2. Control Unit (display: 7"/177.8mm diagonal)
3. Ink system with ink lter 3a
4. Ink canister (4a: 5 litres, 4b: 20 litres)
5. Pick-up unit
6. Case with latch 6a for a 5-liter ink canister
7. Enclosed power supply
8. Disconnectable power cable
9. Support beam with holders
10. Manufacturer’s plate
3Instruction manual
Interface overview
2
1
3
4
5
6789
10
11
13
12
14
This manual applies to the 4700 printer with two printheads, either of them printing
a separate job. The user interface is similar for the 4700 printer with one printhead
or with two printheads printing one job.
1. Printer information bar, coloured background
2. Shut down icon
3. Start/pause printing icon
4. Printing status, coloured background
5. Ink level indicator
6. Printing status LED
7. Start/pause printing button
8. Printer status LED
9. Start up/shut down button
10. Name of the job currently selected for head number 1
11. Preview of the job currently selected for head number 1
12. Name of the job currently selected for head number 2
13. Preview of the job currently selected for head number 2
14. Menu bar
Instruction manual 4
Menu map
Jobs
Administrator
Advanced
Operator
Create
Change name
Edit
Open
Save job
Resize eld
Move eld
Modify eld
Printing
parameters
Fields
|Text|
|Others|
|Shapes|
Line
Rectangle
Ellipse
Static text
Counter
Text le
Shift code
Calendar
Communica-
tions port
Delete
Modify
printing parameters
Operator
Manage
■
Add eld
■
Delete eld
■
Date/time
5Instruction manual
Menu map
■available for ,
* available for
Tools
Users
I/O
Events
Statistics
|Date/Time|
Information
Printheads
History
Export
Upgrade
Import
Service
Change user
General
*
Display
*
Signalling
*
Unlock Ink system
ConsumablesTransfer
■
Status
|Common|
Variables
■
Manage users
■
Tuning
■
Version
Control unit
*
Network
*
Printheads
Settings
Restore default
settings
*
|Local settings|
1
2
3
4
5
Instruction manual 6

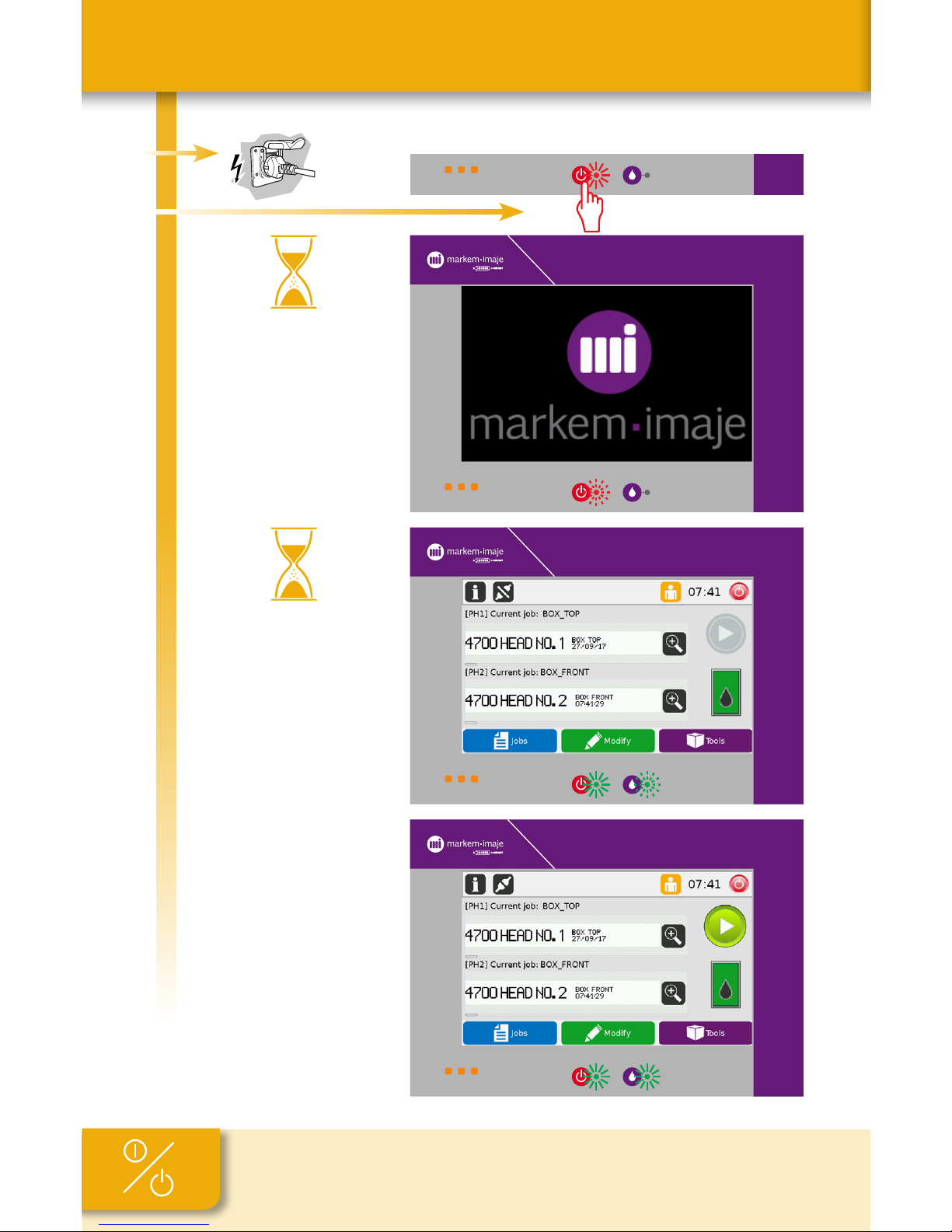

Starting up the printer
00:00:30
00:00:15
The jobs BOX_TOP
and BOX_FRONT
are ready
for printing.
1
2
3
4
5
7Instruction manual
Shutting down the printer
00:02:00
00:00:05
if necessary
4s To shut down the printer
in emergency mode, press and hold
for 4 seconds.
1s Press to shut down
the printer in regular
mode.
1
3
2
Instruction manual 8
Printing the current jobs
press
either
Update any variable elds, if used in the jobs, or enter
values for the elds with the attribute “edit before printing”.
The jobs BOX_TOP
and BOX_FRONT
are ready
for printing.
Printing the
jobs BOX_TOP
and BOX_FRONT.
9Instruction manual
Printing the current jobs
Pause
Start
TOP
TOP
PH1
A
PH2
PH1
A
PH2
A: active photocell
* xed speed printing (with no encoder)
1
2
3
4
Instruction manual 10
Selecting a job to print
1
2
Press (2).
Job preview
Press (Jobs).
Select a job to
print (1).
Select the printhead to print a job with (on screen: head
number 1, PH1)
The jobs BOX_TOP
for head number 1
and BOX_FRONT
for head number 2
are ready
for printing.
Jobs selected to print with both of the printheads
