Mark-10 WT3-201 Manual de usuario

Model WT3-201

WIRE CRIMP PULL TESTER

Quick Start Guide

OTHER MARK-10 PRODUCTS

A full line of force and torque measurement products and related items,

including force gauges, torque gauges, force and torque test stands, sensors,

grips, software, and more.

Force and torque measurement engineered better

Mark-10 Corporation

11 Dixon Avenue

Copiague, NY 11726

888-MARK-TEN

Tel: 631-842-9200

Fax: 631-842-9201

Internet: www.mark-10.com

E-mail: [email protected]

32-1113

121119

Thank you!

Thank you for purchasing a Mark-10 WT3-201

wire terminal pull tester, designed for applications

up to 200 lbF (1,000 N). With proper usage, we

are condent that you will get many years of great

service with this product. Mark-10 instruments are

ruggedly built for many years of service in labo-

ratory and industrial environments. Please read

through this Quick Start Guide and the complete

User’s Guide before using the gauge.

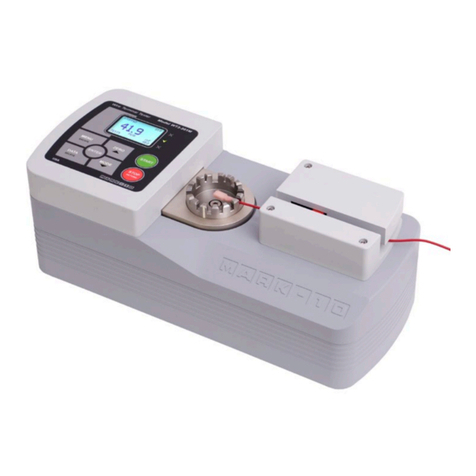

Model WT3-201 Wire Crimp Pull Tester

IMPORTANT SAFETY CONSIDERATIONS

Force gauges are sensitive instruments that must be treated with care. Please

review the yellow safety information card included in the box, as well as the

safety information in the User’s Guide prior to operating the gauge.

LIST OF INCLUDED ITEMS:

POWER

Quick Start Guide

Press the button to power on the tester. Press and hold to power o󰀨. The

tester may be powered either by the internal rechargeable battery or anAC adapter/

charger. The battery will last approximately 7 hours with the backlight turned on,

and 24 hours with the backlight turned o󰀨 before recharging is necessary.

Qty. Part No. Description

1 08-1026 Rechargeable NiMH battery (inside the tester)

1 - Certicate of calibration

1 09-1165 USB cable

1 AC1030 / AC1031 /

AC1032 / AC1035

AC adapter/charger with US, EU, UK, or AUS prong

1 WT3002 Ring terminal xture (optional)

1 WT3003 Machinable blank terminal xture (optional)

1 WT3004 Carrying case (optional)

2 3

LITERATURE & SOFTWARE DOWNLOADS

Download at: www.mark-10.com/downloads

1. User’s guides (PDF)

Provided for all Mark-10 instruments. Locate the user’s guide for this product

and read it thoroughly before use.

2. USB driver

For Mark-10 instruments and the model RSU100 RS-232 to USB converter.

Required for communication with a PC. Follow the installation instructions

provided in the user’s guide.

3. MESUR®family of software – see below.

INSTALLING MESUR®SOFTWARE

Mark-10 o󰀨ers three data collection applications:

MESUR®Lite

Free basic data acquisition application, for data tabulation and exporting to Excel.

Compatible with gauges only, not test stands.

MESUR®gauge / MESUR®gauge Plus

Data tabulation, graphing, analysis, and reporting, with user-congurable start and

stop triggers and other tools. Compatible with gauges and test stands for load

vs. time or load vs. travel. MESUR®gauge Plus adds test stand motion control

coordination. Both applications can be evaluated for 90 days.

PC requirements

Compatible with PCs running Microsoft Windows 7 or later. Minimum monitor

resolution is 1108 x 758. A USB or RS-232C serial port is required. If USB

communication is required, install the Mark-10 USB driver.
