Marine PC MPC-SL19
USER MANUAL
19” IP-65 Marine Display
Sunlight Readable LED B/L LCD
(1st Edition 2009)
All information is subject to change without notice.
Approved by Checked by Prepared by
Erik Hank Jack
Page 2
RECORD OF REVISION
Version and Date Page Old Description New Description Remark
January 2009 All Release 1.0
Page 3
TABLE OF CONTENTS
RECORD OF REVISION ........................................................................................................ 2
TABLE OF CONTENTS........................................................................................................... 3
1.0 INTRODUCTION............................................................................................................ 8
2.0 CONTROL AND FEATURES............................................................................................. 9
3.0 INSTALLATION .......................................................................................................... 10
4.0 OSD OPERATION ....................................................................................................... 16
5.0 TECHNICAL SPECIFICATION ........................................................................................ 28
Page 4
IMPORTANT INFORMATION
EMC conformance
All MarinePC equipment and accessories are designed to the best industry standards for
use in the recreational marine environment. The design and manufacture of Marine PC
equipment and accessories conform to the appropriate ElectroMagnetic Compatibility
(EMC) standards, but correct installation is required to ensure that performance is not
compromised.
Waste Electrical and Electronic Equipment Directive
The Waste Electrical and Electronic Equipment (WEEE) Directive requires the recycling
of waste electrical and electronic equipment. Whilst the WEEE Directive does not apply
to some of MarinePC’s products, we support its policy and ask you to be aware of how to
dispose of this product.
The crossed out wheelie bin symbol, illustrated above, and found on our products
signifies that this product should not be disposed of in general waste or landfill. Please
contact your local dealer, national distributor or MarinePC Technical Services for
information on product disposal.
Restriction of the use of certain Hazardous Substances
This product uses components that comply with the requirements of the Restriction of
the use of certain Hazardous Substances (RoHS) Directive 2002/95/ EC.
Warranty
Please refer to the latest Warranty Terms and Conditions at:
www.marinepc.com
Page 5
Packing List
Before installation, please ensure the following items have been shipped:
1 x MPC-SL19 Marine Display
4 x Mounting bracket lugs and 4 stainless steel threaded studs
1 x Power Cable (5000 mm)
1 x VGA Cable (3000 mm)
If any of these items should be missing or damaged, please contact your distributor
or sales representative immediately.
Page 6
This Page Intentionally left Blank.
Page 7
Usage Notice
Precautions
To maximize the life and safe use of your unit, always be sure to follow the warnings,
precautions and maintenance recommendations in this user’s guide.
In a Watercraft or Vehicle:
zThe monitor should be visible to the driver only if it is used for navigation, or
system control. Care should be taken to ensure distraction does not occur.
zReview all applicable federal, state and local laws and regulations to make sure the
monitor is used properly and safely.
zAvoid using the monitor for extended times while the charging system is not running,
or the monitor could drain the watercraft’s battery.
Cleaning the Monitor:
zUse a soft cloth moistened with mild detergent, isopropyl alcohol, or window
cleaners to clean the display housing.
zNever use abrasive cleaners, waxes or solvents to clean the unit.
Page 8
1.0 INTRODUCTION
About MarinePC Marine Displays
The MPC-SL19 is a high-performance marine Monitor, with optically bonded AR glass or
sunlight readable touch screen, is especially engineered to survive the most demanding
applications. You will soon become familiar with the quality difference in this bright
sunlight readable (0.5 to 1,000 nits) monitor.
The range of MarinePC Sunlight Viewable Marine Displays has been developed to be used
as part of an integrated marine navigation system and/or within an entertainment system.
The displays, available in several sizes, are designed to be waterproof and suitable for
use above or below decks.
The MarinePC MPC-SL19 sunlight readable monitor handles a wide-range of extreme
environments making it the industry choice for mobile applications. Housed in a milled
billet aluminum case, the slim-profile MarinePC MPC-SL19 is light weight and watertight.
Front-mounted controls and the touch screen make the industrial rugged monitor
user-friendly. We have incorporated the latest optical engineering to achieve optimal
viewability in all lighting conditions, including direct sunlight. The MarinePC MPC-SL19’s
power efficient, low heat design results in increased reliability and longevity required
for mission critical deployment.
This handbook contains important information on the installation, operation and
maintenance of the MarinePC Sunlight Viewable Marine Display range which is intended
for use in the recreational marine market and covers all models.
Page 9
2.0 CONTROL AND FEATURES
Your MarinePC Sunlight Viewable Marine Display has the following controls and features:
Front View
Back View
Page 10
3.0 INSTALLATION
It is important that your new display is installed and operated in accordance with the
instructions provided in this handbook. Failure to do so could result in poor product
performance and may invalidate your warranty.
When planning the installation the following points must be considered:
•Your MarinePC display is sunlight viewable and visible in direct sunlight.
•If temperatures exceed the normal temperature operating range the display could
overheat and begin to blackout due to the limitations of TFT LCD technology.
•In order to minimize the chances of a malfunction, the following precautions should be
taken during installation:

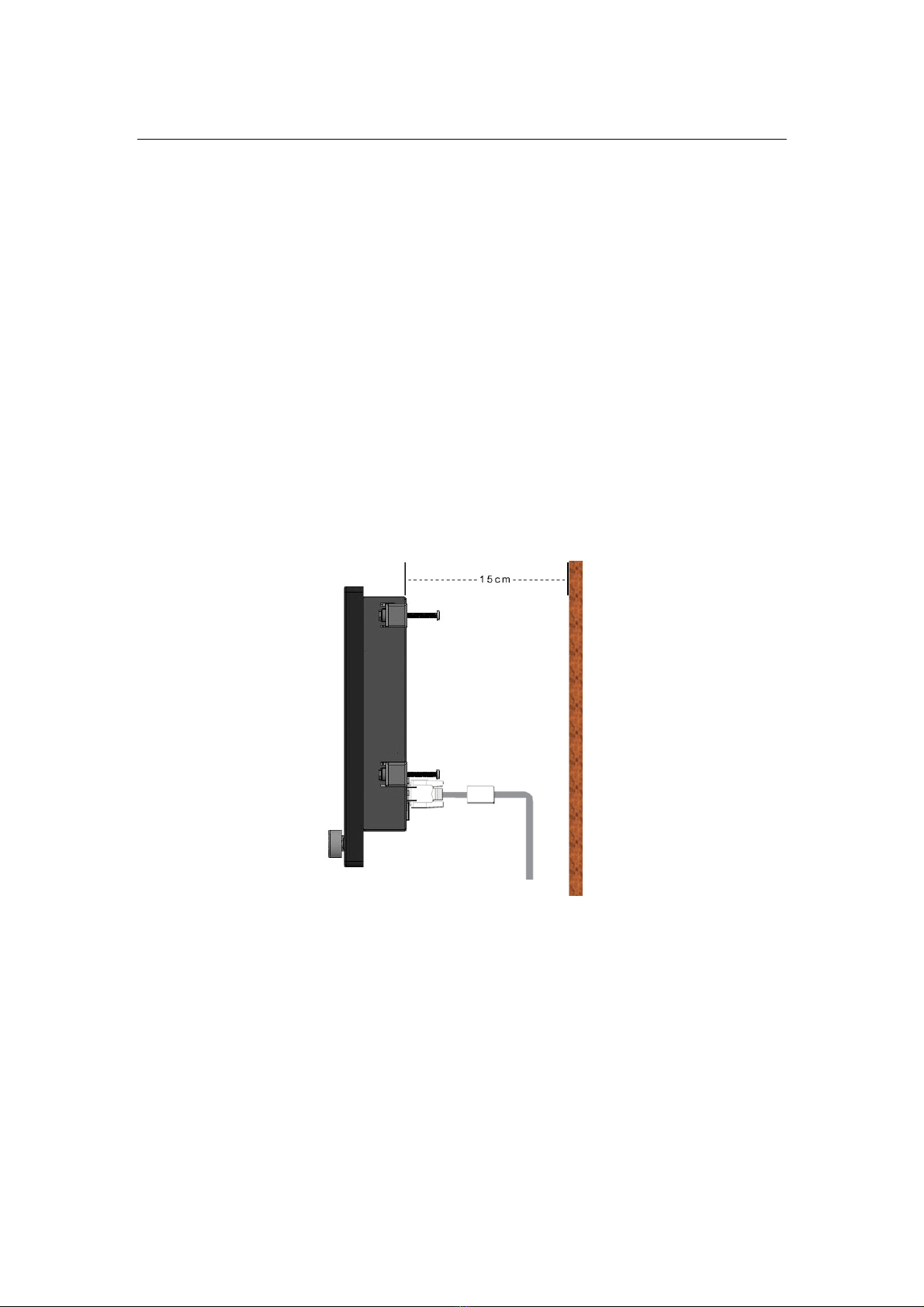

•The display should be installed in an area where there is proper and adequate
ventilation (min. 15cm clearance) . If it is possible to cool the area behind the
display, it will significantly reduce the risk of a malfunction.
•The display should be mounted at an angle to the sun. We do not recommend
mounting the unit in a flat plane, which increases the surface area exposed to the
sun and leads to increased heat absorption.
IMPORTANT: Your MarinePC display is only waterproof from the front. To maintain
watertight integrity the display must be flush mounted ensuring that the rear casing is
enclosed in a watertight enclosure and the front is sealed with a waterproof gasket.
The MarinePC MPC-SL19 is designed to be mounted in two configurations:
VESA75 / VESA100 MOUNT
The MarinePC MPC-SL19 is designed compatible with VESA75 and VESA100 mount. By
installing the monitor with this kit, the user can adjust the viewing angle to improve
viewability in changing environments. This mounting system has proven to be successful
in supporting an extreme amount of weight in high vibration and difficult-mount
applications.
The back of the monitor includes mounting points that you can use to mount the monitor
as your installation requires.
