Marantz SR7007 Manual de usuario

MODEL: SR7007

Model Information

INTEGRATED NETWORK AV RECEIVER

MI120716E3-1

I/R Codes

Product Specifications

Upgrades/Updates

Accessories

Reset Procedure

Warranty

Remote Control

Rear Panel

Front Panel

NOTE:

This edition is missing the link to the IR codes…………………………………………………………………….. 12/07/2016

Model Information

Index

Protection History

Display Mode

Front Panel

 Power operation button ( )

Used to turn the power of the MAIN ZONE

(room where this unit is located) on/off

(standby).

 Power indicator

This is lit as follows according to the power status:

•Off: Power on

•Red: Normal standby

•Orange:

•When “HDMI Pass Through” is set to “On”

•When “HDMI Control” is set to “On”

•When “IP Control” is set to “Always On”

HOME Buttons and Display exposed when the door is

Open (1 of 3) 2

INPUT SELECTOR knob

This selects the input source.

Main display

This displays various pieces of information.

Remote control sensor

This receives signals from the remote control unit.

VOLUME knob

This adjusts the volume level.

Door

When you are using buttons and/or connectors

behind the door, press the bottom of the door to

open it. Be careful not to catch your fingers

when closing the door.

WithThe Door Open

M-DAX button/indicator

PURE DIRECT button/indicator

DYNAMIC EQ button

SOUND MODE buttons

• MOVIE button

• MUSIC button

• GAME button

Audyssey DSX® button (A-DSX)

Speaker A/B switching button (SPKR A/B)

HDMI OUT button

DISPLAY button

STATUS button

ZONE SELECT button

ZONE2 ON/OFF button

ZONE3 ON/OFF button

HOME

FRONT PANEL DISPLAY (1 of 2) 3

Headphones jack (PHONES)

When the headphones are plugged into this jack, audio will no

longer be output from the connected speakers.

NOTE: To prevent hearing loss, do not raise the volume level

excessively when using headphones.

SETUP MIC jack

iPod/USB port

HDMI7 (AUX1)

AUX1 INPUT connectors

SETUP button

ENTER button

Cursor buttons ()

BACK button

Sub display

Dynamic Volume button (DYNAMIC VOL)

Main Display (1 of 2)

HOME MAIN DISPLAY (1 of 2)

Buttons and Display exposed when the door is

Open 4

Light illumination

When the power to this device is switched on, the

surrounding area is lit blue. The settings can be changed so

the light does not switch on.

Master volume indicator

Input source indicator

The currently selected input source name is displayed.

If the input source name has been changed using “Source

Rename” in the menu, the input source name after the

change is displayed.

Standard display Tuner display

These light according to the reception conditions

when the input source is set to “FM”.

Lights up when the broadcast is properly tuned in.

In the FM mode, this lights up when receiving stereo

broadcasts.

Main display

The input source name, sound mode, setting values and other information are displayed here.

Main Display (2 of 2)

HOME SUB DISPLAYMAIN DISPLAY (2 of 2) 5

This lights when the sleep mode is selected.

ZONE2/ZONE3 power on displaySleep timer indicator

This lights up when ZONE2 (separate room) power

is turned on.

This lights up when ZONE3 (separate room) power

is turn

Sub Display

 Input signal indicators

The respective indicator will light corresponding to the input signal.

 Decoder indicators

These light when Dolby or DTS signals are input or when the Dolby or DTS

decoder is running.

 Audyssey®indicator

This lights when “MultEQ®XT32”, “Dynamic EQ”, “Dynamic Volume”,

“Audyssey DSX®” or “Audyssey LFCTM” is set.

 Tuner reception mode indicators

These light up according to the reception conditions when the input source is

set to “HD Radio”.

TUNED: Lights up when the broadcast is properly tuned in.

STEREO: Lights up when receiving FM stereo broadcasts.

 Monitor output indicator

These light according to the HDMI monitor output setting. When set to

“Auto(Dual)”, the indicators light according to connection status.

 MULTI ZONE indicator

This lights up when ZONE2 or ZONE3 (separate room) power is turned on.

 Sleep timer indicator

This lights when the sleep mode is selected.

MUTE indicator

This blinks while the sound is muted. link,

 Volume indicator

 Information display

The input source name, sound mode, setting values and

other information are displayed here.

 Front speaker indicator

This lights according to the setting of the front A and B

speakers.

 Input/output signal channel indicators

The channel for input/output signals is displayed according to

the setting configured for “Channel Indicators”.

•When “Channel Indicators” is set to “Output” (Default)

These light when audio signals are being output from the

speakers.

•When “Channel Indicators” is set to “Input” These light

corresponding to the channels that include the input

signals.

When playing HD Audio sources, the EXT indicator lights

when a signal from an extension channel (a channel other

than the front, center, surround, surround back, front height,

front wide or LFE channel) is input.

123456789

  

HOME REAR PANELMAIN DISPLAY (2 of 2) 6

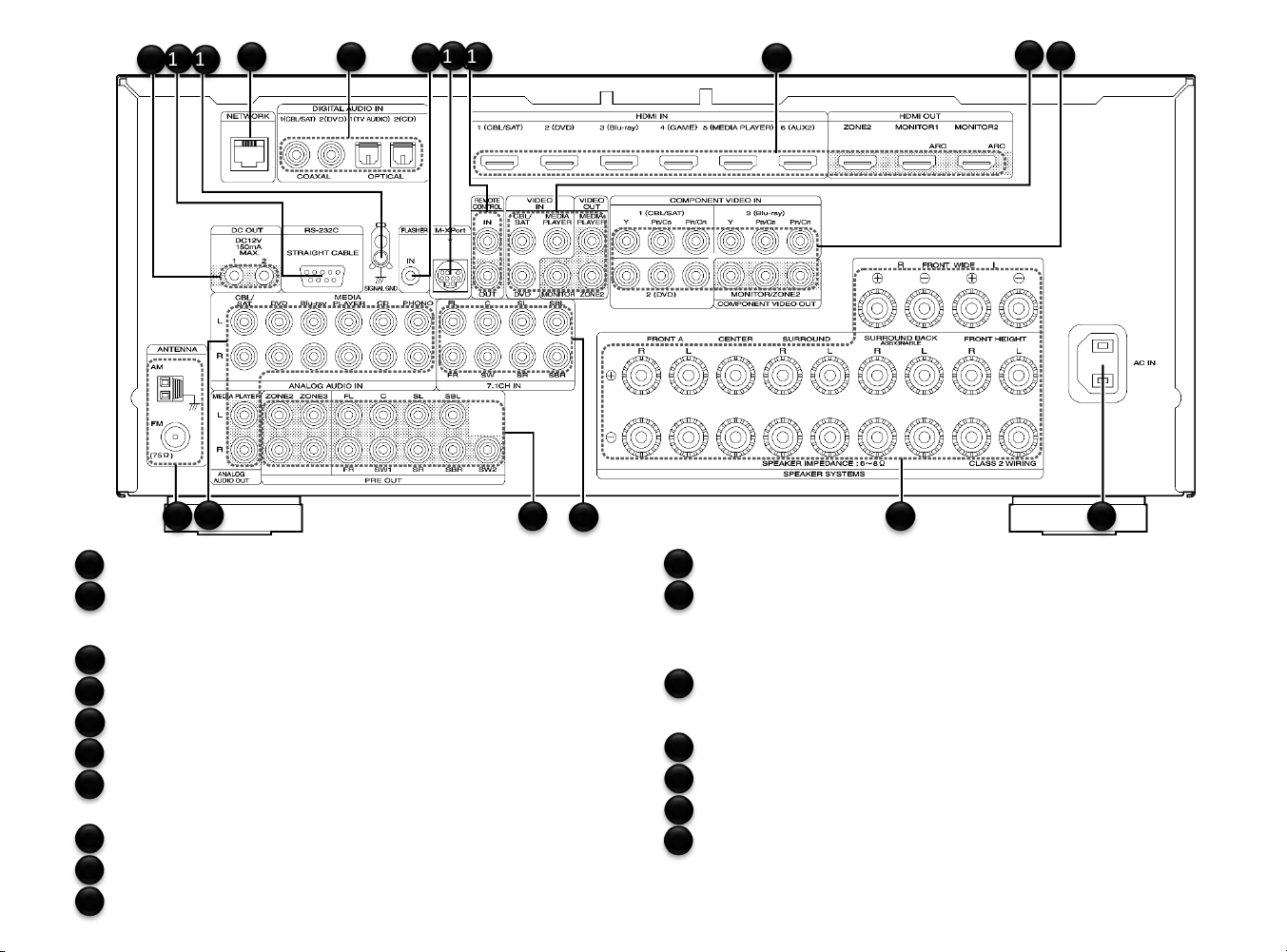

Rear Panel (1 of 3)

HOME

FM/AM antenna terminal (ANTENNA)

Analog audio connectors

(ANALOG AUDIO IN/ANALOG AUDIO OUT)

PRE OUT connectors

7.1ch input connectors (7.1CH IN)

Speaker terminals (SPEAKER SYSTEMS)

AC inlet (AC IN)

Component video connectors

(COMPONENT VIDEO IN/COMPONENT VIDEO OUT)

Video connectors (VIDEO IN/VIDEO OUT)

HDMI connectors

REMOTE CONTROL connectors

REMOTE CONTROL (1 of 4)

SUB DISPLAY 7

M-XPort connector

FLASHER IN jack

Used when using a control BOX or other such control devices to

control this unit.

Digital audio connectors

(DIGITAL AUDIO IN)

Network connector (NETWORK)

SIGNAL GND terminal

RS-232C connector

DC OUT jacks

NOTE

Do not touch the inner pins of the connectors on the rear panel.

Electrostatic discharge may cause permanent damage to the unit.

2356

15 13

HOME

Remote Control (1 of 4)

REMOTE CONTROL (2 of 4)REAR PANEL (2 of 2) 8

Display

1. LEARN indicator

This is lit when setting the learning function for the remote control unit.

2. Information display

This displays “AVR” when operating this unit.

This displays the input source name when operating an external device.

This displays “TV” when operating TV.

3. Indicator

This is lit when signals are sent from the remote control unit.

AVR operation button

When preset codes are registered to the remote control unit, press this

button and then operate the menu on the unit.

SET button

This is used for various settings on the remote control unit.

“Operating external devices with the remote control unit”.

“Operating learning function”.

“Setting the back light”.

“Specifying the zone used with the remote control unit”.

ZONE SELECT button

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated

through the remote control unit.

“Playback in ZONE2/ZONE3”.

“Menu operations”

Device operation buttons (DEVICE ON/OFF / DEVICE MENU)

These turn the power of external devices on/off and call up menus.

Preset codes need to be registered in order to use these buttons.

Input source select buttons

These select the input source.

HOME

Remote Control (2 of 4)

REMOTE CONTROL (3 of 4)REMOTE CONTROL (1 of 4) 9

Channel/page search buttons (CH/PAGE )

These select radio stations registered to presets or switch pages.

SLEEP button

This sets the sleep timer.

Information button (INFO)

This displays the status information on the TV screen.

Cursor buttons ()

These select items.

BACK button

This returns to the previous screen.

HOME button

This takes you to the Home screen (Top screen) when the input source

is Online Music or iPod/USB.

Device control buttons

These perform playback related operations.

Skip buttons ( )

Play button ()

Search buttons ( )

Pause button (II)

Stop button ()

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast.

SLEEP

HOME

Remote Control (3 of 4)

REMOTE CONTROL (4 of 4)REMOTE CONTROL (2 of 4) 10

FAVORITE STATION buttons (1 –4)

With a single press of these, you can call up registered radio stations and contents

SOUND MODE buttons

These select the sound mode.

MOVIE button

MUSIC button

GAME button

PURE button

Number buttons

These enter numbers into the unit.

Remote control signal transmitter

This transmits signals from the remote control unit.

POWER button

This turns the power on/off.

TV operation buttons (TV X / TV MENU / TV INPUT)

These turn the TV power on/off, switch the TV input and call up menus.

Preset codes need to be registered in order to use these buttons.”

Light button

This turns on the backlight for approx. 2 seconds.

VOLUME buttons ()

These adjust the volume level

SLEEP
