AV Surround Receiver

NR1506

Lisez-moi en premier.... /

Lea esto primero....

Quick Start Guide

Read Me First....

Guide de conguration rapide /

Guía de conguración rápida

1. NR1506U_QSG_ENG_150330.indd 1 2015/03/31 16:28:43

Thank you for choosing a Marantz AV

receiver. This guide provides step-by-

step instructions for setting up your AV

receiver.

Welcome Before You Begin

Required for Setup

TV Speaker cables

HDMI cable Subwoofer cable Speaker systems

Optional

LAN cable Wi-Fi router

• When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC

functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.

• These drawings are for illustrative purposes only and may not represent the actual product(s).

1. NR1506U_QSG_ENG_150330.indd 1 2015/03/31 16:28:44

What’s In the Box

Quick Start Guide FM indoor antenna

Safety Instructions AM loop antenna

Notes on radio Sound calibration

microphone

Warranty

(for USA /

for CANADA)

Sound calibration

microphone stand

Cable labels Remote control unit

Receiver R03/AAA batteries

Power cord

The supplied Sound calibration microphone stand is convenient for use when

performing Speaker Calibration. Using your own tripod or the supplied Sound

calibration microphone stand enables settings to be automatically conﬁgured to

the optimum listening environment, providing exceptionally high performance.

1. NR1506U_QSG_ENG_150330.indd 2 2015/03/31 16:28:45

1Installing batteries in the

remote control unit

R03/AAA batteries

There are three steps to the setup

process.

1Installing batteries in the remote control unit

2Connecting the receiver

3Following the On-Screen Setup Assistant

Setup

1. NR1506U_QSG_ENG_150330.indd 3 2015/03/31 16:28:45

2Connecting the receiver

2.1) Place the receiver near your TV and

connect the power cord.

Receiver

Power cord

(supplied)

Connect to household

power outlet

(AC 120 V, 60 Hz)

1. NR1506U_QSG_ENG_150330.indd 4 2015/03/31 16:28:46

2.2) Connect to the network.

Wired LAN

When connecting cables (wired connection), connect a LAN

cable between your receiver and your network router.

Internet Modem

Router

To WAN side

To LAN port

Wireless LAN

When using a wireless connection (Wi-Fi), rotate the antennas

upward.

Router with

access point To WAN side

Internet Modem

1. NR1506U_QSG_ENG_150330.indd 5 2015/03/31 16:28:46

2.4) Turn on the TV.

TV remote control unit

2.5) Select the appropriate HDMI input

on your TV.

HDMI TV/

VIDEO

INPUT or

TV remote control unit

2.3) Connect the receiver to your TV

with an HDMI cable.

HDMI IN

(ARC)

HDMI OUT

MONITOR

(ARC)

HDMI cable

Receiver (Rear panel)

ARC (Audio Return Channel) :

If your TV supports ARC, your TV can send audio back to the AV receiver

when you are using your TV’s built-in video sources (TV tuner, Smart TV

streaming services, etc…) ARC requires that you enable HDMI CEC on

your TV. Please refer to your TV’s Owner’s Manual for instructions on how

to setup HDMI CEC. Note that some TV manufacturers use other names

for the HDMI CEC function.

1. NR1506U_QSG_ENG_150330.indd 6 2015/03/31 16:28:46

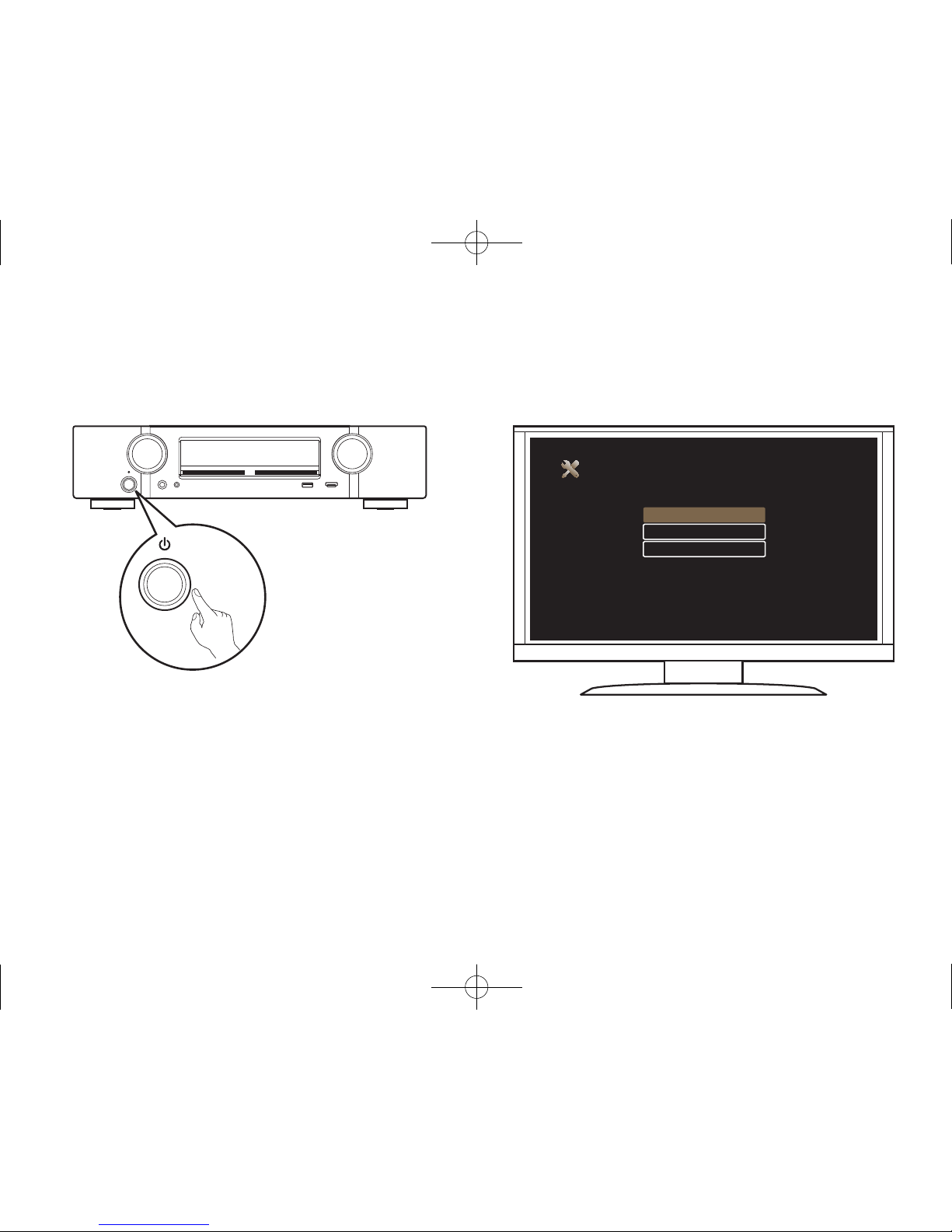

2.6) Turn on the receiver.

• Press Xto turn on the receiver.

2.7) Verify the connection.

• Verify that you can see this screen on your TV.

Setup Assistant

Please select a language...

English

Español

Français

If this screen is not displayed, please go back and

retry the steps again in the recommended sequence.

1. NR1506U_QSG_ENG_150330.indd 7 2015/03/31 16:28:47

3Following the On-Screen Setup Assistant

The Setup Assistant will walk you through connecting and

conﬁguring your speakers and components to your Marantz

receiver. Please use the remote control and follow the

on-screen instructions.

Setup Assistant

Please select a language...

English

Español

Français

1. NR1506U_QSG_ENG_150330.indd 8 2015/03/31 16:28:47

Owner’s Manual

PDF

Overview

Connections

Playback

Settings

Tips

Appendix

PDF Download

AV Surround Receiver

WEB Manual

NR1506

Contents

English

AV Surround Receiver

NR1506

Online Manual

• For more information, visit www.marantz.com

• Refer to the Online Manual for other functions

information and operation procedure details.

manuals.marantz.com/NR1506/NA/EN/

1. NR1506U_QSG_ENG_150330.indd 9 2015/03/31 16:28:47
