Marantz HD-CD1 Manual de usuario

CD Player

HD-CD1

Owner’s Manual

You can print more than one page of a PDF onto a single sheet of paper.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Accessories 4

Inserting the batteries 5

Operating range of the remote control unit 5

Features 6

High quality sound 6

High performance 6

Part names and functions 7

Front panel 7

Display 9

Rear panel 10

Remote control unit 11

Connections

Connecting to a device with digital audio input connectors 16

Connecting to a stereo audio amplifier 17

Connecting devices with remote control connectors 18

Connection 18

Setting 18

Connecting the timer device 19

Connecting the power cord 20

Playback

Basic operation 22

Turning the power on 22

Switching the display’s brightness 22

Playing CDs 23

A-B repeat playback 25

Playing tracks in a specific order (Program playback) 25

Skipping tracks you don’t want to hear (Delete program playback) 26

Rewinding tracks slightly to listen again (Quick replay) 27

Switching the display (CD-TEXT) 28

Playing DATA CDs (MP3, WMA and AAC files) 29

Playing files 30

Contents Connections Playback Settings Tips Appendix

Contents

Front panel Display Rear panel Remote Index

Settings

Menu map 32

Menu operation 33

H/P AMP GAIN 34

Digital Out 34

Timer Play 35

Quick Replay 35

Auto Standby 35

Tips

Tips 37

Troubleshooting 38

Appendix

Playable media 42

Discs 42

Files 42

Playback order of music files 43

About discs and files 44

Cautions on using media 45

Inserting a disc 45

How to handle media 46

Cleaning discs 46

Explanation of terms 47

Trademark information 48

Specifications 49

Index 52

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Thank you for purchasing this Marantz product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

Quick Start Guide CD-ROM

(Owner’s Manual)

Safety Instructions Warranty

(for USA/for CANADA)

Power cord Remote control unit

(RC003HD)

R03/AAA batteries Coaxial digital cable

(black)

Remote connector cable

(orange)

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Inserting the batteries

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

Batteries

3Put the rear cover back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

Approx. 23 ft/7 m

30°

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality sound

0Using Marantz original HDAM® SA2 circuit

The unit uses an HDAM® SA2 circuit, whose quality has been proved in

Super Audio CD players and high-end amplifiers, as a high-speed

buffer amplifier.

You can enjoy the high speed and high-quality sound like that produced

by high-end equipment.

0Incorporates a Cirrus Logic advanced D/A converter, CS4398

A D/A converter is an essential element for the audio quality of a CD

player. The CS4398 Cirrus Logic D/A Converter, which has a reputation

for high precision and has been adopted for other Marantz Super Audio

CD players, is adopted for this unit.

0High grade headphone circuit

The high-grade headphone circuit incorporates a high-speed buffer

amplifier to enable headphone listening of high quality sound

reproduction, late at night or in other such situations.

High performance

0Supports MP3, WMA and AAC file playback (v p. 29)

MP3, WMA and AAC files that have been recorded onto CD-R or CD-

RW discs can be played back on this CD player.

0Gain selector function

This unit has a gain control function with three levels that can be

switched according to the characteristics of the connected headphones.

0Quick replay function (Audio CDs only) (v p. 27)

Simply press the Q.REPLAY P button on the remote control during

playback, and the track rewinds the set amount of time (setting range:

5-60 seconds), and resumes playing from the rewind point.

0Supports CD-TEXT display

CD-Text is an extension to the existing audio CD standard that enables

text information, such as the name of the artist, album title and song

titles to be stored on an audio CD. CDs with the following logos support

this function.

CD TEXT

TEXT

0Large 16-character / 2-line display

Text information appears on the large display during MP3 playback.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Part names and functions

Front panel

q w e r tiuyoQ1Q0

APower operation button (X)

This turns the power on/off (standby). (v p. 22)

BSTANDBY indicator

This is lit as follows according to the power status:

0Power on : Off

0Standby : Red

CDisc tray open/close button (5)

Opens and closes the disc tray. (v p. 23)

DFast-reverse/Reverse-skip button (8)

Returns to the start of the currently playing track. Press and hold to fast-

reverse the track.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

tiuyoQ1Q0

EFast-forward/Forward-skip button (9)

Plays the next track. Press and hold to fast-forward the track.

FDisc tray

Used to insert a disc. (v p. 23)

GDisplay

This displays various pieces of information. (v p. 9)

HDISPLAY indicator

Lights when the display is off. (v p. 22)

IStop button (2)

Stops playback.

JPause button (3)

Pauses playback.

KPlay button (1)

Playback starts.

LRemote control sensor

This receives signals from the remote control unit. (v p. 5)

MHeadphones jack (PHONES)

Used to connect headphones.

NOTE

0To prevent hearing loss, do not raise the volume level excessively when using

headphones.

NHeadphone volume control knob (LEVEL)

Adjusts the headphone volume.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Display

wq ty

AInformation display

Displays various information or playback elapsed time and so on of the

disc.

BPlayback mode indicators

1 : Lights up during playback.

3 : Lights up during pause.

CTOTAL indicator

Lights when the total number of tracks and total time of the CD are

displayed.

DRANDOM indicator

Lights during random playback.

ERepeat mode indicators

Lights to match the repeat mode settings.

FRemote control signal reception indicator

Lights when a signal is received from the remote control.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

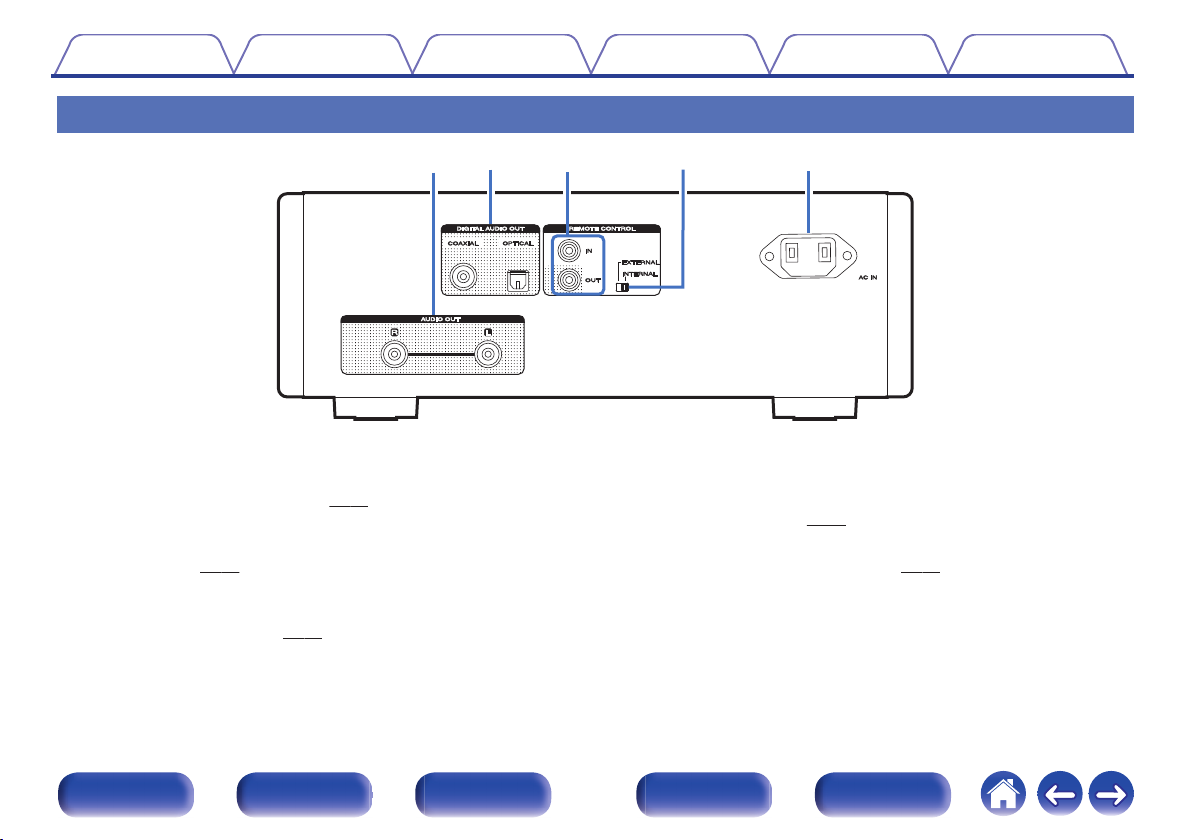

Rear panel

qwe tr

AAUDIO OUT connectors

Used to connect devices equipped with analog audio inputs connectors

or an external power amplifier. (v p. 17)

BDIGITAL AUDIO OUT connectors (COAXIAL/OPTICAL)

Used to connect an Amplifier or D/A converter that has a digital input

connectors. (v p. 16)

CREMOTE CONTROL jacks

Used to connect to a Marantz amplifier that is compatible with the

remote control function. (v p. 18)

DEXTERNAL/INTERNAL switch

Turn this switch to “EXTERNAL” to operate the unit by pointing the

remote control at the amplifier connected to this unit using the remote

control connection. (v p. 18)

EAC inlet (AC IN)

Used to connect the power cord. (v p. 20)

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index
