Introduction / Overview

he 24-RM1 offers dual power relays capable of mains power switching. hese relays can be configured as

high, low or window alarms and can be associated with a group of up to 8 24 acquisition modules per relay.

Relays can operate when the sum of the assigned acquisition modules reach a setpoint or when any of the

modules reach the setpoint. here is also a mode where the difference between the lowest and highest value is

compared to the setpoint. his is ideal for applications where you are looking for a group of weights to be

within a certain band. i.e. balancing four corners of a weigh scale or a hanging truss.

Relays can be latched and a digital input or external command can be used to reset them.

An alarm/error signal relay is operated if communication is lost or other selectable errors occur and this alarm

resets once the source of the alarm or error is removed.

his module is supplied in an IP65 sealed ABS case but a DIN rail option is available.

he state of the power relays during an error can be selected.

Communications Overview

he 24 range of telemetry devices each have a factory set unique ID.

Data is shared between devices using Data Provider messages. A device generates these messages which can

then be used by many other devices simultaneously.

hese messages ( or packets ) of information contain a single value of data and each is identified by a Data

Tag.

he Data Tag should be unique for each message.

Identi ies each device

Each device has a unique ID that is factory set. his is represented as a 6 character hexadecimal

number consisting of the digits 0 to 9 and the letters A to F.

I.e.

FFD3BE

Data Tag

enti ies each Data Provider message

A Data Tag consists of a 4 character hexadecimal number consisting of the digits 0 to 9 and the

letters A to F. he Data Tag can be changed by the user but the factory default is to match the

last 4 characters of the device ID.

I.e. An acquisition device of ID

FFC12B

would have a default Data Tag of

C12B

When a device consumes data (i.e. a handheld displaying data from an acquisition device) all it is doing is

listening to all of the Data Provider messages and selecting the one it wants to use. It then extracts the data

and displays it.

Some devices that use Data Provider messages also need to know the ID of the device providing the data. his

is necessary if that device needs to specifically wake the data providing device as opposed to using a broadcast

wake that will wake all devices on the same channel and using the same encryption key.

Pairing offers an automated method of hooking a provider and consumer of data together. However, some

devices may require you to manually enter Data Tag and ID information so it would be beneficial to the user to

understand the above mechanism.

Configuration Overview

You need to determine the Data ags of all acquisition modules that are to contribute data to this relay

module.

Each relay can use the value of up to 8 inputs which are, depending on the mode selected, used to generate a

value that is checked against your setpoint.

he toolkit allows you to see the calculated value of the selected set of Data ags. In the case of ‘sum’ mode

this will help in determining whether you want to apply an offset. his may be useful to effectively ‘zero’ the

input total to make calculating the setpoints easier.

Mantracourt Electronics Limited T24-RM1 User Manual

Getting Started

o be able to see the totals from acquisition devices supplying data to the 24-RM1 and to avoid entering error

mode due to timeouts, we must first ensure that the appropriate modules are transmitting their values at a

suitable rate such as the default of 3 per second. hen we can configure the 24-RM1 to use the data from

these devices.

Configuration must be done with the 24 oolkit software and a base station.

Connections & Indicators

You will need to connect power to the 24-RM1 for it to operate. Only power is required to enable

configuration using a base station and the appropriate toolkit software.

LEDs

Mode Flashes 2 x per second when operational

Activity Flashes when 24 data packets are received

ime Out No 24 data present for longer than user defined period

Error Remote 24 error from any defined 24 input device

Relay 1 Relay 1 Energised (Connection between COM and NO)

Relay 2 Relay 2 Energised (Connection between COM and NO)

Inputs

Digital Input 1 Can either reset a latched relay 1 or transmit a Data Provider Packet of a specified Data ag

Digital Input 2 Can either reset a latched relay 2 or transmit a Data Provider Packet of a specified Data ag

Digital Input 3 Resets both latched relays

RELAY 2

COM

GND

Input 1

GND

Input 2

NC 1

COM 1

NO 1

NC 2

COM 2

NO 2

RELAY 1

–

32 V Supply

ALARM RELAY

DIGI AL INPU S

Input 3

GND

DIGI AL INPU

Mode

Activity

ime Out

Error

Relay 1

Relay 2

Pair

Mantracourt Electronics Limited T24-RM1 User Manual

T 4-RM1 Operation

he 24 RM1 can accept 8 24 data inputs for each of the two relays, the total of the inputs compared to the

set point and mode of the relay channel affects whether the relay is energised or not. In addition when

considering the use relays attention should be paid as to what state the system will be in when the power is

off. he diagram below outlines how wiring and normal and inverse modes influence the state of relays.

(COM = Common, NO = Normally Open, NC = Normally Closed)

KEY:

Increasing Value _____ Relay Energised _____ Alarm Activated

Decreasing Value --------- Relay Unenergised ______ Alarm Deactivated

Relays can change state due to the following events:

 Arrival of 24 data from user defined 24 device that causes the relay output to trigger.

 riggering of digital input 1 or 2 (switch input) which if configured reset latched relays

 Arrival of data from a specified data tag can reset latched relays.

 A change in error state of a module specified in a relays list of inputs

he 24-RM1 also features a third Alarm relay. he Alarm relay is energised from start up, (connection made

between COM and NO). he relay de-energises if an error is detected, an error is classed as a timeout and

optionally can include Integrity error or low Battery. he Alarm Relay will return to normal once the source of

the error is removed.

COM

Set Point

et Point

Hysteresis

Set Point

Set Point+Hysteresis

Inverted

Operation

OP IONAL LA CH

OP IONAL LA CH OP IONAL LA CH

OP IONAL LA CH

Wired in this con iguration the alarm

would sound when the power is o

Wired in this con iguration the alarm

would not sound when the power is o

Normal

Operation

Mantracourt Electronics Limited T24-RM1 User Manual

Configuration

his section explains how to install software and connect the required devices together. Please note that you

will need the 24 oolkit software and a 24-BS base station to allow your computer to communicate with 24

telemetry devices.

Installation

T 4 Toolkit

o configure the devices we must use the T24 Toolkit software application. his can be downloaded from our

web site or may be shipped with your products.

Install this on a PC or laptop.

Run setup.exe and follow the prompts to install the software.

T 4-BSu Base Station

If you have a USB version of the base station ( 24-BSu) then you just need to plug this into a USB socket on your

PC. If you are using an alternative base station then please refer to the appropriate manual.

Mantracourt Electronics Limited T24-RM1 User Manual

T 4 Toolkit

he 24 oolkit provides a means of simple configuration of the 24-RM1 and associated acquisition module

along with useful tools to aid integration. Calibration of the acquisition modules is also provided.

Run the 24 oolkit software application.

General Pages

Setup Base Station Communications

Select USB as the interface and select 1 as the Base Station Address.

In the toolkit all items that can be changed by the user are coloured orange.

o change a value just click on the relevant orange item. You will then be presented with a new dialog window

allowing you to change the value.

his may use a slider, text box or list to allow your new value to be entered.

Click the Home button to attempt communications with the base station.

If no communications can be established the toolkit will remain on this page. You will need to check that the

base station is powered and that it is connected to the converter correctly.

Mantracourt Electronics Limited T24-RM1 User Manual

Home

We now have successful communications with the base station so we can now pair with our device or we can

select the Spectrum Analyser mode or Data Provider Monitor mode.

Pairing Procedure

• Remove power from the 24-RM1 module.

• Click the Pair button on the toolkit.

• You now have 10 seconds to re-apply power to the 24-RM1 module.

If you connect successfully the toolkit will change to the Information page.

If the pairing fails try again.

NOTE: he act of Pairing with the toolkit will not change the radio configuration settings of the connected

device. he settings will only change if you change them yourself within the toolkit.

Mantracourt Electronics Limited T24-RM1 User Manual

Analyser

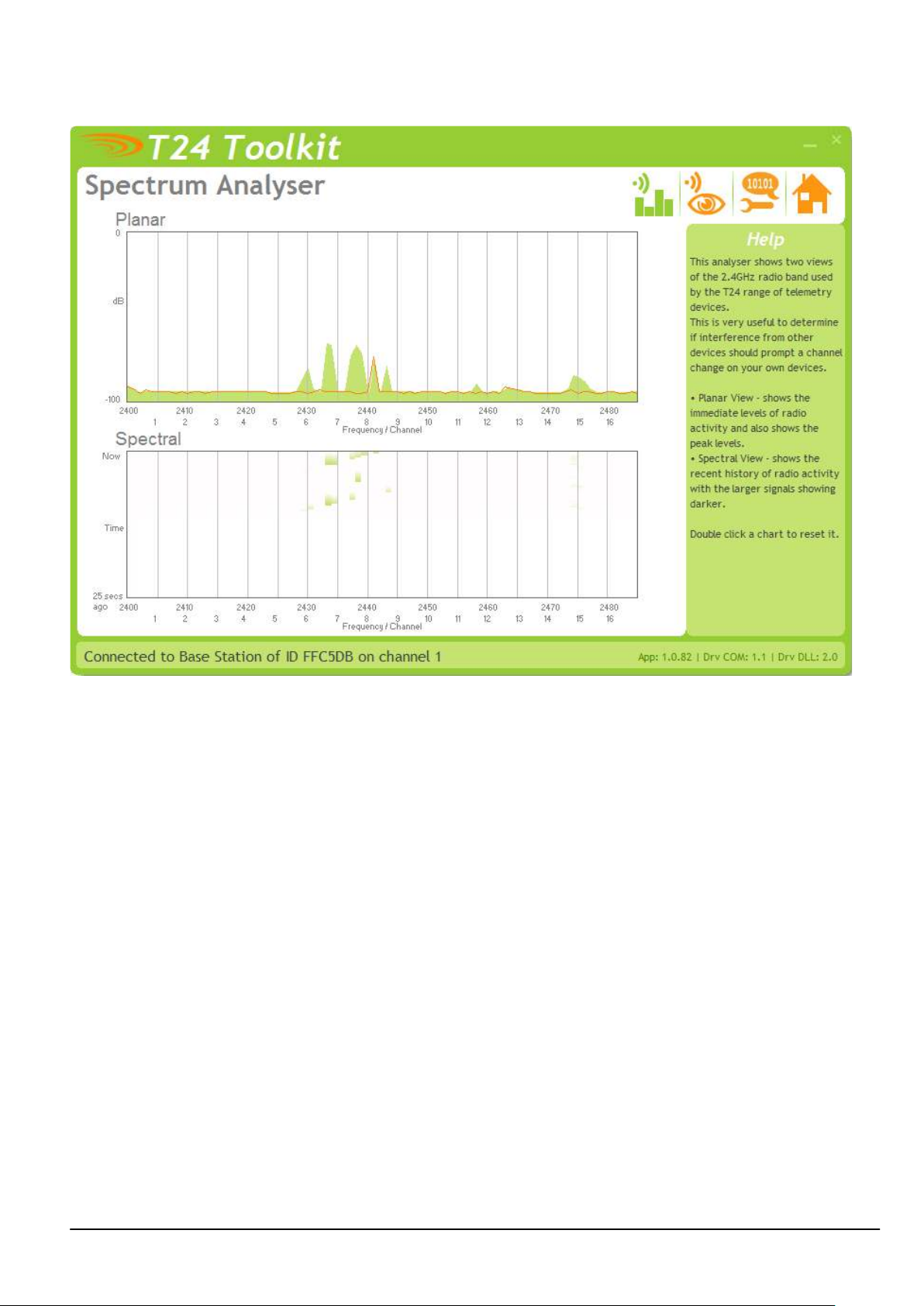

he analyser page is provided as a tool and will not normally be needed unless you plan to change channels and

want to find the best channel to select, or to diagnose poor communications issues.

his page shows the radio signal levels detected across all the channels available to the 24 series of devices.

Using this tool may help in detecting noisy areas and allow you to decide on which channels you may want to

use.

he above charts show the traffic from a Wi-Fi network and it can be seen to be operating over channels 6 to 9

and it would be best (though not essential) to avoid using these channels.

Mantracourt Electronics Limited T24-RM1 User Manual

Information

his page shows you information about the connected device.

Items you can change:

Name

You can enter a short descriptive name (11 characters) which may help you recognise this

device in the future.

Tabla de contenidos

Manuales populares de Relé de otras marcas

Shelly

Shelly Pro Series Manual de usuario

GE MVAX 11 Manual de usuario

ABB

ABB RELION REF615R Manual de usuario

Pilz

Pilz PNOZ X10 Manual del propietario

ABB

ABB SPAJ 142 C Manual de lista de piezas

Kemo Electronic

Kemo Electronic B197 Manual de usuario

Seg

Seg MRM3 Manual de usuario

Basler

Basler BE1-700C Manual de usuario

CD Automation

CD Automation REVEX 2PH 280A Manual de usuario

Ruelco

Ruelco 1S04 Manual de usuario

Basler

Basler V3E Z1P B2C1F Manual de usuario

Doepke

Doepke Dupline DSM 2 Manual de usuario

Siemens

Siemens SIRIUS 3RT1966-4D Manual de usuario

GE DGP Manual de usuario

Kyongbo Electronics

Kyongbo Electronics GDR-D01 Manual de usuario

Siemens

Siemens SIPROTEC 4 Manual de usuario

Siemens

Siemens BD2-AK03X/FS Series Manual de usuario

Leuze

Leuze MSI-SR5B Manual de usuario
