Manitowoc K00375 Manual de usuario

K00375 ADAPTER KIT

Installation Instructions

The K00375 kit is used for installing Q-1400 or Q-Dual ice machines on a C-730 bin.

1. Note: Bin must be level before installation of ice machine.

A. Remove the foam tape from the front and sides of the bin where the stainless deflector will be located.

B. Remove RH and LH hinge screws and bin door. Remove fillers and old deflector.

C. Place the deflector on the front edge of the bin and align with front bin edge.

D. Place the fillers on the bin, as shown. Make sure the two holes from the stainless deflector and fillers are

aligned on the side.

E. Apply foam tape to the front and back of the bin between the fillers. Note: All other required foam tape

comes preassembled with the stainless deflector and fillers.

F. Note: It is recommended to RTV intersections and along the inside edge of the foam tape to prevent water

tracking.

2. Refer to ice machine installation manual for ice machine installation procedures.

Manitowoc Ice, Inc.

2110 South 26th Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA 000000262

Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879 Sheet 1 of 2

Web Site - www.manitowocice.com 08/11/05

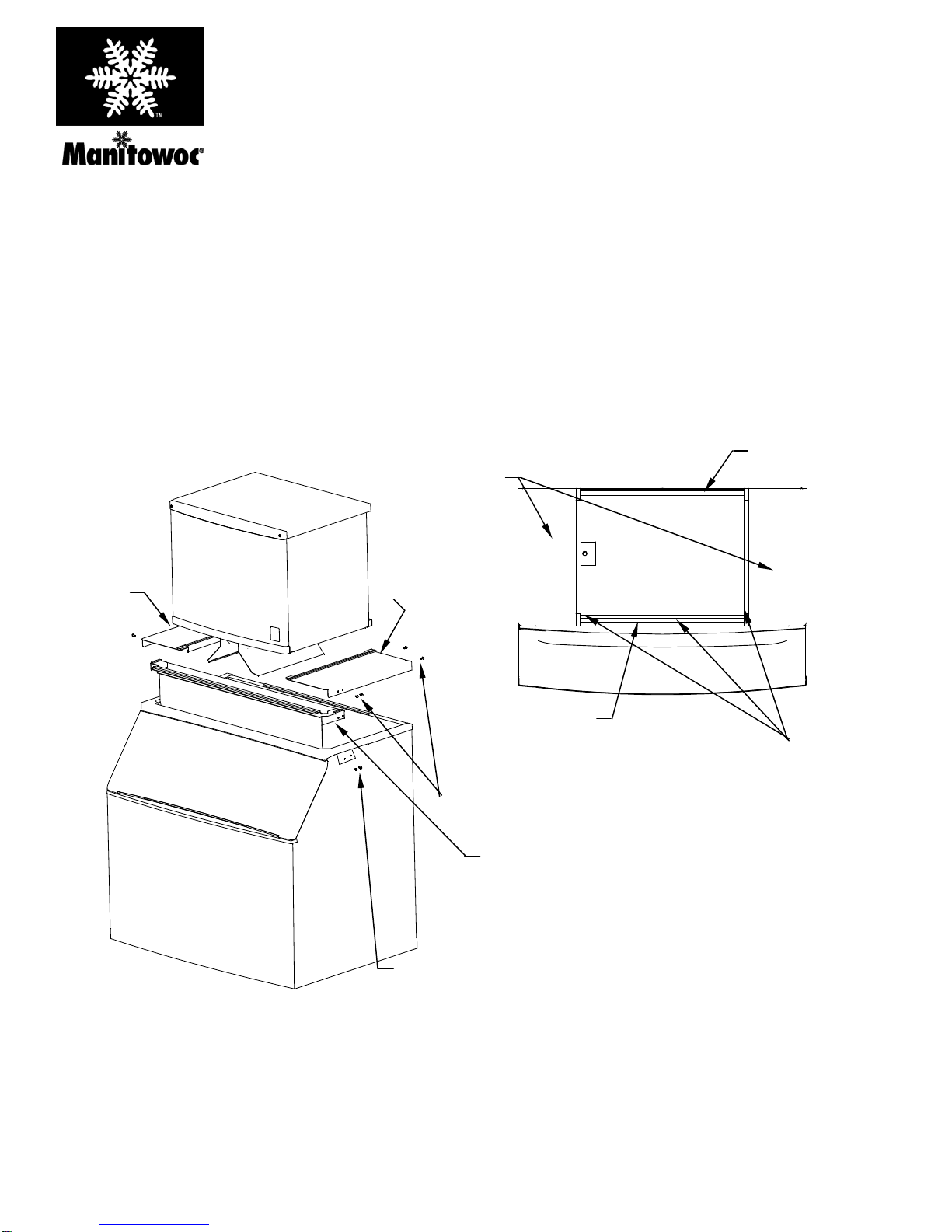

Filler

Double layer of .75”

Wide Foam Tape on

Deflector between Fillers INSTALLER: It is recommended to

RTV intersections and along inside

edge of Foam Tape to prevent water

tracking

Filler

#10-24 x .50”L

Screws Typ

Stainless Steel

Deflector

.75” Wide Foam Tape

RH and LH Hinge

Screws

Deflector Instructions

1. Remove the splash shield, water pump, and water trough from the ice machine.

1. Install the ice deflector, as shown, using two #10-32 mounting screws and tapping plate. Center the ice deflector

directly beneath the water trough. The ice deflector must be secured with two mounting screws for proper operation

of the ice machine.

2. Reassemble the water trough, water pump, and splash shield.

000000262

Sheet 2 of 2

08/11/05

Water

Pump

Splash

Shield

Water Trough

Ice Deflector

Frame Angle

#10-32 Mounting Screws

and Tapping Plate
