Manitou MRT Series Manual de usuario

Quick Reference guide for

Manitou ST3 Rotational Telehandler

21.50, 24.50 non add Blue

Contact

Paul Orange –07711 957985 (North)

Chris Moisey - 07711 957974 (South)

HANDOVER GUIDE

The MRT + PRIVILEGE telehandler can work with a comprehensive range of

attachments, combining lift, offset and rotation functions within the same

machine, and enabling the use of the machine in static mode with stabilisers.

The range meets fully all the challenges with working at great heights in

cramped sites.

Thisistrulya3-in-1machine:

Telescopic/Crane/Platform

MRT /MRT-X PRIVILEGE

MRT 1850 + MRT 2150 + MRT 2540 +

- MRT-X 2150 + MRT-X 2540 +

Machine weight with standard attachment (transport position):

Unladenweight 15350kg 16410kg 17165kg

Nominal laden weight 20 349 kg 21 409 kg 21 165 kg

Maximumloadoneachstabiliser 10600kg 11500kg 10600kg

Maximumloadpertyre 8900kg 9050kg 8600kg

Traction force 8 200 kg 8 200 kg 8 200 kg

Weight distribution per axle:

Frontaxle 7620kg 7810kg 8135kg

Rearaxle 7730kg 8600kg 9030kg

Dimensions:

Overall width 2.43 m 2.43 m 2.43 m

Overall length 6.06 m 6.78 m 7.82 m

Overallheight 3.05m 3.05m 3.05m

Ground clearance 0.37 m 0.37 m 0.37 m

MRT 1850+ 2150+ 2540+

MRT-X 2150+ 2540+

A1200

A1 150

A2 1320

A3 50

B290

C577064907530

D 5050

E1155

F2750

G1155

H380

I2485

J 3110

K24852985

K1 -- 485

L1930

mm 2425

N4700

O5100

P150

Q4500

R3800

S4550

T4040

U564062306700

V950

Y12°

Z105°

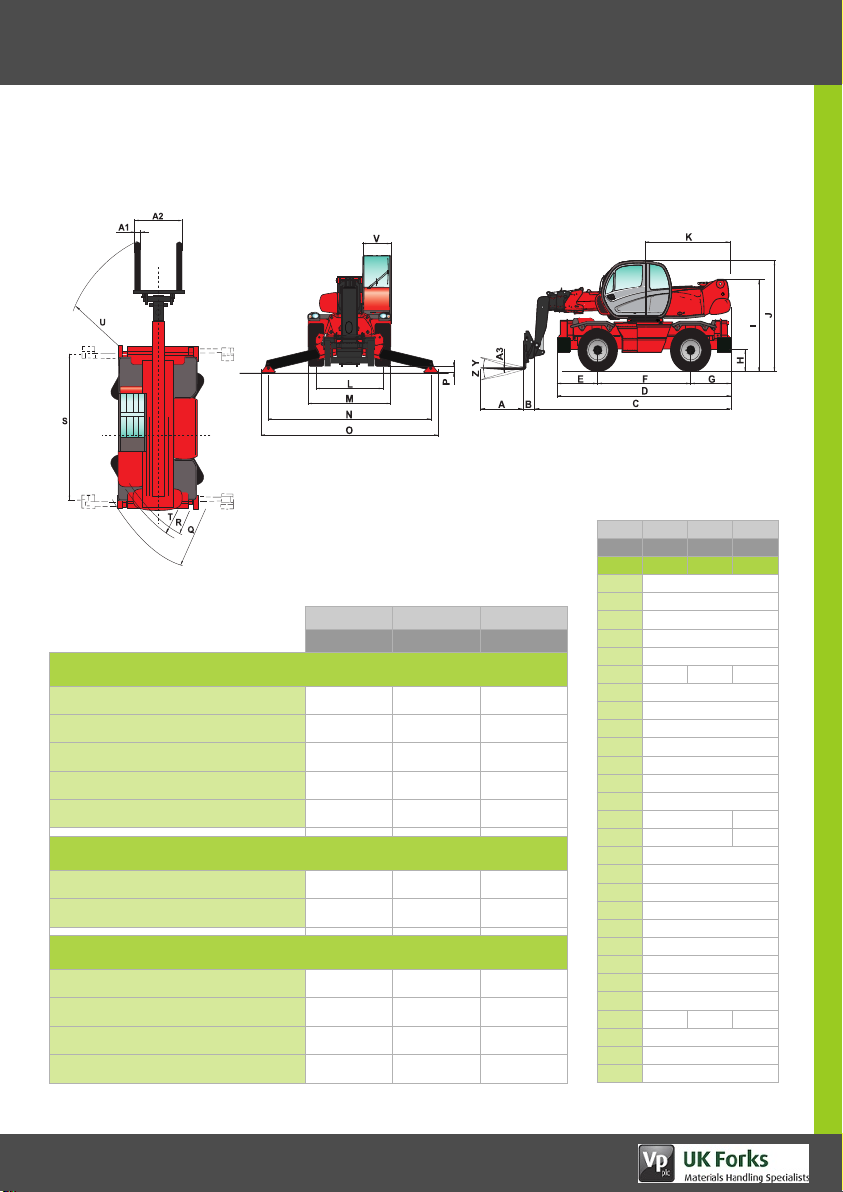

DIMENSIONS AND WEIGHTS

METHODOLOGY

THEMAINSTAGESINTHEHANDOVERPROCESS

LEFT SIDE

REAR

Hydraulic oil tank and its access cover

Hydraulic oil lling access

Air conditioning radiator

located under the roof cap

Steering cylinder inside

and above the axle

Rear axle locking

cylinders

Fueltankanditsaccesscover

(differentfromthehydraulicoilaccesscover)

*according option

FRONT

Quick coupler (manual locking bolt

or hydraulic locking *)

Attachments (if required)

Safety sleeve (to lock the lifting

cylinder)

Tilting corrector

Telescopic stabilisers

Engine oil

level

Oil lter

Coolant level

Air lter under

the cover

Battery

Fuel pre-lter

and lter

Engine oil ller port

*according option

ENGINE COMPARTMENT – RIGHT SIDE

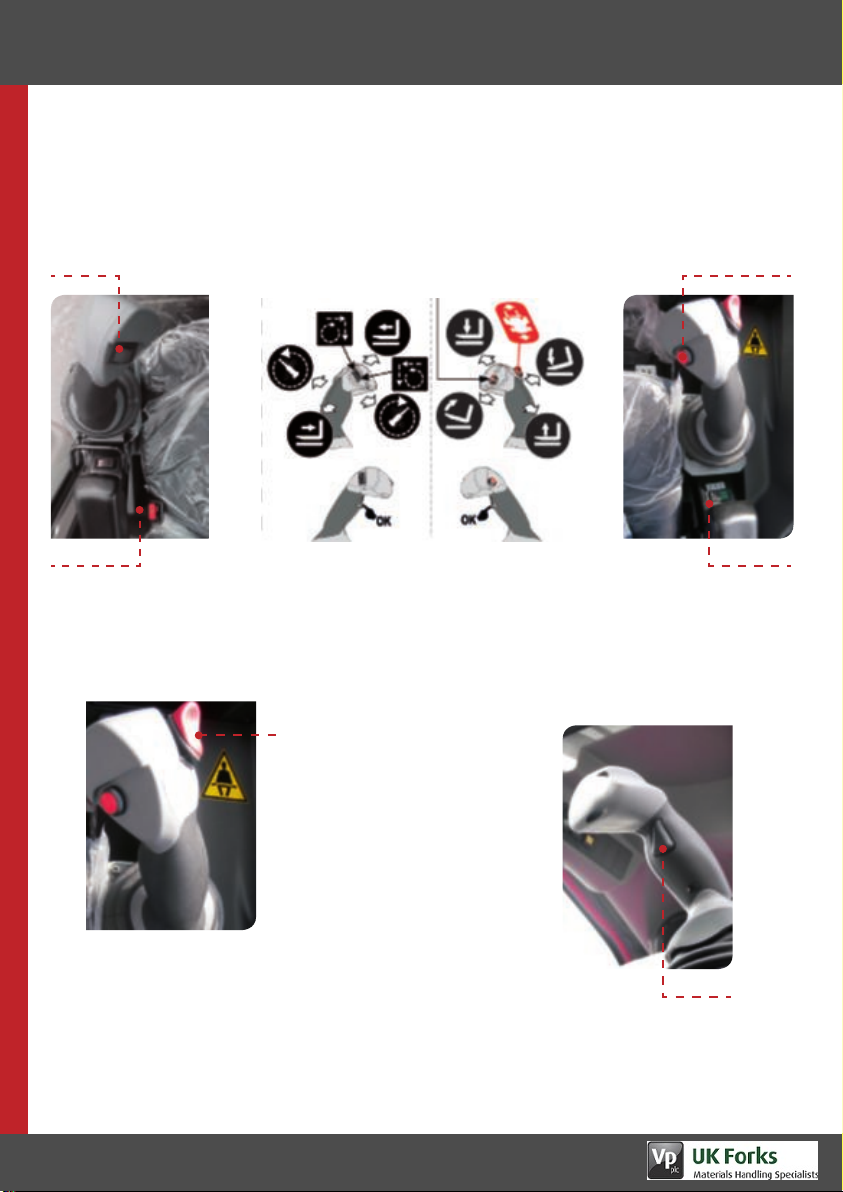

JOYSTICKS

METHODOLOGY

Control wheel for attachment

hydraulic line movements

Speed control validation

button (use F4 screen)

Warning! This switch cuts the attachment

line movements off

Attachment movement selector

Switch:

FORWARD GEAR

REVERSE GEAR

NEUTRAL

Check that the machine

is in neutral before

starting the engine

Press the dead man’s button to

validate the movement command

(one per joystick)

CABINE

CABIN

Dashboard

Joysticks

Load charts

Emergency box

Switch panel (overhead right)

Turret locking lever: must be on when

transporting the machine or in travel mode

Heating and air conditioning*

Platform emergency key: it allows another operator, in the event of impairment of the platform

occupant, to start the engine and operate functions from the cabin, TURN THE KEY AND PRESS

THE RED BUTTON (

) AT THE SAME TIME (the key is in the emergency box located on

the cabin’s right pillar, next to the seat; break the glass using the hammer provided).

LMI shunt key: to deactivate the safety, the operator must turn / press and hold the key.

FOCUS

*according option

1 2

345

DASHBOARD DISPLAY

Select the total load of the attachment

Resetting of the partial hour counter

Escape key

Conﬁrm the attachment

FOCUS

Axle alignment and steering mode

indications

Turret alignment indication.

When the icon is displayed, the turret

can be locked using the lever located

totherightoftheseat.

When the turret is aligned, the turret

alignment icon is on:

Load level indication



Red: maximum load allowed in the

current position



Green: actual load lifted

Stabiliser mode indication (example

shown: fully extended and down)

Set the position of the load in space

Working zone limits: the yellow icons

indicate that the zone limit has been

reached. The conguration is carried

out by setting the machine in the

required maximum position and

pressingF6toF10keys

Retrievalofspeedsfrommemory

aspercentageoftheboom

hydraulic speed

Display of attachment recognition

by machine

Conguration screen for maximum

speeds of the boom’s hydraulic

movements. Use F6 to F9 to select

the required line, and modify the value

bymovingthejoystickandvalidating

the percentage with the red button

in the right joystick. The parameters

will be displayed on F3 page.

F10 allows resetting movements

to 100%

Error diagnostics screen
