INTRODUCTION

Thank you for purchasing this MANHATTAN®Drive Enclosure, Model 130295.

With support for large-capacity 3.5-inch SATA drives and with SuperSpeed USB

(3.0) data transfer rates of up to 5 Gbps (up to 3 TB for large-capacity drives), this

device helps you optimize high-performance computer storage applications.

A convenient built-in, one-touch copy feature helps to quickly transfer, share and

archive important data, while its durable, two-piece construction protects sensitive

drives from exposure and daily hazards. It’s a versatile and portable data solution

without bulky external power supplies or annoying cables and adapters.

By following the instructions in this user manual, you’ll soon be enjoying these

popular features:

• Plug and Play and hot-swappable capabilities; Windows and Mac compatible

• Lifetime Warranty (For a complete list of country-specic warranties, go to

manhattan-products.com/warranty.)

System Requirements

• Available USB 3.0 Standard-A port

• Windows XP/Vista/7; or Mac OS 8.6 or later versions

Package Contents

• Drive Enclosure

• USB 3.0 cabl, USB to DC power cable, screws (8), rubber feet (4)

• Software CD with user manual; multilanguage quick install guide

HARDWARE & DRIVER INSTALLATION

A B

C D

1. Remove the 4 screws on the bottom of the enclosure (A) and lift off the top (B).

2. Connect the hard drive to the SATA data and power connectors on the

enclosure, then secure it to the enclosure using the included screws (C).

3. Re-assemble the enclosure (D) using the 4 screws in Step 1.

4. Using the included USB cable, connect the enclosure to a USB port on the

computer.

Once the enclosure is connected to your PC, your system will automatically detect

the new hardware and complete the setup, conrmed when “USB Mass Storage

Device” displays in the Device Manager folder.

SOFTWARE INSTALLATION

These steps are for the installation of the convenient one-touch backup software.

NOTE: This software doesn’t support Mac operating systems. Some images may

look different on your computer, as your software version may be slightly different

than the one represented here.

1. Load the included software CD. The

Prolic Backup program’s InstallShield

Wizard Welcome screen will display

automatically. Click Next to continue.

2. When the wizard’s Complete screen

displays, click Finish.

NOTE: Most screens present the

option of clicking Back to return to a

previous screen or Quit to stop the

installation procedure.

BACKING UP FILES

1. When the Prolic icon displays on the

desktop (below), double-click it to

launch the program (or go to Start /

Programs / Prolic Storage on your

desktop).

2. When the backup program is opened,

the Welcome screen presents two

options for Backup Files: Create or

Restore. To back up les, click Create

Backup Files or go to the Backup

screen by clicking the Backup tab.

3. The Backup screen presents Source Directories, the Destination Drive and

backup options.

• In the Source Directories list, you can click/select the folders that you want to

back up.

• In the Destination Drive section, click Browse (...) to select the external drive.

• The default setting among the backup options is to simply copy all selected

items. Backed-up les will be stored

in a subfolder called “PL2X7X

Backup.” Otherwise, you can select:

- “Compress Backup Files,” which

requires that les be restored

before opening (see Restoring

Backup Files). If you also select

“User-dened le name,” you’ll rst

be prompted to enter a specic

lename and folder (and these

les will still need to be restored

before accessing them).

- “Backup modied les only,” which

copies only les that have been

modied since the previous

backup. Note: This option doesn’t

work in conjunction with the

Compressed Backup Files option.

Backup les will be stored on a

sub-folder called “PL2X7X

OnlyBackupModify.”

4. After you’ve selected the folders that

you want to back up, click Browse to

select the external drive where you’ll

be saving the backed-up les. It’s

recommended that you create a new

folder to store all your backup les.

5. With the destination drive and folder selected, click Backup for a default backup.

The operation will display the les being backed up as well as a status progress

bar. After all les selected are backed up, a pop-up message will announce that

the backup is complete and successful. Click OK to nish.

6. Go to your USB storage drive (“MyUSBDrive” in the example below, which

represents the backup HDD in the drive enclosure), and check the “MyBackup”

les. A small utility program called PLBackup is also added into the “MyBackup”

folder so you can execute it if the external drive is connected to another PC that

doesn’t have the Prolic Backup software installed. You will also see the

subfolder “PL2X7X Backup” in which the backup les are stored.

7. Inside the subfolder “PL2X7X Backup” you will nd the selected folders that were

copied with a date-time prex added on the folder name. You will also see an

associated “.pbi” le that is used to identify the backup folders in order to restore

those folders. It is important that you do not delete this .pbi le.

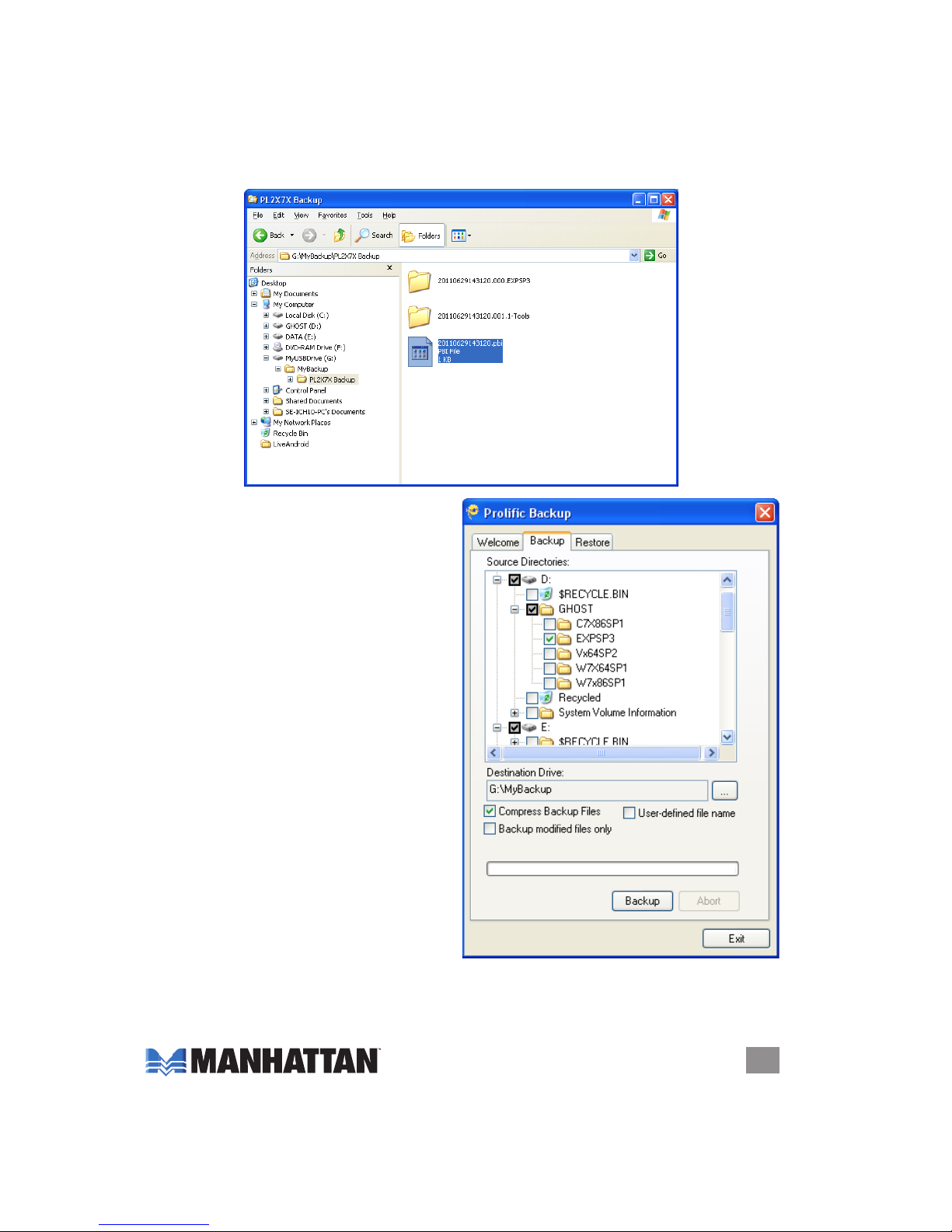

8. The second backup option is

“Compress Backup Files,” which lets

you back up les to a compressed le

format for added protection. This will

prevent others from accessing your

backed-up les directly from your

external drive without rst restoring

the les. Select the “Compress

Backup Files” option and click

Backup.

9. When backup is complete, the compressed backup les will be stored in the

“PL2X7X Backup” subfolder. Note that each selected folder is compressed

separately with a date-time folder name prex used as a lename. Note also the

associated .pbi le that you need in order to restore these les.

10. When using the “Compress Backup

Files” option, you can also select

“User-dened le name” to specify

your own lename and folder.

11. When you click Backup, you’ll be prompted to enter the lename to be used

for the compressed backed-up les and the folder directory to store the les.

Click Save to begin the backup.

12.When the backup is complete, the

compressed backed-up les will be

stored in the folder you specied and

with the lename(s) you specied.

Each selected folder is compressed

separately with the specied lename

used as a prex. Again, note the

corresponding .pbi le with your

specied lename that you need in

order to restore these les (see

below).

13. The “Backup modied les only” option lets you save time by just backing up

those les on the folders that were modied from your previous backup. For a

rst-time backup, a full backup of the selected folders in a special backup folder

is needed in order to compare the les (see Step 14). Click Backup to start.
