MANGO POWER UNION

User Manual

Contents

1. Introduction ......................................................................................................................................... 3

2. Safety Instructions ............................................................................................................................. 3

3. Abbreviation ...................................................................................................................................... 4

4. Mango Power App ............................................................................................................................ 5

5. What’s in the Box ............................................................................................................................ 14

6. Features ............................................................................................................................................ 14

7. How to Connect ............................................................................................................................... 17

8. Let’s Get Started ............................................................................................................................ 20

9. Touchscreen ..................................................................................................................................... 21

10. Technical Specifications .............................................................................................................. 24

11. FAQ .................................................................................................................................................. 27

12. Declaration ..................................................................................................................................... 27

13. Appendix ......................................................................................................................................... 28

Introduc tion

Congratulations on your purchase of the Mango Power Union.

The Mango Power Union is the world’s first battery system to integrate both home and

portable power solutions. It consists of 2 parts: the main base – the Power Home – and the

detachable Power Move. The Power Home and Power Move connect via a unique linking

mechanism we call the mUnion, which allows for ultra-fast docking and undocking. You can

use your Mango Power Union to back up essential circuits and important appliances at home,

reducing your energy bill and carbon footprint, and can take its power with you anywhere you

want to go to electrify your outdoor excursions.

Here is a brief breakdown of the system’s specifications:

Mango Power

Union

Power Home

Power Move

Battery Capacity

6.9 kWh

4.6 kWh

2.3 kWh

Output (AC+DC)

4350W

2000W

2350W

Solar Charging

4000W

2000W

Grid Charging

3300W

2000W

1300W

Power Modes

l Backup Mode

l Time-based

Control Mode

l Economical Mode

l Backup Mode

l Time-based

Control Mode

l Economical Mode

N/A

Safety Ins truc tions

Mango Power Union should be installed by a professional engineer certified to carry out

high voltage installations of 48Vdc, and 120Vac to 240Vac in residential homes.

Carefully read this document before installation and use. Otherwise, serious damage or

personal injury may result.

This battery contains compounds which may be harmful, carcinogenic, or cause fertility

disorders if improperly handled. Do not remove the internal battery without the express

permission of the manufacturer or one of its designated suppliers.

We’re proud of the Mango Power Union’s lightweight design, but it is still a 70kg+

product. Please be careful when handling and use an auxiliary transport tool if necessary.

If you notice any extrusion, deformation, or other defect of your Mango Power Union,

immediately stop use of the product, and contact our support staff.

Before undertaking any installation or wiring, first make sure the Mango Power Union’s

Power Button and Breaker are in the “off” position.

Do not dismantle or attempt to dismantle the Mango Power Union without the express

permission of the manufacturer. Some of its parts are not replaceable. If you have any

issue with your Mango Power Union, contact our support staff. If maintenance is

required, professional maintenance engineers will be required.

To protect the product during transportation, please do not stand or sit on the Mango

Power Union's packing boxes. When opening and unpacking, be sure to handle with care.

Do not place other items on top of the Mango Power Union.

DO NOT install the Mango Power Union near a heater or other heat source. It is

prohibited to place or operate this equipment in an environment with any flammable,

explosive gas, or smoke.

Do not install the Mango Power Union any place where it will be directly exposed to the

rain, and do not allow it to soak in water or any other liquid.

Please do not use chemical cleaners or expose the Mango Power Union to any other

flammable or volatile chemicals.

Do not use spray products to clean the Mango Power Union.

This product should only be installed in environments that stay within its operating

temperature range: -20-55⁰ Celsius/-4-131⁰ Fahrenheit.

Strictly follow guidelines laid out in this user manual when installing or using your Mango

Power Union.

Only use official accessories from Mango Power to use in conjunction with your Mango

Power Union.

DO NOT insert foreign objects into any of the MPU ports (whether AC or DC or

ventilation holes). This power station generates the same potentially lethal AC power as a

household wall outlet. Please use it carefully and keep children away from it.

Abbreviation

MPU: Mango Power Union

mUnion: Unique and ultra-fast linking between Power Home and Power Move

AC: Alternating Current

DC: Direct Current

SOC: State of Charge

Grid: Home Power Supplied by Utility

MPPT: Maximum Power Point Tracking

Mango Power A pp

The Mango Power Union, Power Home, and Power Move all support both Wi-Fi and

Bluetooth connections. Please download the Mango Power App from the iOS App Store or

Google Play before installing the Mango Power Union.

Step 1: Make sure your Mango Power Union and your smartphone are both on the same Wi-

Fi network.

Step 2: Turn your Mango Power Union on by pressing the power buttons on both the Power

Move and the Power Home.

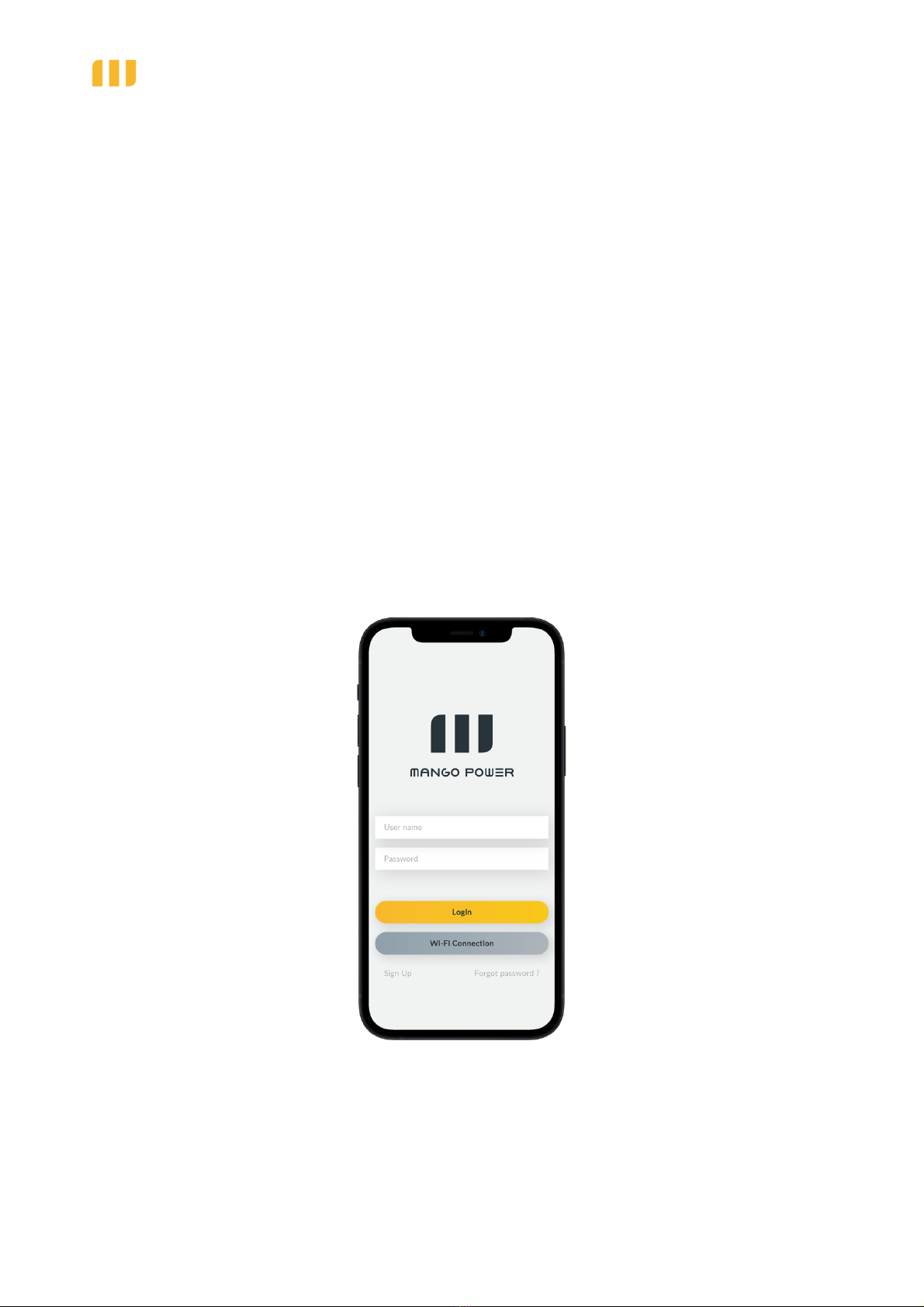

Step 3: On the Mango Power App, register and login.

Step 4: Connect the Mango Power Union and Power Move to the same Wi-Fi network as the

device on

which you have downloaded the Mango Power App.

After login, you can monitor and control your Mango Power Union through the app. In the

navigation bar at the bottom of the app interface, you can choose Home Page, Notifications,

or the My Profile tab.

Home Page

The Home Page shows the battery status for all parts of the product: the Mango Power

Union, the Power Move, and the Power Home.

At any time, you can click on the Mango Power Union device to control what mode it’s in,

and the AC / DC output.

The Green Report section displays your current green energy generation and consumption

statistics. The Power Flow section gives you a clear picture of how energy flows into your

Mango Power Union via solar or from the grid, and how it’s used via the connected devices.

The Customize section lets you choose different modes for advanced control of your energy

use. Currently, the Mango Power Union supports Backup Power, Economical, and Time-

Based Control Modes. For an in-depth description of these modes, refer to sections 4.1-4.3.

Notifications

The Notifications page shows any notifications from your device and contains your latest

reports.

In the My Profile tab, you can find all your account and warranty information. You can also

check for the latest Over-The-Air updates in “About”.

4.1

Backup Power Mo d e

Backup Power Mode prioritizes energy storage for the Mango Power Union battery, so it’s

fully charged in case of a power outage.

Backup Power Mode maintains a certain charge (85% is the default, but this can be adjusted

in the Mango Power App) in your Mango Power Union to guarantee seamless power to your

home’s essential circuits in the event of a power outage. The Mango Power Union will charge

from your grid or solar power system and will only discharge during a grid outage, or if the

total battery capacity is higher than your chosen threshold.

To activate this mode, connect your device and Mango Power App, and switch to Backup

Power Mode in the app.

Step 1: Open the Mango Power App and choose Mango Power Union on the Home Page.
