Mangar Airflo Mk3 Guía de instalación

user instructions and warranty

Airflo Mk3

English

Nederlands

Français

Deutsch

Español

Italiano

freedom

through lightweight solutions

Airo Mk3

MI0259 issue 11

Intended Use

The Airo Mk3 by Mangar International, is a low

pressure air compressor, which has been designed

for use with Mangar International pneumatic lifting

equipment and is controlled by means of the

supplied 2-way hand control.

Applied Parts (Accessories) for the Airo Mk3:

Bathing Cushion

Surfer Bather

Handy Pillow Lifgt

Sit-u-Up

Leg Lifter

CONTENTS

Standard Package Contents Pg 3

Getting Started Pg 3

Battery Status Indicator Pg 3

Battery Charging Pg 4

Connecting the Air Hose Pg 4

Push-Button Hand Control Pg 5

Cleaning & Storage Pg 5

Maintenance Pg 6

Trouble shooting guide Pg 7

Specications Pg 7

Symbols used on Airo and Charger Pg 8

Symbols used on packaging Pg 8

Warranty Pg 9

WARNINGS

• BE SURE that you have read and

understood these instructions and those

provided with any other mangar international

product, before operating the equipment.

• DO NOT place the battery charger in a

bathroom or in a damp environment.

• ALWAYS disconnect from the battery charger

before cleaning.

• USE ONLY the supplied battery charger.

• NOT SUITABLE for use in the presence

of ammable anaesthetic mixtures with air,

oxygen or nitrous oxide.

• Ensure that when in use, the Airo and its

connected cable and/or hoses are laid out in

such a way as to avoid any risk of tripping or

strangulation.

• Ensure that children and pets do not interfere

with the safe operation of the Airo and

inatable product.

• Keep the Airo and inatable product away

from sources of heat and any sharp surfaces.

• The Airo should only be used for it’s stated

purpose and should not be modied in any

way.

English Pg 2

Deutsch Pg 10

Français Pg 18

Nederlands Pg 26

Italiano Pg 34

Español Pg 42

This product and associated packaging does not

contain latex.

English

Airo Mk3

freedom through lightweight solutions

MI0259 issue 11

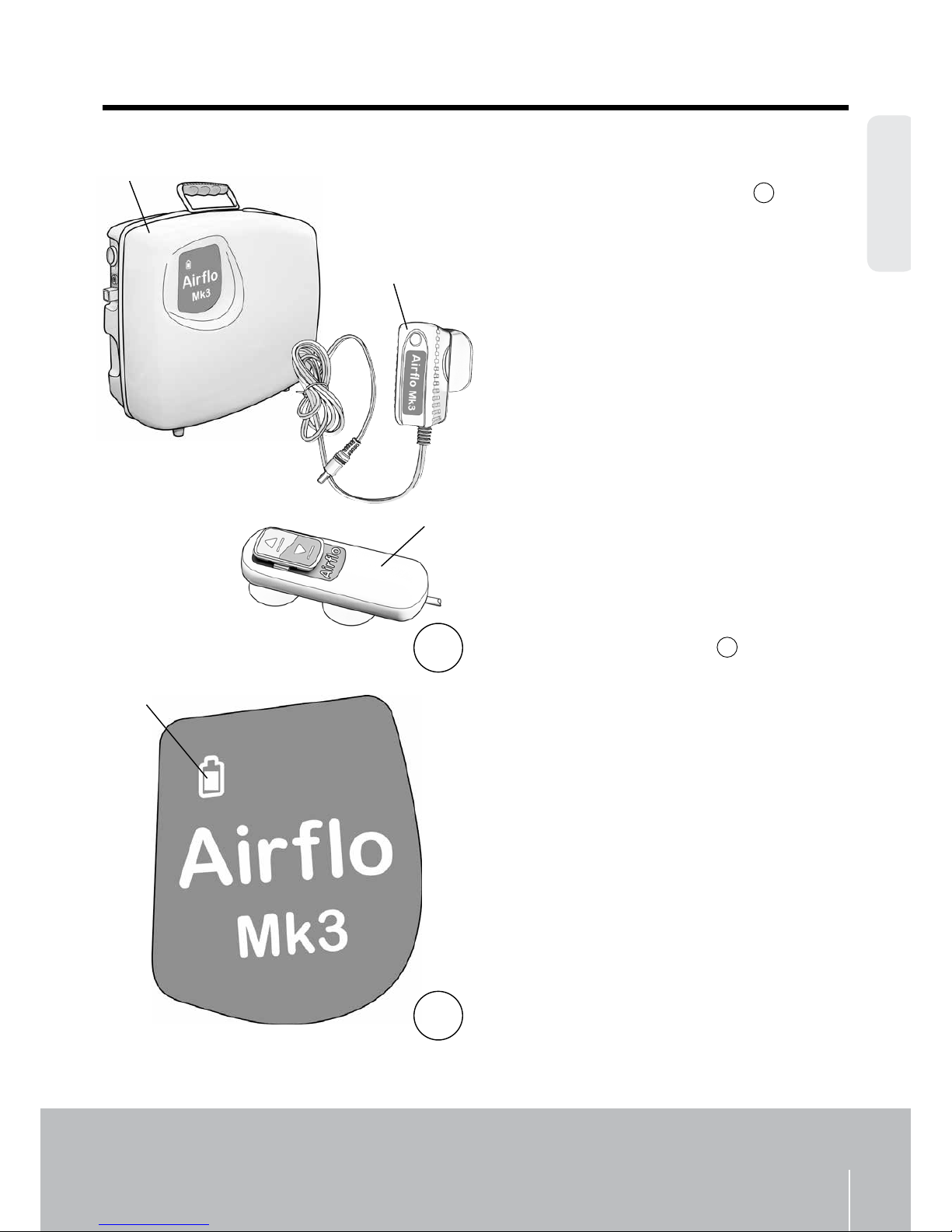

StandardPackageContents-g. 1

1 x Airo compressor tted with one

12v - 2.3Ah battery (A)

1 x Battery charger (B)

1 x 2-Way hand control (C)

1 x User instructions

Getting Started

The Airo does not have an ‘on/off’ switch.

To operate the compressor or activate the Battery

Status Indicator, connect the hand control and

momentarily press either the ‘Up’ or ‘Down’ button.

If the Airo is not used for approximately 5 minutes

it will go into ‘sleep’ mode and the battery status

indicator light will go out.

BatteryStatusIndicator-g. 2

Before use, check that the battery is sufciently

charged (see ‘Getting Started’). If the battery is

fully charged, the indicator light (A) will show a

steady Green light.

Steady Green = Fully charged.

Flashing Green = Recharge soon.

Steady Red = Recharge immediately

(will not deate).

Flashing Red = Over temperature cut-out

(will not deate or inate).

NOTE: If charge is too low the ‘down’ button on

the hand control will not work.

The Airo needs to be recharged when the indicator

light is ashing Green.

Chargethebatteryovernightbeforerstusing

theAiro.

English

Airo Mk3

MI0259 issue 11

BatteryCharging-g. 3

• Plug the battery charger into a mains outlet

socket and connect the charger output lead

(A) to the Airo charging socket (B).

• The battery status indicator light (C) will ash

green while the battery is charging and then

turn to a steady (non ashing) light when the

Airo is ready for use.

NOTE: The charger is not capable of providing

sufcient power to charge the battery while the

compressor is running.

To maintain battery condition, It is recommended

that the Airo is left continuously on charge when

not in use. The battery cannot be overcharged

using this charger.

WARNING: DO NOT recharge the battery in a

bathroom or in a damp environment.

Unplug the charger from the mains power socket

to disconnect the charger from the mains power

supply.

ConnectingtheAirHose-g. 4

Disconnect the Airo from the battery charger and

place in a safe and convenient position.

Connect the air hose from the Mangar International

equipmentto the air outletsocket (A). Theconnector

will ‘click’ into place when rmly pushed onto the

outlet. To release the hose, press the paddle down

on the connector (B).

English

Airo Mk3

freedom through lightweight solutions

MI0259 issue 11

2-Way Hand Control - g. 5

Connect the hand control (A) to the socket (B).

DO NOT connect any other plug to this socket.

• Press the ‘Up’ button (C) to raise.

• Press the ‘Down’ button (D) to lower.

NOTE: When either the ‘Up’ or ‘Down’ buttons are

pressed, the internal microprocessor carries out a

battery voltage check and if the voltage becomes

too low, the ‘Down’ button will not work. This

feature will always ensure that the seat of a Mangar

International bathing product cannot be lowered

into a bath if there is insufcient battery power to

raise it again.

When inating Mangar International products

which are not tted with a pressure relief valve,

the compressor will stop automatically once the

product is fully inated.

English

Cleaning

Unless contamination is suspected, periodic cleaning is all that is recommended. The Airo should be

cleaned/disinfected as follows:

• Unplug the Airo from the battery charger. Clean the external surfaces using a non abrasive damp

cloth with warm water. Wipe dry thoroughly with a dry towel before reconnecting to the battery charger.

Do not allow moisture to enter any part of the compressor.

• Do not use solvent-based products.

Disinfecting

• Pre-clean using a damp cloth and then disinfect using a hard surface alcohol impregnated wipe.

Storage

• When not in use, store in a dry place together with these instructions. To maintain the battery when

being stored for long periods, put the Airo on charge overnight every 3 months.

Airo Mk3

MI0259 issue 11

Maintenance-g. 6

At approximately 12 month intervals, inspect the

air lter located in the base of the Airo (A), and

if necessary, t a new lter (a kit of replacement

lters is available through your supplier - part

number: CA0233).

Battery replacement (part number: CB0405)

• Turn the Airo upside down and remove the

two screws (B) from each of the two retaining

plates (C) and rubber pads. Turn the Airo the

right way up to remove the battery.

• Fit the replacement battery pack ensuring that

the two contacts (D) align with the two contacts

in the battery housing.

• Ret the rubber pads, retaining plates (C) and

screws (B).

IMPORTANT: Always replace the battery with the

same type.

English

When it becomes apparent that the Airo is producing fewer than expected lifting cycles, the battery is

probably reaching the end of it’s working life and should be replaced.

The Airo contains no other user serviceable parts. If a fault should develop or if you require assistance

in setting up using or maintaining the equipment, please contact our Customer Service Department on

Freephone08002800485.A service manual (MI0339) is available for service personnel.

Disposal

When the Airo has reached the end of it’s working life, remove the batteries for safe disposal in

accordance with local regulations, and dispose of the Airo at your local household waste recycling

centre (civic amenity site).

Airo Mk3

freedom through lightweight solutions

MI0259 issue 11

Airo

Weight: 4.6Kg (10lbs)

Output pressure: 0.35 bar (5 psi)

Battery: 1 x 12Vdc - 2.3Ah (Maintenance free Valve Regulated Sealed Lead Acid)

Battery Life: Approx 1000 charging cycles (2 - 5yrs Depending on usage)

Lifting performance (from full battery): Bathing Cushion - 4 bathing cycles;

Surfer Bather - 10 bathing cycles; Handy Pillow Lift - 11 lifts; Sit-u-Up - 20 lifts; Leglifter - 8 lifts

Environmental protection:

(Airo housing) IP51 (Protection against large dust deposits & vertical falling drops of water)

(Push-button hand control) IP67 (Totally protected against dust & immersion in water)

Type BF equipment

This equipment has been tested and meets the requirements of current EMC legislation.

Charger: Model number - CB0088 (UK)

Input: AC 100v - 230v, 50-60Hz, 0.3A

Output: DC 15v, 350mA

Double insulated Class II equipment

Specications

Trouble shooting guide

Ensure that the air hose from the product

being inated is connected to the Airo.

Move either the compressor or other item

further away from each other until the

interference stops.

Check that there are no kinks in the air

hose.

This happens when the compressor’s internal

temperature cut-out has tripped. Leave the

Airo for 60-90 minutes to cool.

This happens when the current overload

cut-out has tripped. Leave for 3 seconds to

self reset.

Compressor does not run when ‘up’ is

selected on the 2-way hand control.

Compressor causes electrical interference

with another piece of electrical equipment.

Compressor keeps stopping when trying to

inate the lifting aid.

Battery State Indicator light ashing ‘Red’.

Battery State Indicator light ashing ‘Red/

Green’.

English

Airo Mk3

MI0259 issue 11

SymbolsusedonAiroandChargerlabels

Attention consult instructions

Max/Min operating environment

temperature

Direct current (DC)

Recycle

Do not dispose of in household waste

Date of manufacture

Alternating current (AC)

Symbols used on packaging

Keep packaging dry

Handle with care

Max/Min storage temperature

Net & gross weights

Stack no more than ve high

Recycle packaging

Max/Min humidity when transporting or

storage

Max/Min pressure when transporting or

storage

Max/Min temperature when transporting or

storage

Do not dispose of in household waste

Duty cycle

I = Operating time

O = Non operating time

(Max. continuous operating time = 5

minutes)

‘Up’ button

‘Down’ button

Risk of electric shock

Class II Double Insulated equipment

For indoor use ony. Do Not connect

to mains power in a bathroom or

outdoors.

English

Type BF equipment (protection

against electric shock)

Airo Mk3

freedom through lightweight solutions

MI0259 issue 11

Airo serial number: .............................

Date of purchase: .............................

Invoice/Delivery note number: .............................

Mangar International reserves the right to alter product specications and/or any of the information contained within this document without notice.

Warranty

The guarantee is given against defects in material and workmanship and comprises piece, parts and

labour. The guarantee is not valid in the case of fair wear and tear, wilful damage, common neglect,

misuse or unauthorised alteration or repair by unqualied persons.

The following statements do not affect the consumer’s statutory rights. This product is sold on the

understanding that in the event of any defect of manufacture or material appearing within the warranty

period, the defect will be rectied free of charge providing that:

(a) Reasonable evidence is provided (e.g. purchase invoice, delivery note) that the claim is being made

within the warranty period.

(b) The defect is not attributable to accidental damage (either in transit or otherwise), misuse or

unauthorised repair.

English

We strive to provide our customers with reliable and durable products of the highest quality.

In addition to our standard warranty, and for added peace of mind, our Customer Service Department

offers an Annual Service and Clean package.

To nd out more about this service please call our Customer Service Department on Freephone 0800

2800485.

Airo Mk3

MI0259 issue 11

Deutsch

INHALTSVERZEICHNIS

Standardmäßige Verpackungsinhalte S 11

Erste Schritte S 11

Batteriezustandsanzeige S 11

Auaden der Batterie S 12

Anschluss des Luftschlauches S 12

Druckknopfhandsteuerung S 13

Reinigung und Lagerung S 13

Wartung S 14

Leitfaden zur Fehlerbehebung S 15

Technische Daten S 15

Symbole auf dem Airo und dem Ladegerät S 16

Symbole auf der Verpackung S 16

Garantie S 17

WARNHINWEISE

• Bitte vergewissern sie sich, dass sie

sowohl die vorliegende als auch die

bedienungsanleitung für sonstige verwendete

produkte von Mangar International vollständig

gelesen und verstanden haben, bevor

sie die pegehilsmittel in betrieb nehmen.

• Verwenden Sie das Batterieladegerät NICHT

in einem Badezimmer oder in einer feuchten

Umgebung.

• Reinigen Sie das Gerät IMMER nachdem Sie

es vom Batterieladegerät getrennt haben.

• Verwenden Sie AUSSCHLIESSLICH das

mitgelieferte Batterieladegerät.

• Das Ladegerät EIGNET SICH NICHT für

eine Verwendung in der Gegenwart von

entammbaren, narkotisierenden Mischungen

mit Luft, Sauerstoff oder Stickstoffoxid.

• Stellen Sie sicher, dass der Airo und seine

angeschlossenen Kabel bzw. Schläuche

beim Betrieb so aufgestellt/verlegt sind, dass

niemand darüber stolpern oder sich darin

verfangen kann.

• Stellen Sie sicher, dass Kinder und Haustiere

den sicheren Betrieb des Airo und des

aufblasbaren Produktes nicht gefährden.

• Halten Sie den Airo und das aufblasbare

Produkt von Wärmequellen und scharfkantigen

Gegenständen fern.

• Der Airo darf nur für seinen angegebenen

Zweck verwendet und es dürfen keine

Veränderungen an ihm vorgenommen werden.

English Pg 2

Deutsch Pg 10

Français Pg 18

Nederlands Pg 26

Italiano Pg 34

Español Pg 42

Dieses Produkt und dessen Verpackung sind

latexfrei.

Deutsch

Vorgesehener Gebrauch

Der Airo Mk3 von Mangar International ist ein

Niederdruck-Kompressor, der für den Einsatz

mit pneumatischen Hebevorrichtungen von

Mangar International entwickelt wurde und mit der

mitgelieferten Zweiweg-Handsteuerung bedient

wird.

Angeschlossene Vorrichtungen (Zubehör) für

den Airo Mk3:

Bathing Cushion

Surfer Bather

Handy Pillow Lifgt

Sit-u-Up

Leg Lifter

Tabla de contenidos

Idiomas:

Otros manuales de Compresor de aire de Mangar

Mangar

Mangar Airflo 12 Manual de usuario

Mangar

Mangar Airflo 12 Manual de usuario

Mangar

Mangar Airflo Plus Guía de instalación

Mangar

Mangar Airflo 12 Manual de usuario

Manuales populares de Compresor de aire de otras marcas

Sparmax

Sparmax DC-25XR Manual de usuario

KAESER

KAESER M122 Manual de usuario

GMC

GMC GAC1500 Manual de usuario

Briggs & Stratton

Briggs & Stratton Air Compressor Manual de usuario

Fini

Fini F3GST2TK Manual de usuario

Industrial Air

Industrial Air CP1580325 Manual de programación

Campbell Hausfeld

Campbell Hausfeld RP3300 Guía de inicio rápido

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manual de usuario

Hitachi

Hitachi EC99S Manual del operador

Parkside

Parkside PKO 270 A1 Manual de usuario

Sullair

Sullair 185 Manual de usuario

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manual de usuario

Ferm

Ferm CRM1046 Manual de usuario

BE AC153 Manual de usuario

RIDGID

RIDGID OF25150A Manual de usuario

Johnson Controls

Johnson Controls QUANTUM LX Manual

Sears

Sears Craftsman 919.167463 Manual de usuario

Ring Automotive

Ring Automotive RAC700 Manual de usuario
