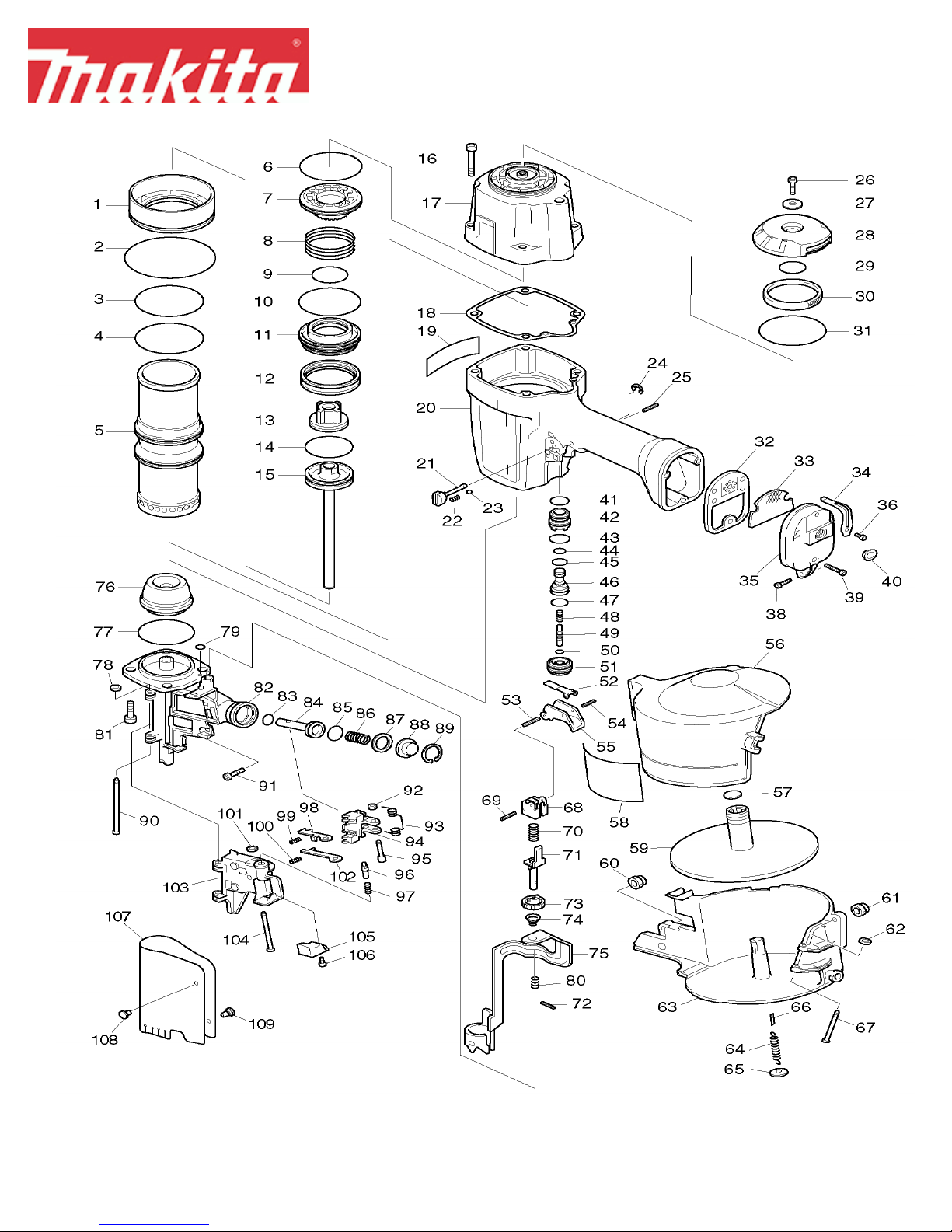

Parts Breakdown AN901
Page 1 of 4 2/8/2008
Parts Breakdown AN901
Fig # Part ID Part Name Quantity
1 416808-6 CYLINDER SEPARATER, AN901 1
2 213761-5 O RING 76, AN901 1
3 213657-0 O RING 53, AN901 1
4 213605-9 O RING 50, 6920B 1
5 331545-0 CYLINDER, AN901 1
6 213657-0 O RING 53, AN901 1
7 416807-8 SEPARATER, AN901 1
8 233241-5 COMPRESSION SPRING 44, AN901 1
9 213462-5 O RING 33, AN451 1
10 213657-0 O RING 53, AN901 1
11 416803-6 HEAD VALVE, AN901 1
12 421661-7 VALVE SHEET, AN901 1
13 421660-9 CUSHION R, AN901 1
14 213504-5 O RING, 9820-2 1
15 152929-7 DRIVER COMPLETE 1
15 158606-9 DRIVER CPLT., AN901 1
15 151545-2 DRIVER COMPLETE, AN901 1
16 922356-0 H.S.H.BOLT M6X35, HM1500 4
17 317131-1 TOP CAP, AN901 1
18 162207-7 TOP CAP GASKET, AN901 1
19 852034-7 NAME PLATE, AN901 1
20 151892-1 HOUSING COMPLETE, AN901 1
21 162208-5 LOCK PIN 6, AN922 1
22 231236-2 COMP. SPRING 3, AN611 1
23 216008-6 STEEL BALL 4.0, 6820V 1
24 961011-9 STOP RING E-4, 4301BV 1
25 951075-1 SPRING PIN 3-28, UM401DW 2
26 265853-6 HEX. SOCKET HEAD BOLT M5X18,AN901 1
27 267171-8 FLAT WASHER 6, AN611 1
28 317128-0 EXHAUST COVER, AN901 1
29 213320-5 O RING 20, AN901 1
30 323853-3 FILTER, AN901 1
31 213654-6 O RING 60, HR3851 1
32 162198-2 INLET CAP GASKET, AN611 1
33 415784-1 INLET FILTER, AN611 1
34 344720-9 HOOK, AN901 1
35 317340-2 INLET CAP, AN901 1
36 922212-4 H.S.H. BOLT M5X12, AF502 1
38 922232-8 H.S.H. BOLT M5X20, JS3200 1
39 922256-4 H.S.H. BOLT M5X35, 2012 3
40 286219-7 CAP 12, AF502 1
41 213176-6 O RING 14, AN922 1
42 417695-6 TRIGGER VALVE GUIDE, AN922 1
42 416806-0 TRIGGER VALVE GUIDE, AN922-T1 1
43 213262-3 O RING 18, 5005BA 1
44 213039-6 O RING 6, AN922 1
45 213040-1 O RING 8, AN922 1
46 317520-0 PILOT VALVE, AN922 1
46 416804-4 PILOT VALVE, AN922-T1 1
46 417694-8 PILOT VALVE, AN922-T2 1
47 213122-9 O RING 12, AN922 1
48 233239-2 COMPRESSION SPRING 3, AN922 1
49 323852-5 TRIGGER VALVE STEM, AN922 1
50 213044-3 O RING 3, AN901 2
51 317521-8 TRIGGER VALVE CASE, AN922 1
51 416805-2 TRIGGER VALVE CASE, AN922 1
52 344265-7 IDLER, AN611 1
53 951075-1 SPRING PIN 3-28, UM401DW 1
54 258004-8 SPRING PIN 2.5-16, 420S 1
55 415790-6 TRIGGER, AN611 1
Page 2 of 4 2/8/2008
Parts Breakdown AN901
56 416811-7 MAGAZINE CAP, AN901 1
57 414934-5 HOLDER CAP, AN451 1
58 818599-9 INDICATION LABEL, AN611 1
59 416810-9 CHANGE PLATE, AN901 1
60 252103-8 HEX. LOCK NUT M5-8, 5007FK 1
61 252103-8 HEX. LOCK NUT M5-8, 5007FK 1
62 262054-7 URETHANE RING 3, AN451 1
63 151915-5 MAGAZINE COMPLETE, AN901 1
63 151915-5 MAGAZINE COMPLETE, AN901 1
64 231820-3 TENSION SPRING 5, AN901 1
65 414934-5 HOLDER CAP, AN451 1
66 423232-6 RUBBER PLATE 6-20, AN451 1
67 268026-0 PIN 4, AN611 1
68 344579-4 HOLDER, AN611 1
68 344895-4 HOLDER, AN621 1
69 951075-1 SPRING PIN 3-28, UM401DW 1
70 233197-2 COMPRESSION SPRING 7, AN611 1
71 310055-0 STOPPER, AN611 1
72 951010-9 SPRING PIN 2-14, AN611 1
73 310056-8 ADJUSTER, AN611 1
74 231978-8 CONICAL COMP SPRING 9-16, AN611 1
75 344721-7 CONTACT ARM, AN901 1
76 421659-4 CUSHION F, AN901 1
77 213604-1 O RING 50, 6911D 1
78 262054-7 URETHANE RING 3, AN451 1
79 213017-6 O RING 6, 5177B 1
80 233127-3 COMPRESSION SPRING 7, 9526PB 1
81 265386-1 H.S.H. BOLT M8X25, AN8300 4
82 310063-1 DRIVER GUIDE, AN901 1
82 134960-5 DRIVER GUIDE ASSEMBLY 1
83 213054-0 O RING 9, 5014NB 1
84 323851-7 PISTON, AN901 1
84 324876-4 PISTON, AN901 1
85 213304-3 O RING 20, 6904VH 1
86 233240-7 COMPRESSION SPRING 11, AN901 1
87 262080-6 RUBBER RING 16, AN901 1
88 344717-8 CUP WASHER 5, AN901 1
89 962106-1 RETAINING RING R-28,GD0800C 1
90 268039-1 PIN 5, AN901 1
91 922212-4 H.S.H. BOLT M5X12, AF502 1
92 262054-7 URETHANE RING 3, AN451 1
93 231642-1 TORSION SPRING 6, AN901 1
94 310074-6 FEEDING CLAW, AN901 1
95 268038-3 PIN 5, AN901 1
96 323850-9 LOCK PIN, AN901 1
97 233201-7 COMPRESSION SPRING 6, AN611 1
98 344719-4 CHECH CLAW R, AN901 1
99 233101-1 COMPRESSION SPRING 4, 4304 1
100 233101-1 COMPRESSION SPRING 4, 4304 1
101 262054-7 URETHANE RING 3, AN451 1
102 344718-6 CHECK CLAW F, AN901 1
103 310072-0 DOOR, AN901 1
104 268037-5 PIN 4, AN901 1
105 310050-0 LOCK LEVER, AN611 1
106 266167-6 H.S.H. BOLT M4X10, AN611 1
107 416809-4 COVER, AN901 1
108 421418-6 RUBBER PIN 9.5, AN611 1
109 421418-6 RUBBER PIN 9.5, AN611 1
1,001 192517-8 SAFETY GOGGLE, AN611 1
1,002 181434-7 OIL SUPPLY 30CC, AF502 1
1,003 421658-6 NOSE ADAPTER, AN901 1
Page 3 of 4 2/8/2008
Parts Breakdown AN901
1,004 783202-0 HEX WRENCH 4, JR3000V 1
Page 4 of 4 2/8/2008
