8. Siting the Flue Terminal
See Fig. 8.
8.1 The flue must be installed as s ecified in BS
5440:Part 1.
8.2 If the terminal discharges onto a athway or
assageway, check that the combustion roducts will not
cause a nuisance and that the terminal will not cause an
obstruction.
8.3 If the terminal is fitted within 850 mm of a lastic or
ainted gutter or within 450 mm of ainted eaves then an
aluminium shield at least 750 mm long should be fitted to
the underside of the gutter or ainted surface.
8.4 If a terminal is fitted less than 2 metres above a
surface to which ersons have access then a guard must
be fitted.
8.5 The terminal guard must be evenly s aced about the
flue terminal and fixed to the wall using lated screws.
8.6 Under certain weather conditions the terminal may
lume when the a liance is o erated. Siting where this
could cause a nuisance should be avoided.
8.7 Take care to ensure that combustion roducts do not
enter ventilated roof voids by ositioning the flue away from
any soffit vents.
Fig. 8 - Siting o the lue terminal

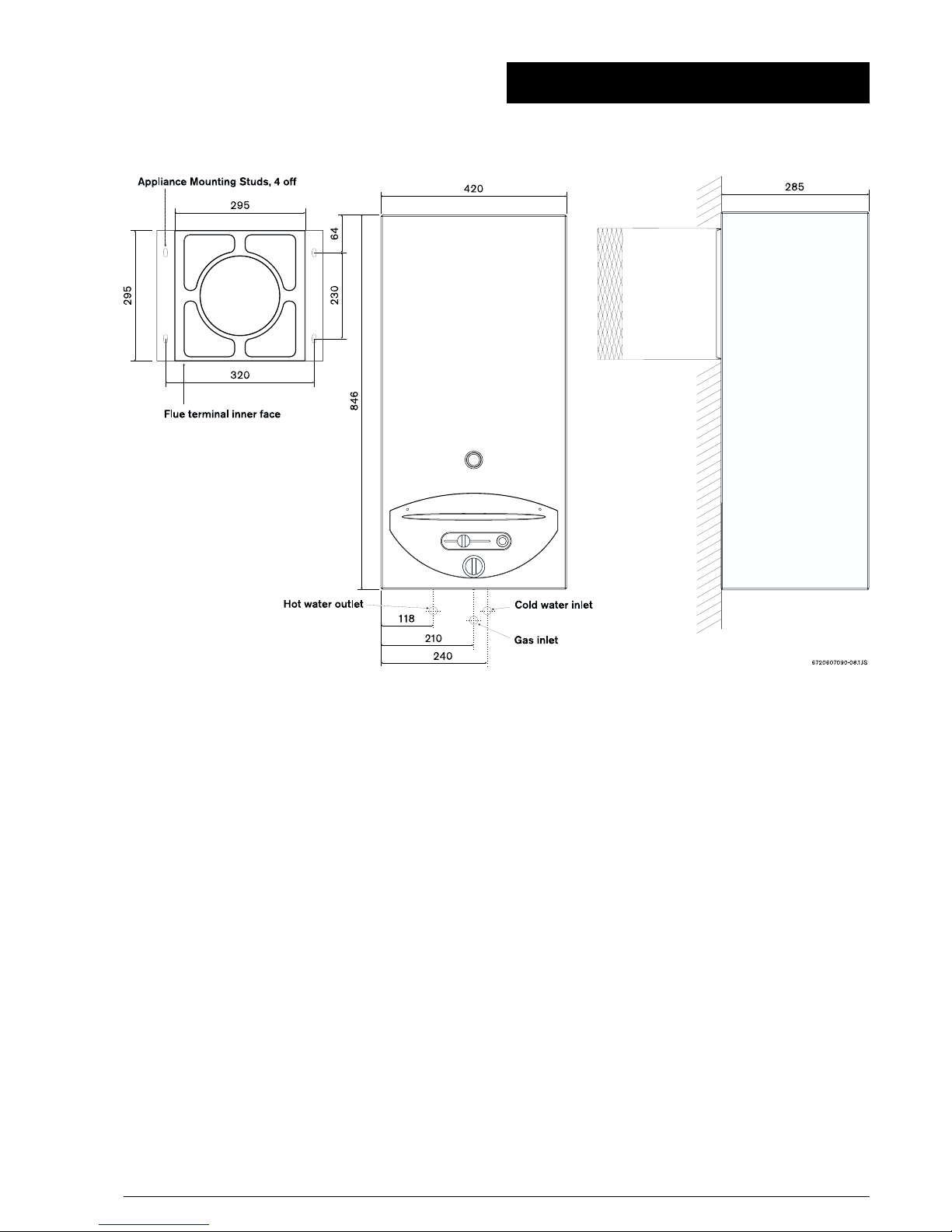

Fig. 7
Dimension Terminal position Minimum distance
AaDirectly below an opening, air brick, opening windows, etc. 1500 mm
BaAbove an opening, air brick, opening window, etc. 300 mm
CaHorizontally to an opening, air brick, opening window, etc. 600 mm
D Below gutters, soil pipes or drain pipes 300 mm
E Below eaves 300 mm
F Below balconies or car port roof 600 mm
G From a vertical drain pipe or soil pipe 300 mm
H From an internal or external corner 600 mm
I Above ground roof or balcony level 300 mm
J From a surface facing the terminal 600 mm
K From a terminal facing the terminal 600 mm
L From an opening in the car port (e.g. door, window) into the dwelling 1 200 mm
M Vertically from a terminal on the same wall 1 500 mm
N Horizontally from a terminal on the same wall 300 mm
