INSTALLATION INSTRUCTIONS

ECR 12

Version: 2018-01-25 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the

right to make technical modifications without giving prior notice Page 1

ECR supply and exhaust air system with integrated air heater and filter.

■Matched to one another - Supply and exhaust air box with synchronised air volumes.

■Convenient control - Supply and exhaust air boxes can be set using a shared remote control.

■Pre-assembled - Supply air unit with fan, electric air heater, filter and controller. Makes fast and error-free installation pos-

sible.

■Tempered - With pluggable, continuous controller. For constant, pleasantly temperate supply air, even in winter.

■Quiet - Double-wall, sound insulated housing. For high demands for low noise levels and high levels of thermal insulation.

■"Point-of-use" - Can be used directly in the lounge, e.g. in suspended ceilings.

■Simple - Filter can be changed in seconds, without tools.

■Can be combined in any way - Supply and exhaust air boxes can be used in tandem and on their own.

ECR compact box and ECR-A exhaust air box in tandem

INSTALLATION INSTRUCTIONS

ECR 12

Version: 2018-01-25 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the

right to make technical modifications without giving prior notice Page 2

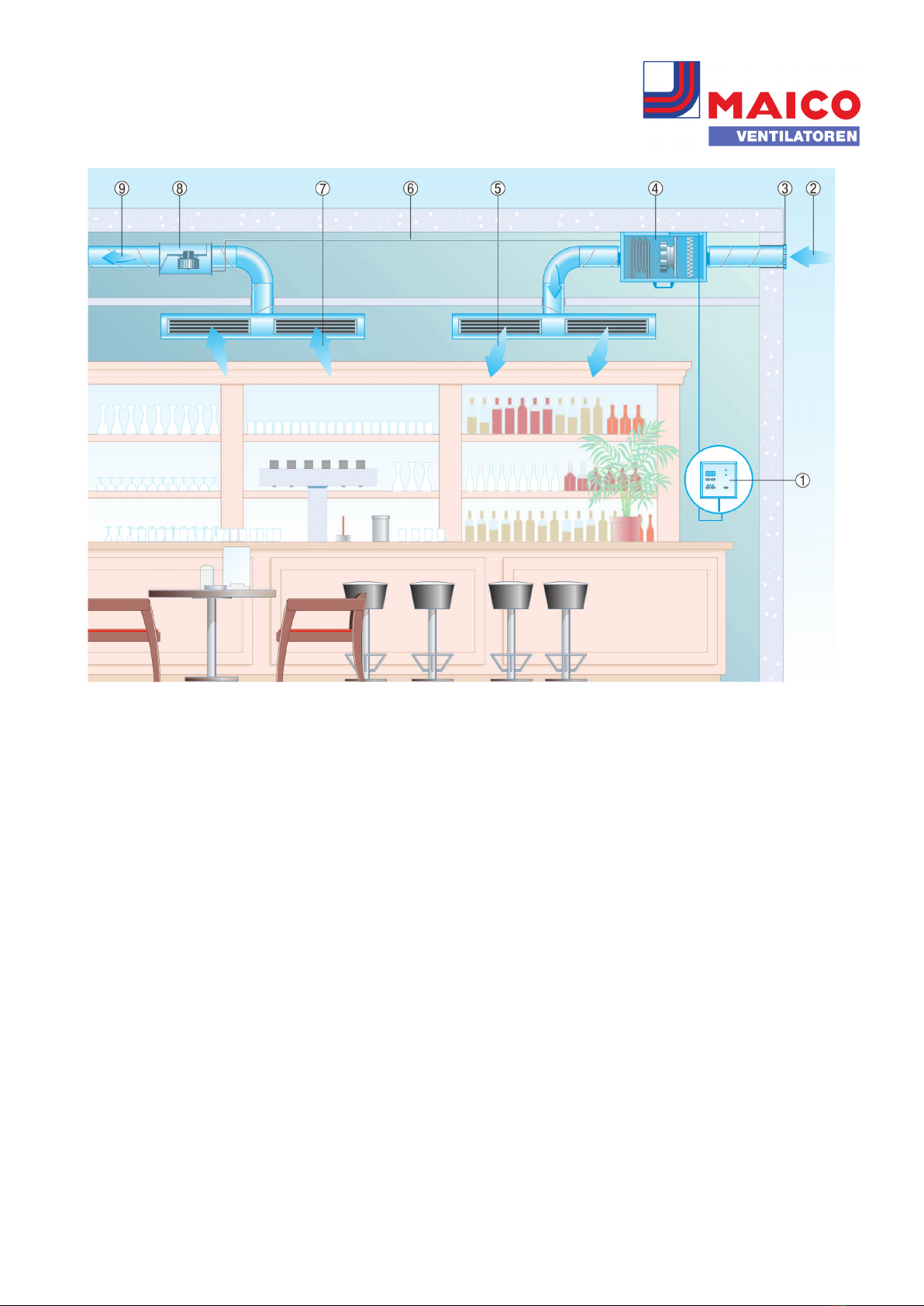

1Remote control

2Outside air

3Lamella protective grille

4ECR Compact Box

5Supply air

6Mains and control cable

7Exhaust air

8ECR-A Exhaust air box

9Outgoing air

Control unit

Separate control unit and 10 m control cable included in scope of delivery.

Room temperature sensor integrated in the control unit.

Selectable room or supply air control.

Function keys for:

■Unit on / off

■Fan speed control

■Increase/reduce setpoint temperature

■Switching between automatic and manual operation

■Display of:

Speed

Setpoint and supply air temperature

Operation/fault with error code

Electronic filter monitoring with filter change warning displayed on the operator unit.

INSTALLATION INSTRUCTIONS

ECR 12

Version: 2018-01-25 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the

right to make technical modifications without giving prior notice Page 3

With output for controlling a separate shutter.
