Magnavox DVD611AT Documento técnico

DVD611

Digital V

Digital Video Disc Player

ideo Disc Player

Hookup Pages

Read this manual first!

Congratulations on purchasing this product. We’ve included everything you

need to get started. If you have any problems, our Representatives can help

you get the most from your new product by explaining:

• Hookups,

• First Time Setup, and

• Feature Operation.

Do not attempt to return this product to the store.

For fast help, call us first!

1-800-531-0039

Thank you for making us a part of your home!

8 Hookups

Connecting the DVD Player to a TV only (no stereo or amplifier)

TV has AUDIO (red and white) and VIDEO (yellow) IN jacks

You may connect the DVD Player several different ways, depending on your existing equipment and your pref-

erences for sound and picture quality. To determine which hookup is best for you, examine the options on the

following pages, then see which best matches your situation. Before you hook up the DVD Player, remember:

●Connect the DVD Player directly to a TV. If you connect the DVD Player to a VCR, then connect the VCR

to the TV, the picture may be distorted by the copyright protection system.

●Turn off the power of all equipment before making any connections.

●Refer to the owner’s manuals of your other equipment for additional information.

●Depending on your connection, you may need to purchase additional cables.

●If you do not connect the DVD Player to a Dolby Digital or DTS Decoder, set Dolby Digital and DTS to Off

on the DVD Player. Details are on pages 11 and 40-41. Playing a DVD when the settings are wrong will dis-

tort the sound or damage the speakers.

Connect the supplied red and white audio cables to the red and white

AUDIO OUT jacks on the DVD Player and to the red and white AUDIO IN

jacks on the TV, matching the cable colors to the jack colors.

Connect the supplied yellow video cable to the VIDEO OUT jack on the DVD

Player and to the VIDEO IN jack on the TV.

Connect the TV’s power cord to a power outlet.

Turn on the TV and set it to the Audio/Video In channel, which also may be

referred to as A/V In or Auxiliary In. This channel usually is located in the vicinity of

channel 00. See your TV owner’s manual for details.

Connect the DVD Player’s power cord to a power outlet.

Press the POWER button to turn on the DVD Player. “P-ON” will appear briefly

on the DVD Player’s display panel. You should see the DVD logo on the TV screen. If

you do not, check your connections and make sure the TV is set to the correct

Audio/Video In channel.

VIDEO

L/MONO

AUDIO

VIDEO IN

LEFT AUDIO IN

RIGHT AUDIO IN

AUDIO OUT COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

DIGITAL AUDIO OUT

PCM / BITSTREAM

1 2

Back of TV

(example only)

DVD Player

Hookups (cont’d) 9

Connecting the DVD Player to a TV only (no stereo or amplifier)

TV has audio (red and white) and S-Video In jacks

●For better picture quality, use an optional S-Video cable to connect the S-VIDEO OUT jack on the DVD

Player to the S-VIDEO IN jack on your TV. You will not use the VIDEO OUT jack on the DVD Player, and

you will not need the supplied yellow video cable.

●Set Dolby Digital and DTS to Off on the DVD Player. Details are on pages 40-41. Playing a DVD when the

settings are wrong will distort the sound or damage the speakers.

Connect the supplied red and white audio cables to the red and white

AUDIO OUT jacks on the DVD Player and to the red and white AUDIO

IN jacks on the TV, matching the cable colors to the jack colors.

Connect an S-Video cable (not supplied) to the S-VIDEO OUT jack on

the DVD Player and to the S-VIDEO IN jack on the TV.

Connect the TV’s power cord to a power outlet.

Turn on the TV and set it to the S-VIDEO IN channel. This channel usually

is located near channel 00. See your TV owner’s manual for details.

Connect the DVD Player’s power cord to a power outlet.

Press the POWER button to turn on the DVD Player. “P-ON” will appear

briefly on the DVD Player’s display panel. You should see the DVD logo on the TV

screen. If you do not, check your connections and make sure the TV is on the cor-

rect S-Video In channel.

DVD Player

AUDIO OUT COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

DIGITAL AUDIO OUT

PCM / BITSTREAM

S-VIDEO IN

LEFT AUDIO IN

RIGHT AUDIO IN

VIDEO

L/MONO

AUDIO

1 2

Back of TV

(example only)

10 Hookups (cont’d)

Connecting to a TV and a Stereo

●Set Dolby Digital and DTS to Off on the DVD Player. Details are on pages 40-41. Playing a DVD when the

settings are wrong will distort the sound or damage the speakers.

Connect the supplied red and white audio cables to the red and white

AUDIO OUT jacks on the DVD Player and to the red and white AUDIO IN

jacks on the Stereo, matching the cable colors to the jack colors.

Connect the supplied yellow video cable to the yellow VIDEO OUT jack on

the DVD Player and to the VIDEO IN jack on the TV. (Or, you may connect an

optional S-Video cable to the S-VIDEO OUT jack on the DVD Player and to the S-

VIDEO IN jack on the TV. Only one video connection is needed.)

Plug in the Stereo’s power cord. Turn on the Stereo and select the Stereo’s

Auxiliary IN station. During Disc playback, you will adjust the volume at your

Stereo. See your Stereo owner’s manual for details.

Plug in the TV’s power cord. Turn on the TV and set it to the Video In

channel (or S-Video In channel), which usually is located near channel 00.

During Audio CD playback, you may check the status of Audio CDs on your TV

screen. During DVD playback, you will watch the program on the TV. See your TV

owner’s manual for details.

Connect the DVD Player’s power cord to a power outlet.

Press the POWER button to turn on the DVD Player. “P-ON” will appear

briefly on the DVD Player’s display panel. You should see the DVD logo on the TV

screen. If you do not, check your connections and make sure the TV is on the correct

Video In channel.

AUDIO OUT COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

DIGITAL AUDIO OUT

PCM / BITSTREAM

VIDEO

L/MONO

AUDIO

VIDEO IN

AUDIO (RIGHT) IN

AUDIO (LEFT) IN

Back ofTV

(example only)

DVD Player

Back of Stereo

(example only)

Hookups (cont’d) 11

Connecting to a Dolby Digital Decoder or DTS Decoder

Some Discs are recorded in a 5.1 channel Dolby Digital Surround or Digital Theater System (DTS)

Surround format. These Discs will sound best if you connect the DVDPlayer to a Dolby Digital or DTS

Decoder.

●You will need a coaxial digital audio cable (not supplied).

●If you connect the DVD Player to a Dolby Digital Decoder, set Dolby Digital to On. Details are on pages

40-41.

●If you connect the DVD Player to a DTS Decoder, set DTS to On. Details are on pages 40-41.

If you do not connect the DVD Player to a Dolby Digital or DTS decoder, set Dolby Digital and DTS to

Off. Incorrect settings may cause noise distortion and damage the speakers.

●Select 5.1 channel Dolby Digital Surround sound in the Disc menu.

●Connect a subwoofer and the center, front, and surround speakers to the Decoder as described in the

Decoder’s owner’s manual.

Connect a coaxial digital audio cable to the COAXIAL jack on the DVD Player

and to the COAXIAL DIGITAL AUDIO IN jack on the Decoder.

Connect the supplied yellow video cable to the yellow VIDEO OUT jack on

the DVD Player and to the VIDEO IN jack on the TV. (Or, you may connect an

optional S-Video cable to the S-VIDEO OUT jack on the DVD Player and to the S-VIDEO

IN jack on the TV. Only one video connection is needed.)

Plug in the Decoder’s power cord. Turn on the Decoder and select the

Auxiliary IN station. During Disc playback, you will adjust the volume at the Decoder.

See your Decoder owner’s manual for details.

Plug in the TV’s power cord. Turn on the TV and set it to the correct Video In

channel. During Audio CD playback, you may check the Disc status on your TV screen.

During DVD playback, you will watch the program on the TV. See your TV owner’s man-

ual for details.

Connect the DVD Player’s power cord to a power outlet. Press the POWER

button to turn on the DVD Player. “P-ON” will appear briefly on the DVD Player’s

display panel. You should see the DVD logo on the TV. If you do not, check your connec-

tions and make sure the TV is on the correct Video In channel.

AUDIO OUT COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

DIGITAL AUDIO OUT

PCM / BITSTREAM

VIDEO

L/MONO

AUDIO

VIDEO IN

COAXIAL DIGITAL

AUDIO IN

Back of Decoder

(example only)

DVD Player

Back ofTV

(example only)

Connecting to a TV and an Amplifier with Digital Input jacks, Mini-Disc Deck or

Digital Audio Tape Deck

●Use a coaxial digital audio cable (not supplied) for this connection.

●If the Disc is recorded in 5.1 channel Dolby Digital Surround, you cannot dub the Disc in digital sound using

a Mini-Disc or Digital Audio Tape Deck.

●Set Dolby Digital and DTS to Off on the DVD Player. Details are on pages 40-41. Playing a DVD when the

settings are wrong will distort the sound or damage the speakers.

12 Hookups (cont’d)

Connect a coaxial digital audio cable to the COAXIAL jack

on the DVD Player and to the COAXIAL DIGITAL AUDIO

IN jack on the Amplifier.

Connect the supplied yellow video cable to the yellow

VIDEO OUT jack on the DVD Player and to the VIDEO IN

jack on the TV. (Or, you may connect an optional S-Video cable

to the S-VIDEO OUT jack on the DVD Player and to the S-VIDEO

IN jack on the TV. Only one video connection is needed.)

Plug in the Amplifier’s power cord. Turn on the Amplifier

and select the Auxiliary IN station. During Disc playback, you

will adjust the volume at the Amplifier. See your Amplifier owner’s

manual for details.

Plug in the TV’s power cord. Turn on the TV and set it to

the correct Video In channel. During Audio CD playback, you

may check the status of the Disc on your TV screen. During DVD

playback, you will watch the program on the TV. See your TV

owner’s manual for details.

Plug in the DVD Player’s power cord. Press the POWER

button to turn on the DVD Player. “P-ON” will appear briefly

on the DVD Player’s display panel. You should see the DVD logo

on the TV. If you do not, check your connections and make sure

the TV is on the correct Video In channel.

• Insert cable plugs firmly into the jacks

when making connections.

• If a plug has minor scratches or is

dirty, clean it with a soft cloth before

inserting it into a jack.

Helpful Hints

AUDIO OUT COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

DIGITAL AUDIO OUT

PCM / BITSTREAM

VIDEO

L/MONO

AUDIO

VIDEO IN

COAXIAL DIGITAL

AUDIO IN

Back ofTV

(example only)

Back ofAmplifier

(example only)

DVD Player

14 Front Panel

OPEN/CLOSE

STANDBY-ON

STOP

PREV NEXT

PLAY PAUSE

DVD611 DVD/CD PLAYER

OPEN/CLOSE Button

Press to open or close the Disc tray.

Details are on page 18.

PLAY Button

Press to start or resume Disc playback.

Details are on page 18.

STOP Button

Press to stop Disc playback.

Details are on page 18.

PAUSE Button

Press to pause Disc playback.

Details are on page 20.

STANDBY-ON Button

Press to turn the power on and off.

Details are on page 18.

Remote Sensor

Receives a signal from your remote control so you

can operate your DVD Player from a distance.

PREV(ious)/NEXT

Press to go to previous or subsequent Tracks

or Chapters. Press and hold for about three

seconds for a fast forward or reverse search.

Details are on page 22.

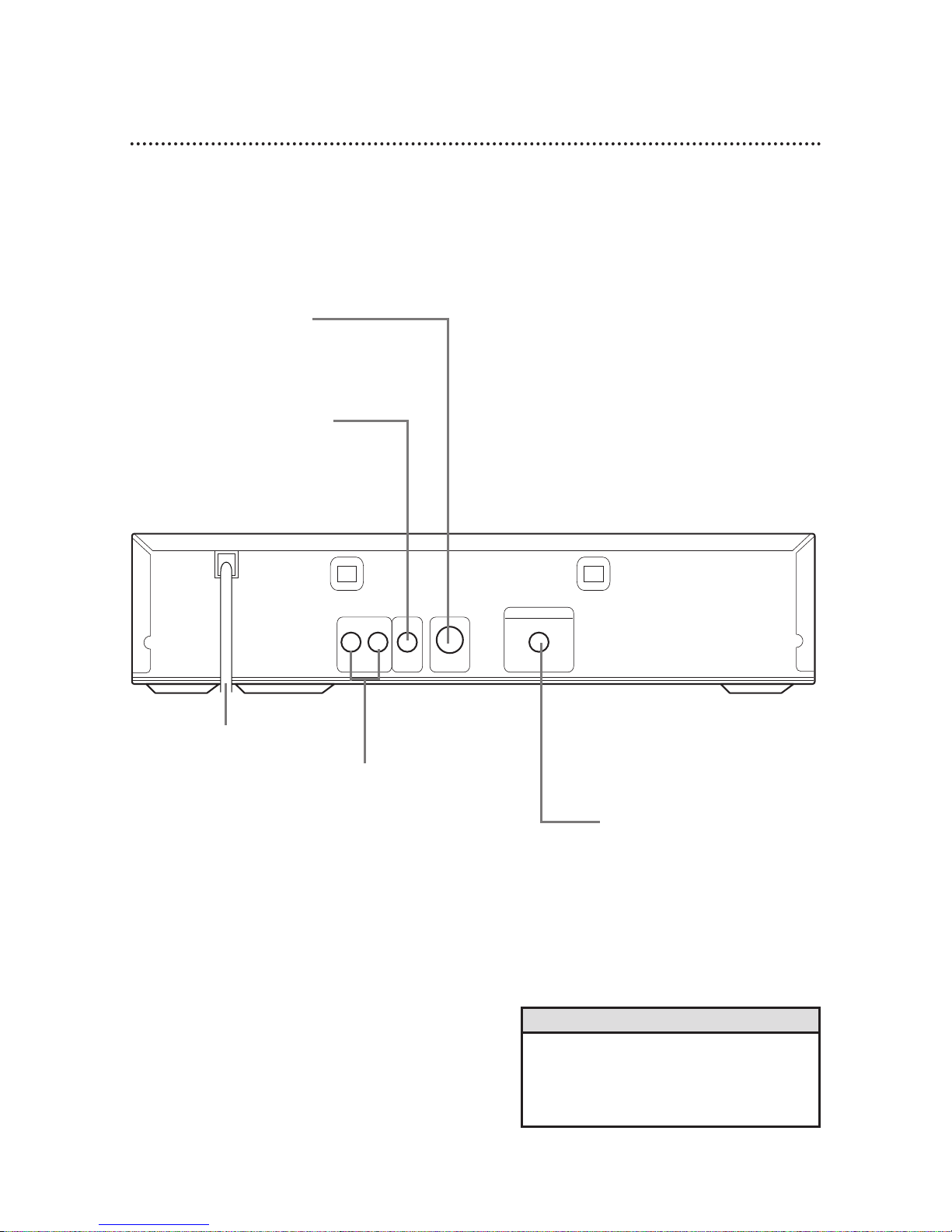

Rear Panel 15

AUDIO OUT COAXIAL

S-VIDEO

OUT

VIDEO

OUT

R L

DIGITALAUDIO OUT

PCM / BITSTREAM

AC Power Cord

Connect to a standard AC

outlet to supply power to

the DVD Player.

COAXIAL Jack

Connect an optional audio

coaxial digital cable here

and to the coaxial digital

Audio In jack of a decoder

or amplifier. Details are on

pages 11-12.

S-VIDEO OUT Jack

Connect an optional S-Video cable here

and to the S-Video In jack of a televi-

sion. Details are on pages 9-12.

VIDEO OUT Jack

Connect the yellow video cable

(supplied) here and to the TV’s

Video In jack. Details are on

pages 8 and 10-12.

AUDIO OUT Jacks

Connect the supplied red

and white audio cables here

and to the Audio In jacks of

a television or stereo. Details

are on pages 8-10.

• You only need one audio connection and one

video connection, so you will not have a cable

connected to every jack. For example, if you

are using the S-VIDEO OUT jack, you will not

use the VIDEO OUT jack.

Helpful Hint

Otros manuales para DVD611AT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reproductor de DVD de Magnavox

Magnavox

Magnavox MDR700 Manual de usuario

Magnavox

Magnavox H2160MW9 - DVDr / HDDr Manual de usuario

Magnavox

Magnavox DP100MW8 Manual de usuario

Magnavox

Magnavox MTFT750 Manual de usuario

Magnavox

Magnavox DP170MGXF/F7 Instrucciones de instalación

Magnavox

Magnavox DVP5990 - Hdmi 1080p Divx Ultra Dvd Player Manual de usuario

Magnavox

Magnavox MDV443 - Dvd-video Player Manual de funcionamiento

Magnavox

Magnavox MDV410SL Manual de usuario

Magnavox

Magnavox DP170MW8B Manual de usuario

Magnavox

Magnavox sylvania mwd2205 Manual de usuario

Magnavox

Magnavox DV200MW8 Manual de usuario

Magnavox

Magnavox MDV437 Manual de usuario

Magnavox

Magnavox MDV450SL Manual de usuario

Magnavox

Magnavox MWD7006 Manual de usuario

Magnavox

Magnavox MDV434 Manual de usuario

Magnavox

Magnavox MDV460 Manual de usuario

Magnavox

Magnavox MWD200F Manual de usuario

Magnavox

Magnavox MDV460 Manual de usuario

Magnavox

Magnavox H2080MW8 Manual de usuario

Magnavox

Magnavox MSD125 Manual de usuario

Magnavox

Magnavox MWD200F Manual de usuario

Magnavox

Magnavox DP170MW8 - Up Converting HDMI DVD Player Manual de usuario

Magnavox

Magnavox MDV2100/F7 Manual de usuario

Magnavox

Magnavox MDV453 Manual de funcionamiento

Manuales populares de Reproductor de DVD de otras marcas

Sony

Sony DVP-F11 Manual de usuario

Philips

Philips DVP3560K/F8 Manual de usuario

LENCO

LENCO DVP-740 X2 Manual de usuario

JVC

JVC XV-N650BEU Manual de usuario

Aiwa

Aiwa XD-DV370 Manual de usuario

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manual de usuario

Denon

Denon DVM-1805 - DVD Changer Manual de usuario

Toshiba

Toshiba SD-3815 Manual de usuario

Tevion

Tevion 44330 Manual de usuario

Samsung

Samsung DVD-HD860 Manual de usuario

Sylvania

Sylvania DP170SL8 Manual de usuario

Toshiba

Toshiba SD-P1200 Manual de usuario

JVC

JVC XV-D9000E Manual de usuario

Dolby Laboratories

Dolby Laboratories CP650 Manual de usuario

Philips

Philips DVD737K/931 Manual de usuario

Denon

Denon DVD-5900 Manual de usuario

Philips

Philips DVD 951 Manual de usuario

Philips

Philips DVDR3460 Manual de usuario
