MAGICO M6 Manual de usuario
UNPACKING INSTRUCTIONS
1. THE FOLLOWING TOOLS ARE REQUIRED: A PRY BAR, 3/8” DRIVE RATCHET OR
DRIVE ADAPTER AND CORDLESS DRILL, 9/16” OR 14MM SOCKET, 3/4” OR 19MM
SOCKET, 3/8” HEX WRENCH, AND 3 PEOPLE.
2. USING A FLAT HEAD SCREWDRIVER OR PRY BAR, REMOVE THE 4 CLAMPS
FROM THE FRONT OF THE CRATE, REMOVE THE CRATE DOOR, REMOVE
FOAM FROM CRATE DOOR AND SET DOOR ASIDE IN A SAFE LOCATION.
3. USING A 3/8” DRIVE RATCHET OR
CORDLESS DRILL WITH A 9/16” OR 14MM
SOCKET BIT REMOVE THE 6 BOLTS
FROM AROUND THE BOTTOM OF THE
CRATE.
4. WITH TWO PEOPLE, LIFT AND REMOVE THE
CRATE BOX TOP AND REMOVE FOAM
FROM DOOR RAMP.
5. REMOVE THE VELVET COVER.
6. REMOVE THE ZIP TIES
SECURING THE CHOCK
BLOCKS TO THE CASTER
WHEELS. USE WIRE CUTTERS,
SCISSORS, OR A BLADE TO
CAREFULLY REMOVE THESE
TIES.
7. REMOVE THE ZIP TIES
SECURING THE CHOCK
BLOCKS TO THE SHIPPING
BAR. USE WIRE CUTTERS,
SCISSORS, OR A BLADE TO
CAREFULLY REMOVE THESE
TIES.
8. NOTICE THE FRONT DOOR
HAS A FLANGE, THIS FLANGE
FITS INTO A CHANNEL IN THE
FRONT OF THE CRATE BASE
TO FORM A RAMP.
9. USE A RATCHET AND A 9/16 OR 14MM SOCKET TO REMOVE THE “U” CLAMPS
FROM THE CASTER WHEELS.
10. USE A RATCHET AND ¾” OR 19MM SOCKET TO REMOVE THE LONG FASTENERS
THAT FASTEN THE SHIPPING BAR TO THE CRATE. REMOVE THESE FASTENERS
CAREFULLY, PUT A HAND BETWEEN THE RATCHET AND THE M6 TO PROTECT
THE CABINET.
11. REMOVE CHOCK BLOCKS FROM BEHIND THE CASTER WHEELS AND FROM
UNDERNEATH SHIPPING BAR.
12. WITH TWO PEOPLE, ONE PERSON ON
EITHER SIDE OF THE M6, CAREFULLY
MOVE THE M6 3” FORWARD AND ENGAGE
ALL 4 CASTER WHEEL BRAKES. GENTLY
PUSH ON THE SIDE OF THE M6 TO ALLOW
FOR ONE PERSON TO POSITION THE
CASTER WHEELS SO THEIR BRAKES ARE
FACING THE REAR SIDE OF THE CRATE.
13. ONCE ALL (4) CASTER WHEELS ARE FACING
THE REAR, DISENGAGE THE BRAKES ON
THE CASTER WHEELS AND WITH TWO
PEOPLE (ONE ON EITHER SIDE OF THE
M6) CAREFULLY GUIDE IT DOWN THE
RAMP.

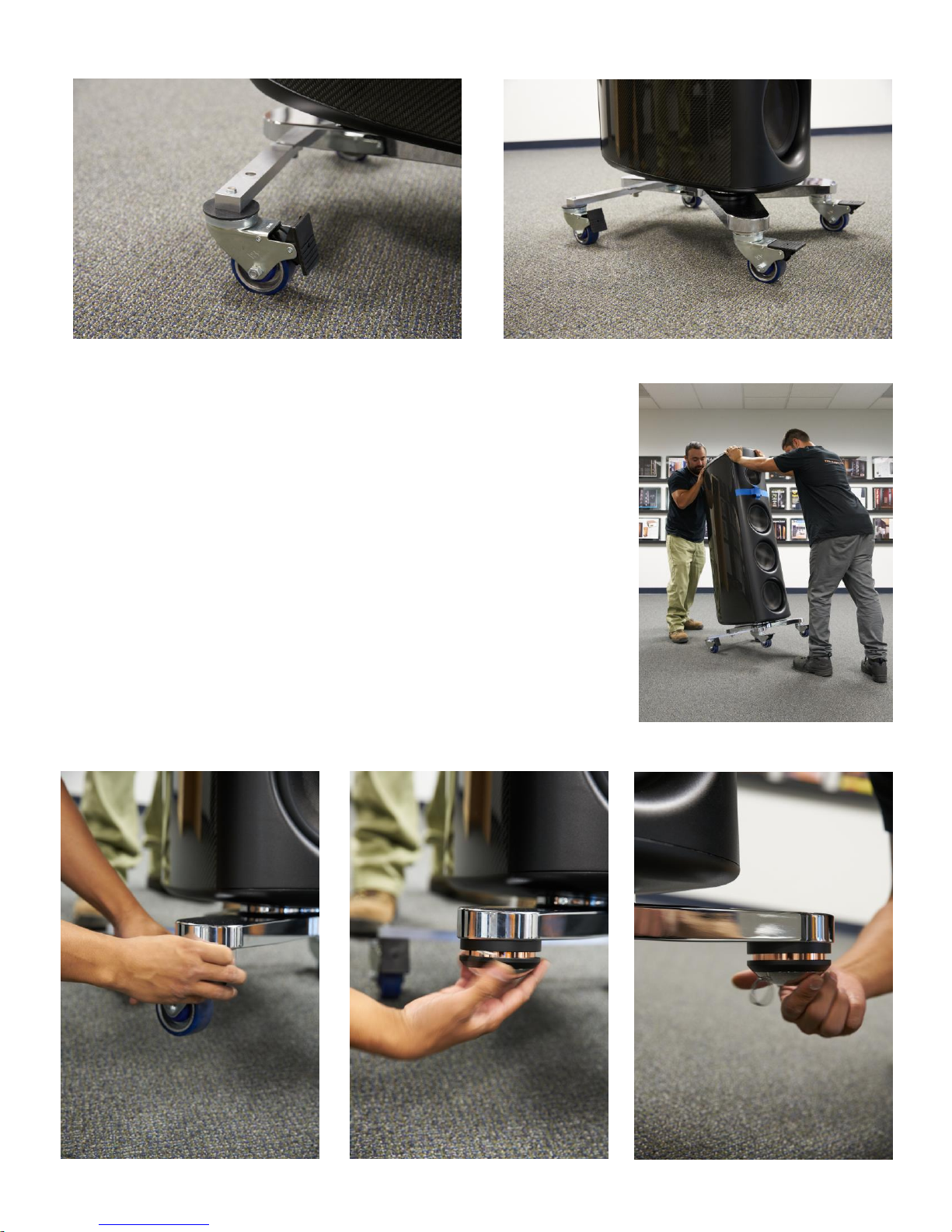

14. POSITION THE M6 IN IT’S DESIRED LOCATION.
ONCE IN POSITION, ENGAGE THE BRAKES ON
THE (2) REAR CASTER WHEELS. USING THE
HELP OF 2 OR MORE PEOPLE, TILT SPEAKER
BACKWARD, UNINSTALL FRONT CASTER
WHEELS AND INSTALL M-PODS BY
CAREFULLY THREADING THEM INTO
POSITION.
