Magicard Turbo Manual de usuario

Ultra Electronics Card Systems Quick Start Guide

MAGICARDTURBO Color Printer Page 1

MAGICARD TURBO Color Printer

Quick Start Guide for the

TURBO, TURBO M AND TURBO MS

Quick Start Guide

Printer/Software Setup

Iss. 04 Apr 99

3505-22-01

Stock No. M9004-707

DCR 25826 refers

Quick Start Guide Ultra Electronics Card Systems

Page 2MAGICARD Color Printer

Setting up your MAGICARD TURBO Color Printer

takes just three easy steps:

1. Unpack and install the printer

APreparing a Location for the Printer

BRemoving the Printer from the Box

CChecking the Package Contents

DInstall the Dye Film

ELoad the Plastic Cards

FCleaning the Card Cleaning Roller (sticky or tacky roller)

GConnect the Printer to a Power Supply

HTest the Printer Operation

IInstall the Parallel Interface Cable and Ultra Secure Key

2. Load the supplied WINDOWS Driver software.

Jx Install the WINDOWS Driver (WINDOWS 3.x)

Jy Install the WINDOWS Driver (WINDOWS 95)

KPrinter Setup

LInstall the WINDOWS Driver (WINDOWS NT4)

3. Verify computer-to-printer operation.

MVerifying Computer to Printer Communication in WINDOWS

NIn Case of Difficulty.

PImportant Cleaning procedures.

QLED Error Codes

Note: The Ultra WEB site at http://www.ultra.co.uk contains comprehensive technical support information

including the latest downloadable software, WINDOWS Drivers, Technical Bulletins etc

Conventions

Throughout this guide, the following conventions are used to identify important

information.

WARNING - Warning messages indicate where personal injury could result from

not following the correct procedures.

CAUTION - Caution messages indicate where damage to equipment could result

from not following the correct procedures.

NOTE - Notes convey important information that is identified within the text.

Ultra Electronics Card Systems Quick Start Guide

MAGICARDTURBO Color Printer Page 3

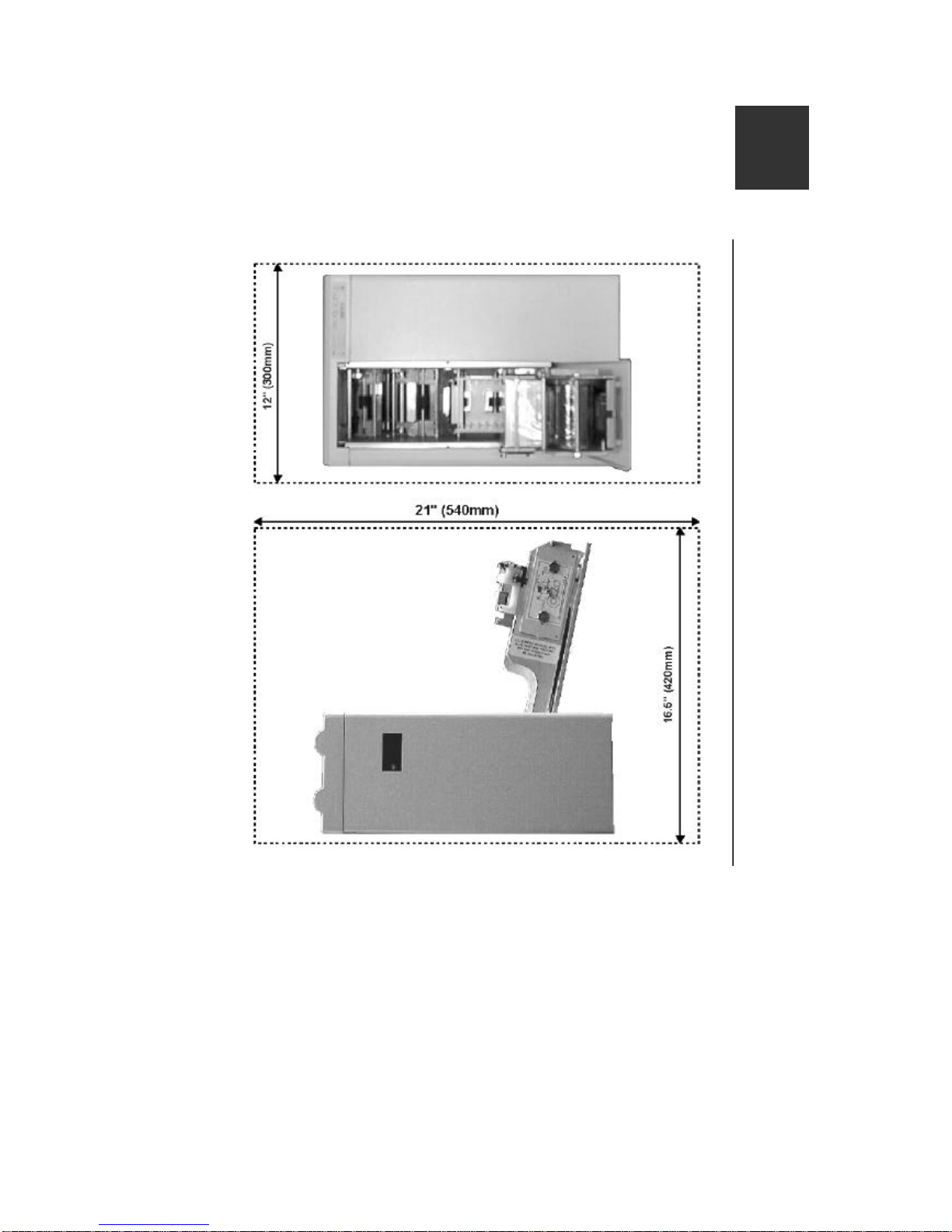

Location Requirements for your printer:

•A clean, level surface.

•Adequate space for:

- opening the Top Cover

- cable access at the rear.

- allowance for air circulation.

•An adequately ventilated room.

•An adequate power supply.

•Ambient temperature +10 to +30 deg C.

•Relative Humidity 20/70% RH.

•Protection from direct sunlight and

chemicals.

•Protection from abrupt temperature

Preparing a Location

for the Printer

Quick Start Guide Ultra Electronics Card Systems

Page 4MAGICARD TURBO Color Printer

changes.

Carefully open the box and remove any

accessories.

Place on a smooth, level table and

remove the polyethylene container.

Removing the Printer

from the Box

Ultra Electronics Card Systems Quick Start Guide

MAGICARD TURBO Color Printer Page 5

The MagiCard Color Printer

Take-up Core

The Card Cassette

A Power Cord with Moulded Plug for your

Country

Checking the

Package Contents

Locate each item as listed below:

Quick Start Guide Ultra Electronics Card Systems

Page 6MAGICARD TURBO Color Printer

Envelope containing this Quick Start

Guide and the PrintMAGIC WINDOWS

Driver 3.5" floppy disk.

OPTIONAL STARTER KIT

Note: This Starter Kit is not supplied

with your printer and must be

ordered separately, Part No

M9004-698.

The Starter Kit contains:

•One roll of UR1 YMCKO Dye Film for

full colour printing

•200 PVC Cards

•25 Cleaning Cards and Cleaning Pen

for Thermal Printhead

•1 Pair of Gloves

•1 Centronics IEEE 1284 Parallel Cable,

M2900-337

IMPORTANT NOTE:

Reference Centronics Parallel

Connection Cable:

It is recommended that an IEEE 1284

specification cable be used to connect

the Turbo Printer to the parallel port of

the PC.

This cable has double screening with the

data wires being in twisted pairs to

eliminate crosstalk and noise pickup

found in the standard types of

unscreened parallel printer cable.

Failure to use this specification cable

may lead to image degradation and

corruption of the image data being

downloaded to the printer resulting in a

poor quality or scrambled multi-coloured

card being printed.

Ultra Electronics Card Systems Quick Start Guide

MAGICARD TURBO Color Printer Page 7

Open the Printer Top Cover by releasing

the catch on the right-hand side of the

printer.

By turning the “Dzus” fastener ring a

quarter turn counter-clockwise, the dye

film carrier can be removed.

Replace the Film Carrier

Open the Dye Film package. Fit the dye

film on the lower boss, observing the

correct orientation of the dye film.

Fit the empty take-up core on the upper

boss, observing the correct orientation of

the notches on the Take-up Core.

Install the

Dye Film

Recesses

Quick Start Guide Ultra Electronics Card Systems

Page 8MAGICARD TURBO Color Printer

Manually turn the Spur Gear until the

slots on the core engage with the lugs.

Pull about 6" of dye film off the roll of dye

film, observing that it should be coming

off the top of the roll, as per the label

illustrations.

Turn the 'Dzus' Fastener 1/4 turn

clockwise to lock in place. Lay the ring

flat against the panel

Ultra Electronics Card Systems Quick Start Guide

MAGICARD TURBO Color Printer Page 9

Avoid touching the tip of the thermal

printhead with your hands.

Feed the leading edge of the dye film

over the tip of the Thermal Printhead and

beneath the two guide bars, where fitted.

(Refer to the diagram on the side).

Fasten the end of the dye film onto the

Take-up Core with a small piece of

adhesive tape, and wind on a couple of

turns. Avoid creasing of the dye film and

position it centrally on the core.

Quick Start Guide Ultra Electronics Card Systems

Page 10 MAGICARD TURBO Color Printer

Flex a stack of plastic cards, to make

sure they are not 'stuck' together. Avoid

touching the surfaces to be printed.

Drop the cards flat down into the plastic

Cassette, side to be printed uppermost,

mag stripe to the left and facing down

(if used).

Refit the card hopper back into the

printer.

Load the

Plastic Cards

1 2
