Magic mill MFD-1010 Manual de usuario
-1-
INSTRUCTION MANUAL
FOOD DEHYDRATOR
MFD-1010
PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE USING THE PRODUCT
-2-
Technical specification
Normal Voltage: 120V, 60Hz
Normal Power: 1000 W
Thermostat: 95°F-167°F

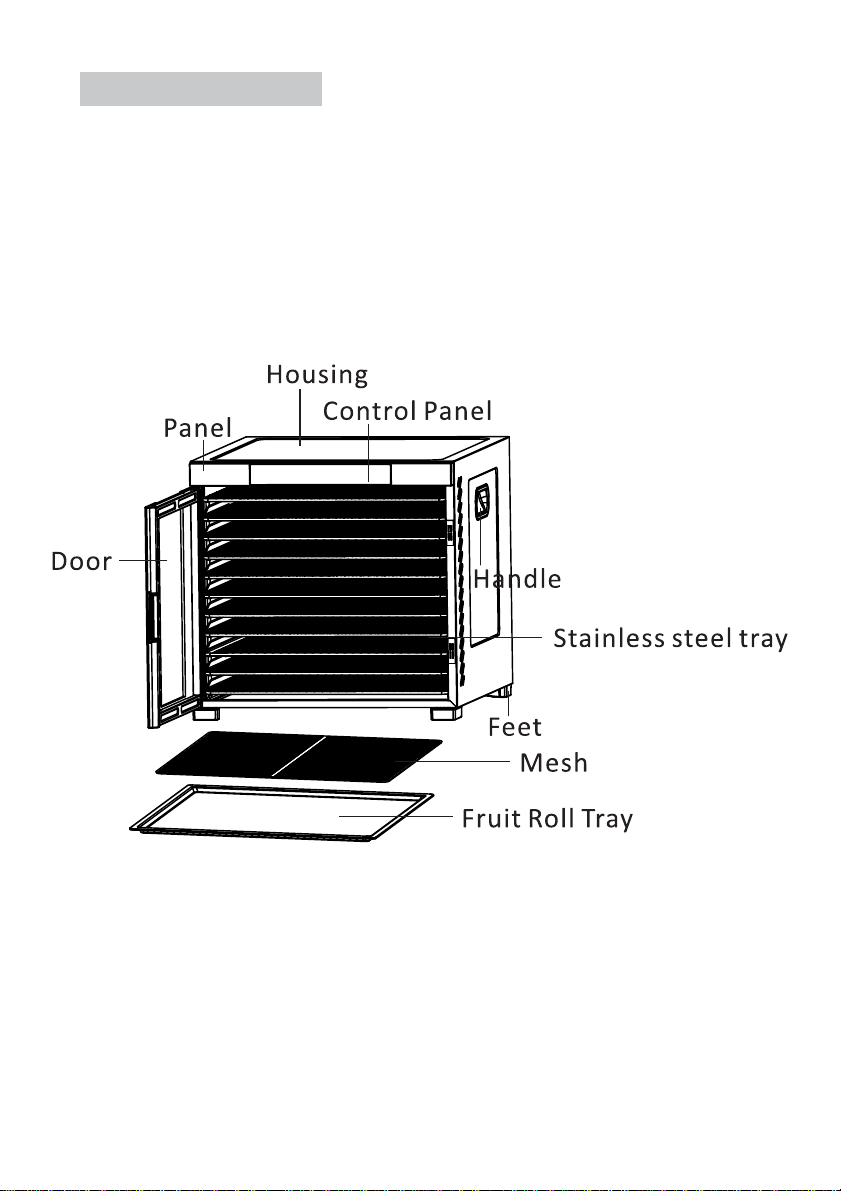

Mesh Tray:
Use for smaller items such as herbs and berries; and sticky items such as banana & tomatoes.
Non-stick sheet (Fruit Roll Tray)
Makes delicious fruit rolls naturally. When not using as Fruit Roll Tray, store at the bottom of the unit as a
crumb tray.
-3-
Getting started
Remove all the packaging materials from the product.
Place the packing inside the box and either store or dispose of responsibly
Safety Instruction
The following basic precautions should always be adhered to when using the electrical appliance.
PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE USE AND RETAIN FOR FUTURE
REFERENCE
1. This appliance can be used by children aged from 8 years and above and persons with reduced ph
ysical, sensory or mental capabilities or lack of experience and knowledge if they have been given s
upervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be m
ade by children unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of children less than 8 years.
2. This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
3. This food dehydrator is designed for DOMESTIC USE ONLY and is not suitable for commercial use.
Do not use it for outdoors.
4. When using the food dehydrator ensures that it is on a flat, level and sturdy surface, ensure no risk
that it may fall .Also that it can take the weight of the unit during use.
5. Failure to follow all the instructions listed may result in electric shock, fire or serious personal
injury .The warnings, cautions and instructions discussed in this instruction manual cannot cover all
possible conditions and situations that may occur while the product in use
6. Do not leave the food dehydrator unattended during use.
7. Always keep the food dehydrator out of children as they are unable to recognize the hazards
associated with incorrect handling of electrical appliances.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge. Unless they have been given
supervision or instruction concerning use of the appliances by a person responsible for their safety.
9. Before plugging the food dehydrator into the mains electrical supply, check that the voltage and
power supply comply with the specifications on the food dehydrator’s rating label.
10. Make sure that the food dehydrator is switched off and remove the plug from the mains electrical
supply when it is not in use; before it is cleaned and whilst it is being repaired.
11. Ensure that the food dehydrator and power cord is not hung over sharp edges and keep away from
hot objects and open flames; otherwise the plastic will melt and cause a fire.
12. Under no circumstances should the food dehydrator or plug be immersed in water or any other
liquid .Do not use the appliance with wet hands.
13. Check the food dehydrator and power cord regularly for damage.
14. Do not use the food dehydrator should there be damage to the plug or cord, following a malfunction,
-4-
or after it has been dropped or damaged in any way.
15. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarl
y qualified persons in order to avoid a hazard.
16. Repairs to the food dehydrator should only be performed by a qualified electrician .Improper repairs
may place the user at risk.
17. None of the product’s parts are dishwasher safe, unless explicitly specified otherwise.
18. Always turn the power off at the power outlet before you insert or remove a plug. Remove by
grasping the plug; do not pull on the cord.
19. Do not use your appliance with an extension cord unless this cord has been checked and tested by a
qualified technician or service person.
20. Never use an unauthorized attachment.
21. Avoid contact with moving parts. Keep hands, hair, clothing, spatulas and other utensils away during
operation to reduce the risk of injury to persons and/or damage to the machine.
22. Please don’t turn the draught of engine towards others or tinder.
23. Please don’t keep it beside anything heating. Please keep the plug away from pressing; otherwise it
will cause a fire or electric shock.
24. If you pass this appliance on to a third party, these operating instructions must also be handed over.
Caution:
zATTENTION! Do not run the appliance for more than 24hours in one single use. After 24 hours.
Unplug and let it cool down for at least 2 hours before operating again.
zDo not operate near gas spray cans.
zIncorrect operation and improper handling can lead to malfunction of the appliance and injuries to
the user.
zThe power cord can not be squeezed by something heavy or sharp, otherwise it will cause a fire or
electric shock.
zThe temperature of accessible surface may be HIGH when the appliance is operating.
zTo reduce the risk of electric shock, do not immerse or expose the product, flexible
cord or plug to rain, moisture or any liquid.
zDo not use the product near baths, basins or other vessels containing water or other
liquids, or when standing in or on damp or wet surfaces.
Don’t keep the device in the
watery environment;
z
Keep the device away the place of high temperature, ray and wetly.
z
Don’t operate the device with wet hands.
z
Please turn off the power supply in the watery environment.
zIn the event where the appliance is dropped into the water, turn off the power at the
power outlet and remove the plug immediately. DO NOT REACH INTO THE WATER
TO RETRIEVE IT.
zIt is important to note that the appliance will have to be inspected by a qualified
technician before using it again.
Feature of Dehydrator
This unit features an automatic fan, which circulates warm air producing a nice evenly dried device!
Dried foods are a great treat to snack on because they hold almost all of their nutritional value and flavor.
· Perfect way to preserve fruit, snacks, vegetables, bread, flowers and more.
· With ten stainless steel tray, each tray can’t over 0.6kgs food
· If you want to dry thicker food, you can take out one tray to make the height higher between two trays.
· Put the Non-stick sheet on bottom can collect the residue during dry food
· From the transparent window, you can see the food situation during drying.
Before Use:
Cleaning:
Before using the first time, wipe all parts of the appliance. Clean the1trays, and mesh, on-stick sheet
with a lightly moistened cloth.
Use detergent as needed. Don't put the main engine into water or other liquids!
After cleaning the unit must be run in for 30 minutes without placing any food for drying during this period.
Any smoke or smells produced during this procedure are normal. Please ensure sufficient
ventilation. After the running in period, rinse the racks in water and dry all parts. This act is only
necessary for the first time.
Unplug the dehydrator from the power supply and let it cool down before cleaning. Use a soft brush to
remove food sticking. Dry all parts before storing the dehydrator.
Do not clean the appliance with aggressive chemicals or abrasives in order not to damage the surface.
Assembling the appliance:
Make sure that the dehydrator sits steadily on a solid level surface. Stock the drying trays and connect
the plug with a wall socket. The dehydrator is now ready for use.
167
-5-
-6-
Hints:
·This dehydrator includes 11trays and an overheat protection. The host contains heating elements,
motor, fan and thermostat.
·The air vents on the tray allow air to be circulated.
·Using a controlled heat temperature, Air from the back flow into each tray drying moisture..
·Depending on the moisture in the food itself and the humidity in the air, drying operation time can
change. Use the dryer in a dust free, well ventilated, warm and dry room. Well air ventilation is also
important.
· Fruit and vegetables dried in your food dehydrator will be different in appearance from those
sold in health food stores and supermarkets. This is due to your food dehydrator uses no
preservatives, no artificial coloring and only natural additives.
·Records of humidity, weight of produce before and after drying times, will be helpful to improving your
drying techniques for the future.
4. To Adjust Temperature (95ഘ-16ഘ)
Press the TIME/TEMP button and the temperature in the display window will begin to flash (if the time flashes,
press the TIME/TEMP button again).
Press the + or –buttons to select the desired temperature. To change the temperature rapidly,
hold down the + or –buttons. The temperature range for this dehydrator is 95°F to 16°F.
5. To Set Timer (30 minutes -- 24 hours)
Press the TIME/TEMP button and the time in the display will begin to flash. If the temperature flashes, press
the TIME/TEMP button again.)
Press the + or –buttons until the desired time is displayed. If you hold down the + or –buttons, the time will
change rapidly.
At any time, you can adjust the time or temperature by using the TIME/TEMP, +, and –buttons.
You can stop the dehydrator at any time by pressing the START/STOP button.
After finish setting, the unit will start to work in 3 seconds.
RAW mode : temperature 113°F ,24 hours (The screen will show RAW )
7. KEEP WARM button :
This is optional function, press KEEP WARM button, the screen will show KEEP WARM, and the unit will
keep on working for more 24 hours (95°F) after finish drying .
After the time has elapsed, the screen will show 88:88 and the heating element will turn off. The fan will
continue running for 10 seconds, and the unit will beep 5times to signal that the drying time has finished
and the heater element has switched off.
Note: If you do not have time to dry all the food in one day, you can dry them the next day. In this case, you
should store the food in a container/polyethylene bag and put it in the freezer.
8. Unplug the unit at the power outlet.
6. FAST/RAW button :
FAST mode : temperature 16°F , time 10 hours (The screen will show FAST )
-7-
DEHYDRATOR
COOKBOOK
-8-
DRYING TIPS:
Drying time for pre-treatment fruit will vary according to the following
factors:
1) thickness of pieces or slices
2) number of trays with food being dried
3) volume of food being dried
4) moisture or humidity in your environment
5) your preferences of drying for each type of dried food
It is recommended to:
zCheck your food every hour.
zRotate and/or re-stack your trays if you notice uneven drying.
zLabel food with contents dried, date and weight before drying. It
will also be helpful to note the drying time for future reference.
zPretreated food will give the best effect in drying.
zCorrect food storage after drying also will help to keep food in
good quality and save the nutrients.
-9-
Temperature Settings Uses
95°F Herbs, Flowers, Dough
104°F Yogurt
113°F Soft Vegetables
122°F Hard Vegetables
131°F Citrus Peel
140°F Fruit
149°F Fish
158-167°F MeatJerky,FruitRolls
