S215 REPAIR MANUAL
S215 REPAIR MANUAL
2
These instructions are intended to help restore any ailing S215 Passive
Loudspeaker back to factory working conditions. They show how to remove and
replace the drivers.
Please contact Mackie Technical Support (1-800-898-3211) to receive a Service
Request Number and Order Number for parts needed for this restoration. They will
also help you determine the nature of the problem and what parts will repair the unit.
Tools needed:
***NOTE: not all tools listed below will be needed for your repair***
• Phillips head screwdriver.
• 3mm and 5mm allen wrench.
• 8mm open end wrench.
• Solid workbench.
Parts needed:
***NOTE: not all parts listed below will be needed for your repair***
• 15” Woofer Part #0010658 pages 3-4
• High Frequency Driver Part #0008093 pages 5-8
• Diaphragm Part #coming soon pages 9-10
Safety Warnings:
• Make sure that you disconnect all cords before you begin these procedures.
• Always use safety glasses!
• Please try NOT to touch any of the pcb circuitry, capacitors, resistors, etc.
• Take care to read and follow these instructions. It may help to read the
instructions prior to the repair to get an idea of what it entails.
3
Woofer replacement:
1
1Three screws need to be removed from
each side of the grill (six screws total)
using the phillips head screwdriver. A flat
head screwdriver may aid in loosening
the grill if it is sticking.
2
2Keep the six screws in a safe place.
3
3Four screws need to be removed from
the woofer using the 5mm allen wrench.
1
1
2
2
3
3
4
4
5
5
6
6
1
1
3
3
2
2
4
4
4
4Keep these four screws in a safe place,
too.
4
5
5Carefully begin to remove the woofer.
This woofer has a tendency to want to
pop out, so please be sure to hold the
woofer in place with your free hand
while removing the screws with the other
hand.
Caution: The woofer is approximately
10 pounds with the weight unevenly
distributed.
Woofer replacement continued:
6
6The positive (solid yellow) and negative
(solid black) cables are still attached to
the woofer terminals. Notice the positive
(+) and negative (-) indents located next
to each terminal (circled above). Do
not force cable removal or connection,
although needle-nose pliers may aid in
loosening the crimped cables.
+
+
-
-
pull out
pull out
7
7The picture above shows what the
S215 looks like with the grill and woofer
removed. Place the new woofer (part
#0010658) where the old one was. Follow
the same steps as above, but backwards
6 to 1. Power up the S215 and the
new woofer should now be pumping
out glorious lows. Awesome, you just
replaced a 15” woofer!
5
High Frequency Driver replacement:
1
1Three screws need to be removed from
each side of the grill (six screws total)
using the phillips head screwdriver. A flat
head screwdriver may aid in loosening
the grill if it is sticking.
2
2Keep the six screws in a safe place.
1
1
2
2
3
3
4
4
5
5
6
6
3
3Four screws and flat washers need to be
removed from the horn assembly using
the 5mm allen wrench.
1
1
3
3
2
2
4
4
4
4Keep the four screws and flat washers in
a safe place.
6
5
5Carefully begin to remove the entire horn
assembly (with the high frequency driver
still attached). A flat head screwdriver
may aid in loosening the horn assembly
by prying between it and the cabinet.
Hold the horn assembly in place with one
hand while prying around the edge with
your free hand.
Caution: The horn weighs about 5
pounds, and the weight is unevenly
distributed.
High Frequency Driver replacement continued:

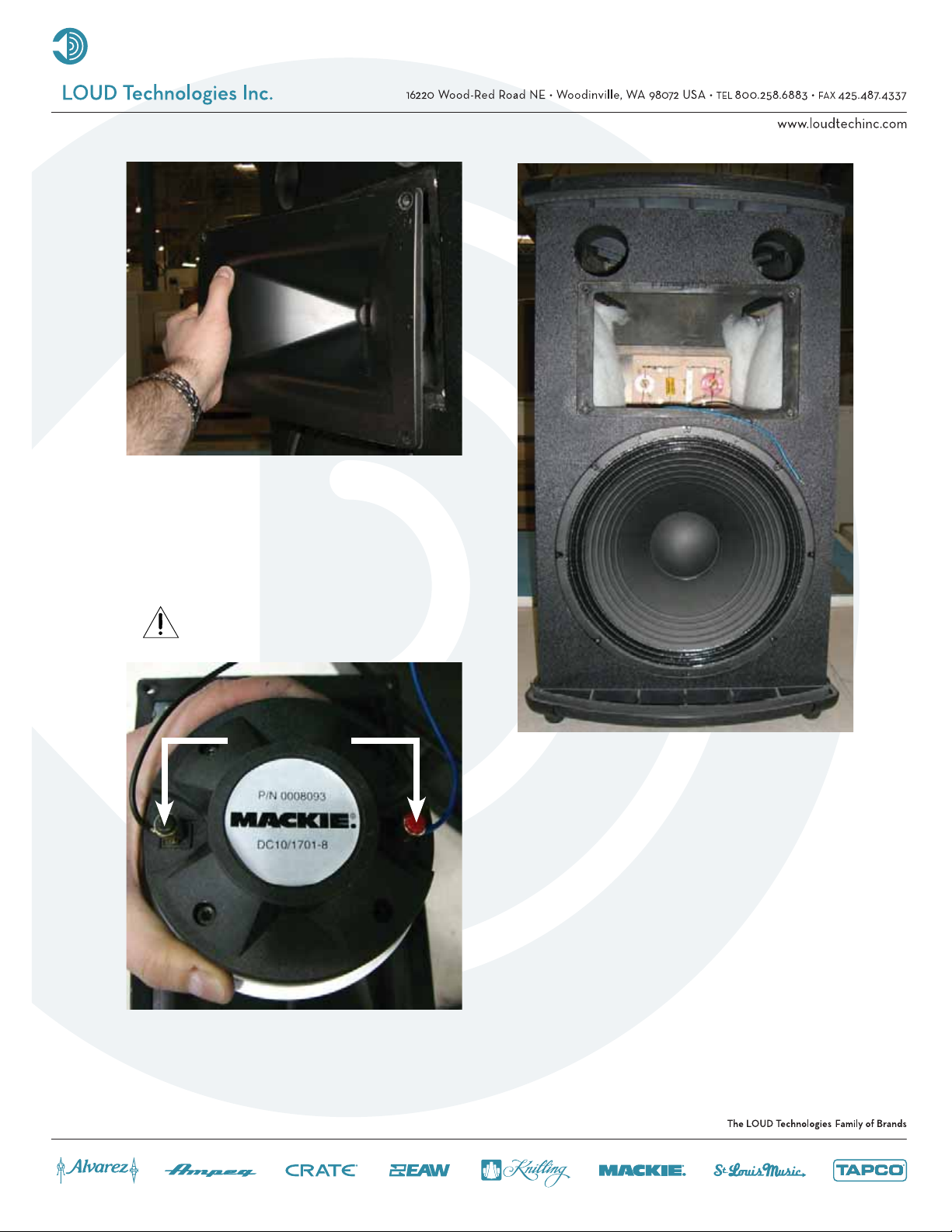

6
6The positive (solid blue) and negative
(solid black) cables are still attached
to the high frequency driver terminals.
Remove the cables from their terminals
simply by pushing down on the terminal
and pulling out the cable.
7
7This is what it looks like with the grill
and horn assembly removed. See the
next page for further instructions and
additional pictures on how to remove
and replace the high frequency driver.
-
-
+
+
Push down
Push down
7
High Frequency Driver replacement continued:
8
8Four nuts and eight washers may be
removed from the driver using the
8mm open end wrench. Turn counter-
clockwise to loosen and remove,
clockwise to tighten. The other three are
located around the horn assembly. Lift
the horn up as the nuts are loosened. It
cannot be removed otherwise. Notice
that the flat washer is on the bottom,
followed by the locking washer, and
finally the nut.
9
9Keep the four nuts, four locking washers,
and four flat washers in a safe place.
10
10 The horn assembly should easily lift
right off of the high frequency driver.
flat washer
flat washer
headless
headless
screw
screw
locking washer
locking washer
nut
nut
8
High Frequency Driver replacement continued:
11
11 This is what the high frequency
driver looks like removed from
the horn assembly. Four headless
screws need to be removed from
the driver. Pliers could help if the
screws are too tight. Turn counter-
clockwise to loosen and remove,
clockwise to tighten.
12
12
Keep the four headless screws in
a safe place. Place the new high
frequency driver (part #0008093)
where the old one was by following
the same steps as above, but
backwards 11 to 1. Power up the
S215 and the new driver should now
be pumping out those highs again.
Fantastic, you just replaced a high
frequency driver!
1
1
3
3
2
2
4
4
1
1
3
3
2
2
4
4
9
3
3The horn assembly is shown above with
the high frequency driver circled. Four
screws need to be removed from the
driver using the 3mm allen wrench.
4
4Keep the four screws in a safe place.
5
5The diaphragm and plate adapter are
easily removed from the horn assembly.
Notice the terminal locations in relation
to the indents of the high frequency
driver (circled above).
Diaphragm replacement:
2
2Follow steps 1-6 of the high frequency
driver replacement instructions, as the
horn will need to be removed in order to
access the diaphragm.
1
1At the present time (January 2007),
diaphragms are not currently available,
so you will have to replace the complete
driver following the previous section
(pages 5-8). If you have received a
diaphragm, please follow the steps
below.
6
6This is what the plate adapter and
diaphragm look like after they have
been removed from the horn assembly.
The diaphragm is separated from the
plate adapter simply by pushing down
on the terminals.
1
1
2
2
3
3
4
4
10
7
7This is what the plate adapter (left) and
diaphragm (right) both look like. Place
the new diaphragm (part # coming
soon) where the old one was. Follow the
same steps as above, but backwards
6 to 1. Power up the S215 and the new
diaphragm should now be pumping
out those highs again. Sweet, you just
replaced a diaphragm!
Diaphragm replacement continued:
