Mach Speed Technologies Eclipse Touch 2.8V Manual de usuario
Model 2.8V
1
Model Eclipse Touch 2.8V
Instruction Manual
Congratulations on purchasing your Eclipse Personal Media Player!
To get the most out of your purchase, please take the time to carefully
read through this manual.
Foreword
If any problems occur while using your Eclipse, please
feel free to contact Mach Speed technical support at
580-272-0035, or send an email to
Thank you for your support and cooperation!
Mach Speed Technologies bears no responsibility for any
damage or loss of personal data due to misuse of software
and/or hardware, damage to the player caused by human
factors, replacement of battery, or other unforeseen
circumstances. To prevent loss of your data, please
backup your data regularly.
Information in the manual is subject to change without
notice and is subject to copyright protection. Copying or
2
otherwise reproducing this material without prior written
consent is prohibited.
Due to Firmware changes, some of the pictures and
functions described in this manual may not be the same
as are included with your player.
Do not dispose of this product in fire. Batteries inside this
product may explode or leak.
Note:
●The playback times listed refer to the maximum
playback times possible, while using the best power
savings. The actual playback time may differ as
adjustments to screen brightness, power savings modes,
volume, etc., are made.
●There are many brands of Micro SD cards on the
market, using different quality and speed standards.
Therefore, we are unable to guarantee that our product
will be compatible with all types or brands of Micro SD
cards, but it will be compatible with those Micro SD
cards with mainstream specifications on the market, and
3
we will constantly strive to provide the largest selection
of cards possible.
●As parameters such as formats, bitrate, codecs, frame
rates, and resolutions differ, the player will not be
compatible with all listed files. If you are experiencing
issues playing your files on this player, we recommend
using a supported conversion tool to reconvert your file
to the specifications of the device.
Caution
Modifications not approved by the party responsible for
compliance could void the user’s authority to operate the
equipment.
NOTE- This equipment has been tested and found to
comply with the limits for Class B Digital device,
pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generate, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
or telephone reception, which can be determined by
4
turning the equipment off and on. The user is encouraged
to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the
receiver.
Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Caution
Do not use the player in exceptionally cold or hot,
dusty, damp or dry environments.
Do not drop, strike, or throw your player. Physical
damage to your player will void ALL warranties.
Please charge your battery when:
Battery power icon shows an empty icon.
The system automatically shuts down and the power
is soon off when you switch on the unit once again.
There is no response if you tap an icon or press a
button
Please always follow the correct disconnect
5
procedures for your operating system. Do not
disconnect power abruptly when the player is being
formatted, in the process of uploading or
downloading files. Otherwise it may lead to file
corruption, firmware failure, and even hardware
damage.
We are not liable for any loss of data stored on this
device.
Please do not dismantle this player. Any disassembly
not done by an authorized technician will void ALL
warranties.
This product and manual are subject to change without
subject to notice.
Basic Features
Touch Screen Operating system for ease of use
240*320, 26K color high speed TFT screen
Built-in 1.3MP digital camera
Music player: compatible with MP3 and WAV formats
Picture browser: for JPEG, BMP, GIF, PNG and TIF
formats
Video player: for playing video of AVI, 3GP and FLV
formats
USB2.0 high speed transmission
6
Basic Operation
Power On
Set the Power switch and hold to the ON/OFF position
for several minutes to start the unit.
Power Off
Press and hold the Power button to the ON/OFF position
for several minutes; 2.long pressing the M button.
Lock/unlock
When the unit is unlocked, switch and hold the power
button to the LOCK/UNLOCK position to lock the unit,
when the unit is locked, switch and hold the power button
to the LOCK/UNLOCK position to unlock the unit.
Volume Adjustment
In Music or FM radio mode, touch the dot above and
if using your finger, keep touching to the right of the
dot to increase volume. Touch to the left of the dot to
decrease volume (Or, with the stylus, drag the volume
icon). In Video mode touch the to enter, and then do
the same steps as Music or FM radio, above.
7
Charging
To charge the player, simply connect it to a powered
USB port, or external AC adapter. If you choose to
use a third party adapter, please ensure that it is 5V
and between 350 and 1000mA, or 1amp Low Power
When battery power is low, the player will prompt you,
power off, and enter Standby mode automatically. Do not
try to turn on the unit. You must charge again before
using.
Charger current specification recommended: 400-500mA.
Inserting and removing the Micro SD card
Inserting: Ensure that the player is powered off, and
disconnected from the computer. Hold the Micro SD card
face up (side with words aligned in the opposite direction
of the display screen), and slide the card into the socket
8
on the player, slightly past flush. When you hear the card
click into place, you can access the card.
Removing: Ensure that the player is powered off, and
push the SD card just past flush. When you hear the click,
release pressure, and the card will slide out.
Caution: Please ensure that the power is off when you
connect or disconnect your SD card, or damage may
occur to the player or your card.
Loading files
Using Windows Media Player
Before ripping your CD to your computer using your
Windows Media Player there are a couple steps we can
go through to make sure that you are ripping them to the
compatible format for your Eclipse/Trio Player.

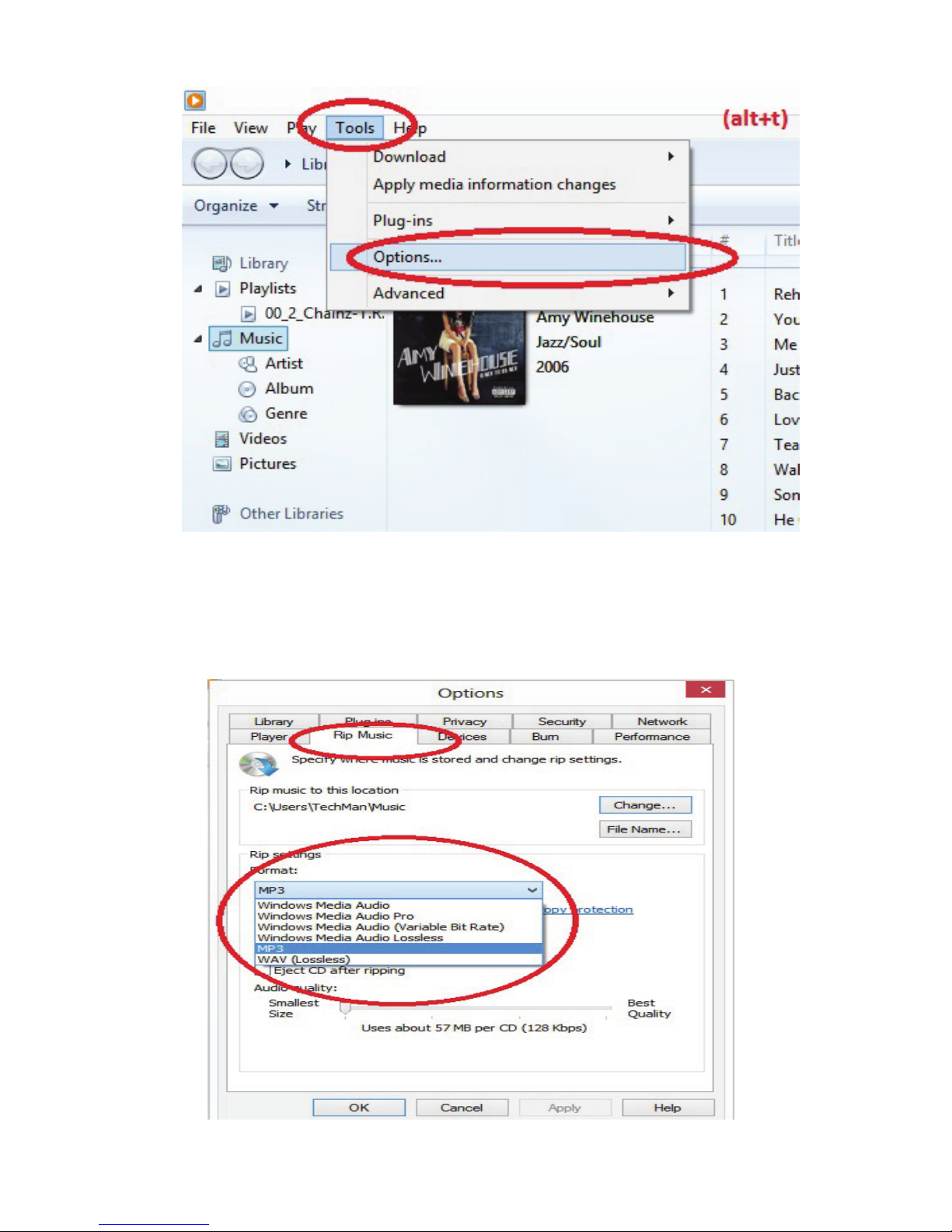

1. Open your Windows Media Player (these steps will
work on any version after WMP 9).
2. Click on Tools at the top of your screen. (If you do not
see tools hold down the ALT button and tap T).
9
3. Choose Options. This will pull up a menu with tabs.
Click on the RIP MUSIC tab .
