M-Elec NOX HIGHBAY Manual de usuario

The legend of the NOX range has expanded into our new Highbays

with enhanced durability & rapid heat dissipation. The power select-



microwave sensor ensures a quick and easy install every time.

Product information

ML-NOX-HB50-150-A

OUR FULL RANGE

TECHNICAL INFORMATION

ML-NOX-HB50-150-A ML-NOX-HB100-230-A ML-NOX-HB150-300A

Total Power: 50 TO 150W* 100 TO 230W* 150 TO 300W*

Lumen Output: up to 21000lm up to 33145lm up to 43564lm

Colour Temp: W5000K

IP Rating: IP65

Impact Rating: 

 up to 163lm/W up to 166lm/w up to 158lm/W

CRI: >80

Beam Angle: 90°

Temp Range: 

Dimmable: Yes 1-10V

 

Average Life: 50,000 hrs**

Max Current

   

Power Factor 

Dimensions:

W× H× D: Ø328x201mm (H) Ø371x206mm (H) Ø413x228mm (H)

Weight: 3.3kg 4.6kg 5.4kg

 7 years

Construction: 

Kit Includes: 

















Accessories sold









*Total power consumed including driver





HIGHBAY

ML-NOX-HB100-230-A ML-NOX-HB150-300-A

T. 1300 222 445 | www.melec.com.au melec.com.au/legal/warranties



SAA,IP65, IK08, C-TICK

TECHNICAL INFORMATION



ML-NOX-HB50-150-A

Total Power: 

Lumen Output: 21000lm

Colour Temp: 5000K

IP Rating: IP65

 140lm/W

CRI: >80

Beam Angle: 90°

Temp Range: 

Dimmable: Yes 1-10V

 

Average Life: 50,000 hrs**

 

 

 

IK Rating 

 

Dimensions WxHxD: Ø328x201mm

Weight: 3.32kg

 7 Years

Construction: 

*Total power consumed including driver

** Average life is calculated on expected average lifespan

Commercial or Industrial applications:

- General area lighting (up to 6m high)

- Warehouses/storage facilites



DIMMABLE WARRANTYBEAMIK08IP65

• 

• 

• Power selectable - max 150W (50W/80W/100W/150W)

• 

• 5000K colour output

• 1-10v dimming capability

• 90° beam angle

• IP65 and IK08 rated

• 

accessories available

The legend of the NOX range has expanded into our new Highbays

with enhanced durability & rapid heat dissipation. The power select-



quick and easy install every time.

90°

YEAR

APPLICATIONS

FEATURES

HIGHBAY

50-150W

COMPLIANCE



ML-NOX-HB50-150-A

150W

80W

50W

100W

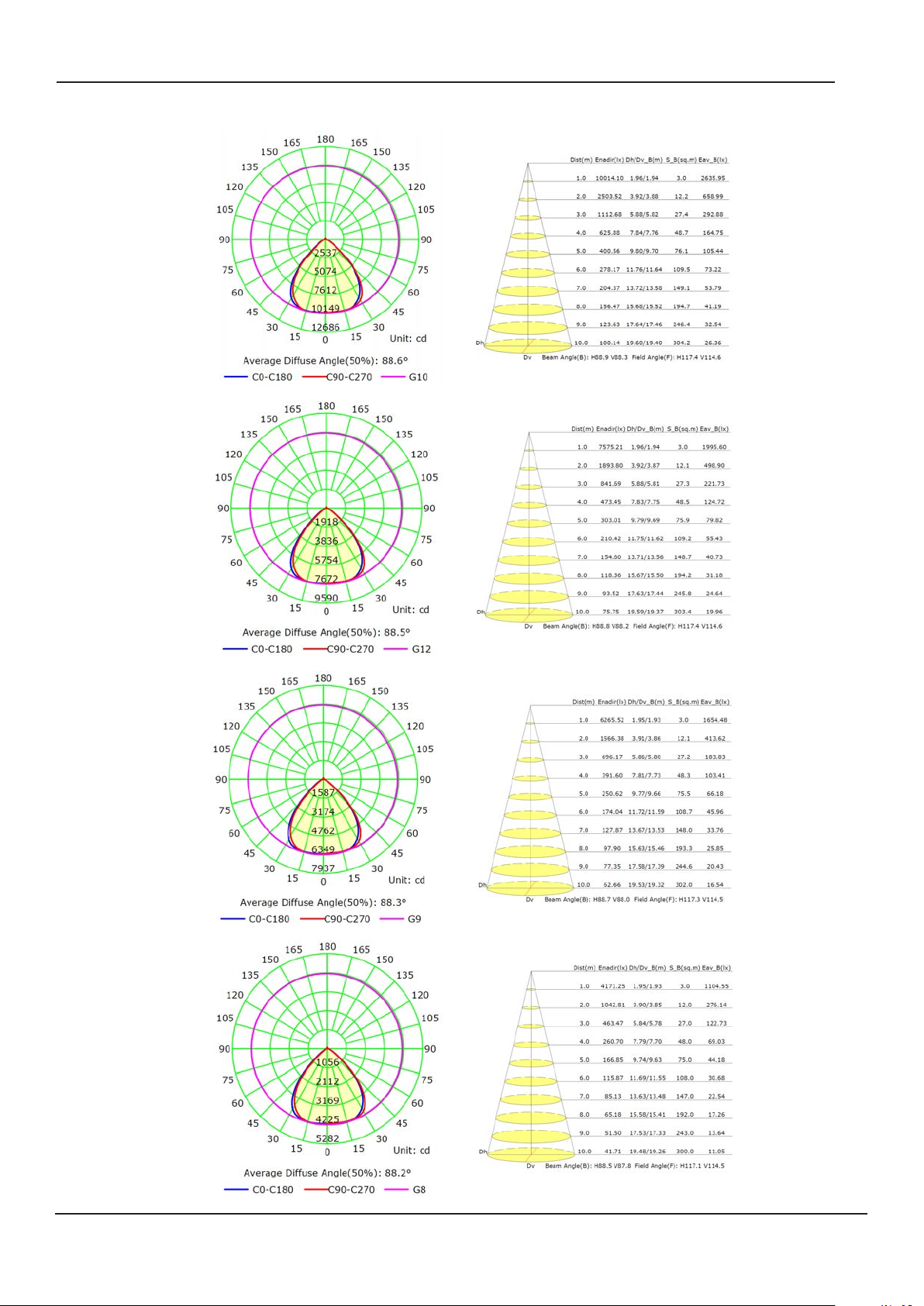

CANDELA DIAGRAM & ISOLUX PLOT

PRODUCT DIMENSIONS







POWER OUTPUT CHART

ML-NOXHB50-150-A

POWER SETTING POWER (W) LUMEN OUTPUT (lm) EFFICACY CURRENT

50 50 8000 160 0.2546A

80 80 13000 163 0.3628A

100 100 15700 157 0.4372A

150 150 21000 154 0.5985A

A A

B B

C C

D D

E E

F F

G G

H H

DRAWN

CHK'D

APPV'D

MFG

Q.A

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETERS

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBURR AND

BREAK SHARP

EDGES

NAME

SIGNATURE

DATE

MATERIAL:

DO NOT SCALE DRAWING

REVISION

TITLE:

DWG NO.

SCALE:1:5

SHEET 1 OF 1

WEIGHT:

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPRIETARY OF

M-ELEC PTY. LTD. ANY REPRODUCTION

IN PART AS A WHOLE WITHOUT THE

WRITTEN PERMISSION OF

M-ELEC PTY. LTD. IS PROHIBITED

A A

B B

C C

D D

E E

F F

G G

H H

DRAWN

CHK'D

APPV'D

MFG

Q.A

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETERS

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBURR AND

BREAK SHARP

EDGES

NAME

SIGNATURE

DATE

MATERIAL:

DO NOT SCALE DRAWING

REVISION

TITLE:

DWG NO.

SCALE:1:5

SHEET 1 OF 1

WEIGHT:

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPRIETARY OF

M-ELEC PTY. LTD. ANY REPRODUCTION

IN PART AS A WHOLE WITHOUT THE

WRITTEN PERMISSION OF

M-ELEC PTY. LTD. IS PROHIBITED

A A

B B

C C

D D

E E

F F

G G

H H

DRAWN

CHK'D

APPV'D

MFG

Q.A

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETERS

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBURR AND

BREAK SHARP

EDGES

NAME

SIGNATURE

DATE

MATERIAL:

DO NOT SCALE DRAWING

REVISION

TITLE:

DWG NO.

SCALE:1:5

SHEET 1 OF 1

WEIGHT:

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPRIETARY OF

M-ELEC PTY. LTD. ANY REPRODUCTION

IN PART AS A WHOLE WITHOUT THE

WRITTEN PERMISSION OF

M-ELEC PTY. LTD. IS PROHIBITED

SAA,IP65, IK08, C-TICK

TECHNICAL INFORMATION



Total Power: 

Lumen Output: up to 33145lm

Colour Temp: 5000K

IP Rating: IP65

 160lm/w

CRI: >80

input current inrush at 240V 

Beam Angle: 90°

Temp Range: 

Dimmable: Yes 1-10V

 

Average Life: 50,000 hrs**

Inrush Current:

Current Draw:





 

IK Rating 

LM Rating 

Dimensions: 407x347x85mm

Weight: 4.58kg

 7 Years

DIMMABLE WARRANTYBEAMIK08IP65

POWER

SELECTABLE

• 

• 

• Power selectable - max 230W (100W/150W/200W/230W)

• 

• 5000K colour output

• 1-10v dimming capability

• 90° beam angle

• IP65 and IK08 rated

accessories available

The legend of the NOX range has expanded into our new Highbays

with enhanced durability & rapid heat dissipation. The power select-



a quick and easy install every time.

*Total power consumed including driver



Commercial or Industrial applications:

- General area lighting (up to 6-13m high)

- Warehouses/storage facilites



90°

YEAR

APPLICATIONS

FEATURES

HIGHBAY

100-230W

COMPLIANCE



100W

CANDELA DIAGRAM & ISOLUX PLOT

ML-NOX-HB100-230-A

230W

150W

200W

POWER OUTPUT CHART

PRODUCT DIMENSIONS



ML-NOXHB100-230-A

POWER SETTING POWER (W) LUMEN OUTPUT (lm) EFFICACY (lm/W) CURRENT

100 98 16409lm 166lm/W 0.416A

150 149 23251lm 155lm/W 0.613A

200 199 29380lm 147lm/W 0.833A

230 229 33145lm 144lm/W 0.958A

A A

B B

C C

D D

E E

F F

G G

H H

DRAWN

CHK'D

APPV'D

MFG

Q.A

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETERS

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBURR AND

BREAK SHARP

EDGES

NAME

SIGNATURE

DATE

MATERIAL:

DO NOT SCALE DRAWING

REVISION

TITLE:

DWG NO.

SCALE:1:5

SHEET 1 OF 1

WEIGHT:

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPRIETARY OF

M-ELEC PTY. LTD. ANY REPRODUCTION

IN PART AS A WHOLE WITHOUT THE

WRITTEN PERMISSION OF

M-ELEC PTY. LTD. IS PROHIBITED

A A

B B

C C

D D

E E

F F

G G

H H

DRAWN

CHK'D

APPV'D

MFG

Q.A

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETERS

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBURR AND

BREAK SHARP

EDGES

NAME

SIGNATURE

DATE

MATERIAL:

DO NOT SCALE DRAWING

REVISION

TITLE:

DWG NO.

SCALE:1:5

SHEET 1 OF 1

WEIGHT:

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPRIETARY OF

M-ELEC PTY. LTD. ANY REPRODUCTION

IN PART AS A WHOLE WITHOUT THE

WRITTEN PERMISSION OF

M-ELEC PTY. LTD. IS PROHIBITED

A A

B B

C C

D D

E E

F F

G G

H H

DRAWN

CHK'D

APPV'D

MFG

Q.A

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETERS

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBURR AND

BREAK SHARP

EDGES

NAME

SIGNATURE

DATE

MATERIAL:

DO NOT SCALE DRAWING

REVISION

TITLE:

DWG NO.

SCALE:1:5

SHEET 1 OF 1

WEIGHT:

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPRIETARY OF

M-ELEC PTY. LTD. ANY REPRODUCTION

IN PART AS A WHOLE WITHOUT THE

WRITTEN PERMISSION OF

M-ELEC PTY. LTD. IS PROHIBITED





SAA,IP65, IK08, C-TICK

APPLICATIONS

TECHNICAL INFORMATION





Total Power: *

Lumen Output: up to 43564lm

Colour Temp: 5000K

IP Rating: IP65

 139lm/W

CRI: >80

 

Input current inrush at 240V 

Beam Angle: 90°

Temp Range: 

Dimmable: Yes 1-10V

 

Average Life: 50,000 hrs**

 

 

 

IK Rating 

LM Rating 

Dimensions: 594x357x95mm

Weight: 7.4kg

 7 Years

HIGHBAY

150-300W

DIMMABLE WARRANTYBEAMIK08IP65

POWER

SELECTABLE

• 

• 

• 

• 5000K colour output

• 1-10v dimming capability

• 90x120° beam angle

• IP65 and IK08 rated

• 

bracket accessories available

The legend of the NOX range has expanded into our new Highbays

with enhanced durability & rapid heat dissipation. The power select-



a quick and easy install every time.

Commercial or Industrial applications:

- General area lighting (up to 6-13m high)

- Warehouses/storage facilites



*Total power consumed including driver



90°

YEAR

FEATURES COMPLIANCE
