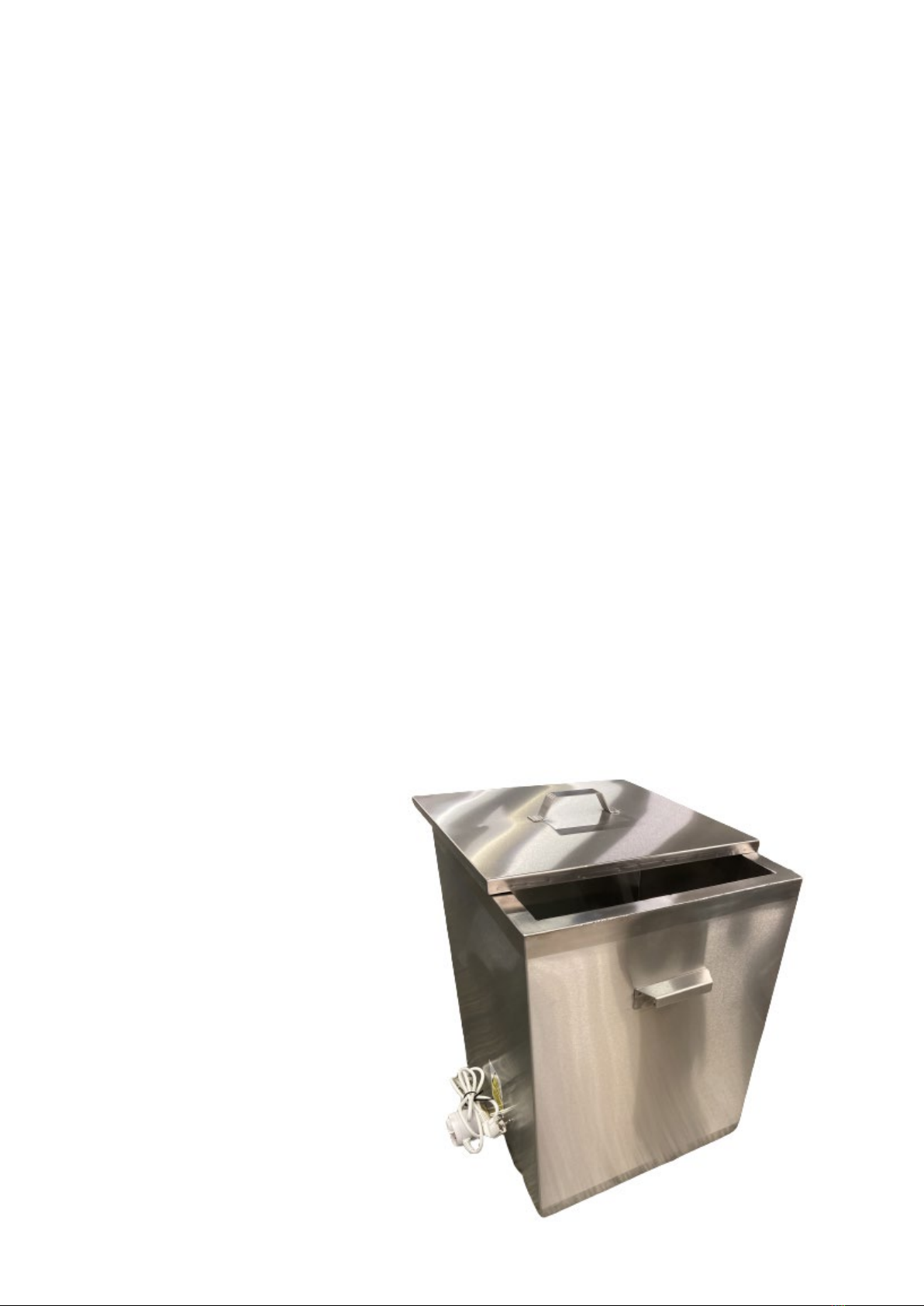

Wax melter with water jacket and
thermal-insulated cover.
Before first use read the manual carefully and follow the
instructions contained therein. The manufacturer is not liable
for damage caused by equipment used inappropriately or by
incorrect handling
1. General safety instructions
1.1. Electrical safety
a) Connect the device to a socket with voltage specified on
the rating plate of the product.
b) The electrical supply system must be fitted with a
residual-current circuit breaker with rated tripping current
not higher than 30mA. Performance of the circuit breaker
should be checked periodically.
c) Periodically check the condition of the power cord.
Replace the power cord if damaged. Replacing the power
cord can only be performed by the manufacturer or by
qualified personnel.
d) Do not use the device if the power cord is damaged!
e) In the event of damage to the device, to avoid any health
and safety risks, repairs should be carried out only by
qualified personnel.
f) Do not pull the power cord.
Keep the power cord away from heat sources and sharp
edges to ensure its good condition.
1.2. Operation safety
a) The device is not intended for use by persons (including
children) with limited physical, sensory or mental abilities,
or by inexperienced users, unless under supervision or
with instructions given by an accountable party.
b) Ensure the floor surface on which the device is placed is
dry
c) Keep the cover on at all times during melting process
d) Do not move the device during operation
e) Protect against moisture
f) Do not use the device near flammable materials.
g) Never carry out any maintenance or repairs during
operation
h) For indoor use only. The device is not suitable for outdoor
use.
WARNING!!!
The device’s outer casing gets HOT during operation
2. Product Description
The device w is designed to melt bee wax.
Its construction allows to heat the wax up evenly by the whole
internal surface of the device’s walls.
WARNING!!!
Regularly check the water level of the water
jacket. Do not use water under pressure
while refilling the heating system. Use free
flowing water anda funnel.
2.1. Design
1 2 3 4 5
Fig.1
Features:
1- ½” ball drain valve-4 pcs.
2- bleed nipple ¾”, max. water level in the heating
system, refilling water
3- heating element with temperature regulator
4-melter’s tank
5-insulated top cover
2.2. Technical specifications:
•made of acid resistant stainless steel
•power supply (3) – 230V
•heater’s power output– 2000W
•temperature adjustment range 0 to 80ºC
•drain valve 1/2” ball (1)
•total capacity – 80 Litres
•weight – 33 kg.
•Internal dimension: L*W*H
400x400x500mm
•Outer dimensions:. L*W*H
630x520x645mm
