Lynx BS Series Manual de usuario
USER MANUAL
Lynx Pro Audio S.L.

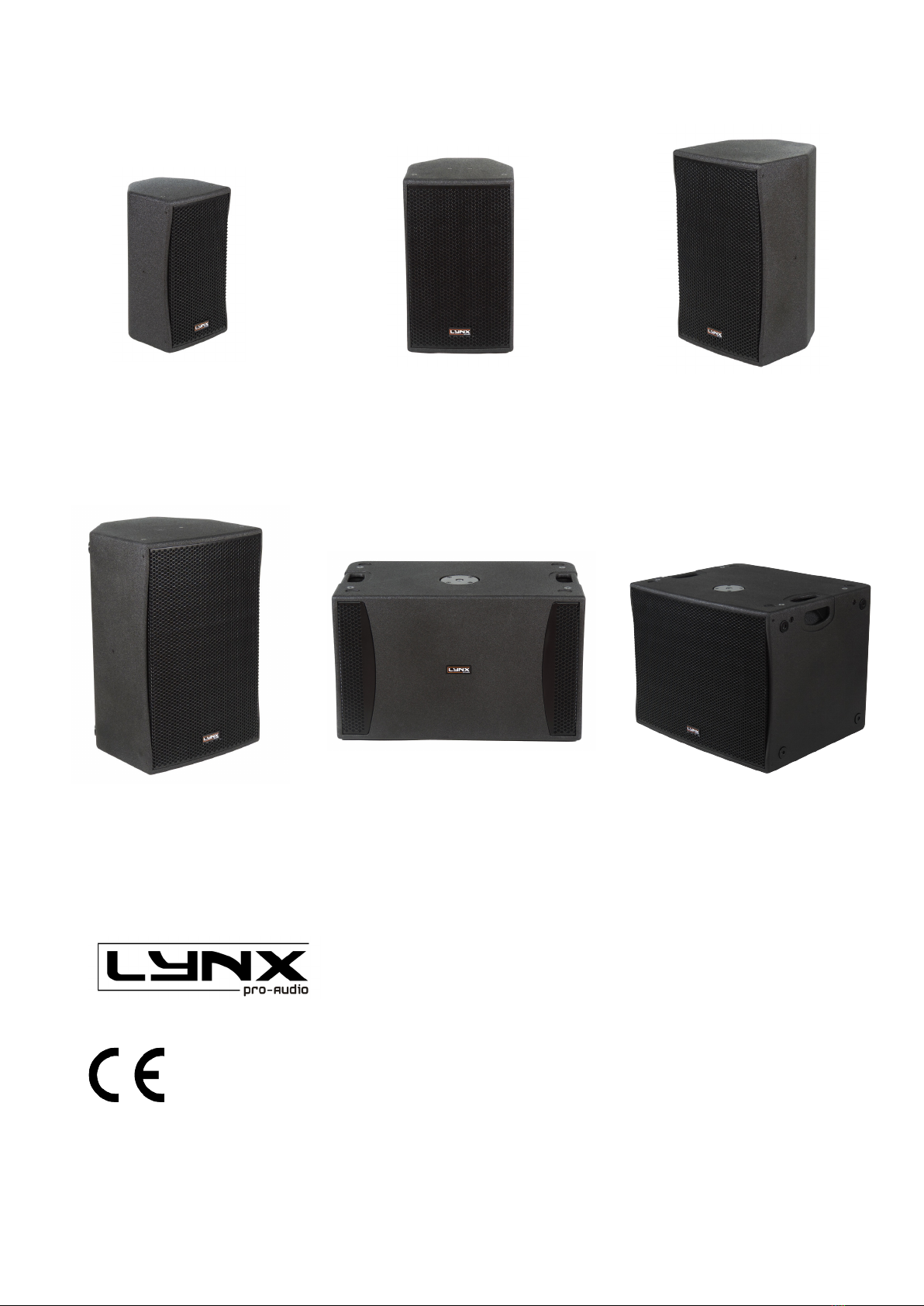

BS series
BS-8
Bs-10
BS-12
BS-15
BS-112
BS-118
V.21.04
Manufacturer
CE CERTIFICACTION, EUROPEAN PRODUCT
BS-8
LYNX Pro Audio S.L.
Calle 1 - Pol. Ind. Picassent
E-46220 Picassent (Valencia)
This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited.
Copyright 2020. All rights reserved.
BS-10 BS-12
BS-15 BS-112 BS-118
BS Series User Manual
Lynx Pro Audio S.L 3www.lynxproaudio.com
INTRODUCTION
To facilitate the correct and reliable use of the BS cabinets we have designed this instruction manual, please read it
before proceeding to install the cabinet.
Please observe the technical data carefully and do not ignore the instructions included within this manual.
The BS series has been designed to offer an affordable yet reliable series of cabinets which not only deliver high
performance but have a sleek & attractive design and nish so that they not only sound great but also look impressive
in any install.
The series comprises four full range cabinets, all designed for a wide range of applications from xed installations,
nightclubs & bars, houses of worship, corporate events, as front ll and as stage monitoring. This four two-way, passive
full range cabinets include a single 8”, 10”, 12” and 15” with the series offering a tremendous sound and clarity over
short/mid distances.
The series is complemented by two passive subwoofer cabinets in 12” and 18” designed to extend low frequency
support to the four BS series full range units.
CONTENTS
• SAFETY PRECAUTIONS 4
• SYSTEM OVERVIEW
BS-8 5
BS-10 6
BS-12 7
BS-15 8
BS-112 9
BS-118 10
• CONNECTORS AND CONNECTIONS 11
• CABINET CONNECTIONS 13
• HARDWARE AND ACCESSORIES 14
• HOW TO USE ACCESSORIES FOR INSTALLATION 15
• RAINBOW 3D ACOUSTIC SIMULATION SOFTWARE 19
• CERTIFICATIONS AND GUARANTEE 20
BS Series User Manual
Lynx Pro Audio S.L 4www.lynxproaudio.com
Before starting to use this device, please read this instruction manual carefully.
Keep these instructions in the place where the equipment will be used and with easy access to them.
• Electrical appliance
The exclamation mark within a triangle identies the presence of electricity. Use the system carefully without wet
hands or feet. Avoid installing the speaker in wet or excesivelly humid places. Do not place material that contains
liquid on or near the unit. Avoid dripping or splashing water or any liquid over the unit. Regularly check the condition
of the cables and make sure these are not being walked on or pinched. Connect the speaker to bipolar, earthed
mains. The mains plug must be connected to the appropriate protection (fuse or breaker). Connection to any other
type of mains could result in an electrical shock and violate local electrical codes.
CAUTION: DO NOT CONNECT OR DISCONNECT THE AC POWER CONNECTORS UNDER LOAD.
•Heavy equipment
Apply back protection when using the system. Avoid loading and unloading at heights.
•Electrical shock risk
The diagonal mark within a triangle identies the presence of dangerous voltage.
Do not open or handle the interior of the box. These parts are not to be adjusted by the user. For maintenance and/
or repair please go to an authorized service centre.In order to reduce the risk of electric shock, disconnect from
AC before plug in or unplugging Audio signal cables. Reconnect to AC only if all signal connections are made and
secured. Never manipulate the ground type plug provided.
The AC mains plugs should always remain accessible for operation.
Unplug the loudspeaker during storms or when it’s being used for a long time.
•Hearing damage risk
These systems can reproduce large quantities of sound pressure which can damage hearing. Take precautions if
you are going to be near them for extended amounts of time and do not get too close.
•Hanging / Flying
Do not hang the cabinets from the handles or from any other part other than the designated hanging point. When
ying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum
safe working loads or ignore the instructions included within this manual. Use Only ying accessories provided by
Lynx Pro Audio S.L. Rigging must be always carried out by professionals.
•Delicate Material
Please ensure no foreign object or water enters the speaker. Only clean the unit with dry cloths. Do not use solvents.
•Overheating / Fire risk
To reduce the risk of the speaker over heating, avoid direct contact with sunlight. Avoid placing the unit close to heat
inducing objects such as radiators. Do not cover the equipment in use and do not block any ventilation openings.
Do not put naked ame, such as lighted candles, close or on top of the unit.
•Electromagnetic and interferente emissions
Avoid placing objects which through electromagnetic waves can damage the unit, such as mobile phones, lap tops,
magnetic strip cards etc.
This system complies with normatives EN 55103-1 (1)
EN 55103-2 (2)
(1) This device may not cause harmful interferences.
(2) This device may receive interference including interferences that may cause undesired working.
•IMPORTANT NOTE
This Equipment must be used in accordance with these instructions and by trained professional personnel only.
This equipment should not be used in places with extreme tropical climates. Don’t expose this apparatus to extreme
humidity and or temperature values.
BS Series User Manual
Lynx Pro Audio S.L 5www.lynxproaudio.com
SYSTEM OVERVIEW
• Technical Data:
Components:
•HF 1” exit throat, (25 mm) voice coil, PETP dome compression driver
•LF 8” speaker, 2” ( 50 mm) copper wire voice coil, Waterproof cone with treatment
on both sides
Frequency range: 70 Hz – 18 KHz (-10dB)
Sensitivity: 93 dB
Max SPL / Peak: 118 dB/ 124 dB peak
Rated power: 300 W AES (600 W program, 1200 peak)
Dispersion: 90º x 60º rotatable
Nominal Impedance: 8 Ω
Connectors: 2 X NEUTRIK Speakon NL4 Pin connections: +1 / -1 input +1 / -1 link
Finish: Polyurea coating high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 456 x 255 x 259 mm (H x W x D)
Weight: 12 Kg (26.4 lbs)
Fittings: 5 x M8, single pole-mount, ergonomic handle on the back position
Accessories: U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole
Enclosure type: Multiangle enclosure
•BS-8
Compact two-way cabinet. Consists of an 8” (2” voice coil) LF transducer and a 1” HF driver mounted on
a 90ºx60º rotatable horn.
• BS-8 measurements
BS Series User Manual
Lynx Pro Audio S.L 6www.lynxproaudio.com
SYSTEM OVERVIEW
• Technical Data:
Components:
•HF 1” exit throat, (25 mm) voice coil, PETP dome compression driver
•LF 10” speaker, 2” ( 50 mm) copper wire voice coil, Waterproof cone with
treatment on both sides
Frequency range: 65 Hz – 18 KHz (-10dB)
Sensitivity: 94 dB
Max SPL / Peak: 119 dB/ 125 dB peak
Rated power: 300 W AES (600 W program, 1200 peak)
Dispersion: 90º x 60º rotatable
Nominal Impedance: 8 Ω
Connectors: 2 X NEUTRIK Speakon NL4 Pin connections: +1 / -1 input +1 / -1 link
Finish: Polyurea coating high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 500 x 300 x 301 mm (H x W x D)
Weight: 14 Kg (30.8 lbs)
Fittings: 5 x M8, single pole-mount, ergonomic handle on the back position
Accessories: U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole
Enclosure type: Multiangle enclosure
•BS-10
Compact, two-way passive cabinet. Consists of a 10” (2” voice coil) LF transducer and a 1” HF driver
mounted on a 90º x 60º rotatable horn.
• BS-10 measurements
BS Series User Manual
Lynx Pro Audio S.L 7www.lynxproaudio.com
SYSTEM OVERVIEW
• Technical Data:
Components:
•HF 1” exit throat, (25,4 mm) voice coil, annular diaphgram driver
•LF 12” speaker, 3” ( 75 mm) copper wire voice coil, Waterproof cone with
treatment on both sides
Frequency range: 60 Hz – 20 KHz (-10dB)
Sensitivity: 96 dB
Max SPL / Peak: 122 dB/ 128 dB peak
Rated power: 400 W AES (800 W program, 1600 peak)
Dispersion: 90º x 60º rotatable
Nominal Impedance: 8 Ω
Connectors: 2 X NEUTRIK Speakon NL4
Finish: Polyurea coating high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 589 x 350 x 348 mm (H x W x D)
Weight: 19 Kg (41.8 lbs)
Fittings: 5 x M8, double pole-mount with 10º angle, ergonomic handle on the back position
Accessories: U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole
Enclosure type: Multiangle enclosure
•BS-12
Compact, two-way passive cabinet. Consists of a 12” (3” voice coil) LF transducer and a 1” HF driver
mounted on a 90º x 60º rotatable horn.
• BS-12 measurements
BS Series User Manual
Lynx Pro Audio S.L 8www.lynxproaudio.com
SYSTEM OVERVIEW
• Technical Data:
Components:
•HF 1” exit throat, (25,4 mm) voice coil, annular diaphgram driver
•LF 15” speaker, 3” ( 75 mm) copper wire voice coil, Waterproof cone
with treatment on both sides
Frequency range: 55 Hz – 20 KHz (-10dB)
Sensitivity: 98 dB
Max SPL / Peak: 124 dB/ 130 dB peak
Rated power: 400 W AES (800 W program, 1600 peak)
Dispersion: 90º x 60º rotatable
Nominal Impedance: 8 Ω
Connectors: 2 X NEUTRIK Speakon NL4
Finish: Polyurea coating high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 664 x 425 x 420 mm (H x W x D)
Weight: 24 Kg (52.9 lbs)
Fittings: 5 x M8, double pole-mount with 10º angle, ergonomic handle on the back position
Accessories: U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole
Enclosure type: Multiangle enclosure
•BS-15
Compact, two-way passive cabinet. Consists of a 15” (3” voice coil) LF transducer and a 1” HF driver
mounted on a 90º x 60º rotatable horn.
• BS-15 measurements
BS Series User Manual
Lynx Pro Audio S.L 9www.lynxproaudio.com
SYSTEM OVERVIEW
• Technical Data:
Components:
•LF 12” speaker, 3” ( 75 mm) copper wire voice coil, Waterproof cone
with treatment on both sides
Frequency range: 40 Hz – 90 Hz with preset
Sensitivity: 93 dB
Max SPL / Peak: 120 dB/ 126 dB peak
Rated power: 500W AES (1000W program, 2000W peak)
Dispersion: Quasiomnidirectional
Nominal Impedance: 8 Ω
Connectors: 2 X NEUTRIK Speakon NL4
Finish: Polyurea coating high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 406 x 655 x 400 mm (H x W x D)
Weight: 29 Kg (63.9 lbs)
Fittings: 2 integrated ergonomic handles, 4 rubber feets right side for vertical install,
M-10 y points
Accessories: M-20 connector pole, M-10 eyebolt
Enclosure type: Multiangle enclosure
•BS-112
Compact, 12” (3” voice coil) passive subwoofer cabinet band pass conguration
• BS-112 measurements
655 400
400
406
BS Series User Manual
Lynx Pro Audio S.L 10www.lynxproaudio.com
SYSTEM OVERVIEW
• Technical Data:
Components:
•LF 18” speaker, 3” ( 75 mm) copper wire voice coil, Waterproof cone
with treatment on both sides
Frequency range: 38 Hz – 100 Hz with preset
Sensitivity: 98 dB
Max SPL / Peak: 126 dB/ 132 dB peak
Rated power: 600W AES (1200W program, 2400W peak)
Dispersion: Omnidirectional
Nominal Impedance: 8 Ω
Connectors: 2 X NEUTRIK Speakon NL4
Finish: Polyurea coating high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 533 x 660 x 570 mm (H x W x D)
Weight: 33 Kg (52.9 lbs)
Fittings: 2 integrated ergonomic handles, 4 rubber feets right side for vertical install,
M-10 y points
Accessories: M-20 connector pole, M-10 eyebolt
Enclosure type: Bass reex direct radiation subwoofer
•BS-118
Compact, 18” (3” voice coil) passive subwoofer cabinet band pass conguration
• BS-118 measurements
