LuxaFlex Timber Manual de usuario

Timber & Woodmates

Venetian Blinds

Product Manual

2 | P a g e

MEASURING & LIMITATIONS

ARCHITRAVE & REVEAL FACE & REVEAL

CORNERS BAYS

OPTIONS & LIMITATIONS

Timber Venetians

50mm Slats

Woodmates Blinds

63mm & 50mm Slat

Maximum Width

2700mm

2400mm

Minimum Width

Fixed Control

160mm

60mm

Minimum Width

Tilt Only

250mm

Minimum Width

Split Control

300mm

Minimum Width

Combined/Adjacent Control

470mm

Minimum Control

Cord Length

500mm

Maximum drop

3500mm

3000mm

Maximum Area

If frequently raised & lowered

5.8m²

4m²

3.6m²

4.0m²

Shade Stack

Height

.08 x Drop + 67

SUPPLIER INFO

Timber Venetian Blind material is sourced from Vinawood in Vietnam.

3 | P a g e

REDUCING LIGHT GAPS IN CORNERS, BAYS &

BUTTING BLINDS

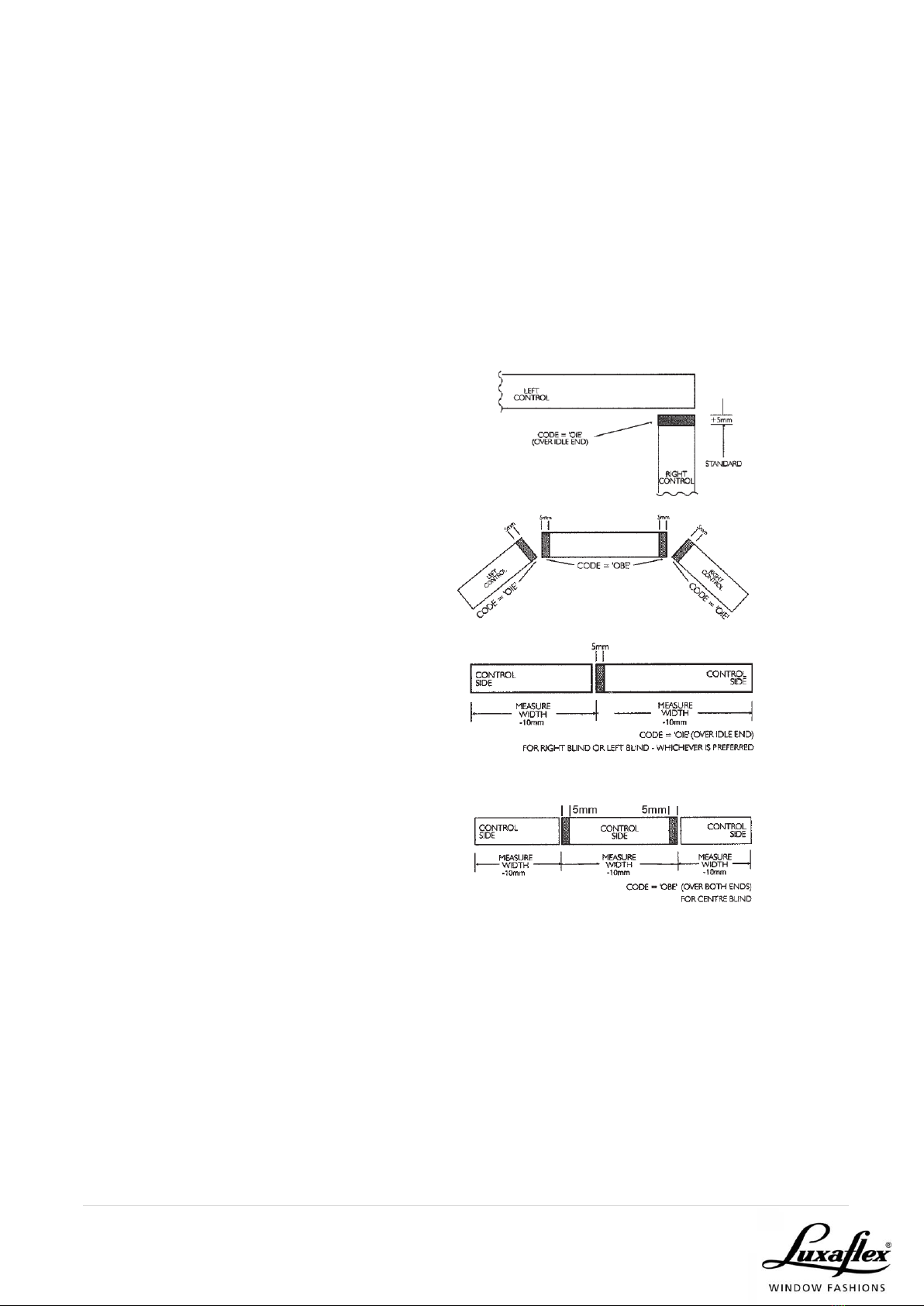

The following codes should be used to indicate that slats should be extended 5mm past the

headrail on the side indicated. This will reduce light gaps between blinds.

OIE = extend slats 5mm on the idle end of the blind (i.e. opposite end to controls)

OCE = extend slats 5mm on the control end of the blind

OBE = extend slats 5mm on both ends

The projection of the headrail including brackets is 60mm. When measuring for corners, bay

windows and multiple blinds, large gaps are experienced in the above areas.

1. CORNERS

Increasing the blades on the butting blind

by 5mm will help to reduce the gap.

2. BAYS

Increasing both side blinds by 5mm and centre

blinds by 10mm reduces the gap.

3. MULTIPLE BLINDS - 2 BLINDS

Reduces gap by 5mm between both blinds.

4. MULTIPLE BLINDS - 3 BLINDS

Reduces gaps between the three blinds by 5mm

each.

INSTRUCTION FOR MEASURING & ORDERING

1. Measure window.

2. Take off normal deductions: this is your ordered size.

3. Indicate which end slats are to be extended using the code OIC, OCE or OBE as

appropriate.

4. In “Special Instructions” section, indicate which blinds are side by side so that the

factory will ensure slats are aligned and blinds are matching in colour.

4 | P a g e

MULTIPLE BLINDS ON ONE HEADRAIL

NOTE: If you require a separate tilter for each blind, it is cheaper, easier to manufacture and

easier to fit separate blinds. There is no advantage in ordering multiple blinds on a common

headrail.

ON ORDER FORM YOU MUST SPECIFY:

•Overall headrail width (= window width -10mm)

•Blind 1 width

•Blind 2 widths (= overall width - blind 1 -10mm)

•Single tilter or separate tilter

•Tilt side (must be LHS on blind 1 or RHS on blind 2 for single tilter)

•Cord lock side on each blind (each blind must have a separate cord lock) \

•Pelmet code Size Limitations

•Individual blinds must be within usual limits

Overall headrail width must not exceed 5m

SIZE LIMITATIONS

•Individual blinds must be within usual limits

•Overall headrail width must not exceed 5m

5 | P a g e

SIZING

STANDARD FACE BLINDS

Top View SF

STADARD REVEAL BLINDS

6 | P a g e

MULTIPLE BUTTING BLINDS

MULTIPLE BLINDS

7 | P a g e

OPTIONS

STANDARD BLIND

•All blinds fitted with colour co-ordinating valance and bottom rail

•Control lengths supplied as per price grid

OPTIONS

•Brass plated hold down brackets. Add per pair

•Pelmet covers on back of headbox. Add per metre

•Cut-outs. Add per cut-out

•Fabric Tapes

•Motorised

•Operating sloping top, sloping bottom options

WOODMATES BLINDS

•Made from advanced engineered polymers

•Designed to resist peeling, fading and cracking

•Recommended for areas of high humidity such as kitchens and bathrooms

•Easy to clean

8 | P a g e

SPECIALTY SHAPES

FIXED SPECIALTY SHAPES - 50MM ONLY

Special Note: Deduct 10mm on overall width and drop when trimming template to size, for

reveal fit. T = Tilt location

*No fabric tape available

*50mm slat only

9 | P a g e

FIXED SPECIALTY SHAPES - 50MM ONLY

10 | P a g e

FIXED SPECIALTY SHAPES - 50MM ONLY

Templates Make the Difference

Templates are required with all specialty

shaped orders. Easy-to-use guidelines for

preparing templates appear on this page.

NOTE: ONE TEMPLATE REQUIRED FOR EACH

WINDOW.
