Congratulations

So that he baby feels safe and secure, you have chosen a quality product from the house

of lux4kids and therefor you made a very good choice. High quality workmanship and

ongoing quality control systems give you the security that you have stroller for a very long

time. The use of textiles tested for harmful substances guarantee you the safety of your

baby.

For the safety of your Child

WARNING: Check before use that the stroller is not damaged. Also be sure that all parts are not loosy.

WARNING: Never leave your child unattended.

WARNING: Never use force to the stroller or buggy. A strong pressure on the reversible handle or other

metal and plastic parts can lead or cracking and warping. Especially the reversible handle or the swivel

wheels get damaged when forcing with high pressure.

WARNING: Check all parts on its correct fitting and that all locks are closed before use the pram.

WARNING: Driving on stairs or steps damage the buggy and you risk the health of your new born child.

WARNING: Always make sure, that you activate the brakes if you park the pram. Especially on buses,

trains, subways and trams. Be sure to park on a not slippery underground

WARNING: The pram, buggy or the carry cots are no beds or cradle replacements and may not be

used in cars.

WARNING: Make sure that your child in out of reach, when folding or unfolding the pram or other parts

of the bought product.

WARNING: Don’t let your child play with the pram.

WARNING: If you use the handle of your pram to carry bags and high weights, your pram is not stable

and can be totally damaged.

WARNING: This pram model is for one child. It has one seat unit

WARNING: On the footrest max. put a pressure of 5 kg in horizontal position on. Never use the footrest

as ladder. In vertical position the footrest can be loaded with 15 kg of weight.

WARNING: No part of the pram can be used in your car. Only the car seat is certified for using in the

car. Look at the norm ECE R44/04.

WARNING: Always use the harness as soon as your child can sit unaided.

WARNING: Make sure that your pram stands still before using the brake. If you use the brake earlier,

you damage the whole brake system. Also check all parts of the pram before using it.

WARNING: Always use the safety belt

WARNING: It is necessary to check that the carrycot or the seat unit is properly engaged before use.

Lux4Kids Kinderwagen

Bövemannstraße 3e

48268

Greven, Deutschland

| Tel:(02571) 921 94 94

| Fax:(02571) 921 94 21, |

mail:

info(at)lux4kids.de

WARNING: Please check the brake system every 4 weeks to be sure that the mechanic is working

correctly. To maintain the brake system clean the suspensions and then oil the whole mechanic.

WARNING: Make sure that the brake is closed before you sit in or remove your baby.

WARNING: The use of buggy boards / stroller plattforms may impair the functionality of the stroller and

you use it on your own risk.

WARNING: Loose components and screws must be locked tightened. If you use your pram without

tightened the screws your pram get broken and is not usable anymore.

WARNING: The seat unit can be used when your child can sit, or at a age of 6 month.

WARNING: The weighing of of your child in a stroller is safe only in the running direction. In the

opposite direction to the stroller movements can lead to deformations and cracks on the frame, thereby

repealing the warranty claim.

WARNING: Do not Skate or jog.

WARNING: Avoid direct sunlight, due to increasingly aggressive solar radiation many textiles can react

very sensitively.

WARNING: Regular maintenance of the metal parts, especially after a stay by the sea is very important

for the durability and functionality of the stroller

WARNING: The maximum load of the shopping cart is 3 KG!

Lux4Kids Kinderwagen

Bövemannstraße 3e

48268

Greven, Deutschland

| Tel:(02571) 921 94 94

| Fax:(02571) 921 94 21, |

mail:

info(at)lux4kids.de

Assembly instructions

Build up your pram

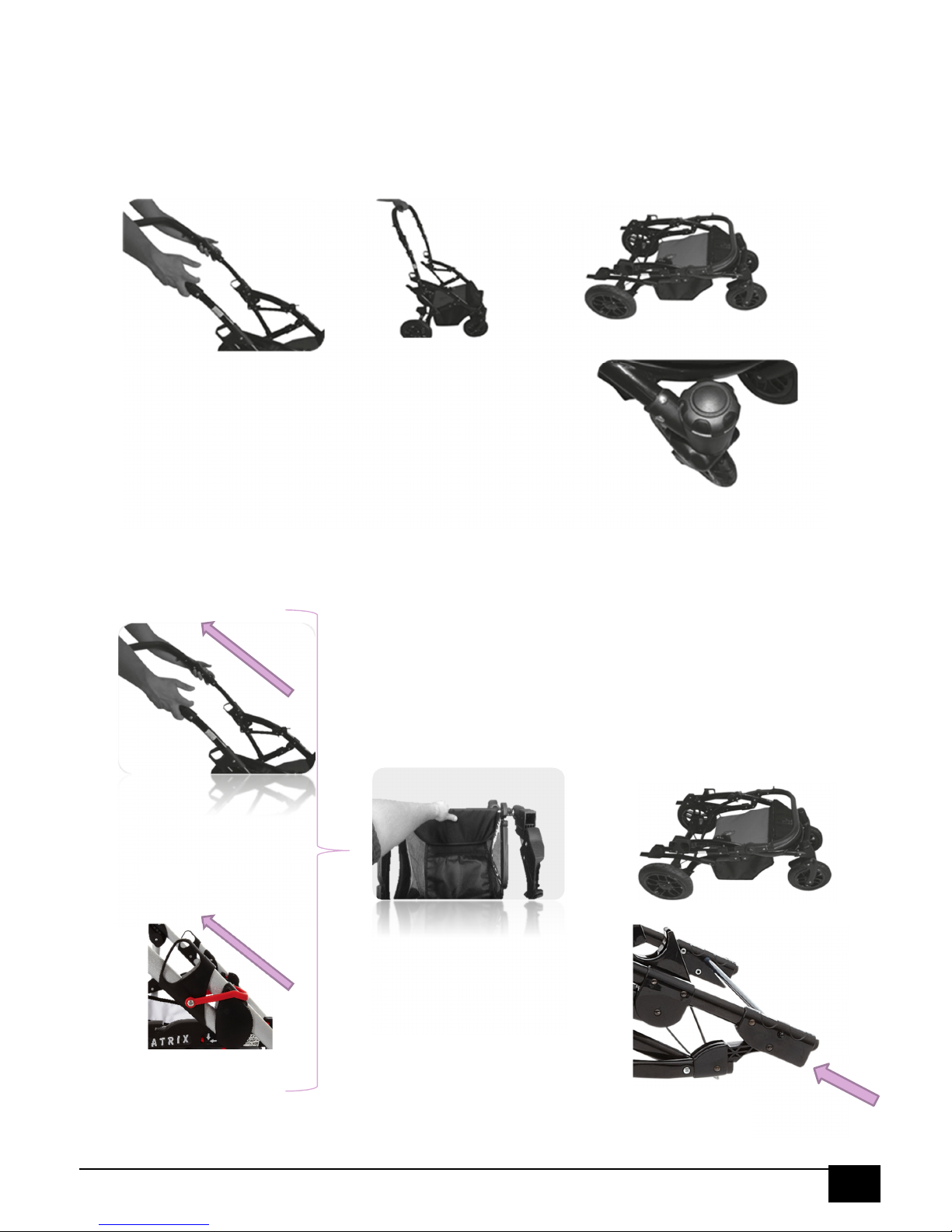

1.Pull the frame upwards on the handlebar until it snaps into the right place.

2.Press the button on the rear wheel and push it on the rear axis until you hear a silent

click – now release the button. Now check the wheel if its sits firmly

3.Push the front wheel with the rod into the guide until you hear a silent click.

Please check all parts of loose plastic material or transport packages. They must

bei clean before building the pram

Recommendations: The wheels and axles should be kept clean and

a regularly use of machine oil (WD40) on wheels and axles is

recommended.

The Brakes

If you often use the brakes of your pram, the oil in the brakes and on the brake

pinion can get i little rusty. To solve those problems you just have to spray the

brakes with oil and the whole brake gets back to work correctly

Lux4Kids Kinderwagen

Bövemannstraße 3e

48268

Greven, Deutschland

| Tel:(02571) 921 94 94

| Fax:(02571) 921 94 21, |

mail:

info(at)lux4kids.de

Construction and installation of the baby tube

The Carrycot

Picture 1. Unfold the bassinet (by pulling the fabric upward) and lock

The metal stays in their catches. Picture 2.

Insert the fleece lining. Complete the procedure by joining the hook and loop fastenings.

Please press the 2 buttons on the hood (Picture 3)

and set

the hood.

Push the two hood bars at the same time and set the hood

to the required height.

In order to attach the carrycot

to the frame, unlock the

adapters as the guide shows

(press the red button laps down and then pull the lever or

press (depending on model))

Now, put the carry cot with the hooks into the site which

cannot be looked! The Last step is to press the carry cot

into the adapter until it makes a click sound. Now the carry

cot is ready to use

To release the carry cot unlock the adapters again and pull on the

hood to release the carry cot from the frame

IMPORTANT: The latch must be set correctly. The correct fit is

indicated by a click sound.

TIP: To easily get the carry cot out of the frame, push it with your

knee a little bit and then grab the hood und pull on the hood.

WARNING: Always take care of the adapters and the correct lock of

all parts. Otherwise your child gets hurt.

Lux4Kids Kinderwagen

Bövemannstraße 3e

48268

Greven, Deutschland

| Tel:(02571) 921 94 94

| Fax:(02571) 921 94 21, |

mail:

info(at)lux4kids.de

The Buggy

To build up the seat unit remove all package material and lay it down.

Now you see a hinge on both sides which

have to pulled towards you and then you can

lock it with the adapters seen on the picture.

The hood can be attached easily like the

carry cot. Press the Buttons on both sides of

the end of the hood.

Attach the safety bar.

Adjust the foot rest as required

To adjust the foot rest, press both buttons simultaneously as shown and

move the foot rest to the required position.

Adjusting the seat back

Pull the unlocking rod upwards and move the seat to the required

position.

IMPORTANT: Make sure that you use the correct lever for adjusting and

not cross-bracing of the backrest

WARNING: If you adjust the Backrest, be sure that the cross-bracing for

the mechanic of the adjustment is lift up on both sides. Otherwise the

adjustment will damage and the backrest cannot be used anymore

Lux4Kids Kinderwagen

Bövemannstraße 3e

48268

Greven, Deutschland

| Tel:(02571) 921 94 94

| Fax:(02571) 921 94 21, |

mail:

info(at)lux4kids.de

Assembling the infant car seat

Fit the adapter to the infant car seat. Caution: The adapter only works in one direction – it

must be assembled exactly

Dismantling the infant car seat

Pull the two unlocking levers simultaneously and the adapters will release.

Safety belt

Secure your child with the belt. Make sure that the belt is tight, you can adjust that with the

slide buckle. Make sure that the belt buckles for secure are attached during

closing. Open the belt: Press the RED Dot and both tabs open and you can take

your child out of the seat.

Unlocking the swivel wheels

To unlock the wheels, please press in the small steel pins above the fixings for the swivel

wheels, and the wheel will fall easily off from the mount.

Unlocking the Rear Wheels

The rear wheels can be unmounted easily from the axle by pressing the button in the center of the

wheel. Or you have another mount, then you press the hook together and unmount the wheel from the

axle.

Lux4Kids Kinderwagen

Bövemannstraße 3e

48268

Greven, Deutschland

| Tel:(02571) 921 94 94

| Fax:(02571) 921 94 21, |

mail:

info(at)lux4kids.de

Collapsing the pushchair

1.) Remove the attachment (car seat, carry cot or buggy) from the frame

2.) Remove the swivel wheels

3.) Release the folding lock (button, lever or loop)

4.) Pull the two latches simultaneously and the pushchair will collapse. Now push the

safety catch to one side, so that the frame can fold.

WARNING: If you not removing the front wheels before folding, the frame get be damaged during

folding.

WARNING

: Never put pressure on the folding

hinge

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Paseante de Lux4Kids

Lux4Kids

Lux4Kids Baby Merc Q8 Manual de usuario

Manuales populares de Paseante de otras marcas

Hauck

Hauck Priya Trioset Manual de usuario

CHILDHOME

CHILDHOME CWQDN Manual de usuario

Dreamer Design

Dreamer Design Rebound GST Manual de usuario

Britax

Britax STEELCRAFT AGILE Manual de usuario

Graco

Graco 7427 Manual de usuario

Comfort

Comfort COMPASS Manual de usuario

OBaby

OBaby Aura Manual de usuario

Tutek

Tutek Tirso Manual de usuario

Babify

Babify Dual Plus Manual de usuario

Graco

Graco Stroller Manual de usuario

Special Tomato

Special Tomato Jogger Manual de usuario

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manual de usuario

Otto Bock

Otto Bock Kimba neo Manual de usuario

Milly Mally

Milly Mally ROYAL Guía de inicio rápido

Hauck

Hauck DUETT 3 PRAM Manual de usuario

BOB

BOB DUALLIE Manual de usuario

Nuna

Nuna Pepp Manual de usuario

Britax

Britax B2 Manual de usuario
