eclipse Courtesy Light CL30 Installation Guide
60-0478 - Courtesy Light - Blue | 60-0479 - Courtesy Light - White | 60-0480 - Courtesy Light - Blue and White
Please read the following pages before attempting installation
45-0199-Rev1
Before you start…
• Always ensure that the vessel’s power source and battery are disconnected or isolated prior
to installation.
• A qualied professional should carry out both the electrical and mechanical installation.
• The ECLIPSE Courtesy light Is designed to be used in conjunction with a simple On/O switch
or used with the ECLIPSE Command Center. Do not connect to any other 3rd party lighting
control products or dimmers.
• The ECLIPSE Courtesy light is fully sealed and can be installed inside or outside, it can be
installed in wet areas but is not designed to be permanently submerged in water.
• Choose a location – the light must be mounted on a at – not curved surface.
• The ECLIPSE Courtesy light CL30 is designed to work with 12V boats ONLY. It can operate
between 10-15Volts DC. Do not connect voltages outside of this range or connect directly
to AC voltage.
| + 44(0)208 144 1694 | Info@Lumishore.com
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 | (941) 405-3302 | Sales@LumishoreUSA.com
Lumishore UK, Unit D12, Upper Fforest Way, Swansea Enterprise Park, Swansea, SA6 8QR
2
Basic Dimensions:
HOLE CUT-OUT
(0.88in)
Ø 22.5mm
(0.144in)
3.66mm
(1.04in)
26.5mm
(1.30in)
Ø 33mm
(0.70in)
18mm
MAX
(0.90in)
ø 23mm
Installation Diagram - Single and dual color using On/O switch
Typical power rating = ≈ 0.5 - 1W per light
Typical current draw = 0.08A @ 12Volts
Switch operation
Single Color : Toggle power switch to dim the light, toggle again to pause. Switch O for 2 seconds to
reset to full power
Dual Color: Toggle power switch to change color. Switch O for 2 seconds to reset all lights to white.
Off
On
RED
BLK
RED
BLK
RED
BLK
12V PSU
Switch (On/O)
Fuse
RED
10.5-15V
BLK - GND
Important! Use appropriate size cable gauge to
ensure < 3% voltage drop to last light in chain.
| + 44(0)208 144 1694 | Info@Lumishore.com
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 | (941) 405-3302 | Sales@LumishoreUSA.com
Lumishore UK, Unit D12, Upper Fforest Way, Swansea Enterprise Park, Swansea, SA6 8QR
3
Installation Diagram - ECLIPSE Command Center
Note: For full ECLIPSE Command Center control consult ECLIPSE Command Center installation manual.
Mechanical Installation:
The body is designed to be tted through a 1in hole, however, it is always recommended cut the hole smaller
than needed and le to the correct size to ensure a snug t.
(0.90in)
Ø23mm
Important! Use appropriate size cable gauge to
ensure < 3% voltage drop to last light in chain.
RED
BLK
RED
BLK
RED
BLK
RED
WHT
BLU
YEL
ECLIPSE Command Center
ECLIPSE Cable
Harness
CONNECT AS BELOW;
ECLIPSE cable harness RED to CL30 RED
ECLIPSE cable harness BLU and WHT to CL30 BLK
Select and install appropriate blade
fuse for complete circuit
Max 32 Lights
YEL - No connect.
Ensure any unused wires are isolated.
Note : Single color and dual color lights should not be added to the same zone output. Use a separate zone
output for each type.
| + 44(0)208 144 1694 | Info@Lumishore.com
Lumishore USA 7137 24TH Court East Sarasota, Florida 34234 | (941) 405-3302 | Sales@LumishoreUSA.com
Lumishore UK, Unit D12, Upper Fforest Way, Swansea Enterprise Park, Swansea, SA6 8QR
4

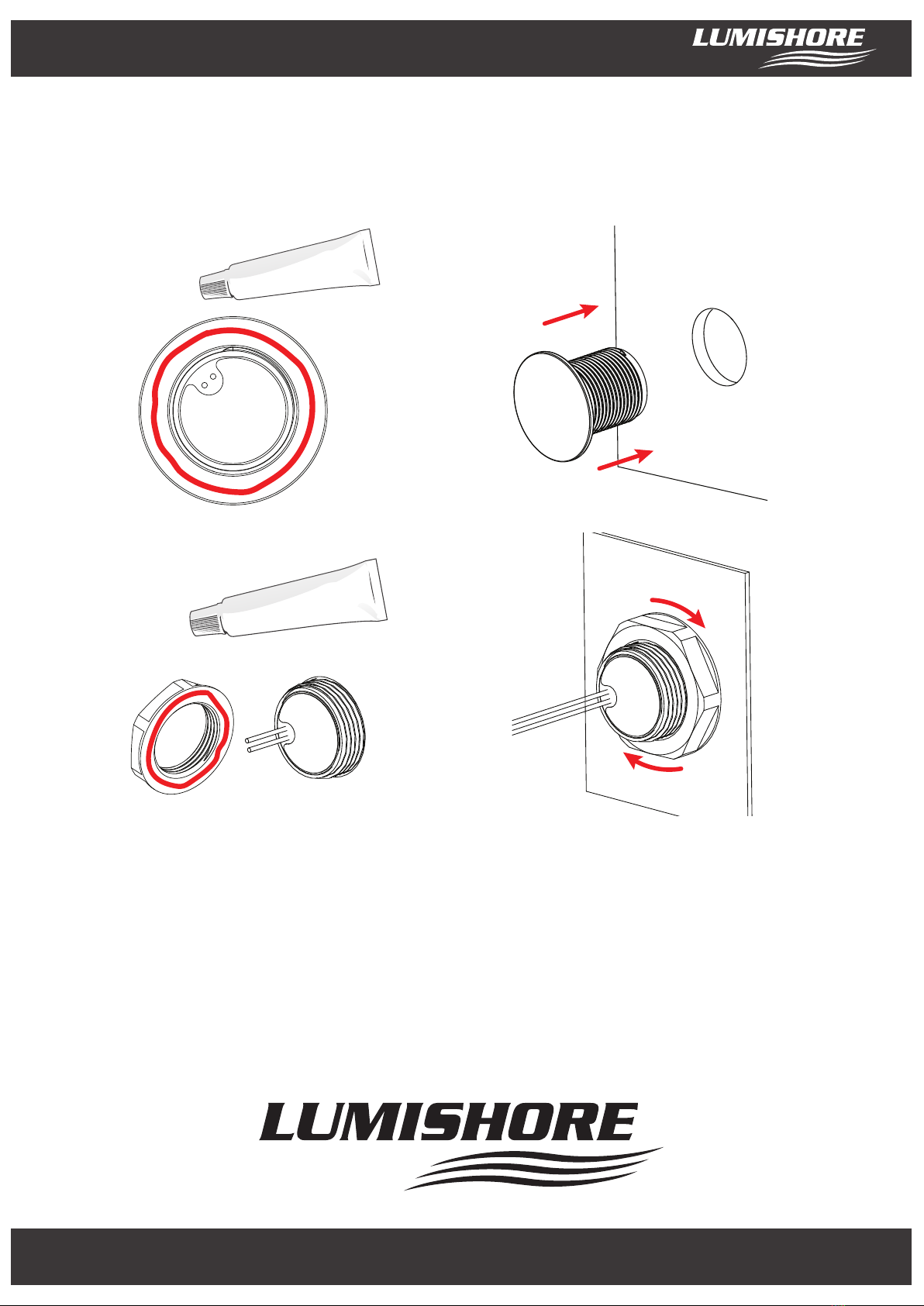

CLEAR marine sealant should be used between lens and mounting surface, and between the hex nut and rear of
the mounting surface. Clean any excess adhesive using a soft cloth and soap and water -
DO NOT USE CHEMICAL CLEANERS.
MARINE SEALANT
MARINE SEALANT
CLEAR
1 2
3 4
Warranty
LUMISHORE Ltd warrants the ECLIPSE Courtesy Light CL30 to be free from defects in workmanship and mate-
rials for a period of two years, starting from the date of original purchase. Misuse, abuse, improper installation,
neglect, improper shipping, damage caused by disasters such as re, ood, and lightning, installation by unqual-
ied personnel, unauthorized repair or modication will void this warranty. For the avoidance of confusion and
doubt, non-compliance with all installation, maintenance and operating instructions in this document constitute
non-conformance with warranty terms.
