DC260 Visual Presenter

Quick Start Guide

English - 1

1. Package Content

DC260 Quick Start Guide User Manual

Remote control CD Base Installation Guide



Software Bag VGA Cable USB Cable

C-Video Cable Remote Control

Holder

Microscope Adapter

Power Cord Padded Carry Bag

(Optional)

RS232 Adapter

(Optional)

Appearance may vary with

country/region.

English - 2

2. Product Overview

(Bottom)

6. DIP switch

3. Control panel

5. Lens

4. LED indicator

1. Lamp

2. Remote sensor

English - 3

2.1 Relative Position of the Presenter and DC260

2.2 Recommended Distance

About 470mm distance between camera and the desktop is

recommended.

Presenter

DC260

Document

English - 4

2.3 Incorrect Use

English - 5

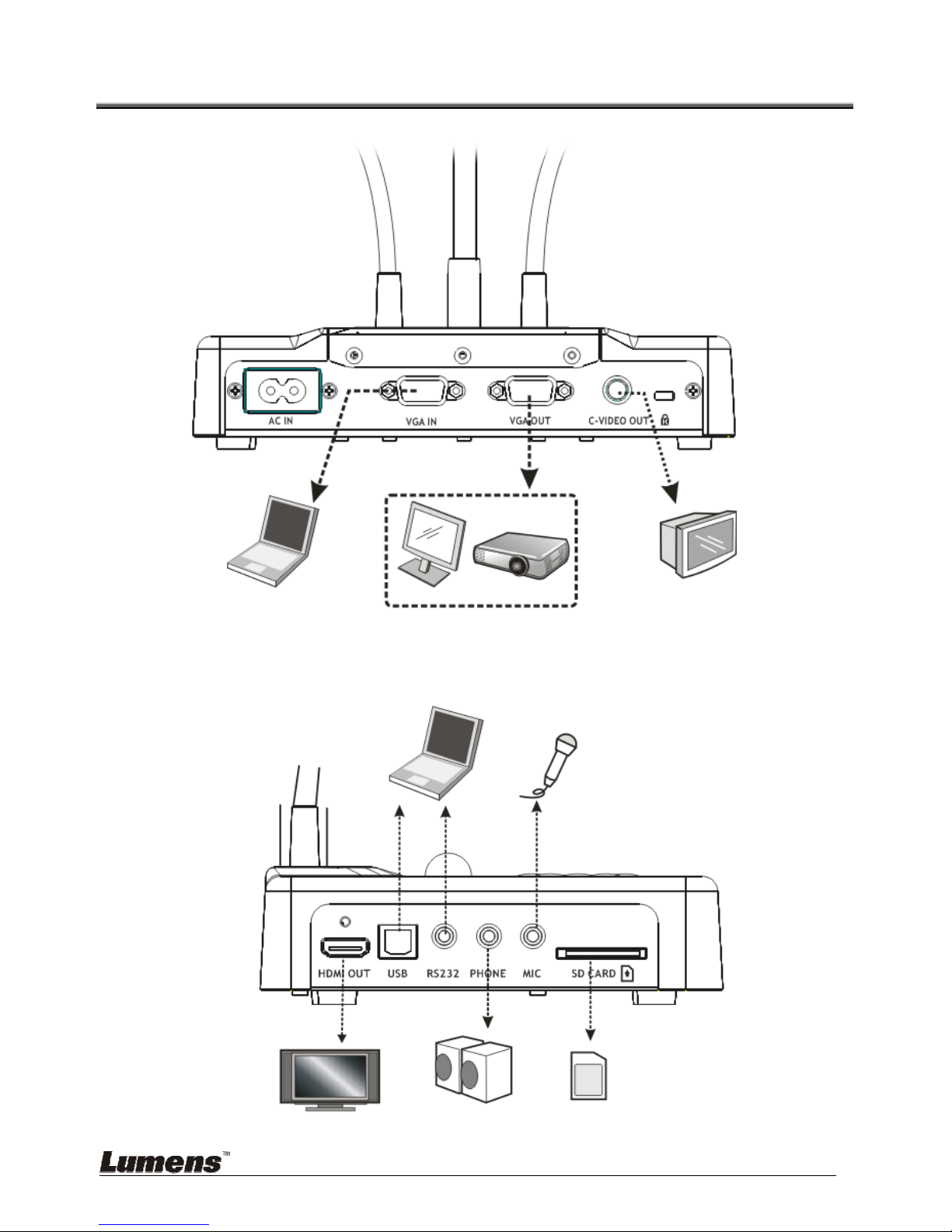

3. System Diagram

Microphone

Projector

Monitor

Television

LCD TV

Speaker

SD Card

English - 6

4. Mounting the DC260 at Desktop

1. Please set up the DIP Switch settings first. Refer to chapter 5 "DIP

Switch Settings" in the DC260 user manual.

2. Please refer to the Base Installation Guide for installation instructions for

all parts.

5. Connecting Devices

5.1 Step 1: Plugging in the Power Outlet

<Note> Appearance of power cord may vary with countries/regions.

5.2 Step 2: Connecting with components

5.2.1 Connecting to a Projector or Monitor

zConnect the VGA Out on the DC260 to the VGA IN on the projector or the

monitor using the VGA cable.

5.2.2 Connecting to a TV

1.Use C-Video cable to connect TV.

AC Outlet

English - 7

2.Adjust DIP Switch Setting



NTSC：America, Taiwan, Panama, Philippine, Canada, Chile, Japan, and Mexico



PAL：Country/region not listed above:

<Note> VGA output is not supported once C-Video output enabled.

<Note> You are unable to use the [Menu] / [Rotate] / [Half Page] /

[Source] / [Record] / [Capture] / [Delete] / [PBP] / [Slide Show]

functions in C-Video mode.

3.Restart the DC260

DIP Switch setting will not be available until restarting the DC260.

5.2.3 Connecting to a LCD TV/ PDP

zUsing the HDMI cable to connect a LCD TV/ PDP

English - 8

Speaker

電腦

5.2.4 Connecting to a Computer

zConnecting to a computer through VGA in

zConnecting to a computer through USB

Connect to USB port then install the supplied queue program. Please refer to

the DC260 user manual 4.6 Installing driver and application queue.

zConnecting to a computer through RS232 (RS232 Adapter is optional)

5.2.5 Connecting to Speaker

English - 9

Microphone

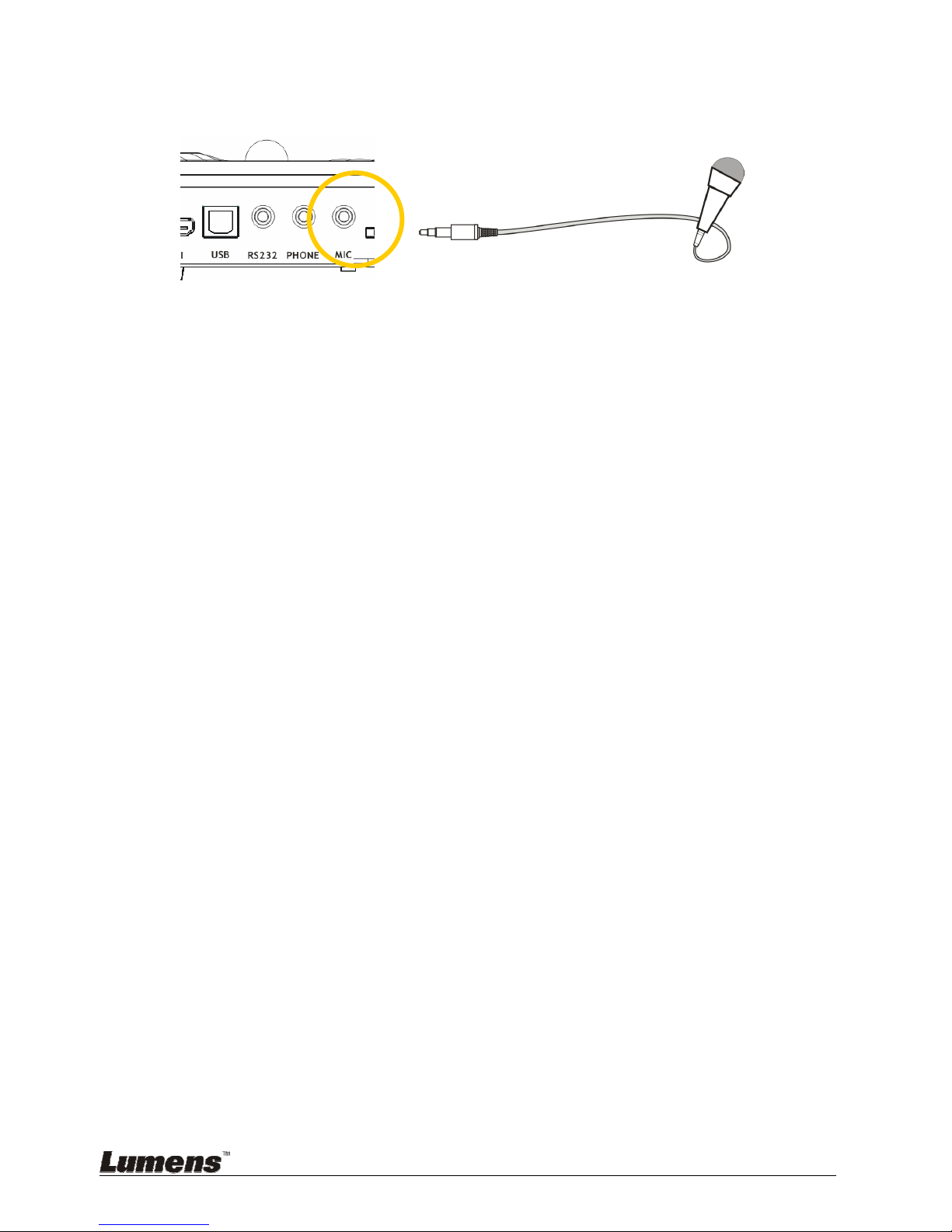

5.2.6 Connecting to Microphone
