Lucid WIP001 Manual de usuario

Wireless/Wired Network IP Camera

Night Vision & Remote Operation

User Manual

LucidPhone WIP Series

WIP001 & WIP-W02

Lucidphone

WIP001 and WIP-W02

LucidPhone WIP Series IP Camera products are designed and equipped for local and remote network

ideo sur eillance system, including WIP-W02 waterproof camera, and WIP001 IP Pan/Tilt/Zoom Camera.

We adopt high performance chip to ensure high quality media processor which processes audio and

ideo collection, compression and transmission. Standard M-JPEG compression format ensures clear

and streaming ideo performance. It enables users to iew li e ideo ia IE6.0, IE7.0, IE8.0, Firefox,

Google browser or other standard browser.

LucidPhone WIP Series IP Camera products are applicable for big, medium-sized and small enterprises,

chain store, factory, home and all kinds of spots where remote network ideo transmission and control

supposed to be installed, they are easy to be installed and operated.

Before the installation of the IP camera, please check if your product accessories in the package are

complete

Packing List

Untie the pack and check the items contained against the following list:

●IP Camera X1

●Wi-Fi Antenna X1 (only a ailable for wireless model)

●Warranty Card X1

●DC Power Supply X1

●CD X1

●Certificate of Quality X1

●Mounting bracket X1

NOTE: Please contact us immediately if anything damaged or short of contents.

Table o CONTENTS

1. Product Introduction ...........................................................................................3

1.1. Safety Introduction .........................................................................................3

1.2. Product Specifications................................................................................. ....4

1.3. System Requirements........................................................................................5

1.4. Product Views……………..............................................………….................5

1.4.1 Front View................ ......................................................................................5

1.4.2 Interface View.................................................................................................5

1.5. ardware Installation........................................................................................6

1.6. Software Installation..................................... ....................................................6

2. Software Operation...............................................................................................6

2.1. Search Tool Software................................................. ......................................7

2.1.1. Search The IP address of the Camera.............................................................7

2.1.2. Configuration of the Network............................ ............................................7

3. Real-Time Video Demonstration................................... ......................................9

3.1. Camera Login.............................................................. .................. ...................9

3.2. View via IE Browser.........................................................................................10

3.3. View via Safari, Firefox, Google Browser. .................. ...................................13

3.4. Main Menu interface Introduction....... ............................................................14

3.5. Administer Setting Instruction......................... ................................................15

3.5.1. Multi-Device Settings....................................................................................16

3.5.2. Basic Network Settings.............. ...................................................................17

3.5.3. Wireless Settings.......................................................... .................................18

3.5.4. ADSL Settings................................................................................................19

3.5.5. Dynamic DNS Settings...................................................................................19

3.5.5.1. DDNS Setting .............................................................................................22

3.5.5.2. Port Forwarding Settings......... ...................................................................23

3.5.5.3. DDNS Register........ .................. ................................................................25

3.5.6. Email and FTP Service Settings....................... .............................................29

3.5.7. Alarm Service Settings............................. .....................................................29

3.5.8. Reset/Firmware Upgrade Settings............... ..................................................30

3.5.9. Restore Factory Settings...................... ..........................................................31

3.5.10 Reboot Equipment.........................................................................................31

4. Warranty........... ...................................................................................................32

1. Product Introduction

1.1 Safety Instructions

(1). Use the proper power source.

Do not use this product with a power source that supplies more than the specified Voltage (100-240V

AC).

(2). Ne er insert anything metallic into the camera.

Inserting metal object into the camera can be a source of dangerous electric shock.

(3). Do not operate in wet or dusty en ironment.

A oid places like a damp basement or dusty hallway.

(4). Do not attempt to disassemble the camera.

You may be subjected to se ere electrical shock if you attempt to take apart the camera while the camera

is connected to its power source. If there are any unusual sounds or smells coming form the camera,

unplug it immediately and contact Customer Ser ice.

(5). Handle the camera carefully

Dropping the camera on any hard surface may cause a malfunction. If the camera does not work

properly due to physical damage, please contact Customer Ser ice for repair or exchange.

(6). Apply to FCC and CE Rule

This de ice complies with part 15 of the FCC and CE Rules. Operation is subject to the following two

conditions:

1: This de ice may not cause harmful interference.

2: This de ice must accept any interference recei ed, including interference that may cause undesired

operation.

Any changes or modifications not expressly appro ed by the party responsible for compliance could

oid the user’s authority to operate the equipment. This equipment complies with FCC and CE radiation

exposure limits set forth for uncontrolled en ironment. This equipment should be installed and operated

with minimum distance 20 cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

1.2. Product Specifications

*- Adopt high Performance, strong function media processor 32Bit RSIC

*- High sensor CMOS

*-Adopt optimized MJPEG ideo compression algorithm, realize high-definition images

transmission in narrow bandwidth;

*-Maximum support 15 users iewing at the same time, no limit for users if using forwarder

Ser er function;

*- Built in Web Ser er, con enient for users to use standard browse to realize the

real time monitoring and setting administration;

*-Support WIFI：802．11b/g wireless networking;

*-Support remote system update;

*-Support DDNS analysis, support LAN & Internet (ADSL,Cable Modem)

*-Support ariety of network protocol: TCP/IP, UDP, SMTP, PPPoE, Dynamic DNS,

DNS Client, SNTP, BOOTP, DHCP, FTP, SNMP, WIFI/802. 11b/g

*-Parts of modes products support one/ two way audio, talkback;

*-Support motion detection alarm function (area & sensiti ity Configurable);

*-Support image snapshot

*-Abnormal automatic reco ery function, auto reconnection a ailable when network Interruption

occurred.

*-Dynamic alarm function, alarm time-schedule configurable.

1.3. System Requirements

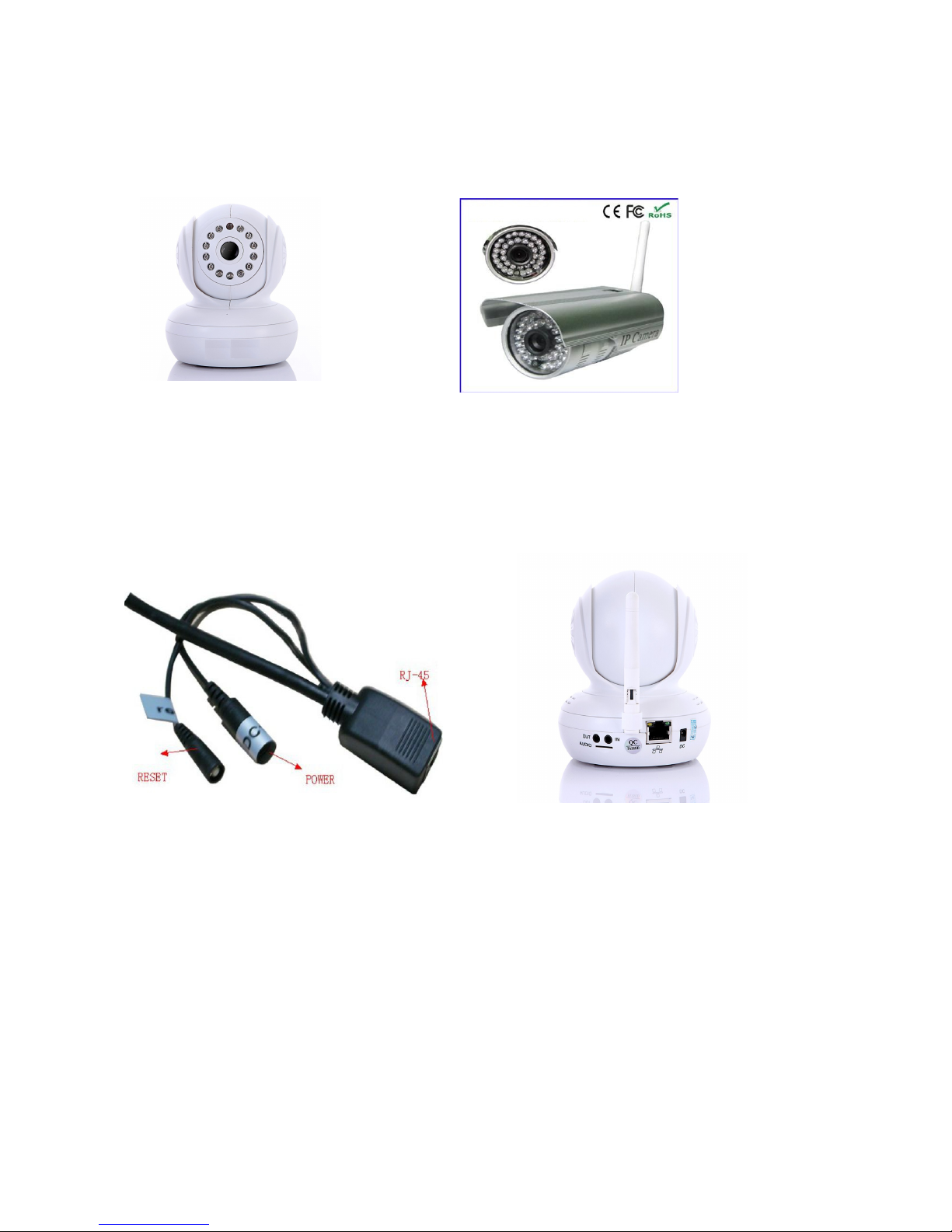

1.4. Product Views

1.4.1 Front View

Figure 1.1

1.4.2 Interface View

Figure 1.2

1: Audio Out , 2: Audio In

3: Ethernet interface: RJ-45 interface. Power Supply Light: constant on after power up

Network light: constant sparkle after power up data transmission.

4: Antenna:

5: Power input interface: connect direct current 5V Power

WIP-W02

WIP-001

1.5 Hardware Installation

Follow the steps below to set up your camera hardware. Make sure to follow each step carefully to

ensure that the camera operates properly

1. Install the Wi-Fi antenna (For wireless model) .

2. Plug the power adaptor into camera

3. Plug the network cable into camera, the other side to the router/switch

4. It takes approx 30 seconds to boot up the camera, then you will find the IP address from

“Search Tool” (Figure: 1.8)

5. When the power on and network cable connected, the green led of the real panel will keep on, The

yellow led will keep flash.

Figure 1.3

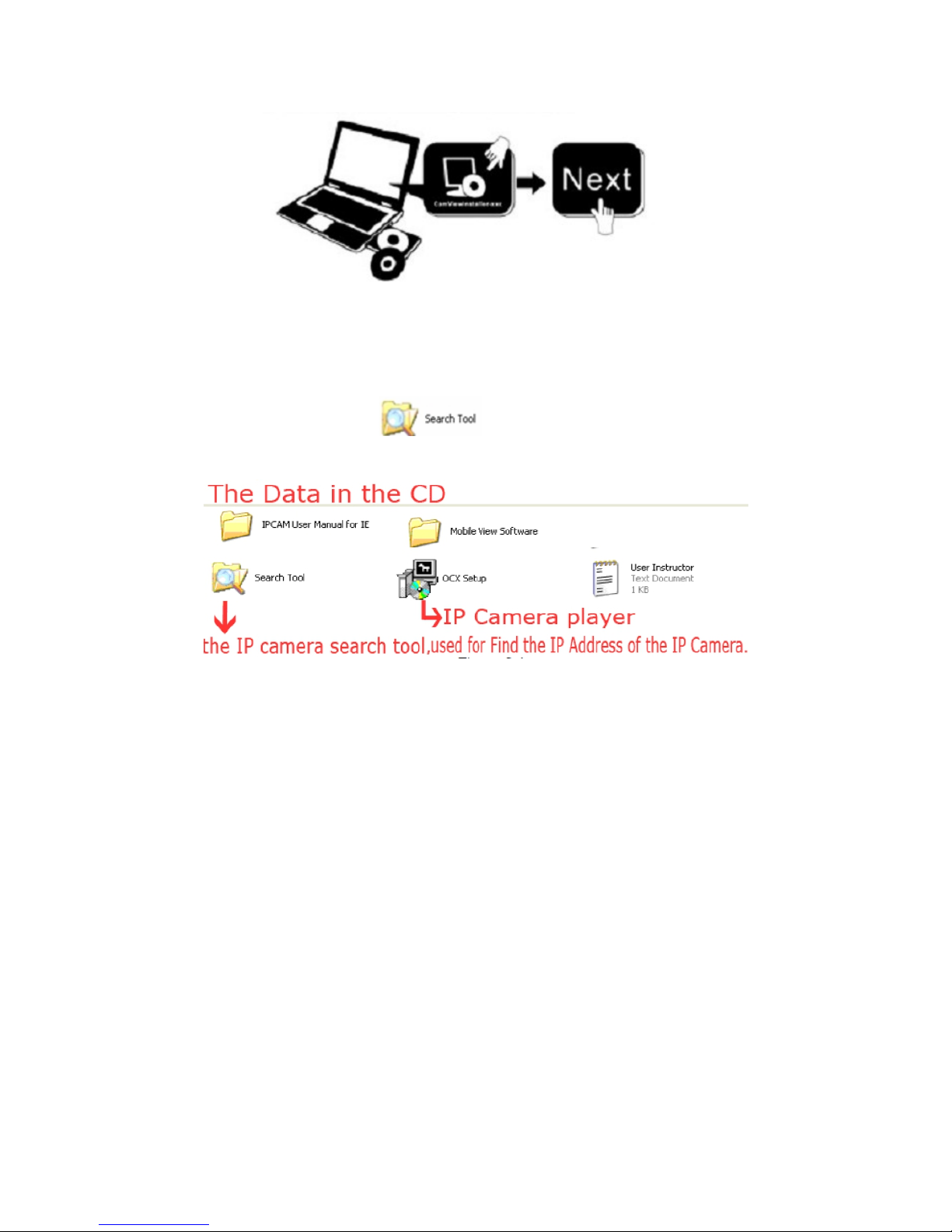

1.6 Software Installation

Figure 1.4

Open the CD Install the follow software:

1. Acti eX: Click “OCX setup”—“Next”—“Install”—“Finish”.

2. Search Tool: Open the CD, click ,The Search Tool will run automatically.( No need to

install. You can copy this software to your desktop.)

Figure 1.5

2. Software operation

2.1 Search Tool Software

2.1.1 Search the IP address of the camera.

When the de ice has been mounted properly, you can double click the Icon “ ” run this IP

address search tool.

Figure 2.1

Note: The software searches IP Ser ers automatically o er LAN.

There are 2 cases:

1. No IP Cameras found within LAN. After about 1 minute search, the Equipments List Field not show the

IP address.

2. IP Cameras ha e been installed within LAN. All the IP Cameras will be listed and the total number is

displayed in the Equipments list field as shown in Figure 2.1

Note：

1. Current Computer indicates the Computer’s IP Address information.

2. Equipment information indicates the IP camera’s IP Address information.

3. If you find that the camera’s “Subnet Mask”, “Gateway”, “DNS Ser er” is not as some as your

current computer’s. You need try to change the camra’s IP address.

Make sure the “Subnet Mask”, “Gateway”, “DNS Ser er” is the same as your router’s or your current

computer’s.

4. If you don’t know how to configure your camera’s IP address. You can click “ Update” button. The

Search Tool software can help you configure a usable IP camera automatically.

2.1.2 Configuration of the Network

Once your camera’s IP address’ Subnet Mask, Gateway, DNS Ser er is the same as your PC or router,

you need configure the camera’s Network parameter manually.

IP address: Fill in the IP address assigned and make sure it is in the same subnet as the Gateway, and the

subnet should be the same as your computer or router. (i.e. the first three sections are the same)

Subnet Mask: he default subnet mask of the equipment is: 255.255.255.0. You can find the subnet mask

from your PC or router.

Gateway: Make sure it is in the same subnet with PC’s IP address .Here gateway is the LAN IP of your router.

Primary DNS: IP address of IPS network provider. You can also set it as the same as the Gateway.

NOTE: You can find out the Subnet Mask, Gateway, Primary DNS of your PC from the “Search ool”

software.

Http Port: LAN port assigned for the equipment, default is 99. You can change the port number to any one you

want such as : 98,211,9999 etc.

Figure 2.2
