LST M221E Manual de usuario
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
[email protected] • WWW.LST.AT • ALL RIGHTS RESERVED
M221E_DBL_LST_EN_0804.PDF • PAGE 1
ABuilding Safety. Building Security.

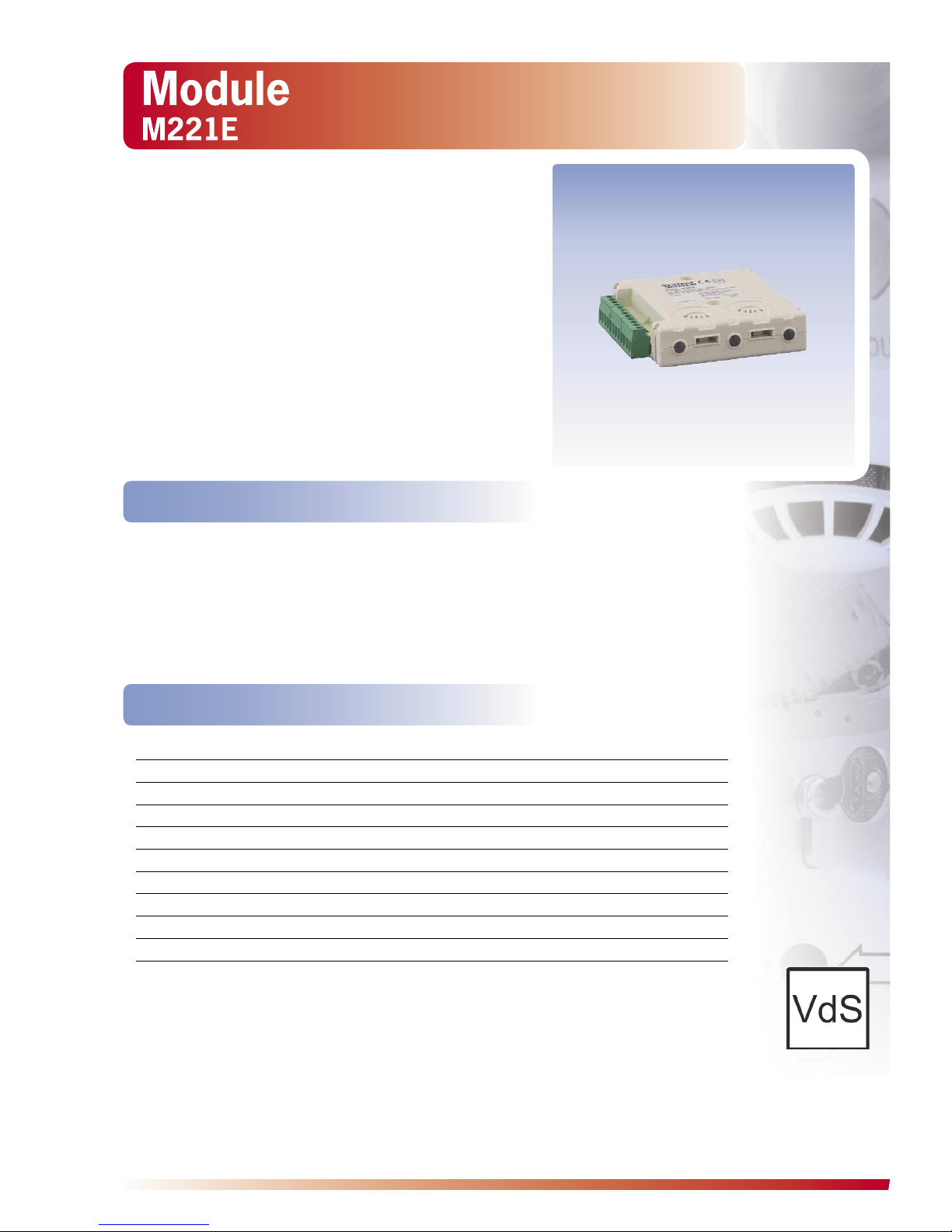

Module
M221E
Description
The addressable Module M221E serves for the line-
monitored integration of 2 contact detectors, such as
manual call points, sprinkler system contacts or super-
vising contacts, into the bidirectional communication
on the ADM loop with System Sensor/200 protocol.
Furthermore, it can be used to actuate external de-
vices by means of a relay output with a dry change-
over contact, via the ADM loop. Each input as well as
the output have individual status LEDs. Separate termi-
nals enable the operation of the module with or without
the integrated dual-isolator.
Accessories for mounting on a wall, on a plate or on a
DIN rail are available.
• ADM loop technology with
System Sensor/200 protocol
• Two input lines monitored for wire
breakage and short circuit
• One dry relay output
• Setting of module address via
decadic rotary switches
• Mounting in module box or by means
of mounting base
Specifi cations
Operating voltage Supply through loop voltage
Current consumption approx. 660µA (quiescent)
Contact rating 2A/30VDC or 0.5A/125VAC
Ambient temperature -20°C to +60°C
Dimensions L × W × H 93 × 94 × 23 (mm)
Colour cream
Weight 110g
Approval VdS G202139
Order number 249102
Order name Module 2xSurv.In 1xRel.Out/Anal./200/SS M221E
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
[email protected] • WWW.LST.AT • ALL RIGHTS RESERVED
M221E_DBL_LST_EN_0804.PDF • PAGE 2
ABuilding Safety. Building Security.
Surface Mounting Box
Dimensions L × W × H 132 × 137 × 48 (mm)
Order number 249108
Order name Surface Mounting Box for M200/SS M200SMB
Base for Mounting Plate
Order number 249109
Order name Base for Mounting Plate for M200/SS M200E-PMB
Base for Carrier Rail
Order number 249110
Order name Base for Carrier Rail for M200/SS M200E-DIN
