USER MANUAL
DAYLIGHT LED FLOODLIGHT
TOTA-LED USER MANUAL
2
The TOTA-LED is a portable flood light that emits 4275 lux (@ 1 m)
of flicker-free continuous light. It operates on AC or battery power,
and it draws only 70 W to deliver the equivalent output of a 750 W
tungsten bulb. This durable and road-ready light fixture produces
a bright 65° beam that’s ideal for illuminating large areas such as
ballrooms. By using the built-in barndoors, the TOTA-LED can also
be used as a background light or to increase the ambient light level
of a room.
The TOTA-LED is daylight balanced (5600 K) and with a CRI of 96.3,
it delivers excellent color accuracy. Its power output is controlled by
a stepless dimmer knob that ranges from 100% to 0% brightness.
An included diffuser softens the light, broadens the beam to 100°,
and minimizes the multiple shadows that are often associated with
LED lighting. The TOTA-LED generates minimal heat, and it allows
you to use the light throughout long events like weddings, without
overheating. The fixture can also be placed close to subjects like
models, animals, or food, without overheating them.
TOTA-LED
INTRODUCTION
TOTA-LED USER MANUAL 3
· LOWEL TOTA-LED floodlight with yoke
· Power source
· AC power adapter and power cord
· Diffuser
· V-mount attachment strap
· Carry case
PRODUCT
CONTENTS
PRODUCT CONTENTS
TOTA-LED USER MANUAL
4
1/4-20
mounting
socket
Umbrella
locking knob
Mounting foot Yoke
5/8 in. mounting receiver
Locking knob
Gel clips
Diffuser slotBarndoors
Umbrella mount
Tilt locking knob
PRODUCT
OVERVIEW
Power adapter
AC power
cable
Carrying
case
3-pin XLR cable
TOTA-LED USER MANUAL 5
PRODUCT OVERVIEW
Hanger loop
Mounting-shoe
slot
Dimmer control box
V-mount
battery slot
Battery
release button
D-tap power
socket
Battery
contacts
Power output
cable
3-pin XLR
power input
3-way power
switch
V-mount adapter with
touch-connect strap
Brightness
control
TOTA-LED USER MANUAL
6
PRECAUTIONS
· Please read and follow these
instructions, and keep this manual in
a safe place.
· Make sure the power is off when the
light is not in use.
· Keep this unit away from water and
any flammable gases or liquids.
· Make sure the unit is powered off
when plugging it into a power source.
· Use only the correct,
recommended voltage.
· Do not attempt to disassemble or
repair the equipment—doing so will
void the warranty, and Lowel will not
be responsible for any damage.
· Handle the unit with care.
· To ensure stability of the light, a
counter weight attached to the yoke
may be necessary.
· The power supply is listed as a
class 2, LPS power unit.
· Do not stare directly at the lights
when they are powered on.
· Clean the unit with only a soft,
dry cloth.
· Keep this unit away from children.
· Use only parts provided by the
manufacturer.
· Make sure the item is intact and that
there are no missing parts.
· All images are for illustrative
purposes only.
PRECAUTIONS
TOTA-LED USER MANUAL 7
INSTRUCTOONS
MOUNTING THE
LIGHT POWERING THE
TOTA-LED
The TOTA-LED can be powered directly from
an AC outlet or by a V-mount battery
(not included).
Using the TOTA-LED with AC power
Important! The TOTA-LED is a multivoltage
fixture capable of running on 100–240 V, 50/60
Hz. The included cable has a 120 V, 50 Hz
(North American) plug. To use this fixture with
other voltages, you must use a plug adapter
(sold separately).
1. Connect the AC power adapter to the
dimmer control box with the 3-pin XLR
power cable, and plug the power cable into
an outlet.
The two-way 5/8-inch receiver allows the yoke
to be mounted vertically or horizontally.
Mount the yoke horizontally to use the TOTA-
LED as a flood light. (Figure A)
Mount the yoke vertically to add an umbrella
to your setup. (Figure B)
1. Make sure the tilt locking knob is fully
tightened.
2. Loosen the locking knob, and place the
5/8-inch receiver on a light stand.
3. Tighten the locking knob until secure.
4. Loosen the tilt locking knob to adjust the
angle of the light, and tighten.
1
A B
TOTA-LED USER MANUAL
8
INSTRUCTIONS
2. To connect the power output cable to the
TOTA-LED’s 4-pin connector, align the
internal notch and channel of the two
connectors and press the two together.
Then tighten the locking collar until
secure.
Important! The connectors should easily
attach. Don’t use force to connect the control
box to the light fixture.
To move the control box safely out of
the way and avoid clutter:
1. Align the yoke’s mounting foot with the
mounting shoe on the top of the
control box.
2. Insert the foot into the mounting shoe,
and slide the foot into the slot. Tighten the
locking wheel until secure.
1 2
2
POWERING THE TOTA-LED
(CONTINUED)
TOTA-LED USER MANUAL 9
INSTRUCTIONS

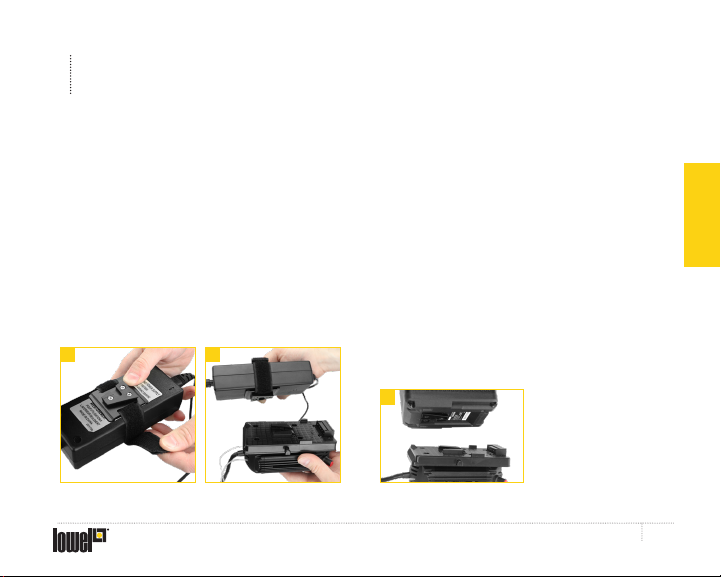

Alternative method:
1. Wrap the touch-connect strap securely
around the AC adapter.
2. Insert the V-mount adapter into the
V-mount slot of the control box until it
clicks into place.
3. Once the AC adapter is secured to the
control box, use the hanger loop to hang
the control box on a hook or on your
light stand.
Using the TOTA-LED with Battery Power
1. When attaching a V-mount battery, make
sure the power switch is in the off position,
and disconnect the AC adapter so the control
box is not plugged into a wall outlet.
2. Align the battery terminals with the contacts
in the battery mount.
3. Place the battery down into the mount, and
push the battery toward the contacts until it
clicks into place.
Gold-mount style batteries can be used by
connecting them to the control box with a D-tap
power cable (not included).
POWERING THE TOTA-LED
(CONTINUED)
1 2
2
TOTA-LED USER MANUAL
10
INSTRUCTIONS
ADJUSTING THE
LIGHT
Brightness Control
The brightness control on the control box can
adjust the output from 100% to 0%.
Diffuser
A diffuser is included to soften and spread
the light. It will also eliminate the multiple
shadows that can be caused by the LED
array.
Insert the diffuser by sliding it into the
diffuser slots.
For a more direct light with greater contrast
and higher output, remove the diffusion filter.
Flaps
Adjust the barndoor flaps to aim the beam
and contain light spill.
Umbrella
An umbrella hole and locking knob are built
into the yoke and angled so the light will
be centered when the umbrella is added to
your setup. The yoke will accommodate an
umbrella up to 45 inches.
Gel Filters
Use the integrated gel clips on the barndoors
to hold a gel filter (not included).
Adding Light-Shaping Accessories
The 1/4-20 mounting socket is perfect for
adding a gooseneck or articulated arm
to hold accessories such as gobos, flags,
fingers, and dots.
